Adapter board 24 pin E24 socket to PluX16

This adapter board can be connected to all decoders with an E24 connection and offers a PluX16 interface on the locomotive side. This means, for example, a LokSound 5 Nano or LokPilot 5 Nano can be easily installed in older locomotives that only provide a PluX16 interface (e.g. some Fleischmann H0 locomotives or Piko N or TT locomotives)

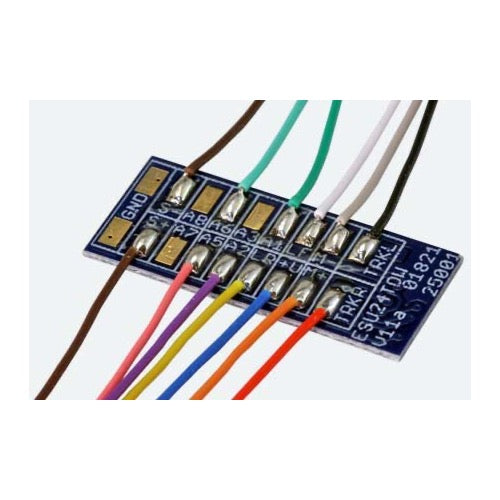

Adapter board, 24-pin E24 socket to open wires, 88mm, heat shrink

The E24 adapter board is suitable if you want to digitize a very small locomotive without a digital interface using the LokSound 5 Nano. With dimensions of only 19.6 mm x 8.5 mm, the board is exactly the same size as the decoder itself and therefore only increases the thickness as a “sandwich”. Already soldered connection wires with a length of approx. 88 mm for power pickup, motor and speaker as well as U+, the two light outputs and AUX1, AUX2, AUX5 ensure easy handling and wiring. Soldering pads are available for AUX3, AUX7 and AUX8.

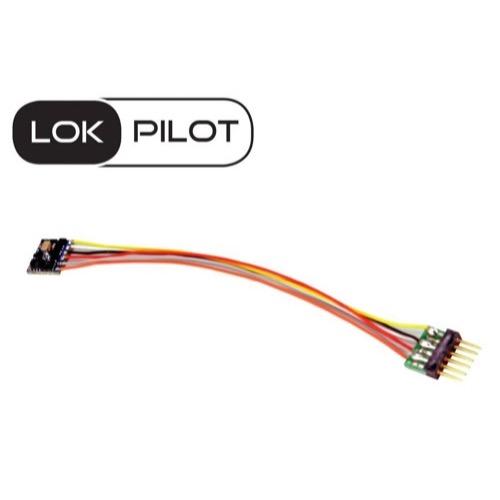

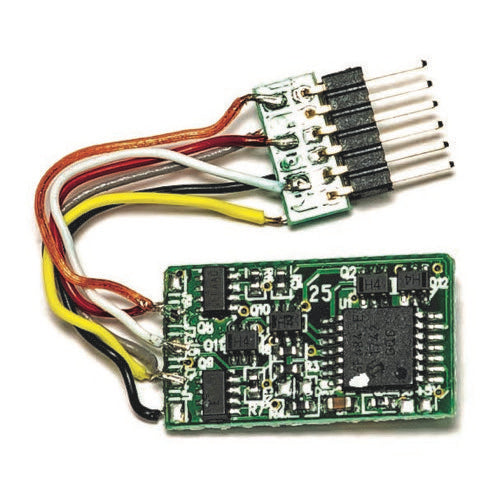

The Standard 6 pin Decoder measures at 18mm in length and comes complete with wires shown.

Specification

• Item Scale: 1:76 Scale
• Gauge: OO
• Finish: Painted
• Colour: Green

Caution: Not for use with more than 15 Volts track voltage. Suitable for HO Scale ONLY. Direct plug in to locos equipped with NMRA 8 pin plug

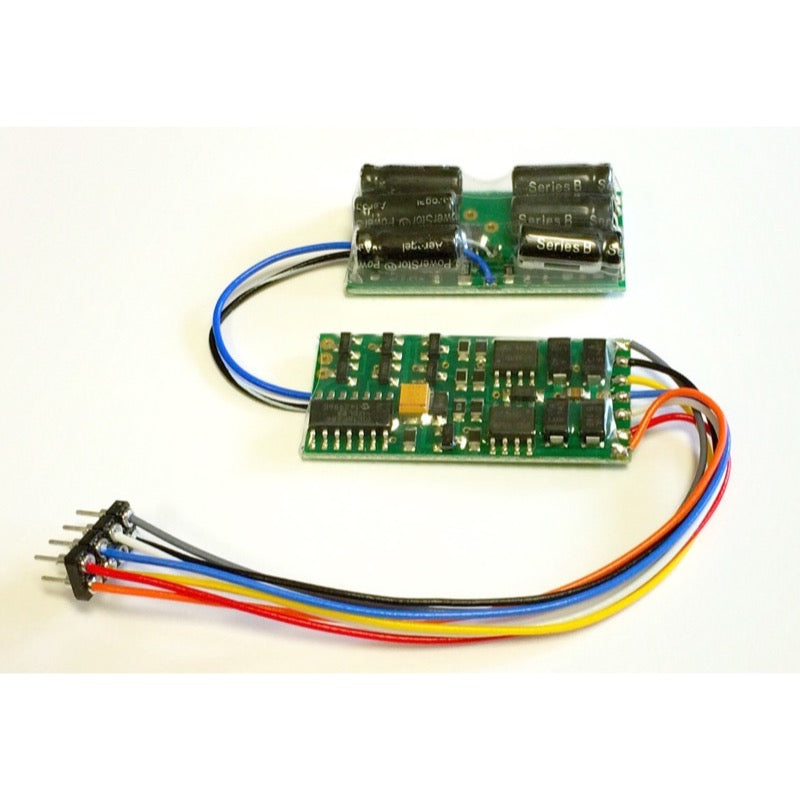

Features

• NCE No-Halt_Insurance technology, keeps locos moving over dirty track
• Supplied as two pre-wired modules for easier, more flexible installation
• Silent Running,torque compensated motor drive
• Motor rating 1.3 Amp continuous, 2 Amp peak (stall)
• All four function outputs have lighting effects generators
• Select from 15 different lighting effects
• Full support for LED lighting
