10 Amp Brushed 2-in-1 ESC / SLT Receiver Combo

Specifications

• Maximum Continuous Current: 10A

• Motor Type: Brushed

• Connector Type: PH 2.0 (High-Current Ultra Micro)

• Product Length: 1.2" (30 mm)

• Brakes: Adjustable Drag Brake

• Programmable: No

• Forward: Yes

• Reverse: Yes

• Product Width: 1.2" (30 mm)

• Technology: SLT Protocol

• Amperage: 10A

• BEC Type: Switch-Mode

• BEC: Yes

• BEC Voltage: 5V

• Product Height: 0.6" (15 mm)

• BEC Continous Current: 1A

• Low-Voltage Cutoff Programmable: No

• Output Connector: PH 2.0

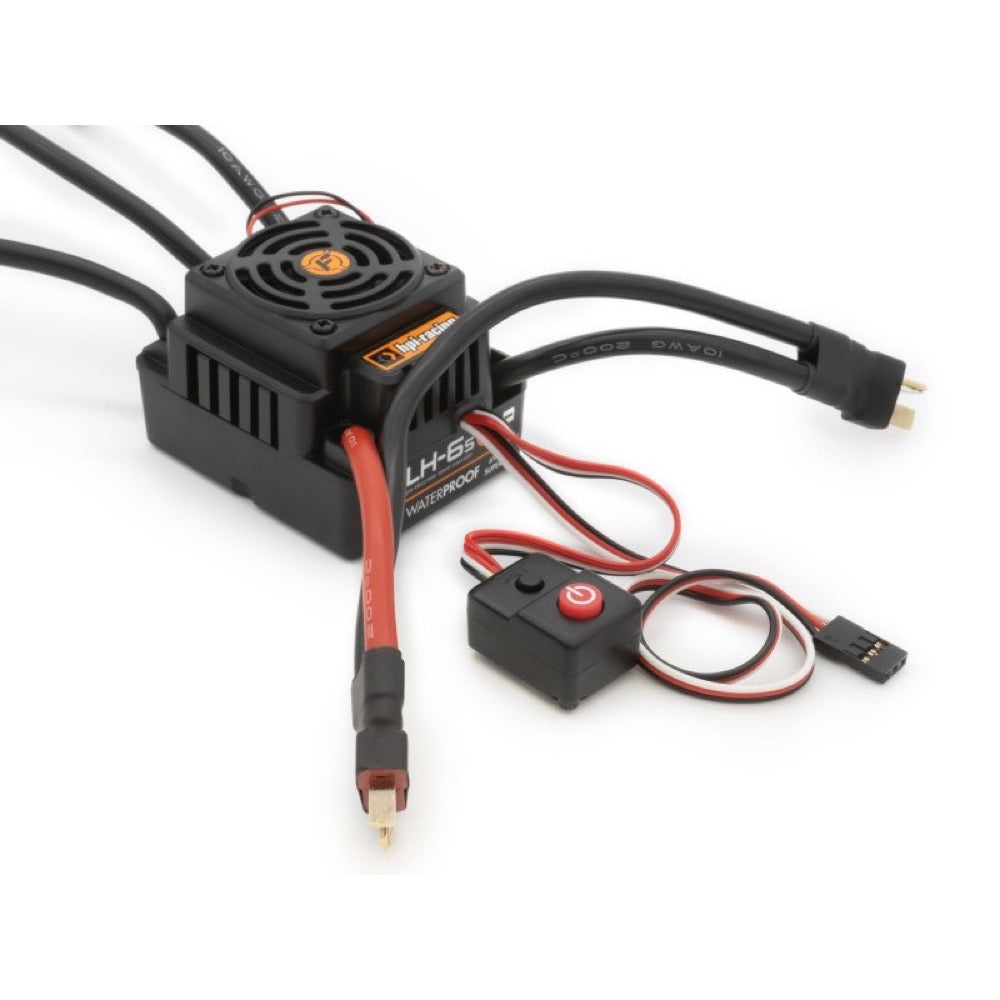

The Flux ELH-6S ESC is the perfect match for the #160354 Flux MLH-2200 1/8th scale brushless motor - it's able to pump up to 150 amps of power to the motor for amazing stunts like giant jumps, multiple back flips, colossal top speeds, and wheel-spinning sideways action!

Complete waterproof protection means you can take your truck equipped with the Flux ELH-6S into territory that would scare off other drivers: puddles, mud, beaches and more! A large fan sits on top of the case inside a protective cover to keep things cool when the weather's warm and you've been driving up to 950 amps of power (maximum boost current) through the speed controller. Extra-thick 12 gauge wires and 6.5mm bullet connectors lead to the motor, while a pair of polarized connectors let you attach any batteries equipped with T-Plug style or Star plugs. Finally, a sealed electronic push button on/off switch with a long cable let you put the button just about anywhere you want on your car or truck.

With the ability to handle twin 3S LiPo batteries (that's more than 22 volts of LiPo power!), the Flux ELH-6S ESC is the perfect way to control any 1/8th scale buggy or monster truck!

This version of the Flux ELH-6S ESC featues a 70mm Series Power Lead that is the perfect for the Savage X Flux V2!

The Flux ELH-6S ESC & Flux MLH-2200 Motor requires very powerful batteries to get the most out of them - please make sure that you use the right combination! HPI highly recommend the use of matching, identical specification high quality LiPo batteries. Using batteries with low ratings, or the use of lower quality LiPo batteries, may cause damage to your batteries and/or speed control. Using batteries below the specified ratings may void the warranty of the speed controller and/or batteries.

NOTE: Before driving in wet conditions, make sure that other electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

Specifications

• Input Voltage: 3-6S LiPo
• Continuous Current: 150A
• Burst Current: 950A
• Resistance (Ω): 0.0035
• Motor Limit: 4S LiPo <3000KV, 6S <2400KV
• BEC: 6V/3A Switching BEC
• Connector: 6.5mm Bullet
• Dimensions: 59.5x48x42mm
• Weight: 178g
• Application: 1/8th Buggy/Monster Truck

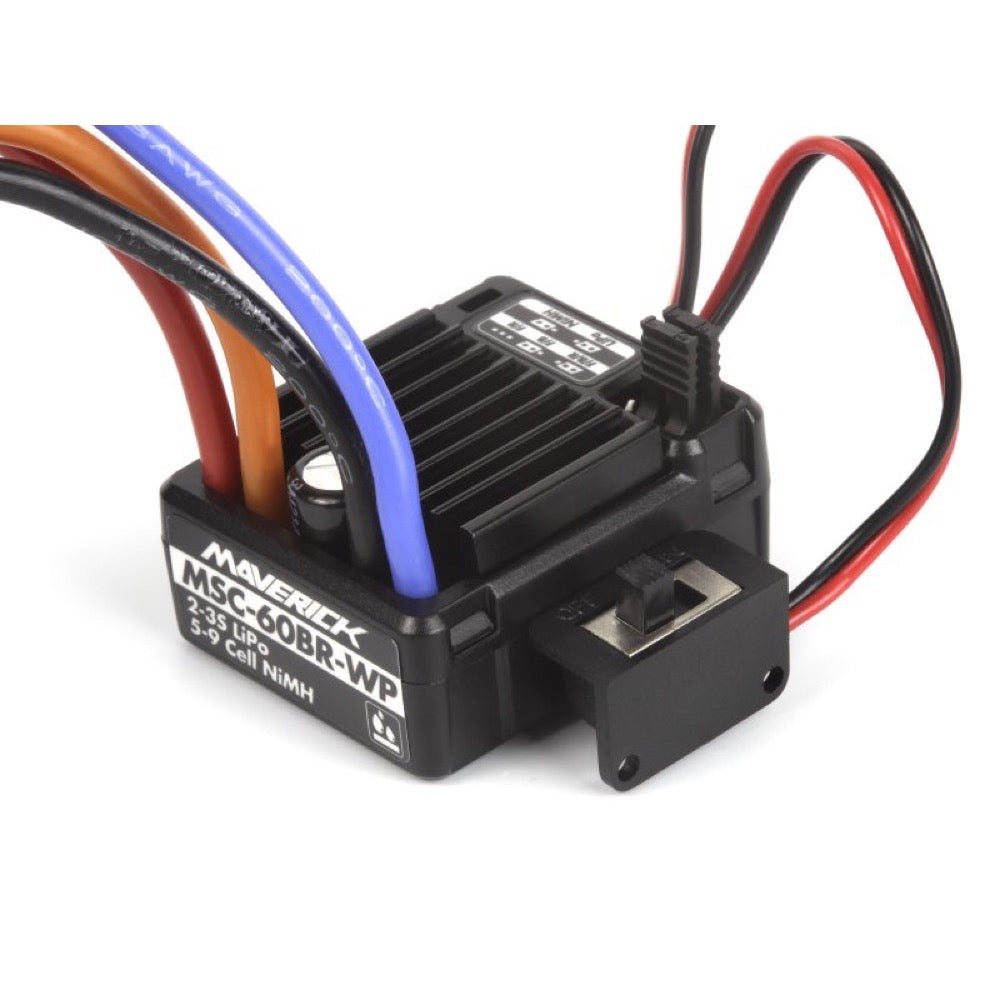

#150624 - MSC-60BR-WP Waterproof ESC with XT60

The MSC-60BR-WP is a powerful and durable speed controller that is fantastic for all RC vehicles equipped with a brushed motor of 12 turns or more. The MSC-60BR-WP is also fully waterproof, making it the only choice for anyone who enjoys playing on the beach, in snow or even through mud!

If you've got plenty of power to strap into your RC, you can count on the MSC-60BR-WP to handle it: able to handle LiPo power of 2S and 3S or between 5 and 9 NiMH cells, this speedo can handle just about anything can you fit into the chassis! Of course, a safety cut-off is fitted to protect your LiPo batteries.

Features

• 2S or 3S LiPo with voltage protection
• 5-9 cell NiMH or NiCd
• Suitable for all types of 1/10th scale vehicles

Specification

• Forward Continuous Current: 60A
• Forward Continuous Current: 60A
• Forward Burst Current: 360A
• Reverse Continuous Current: 230A
• Reverse Burst Current: 180A
• Input: 2-3S LiPo, 5-9 cell NiMH/NiCd
• Applications: 1/10 on-road, off-road buggy, short course truck, truggy, crawler, tank, boat
• Motor Limit: 2S LiPo or 6 cell NiMH: 540 or 550-size motor great than or equal to 12 turn, RPM over 30,000 at 7.2v
• Motor Limit: 3S LiPo or 9 cell NiMH: 540 or 550-size motor great than or equal to 18 turn, RPM over 20,000 at 7.2v
• Resistance: FWD 0.001 Ohm, BWD 0.002 Ohm
• PWM Frequency: 1 KHz
• BEC: 6V/3A
• Battery Connector: XT60
• Dimensions: 36.5x32x18mm
• Weight: 39g

NOTE: Before driving in wet conditions, make sure that other electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

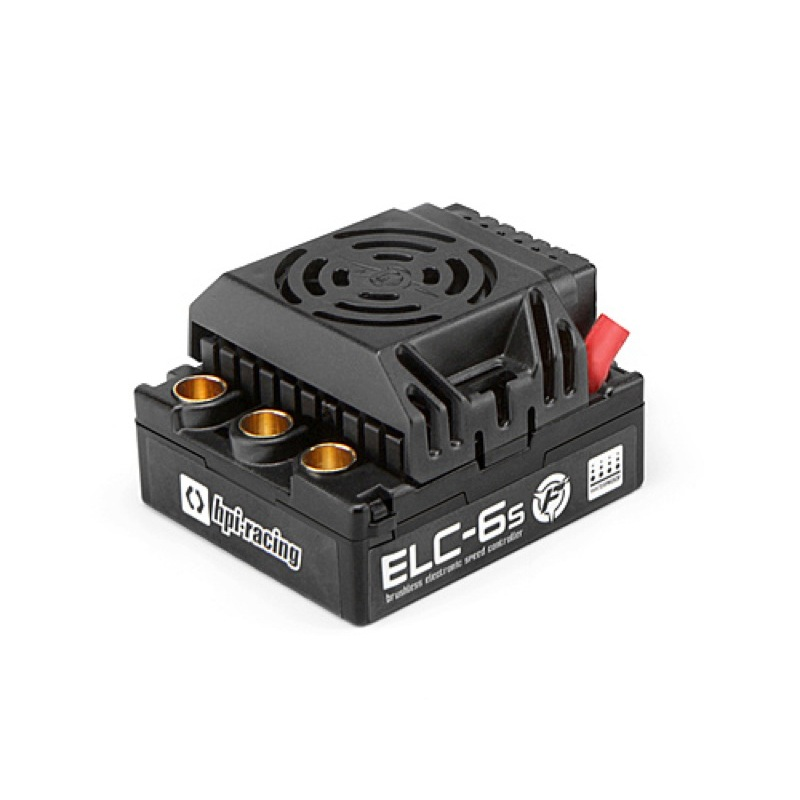

When you need to strap in more power for your 1/8th scale vehicle, the HPI ELC-6S should be at the top of your list! It's the ideal speed controller to rely on for any on- or off-road vehicle that's going to be driven hard in all conditions.

The ELC-6S is perfect for monster trucks, buggies and any other RC vehicle that you may want to drive in the rain, through puddles and anywhere you like. It's fitted with 2 official Deans connectors so you can fit two batteries (1S, 2S or 3S) batteries for massive acceleration, maximum fun and awesome speed!

• Input voltage: MIN 2s LiPo, MAX 6s LiPo
• Max continuous amperage: 120A (full throttle continuous operation with cooling airflow)
• BEC specifications: User selectable output between 5 and 7 volts
• Operating environment: Waterproof* design allows for use in nearly any environment.
• Brake: Proportional
• Reversible: Yes - with lockout
• Size: L 47mm (1.86"), W 56mm (2.19"), H 34mm (1.33")
• Weight (without battery connector soldered to ESC): 111.5 g (3.93 oz)
• Connector: 6.5mm Bullet

NOTE: Before driving in wet conditions, make sure that other electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

Compatible with

• MJX-H8H

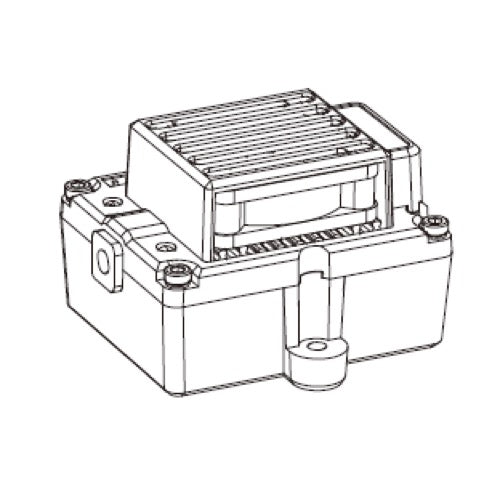

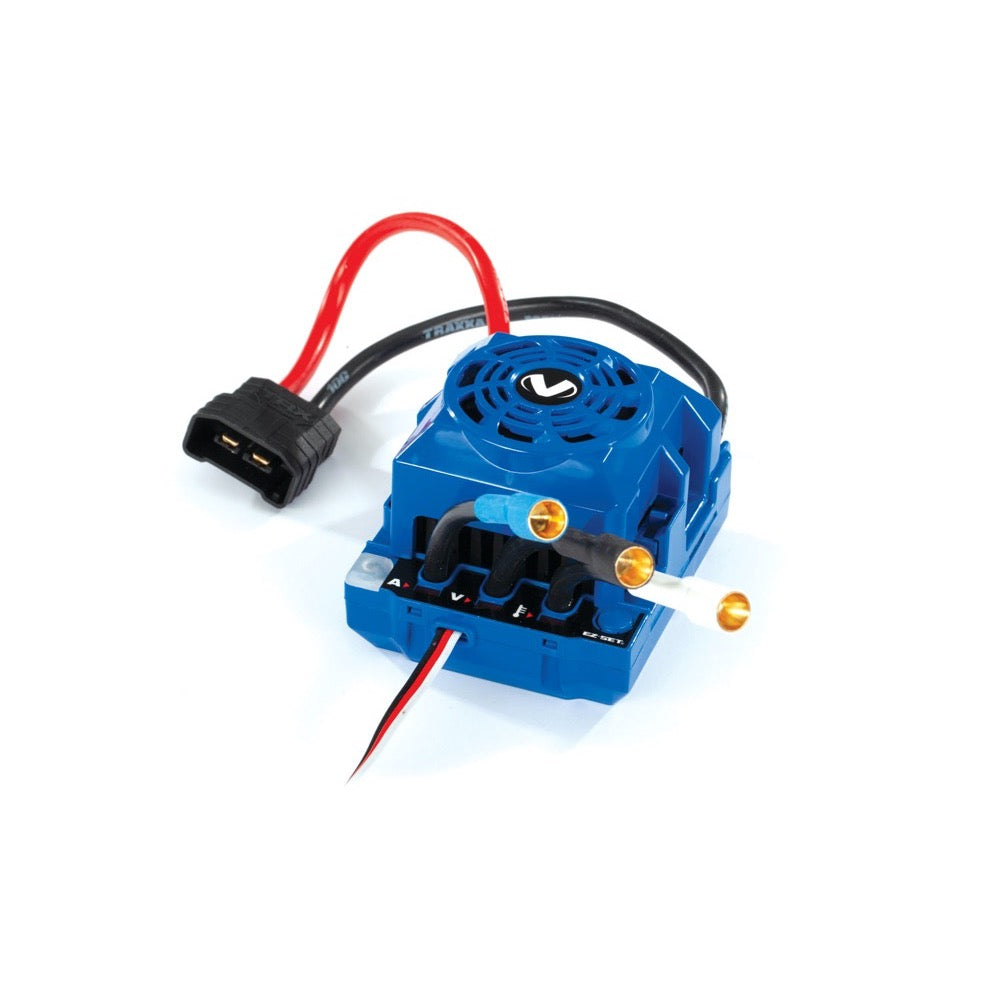

Velineon VXL-4s High Output Electronic Speed Control, waterproof (brushless) (fwd/rev/brake)

The advanced Velineon® VXL-4s ESC pours on the power you demand for over-the-top fun. An integrated fan cools the oversized heatsink to keep ESC temperatures down and extend run times. Bright LED status lights keep you informed with temperature and voltage warnings. Internal safety programming constantly monitors ESC performance to protect it from damage. The VXL-4s comes pre-programmed with real-time telemetry capability using the optional 6511 Wireless Module (sold separately) installed in a Traxxas TQi™ transmitter. Use the free Traxxas Link™ App to see speed, RPM, voltage and ESC temperature directly on your mobile device.

Replacement part for these models:

• Maxx®

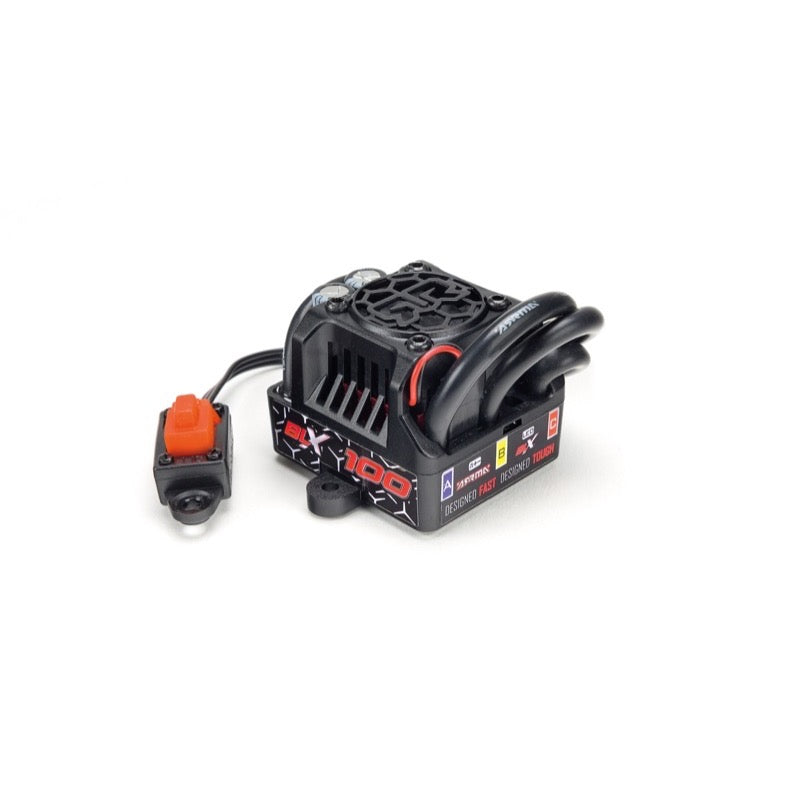

The BLX100 100A waterproof ESC provides consistent power control and is 3S LiPo ready.

Features

Fitted with super-reliable EC5 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX120 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.

The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

Includes

• 1 x BLX100 Brushless 3S ESC

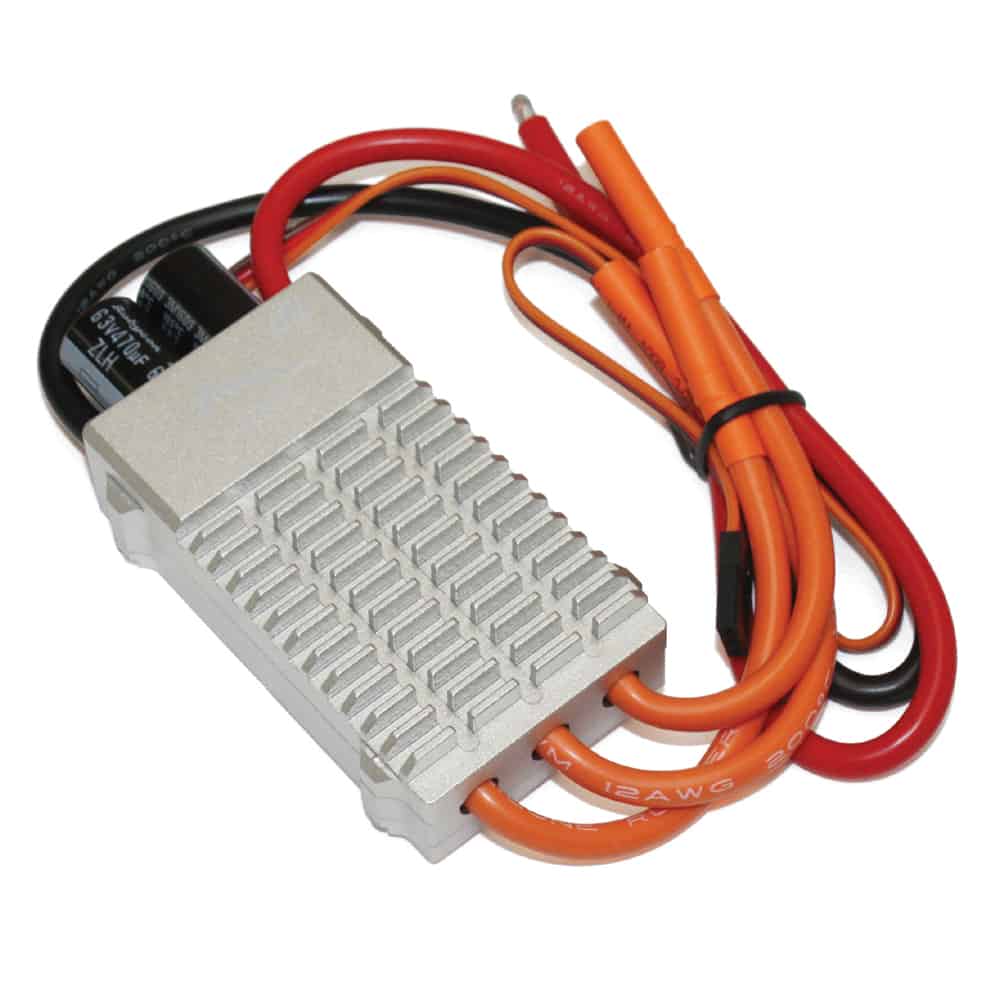

Dualsky Summit 100HV Brushless ESC ideally suitable for use with their GA Series X-Motors.

Features

• 32-bit ARM core
• Auto timing
• Quick acceleration
• Anti-spark
• Reaction torque limit program (Pattern Flight Edition Special)
• Drag brake & energy recovery
• Brake Adjustable
• OPTO throttle signal (HV special)
• Performance UBEC (Low voltage version special)
• Multiple protection
• Full CNC Aluminium case
• Tests passed with Dualsky GA, HD, EA, DA, ECO motors
