Forward rotation motor set - white (MQ4D)

Specification

Part no. : PMQ1109

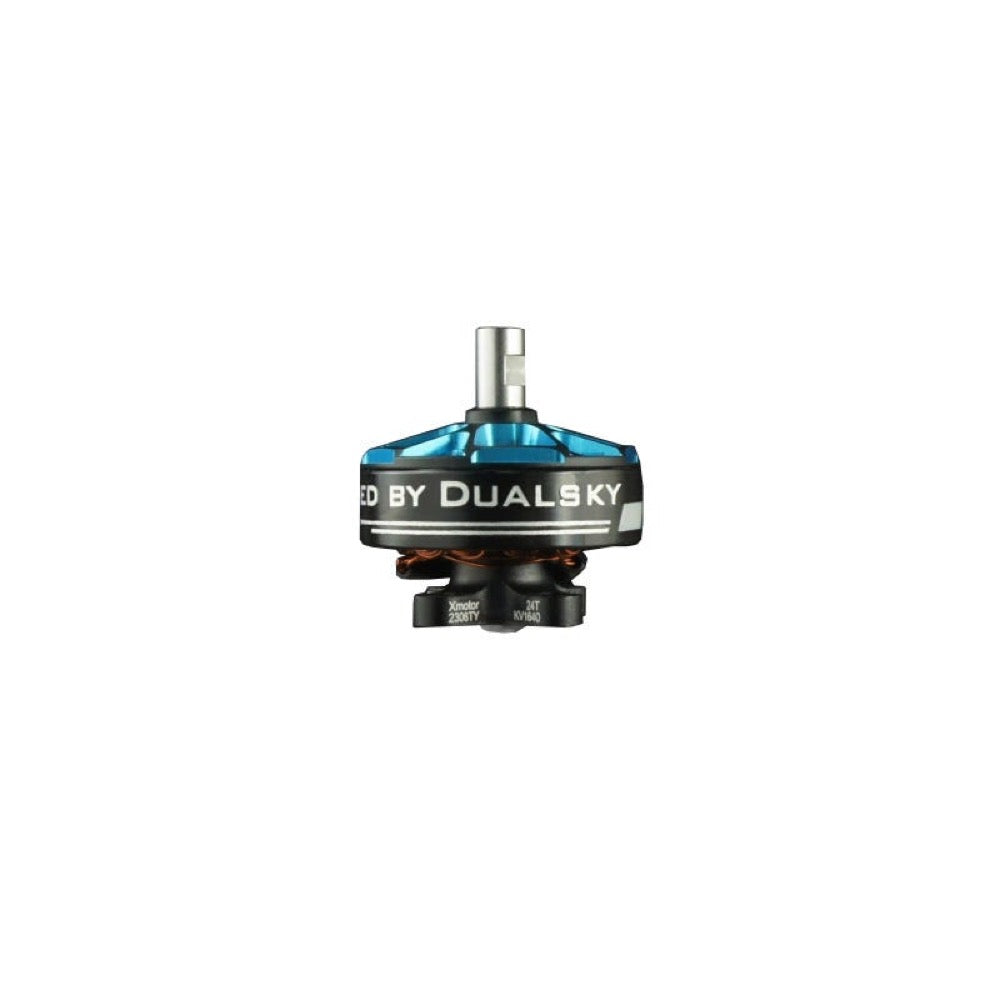

This is the Dualsky 2306 Typhoon series. Works great with folding propellers, and is suitable for F5K, eRES (F5L), and ASFC P5B, gliders. Also suits FPV wings.

Features

• Great fit for applications requiring a folding propeller
• Weighs only 32 grams
• 5mm hollow shaft

Specification

• RPM/V (KV): 2800
• Weight (g): 32
• Diameter (mm): 28.6
• Length (mm): 21.4
• Diameter of Shaft(mm): 5, hollow
• Pitch of holes (mm): 16/16
• Input Connectors: GC2.0, 3 Pairs
• Slots & Poles: 12N14P
• lo@10V(A): 1.67 @7V
• Resistance(Ri)(mOhm): 28.3
• No.of Cells(LiPo): 21.3
• Max. EfficiencyCurrent(A): 19.5
• Max. Burst Current (15S)[A]: 39
• Max. Power(15S) [W]: 312
• Torque (mNM) E: 190
• Recommended ESC: XC4018BA, Timing 15° (Middle)
• Propeller: 2S: 7x5, 8x4, 8x5, 7x4 (3-Blade) 3S: 5x5, 6x3, 6x4, 5.1x4.3 (3-Blade)
• Applications: F5K, eRES(F5L), ASFC P5B, FPV wings

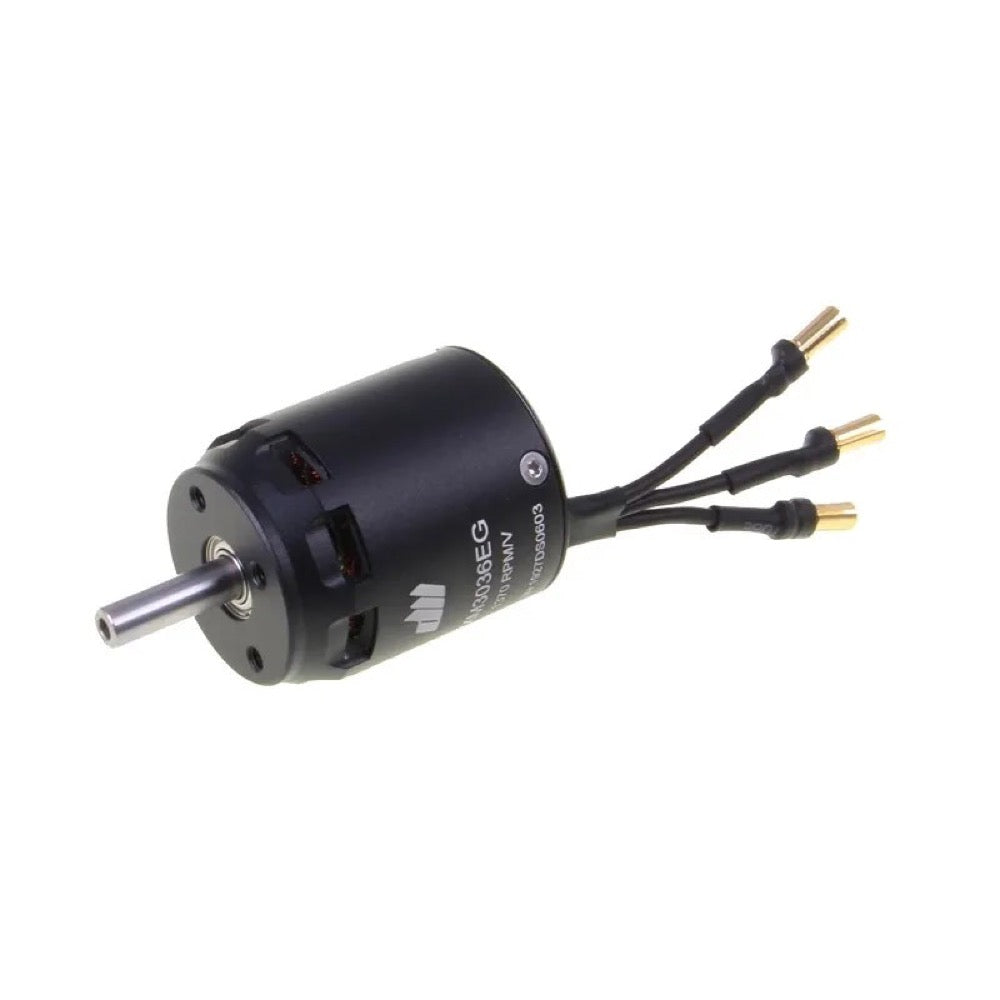

The XM3040EG-9 brushless motor from Dualsky is suited for FAI F5J gliders. Weighing a mere 104g and able to develop 400-500W this motor is perfect for F5J gliders weighing up to 1800g.

Features

• Suitable for FAI F5J Gliders
• Over-sized hollow shaft, front bearing
• Three-point bearing distribution results in a strong resistance against the impact of landing
• Based on the design of EA V3 high-torque systems
• Active cooling fan
• 15% more power than the Dualsky EA motors

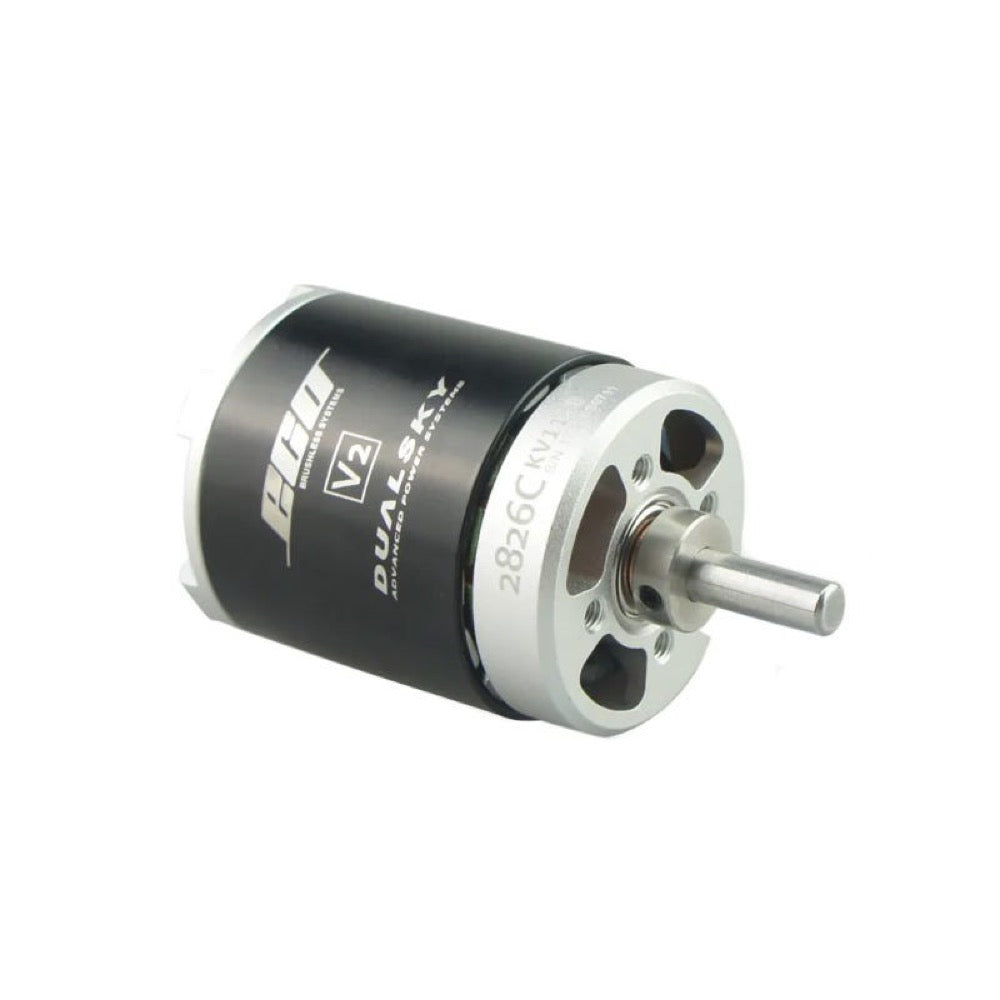

ECO V2 has made great improvements in many respects. It brought new electromagnetic design, more competitive performance and efficiency, long-time endurance and water-proof. This ECO 2826C brushless motor is designed to suit 30E class models.

Features

• Classic Dualsky five-spoke back cover with simple lines
• Motor structure strength increased by 25%
• Optimised stress distribution and strength increased but it did not increase the weight.
• High strength and high toughness main shaft (HRC48)
• The rotor limit adopts 2 insurance modes of circlip and stainless steel chocks
• High temperature resistant, high toughness epoxy glue the impact resistance increased by about 10G, and the survival ability is greatly improved
• High precision double sides dynamic balancing
• Adopt NMB ball bearing, durable and low noise. ECO 41 and bigger, equipped with 3 ball bearings
• Optimised heat dissipation ways
• Motor working life significantly increased by 50% (same load and working environment)
• Modular design: main shaft, case and accessories (propeller mount and motor mount) are all compatible with the upcoming EA series. Besides, the design of the propeller mount is completely implanted from GA series.
• Up to 500V insulation level. The stator is coated with an insulating coating and completely insulated after winding.
• Waterproof splash. Rustproof main shaft, coil soak insulation, electrophoresis components and coated magnets make ECO V2 waterproof, and have no problem working in wet or rainy environments.

Specification

• RPM/V (KV): 1120
• Turns: 3.5
• Weight (g): 167
• Dimensions: 35.2x46.2
• Diameter of Shaft (mm): 5
• No of Cells: 2S, 3S LiPo
• Slots, Poles: 12N14P
• Idle Current (Io) @ 10V: 2.4
• Max Efficiency Current (A): 35
• Max Torque [N*M]: 0.56
• Max Burst Current (15S) [A]: 55
• Max Power (W) [15S]: 660
• Mounting Holes Pitch: 19/19
• Recommended ESC: XC-65-LITE or XC6018BA
• Propeller: 3S: 12x6E, 13x6.5E
• Class: .25-.32 (30E) Class e.g. Extreme Flight 48inch airplanes
• Input Connectors
• GC3.5
• Ri(mOhm)
• 19.3

Kyosho ORI28170 Motor Brless Bl Vortex

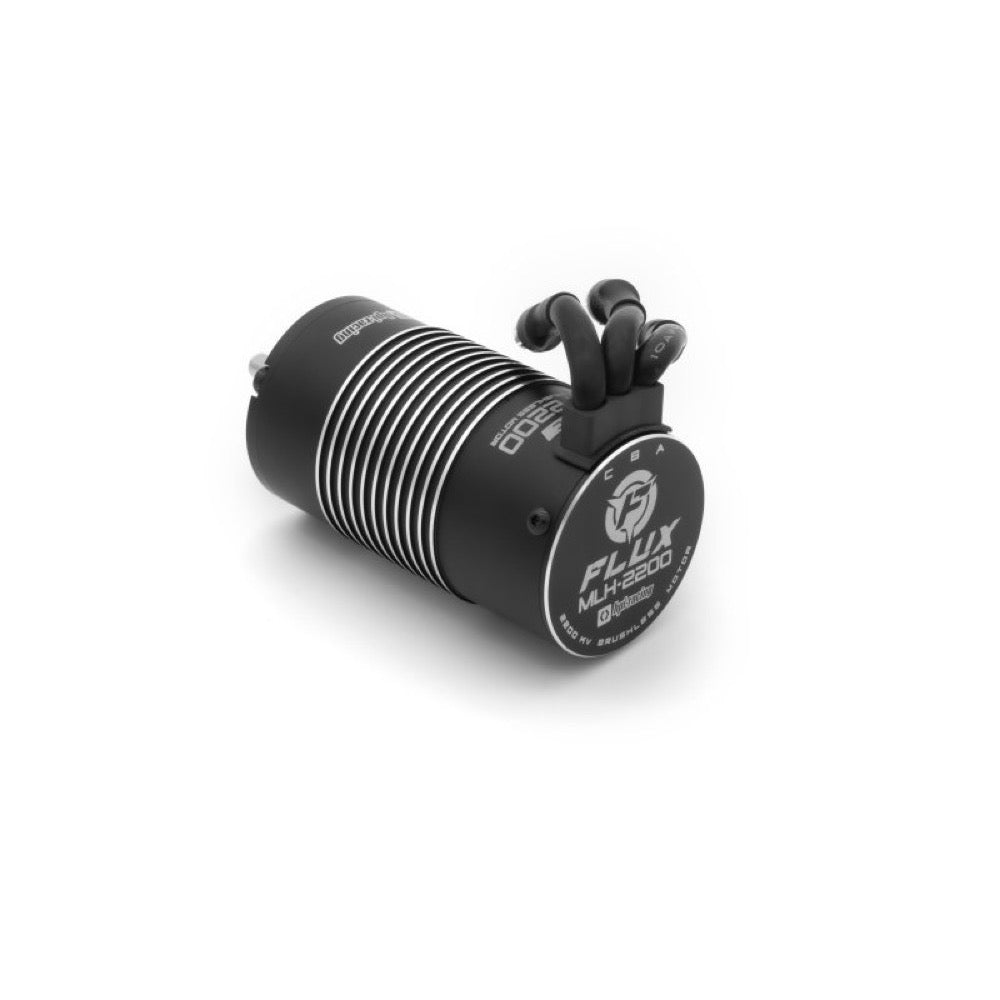

The Flux MLH-2200 is the centerpiece of our latest 1/8th scale brushless-powered vehicles. If you're looking for jaw-dropping and awe-inspiring power for your 1/8th scale off-road vehicles, this is where you can stop looking! The Flux MLH-2200 will give you more than enough power for anything you're looking for: giant air stunts, multiple back flips, colossal top speeds, and wheel-spinning sideways action!

Featuring the sleekest heatsink design of any HPI 1/8th scale brushless motor case, the Flux MLH-2200 has 11 heat-radiating ribs circling the black-anodized case. These fins help dissipate the heat that the motor will generate as it spins up to thousands of times per second to give you the awesome stunt action you want to get out of your RC car or truck.

With the ability to handle twin 3S LiPo batteries (that's more than 22 volts of LiPo power!), the Flux MLH-2200 can deal with anything you can ask of it! 6.5mm bullet connectors on 12-gauge motor connector wires transmit maximum power from the speed controller for instant wheelie or dirt-throwing action.

With a 5mm motor shaft, you can fit any of the available optional pinions for your Vorza, Savage Flux HP or Savage XL Flux.

The Flux MLH-2200 has a 4-pole rotor for high torque, fast acceleration response, and stable power output.
The machined aluminum housing, alloy steel output shaft, and high-precision bearings ensure high durability and smoothness.

Please note: The Flux MLH-2200 must be used with an ESC that can handle the immense power it requires, the #160353 Flux ELH-6S Waterproof ESC is the perfect match!

This version of the Flux MLH-2200 Motor featues 50mm Wires that are the perfect for the Savage X Flux V2!

NOTE: Before driving in wet conditions, make sure that other electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

Specifications

• KV (No Load): 2200KV
• LiPo: 2-6S
• Resistance (Ω): 0.0058
• No Load Current: 5A
• Poles: 4
• Connector: 6.5mm Bullet
• Dimensions (mm): Φ=42 / L=74
• Shaft (mm): Φ=5 / L=18.5
• Weight: 418g
• Application: 1/8th Buggy/Monster Truck

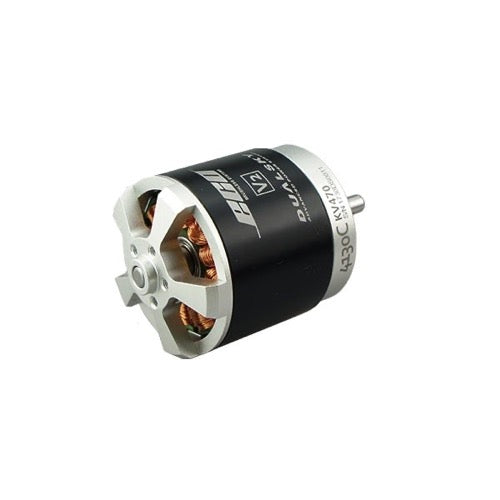

ECO V2 has made great improvements in many respects. It brought new electromagnetic design, more competitive performance and efficiency, long-time endurance and water-proof. This ECO 4130C brushless motor is designed to suit 90E-110E models and double wing 70e models, for example, Sebart Miss Wind.

Features

• Motor structure strength increased by 25%
• Optimised stress distribution and strength increased but it did not increase the weight.
• High strength and high toughness main shaft (HRC48)
• The rotor limit adopts 2 insurance modes of circlip and stainless steel chocks
• High temperature resistant, high toughness epoxy glue the impact resistance increased about 10G, and the survival ability is greatly improved.
• High precision double sides dynamic balancing
• Adopt NMB ball bearing, durable and low noise. ECO 41 and bigger, equipped with 3 ball bearings
• Optimised heat dissipation ways
• Motor working life significantly increased by 50% (same load and working environment)
• Modular design: main shaft, case and accessories (propeller mount and motor mount) are all compatible with the upcoming EA series. Besides, the design of propeller mount is completely implanted from GA series.
• Up to 500V insulation level. The stator is coated with insulating coating and completely insulated after winding.
• Waterproof splash. Rustproof main shaft, coil soak insulation, electrophoresis components and coated magnets make ECO V2 waterproof, and no problem working in wet or rain environment.

Specification

• RPM/V: 470
• Weight: 380g
• Turns: 5.5
• Dimensions: 49.5 x 55.2mm
• Slots & poles: 12N14P
• Ri(mOhm): 16.4
• Io @10V (A): 1.5
• No. of cells (LiPo): 43226
• Max Efficiency Current (A): 54
• Max. Burst Current (15S) [A]: 90
• Max. Power (15S) [W]: 1800
• Max Torque [N*M]: 2.2
• Shaft Diameter (mm): 6
• Mounting Holes pitch: 30/30
• Input Connectors: GC4.0
• Recommended ESC: XC8018BA
• Propeller: 5S: 18 x 10E, 17 x 8E / 6S: 16 x 8, 15 x 8
• Class: 0.80-.110 4-stroke

Power 25 Brushless Outrunner Motor, 870Kv, 3.5mm Bullet

The Power 25 is designed to deliver clean and quiet power for 25-size glow engine for sport and scale airplanes weighing 3 to 5.5 pounds (1.4 to 2.5 kilograms), 15-size 3D airplanes up to 3.5 pounds (1.6 kilograms), or models requiring up to 600 watts of power. It's an especially good match for 4- to 5-pound scale airplanes on the market and models such as the Sig Kadet LT-25, Sig Frazer, Lanier Extra 3.25, Global Tequila Sunrise 25 and Great Planes Taylorcraft 20.

Features

• Equivalent to a 25-size glow engine for sport and scale airplanes weighing 3–5.5 lb (1.4–2.5 kg)
• Ideal for 15-size 3D airplanes up to 3.5 pounds (1.6 kilograms)
• Ideal for models requiring up to 600 watts of power
• High-torque, direct-drive alternative to inrunner brushless motors
• Includes mount, prop adapter and mounting hardware
• External radial rotor design—6mm shaft can easily be reversed for alternative motor installations
• Slotted 14-pole outrunner design
• High-quality construction with ball bearings and hardened steel shaft
• Quite, lightweight operation

Requires

• 40–45A brushless
• ESC 3S–4S Li-Po or 10- to 14-cell Ni-MH/Ni-Cd
• 11x8 to 14x7 prop

Specifications

• Adjustable Timing: No
• Application: Aircraft
• Bushing Or Bearing: Bearing
• Connector Type: 3.5mm Bullet
• Idle Current (Io): 2.40A @ 10V
• Input Voltage: 11.11 - 16.8V
• Maximum Burst Current: 44A
• Maximum Continuous Current: 32A
• Motor Design: Outrunner
• Motor Type: Brushless
• Outer Diameter: 1.4" (36 mm)
• Product Length: 2.1" (53 mm)
• Product Weight: 0.41
• Recommended Prop Range: 11x8 to 14x7
• Resistance: .03 ohms
• RPM/Volt (Kv): 870
• Shaft Diameter: 5mm (.20 in)
• Speed Control: Sold Separately
• Voltage: 11.4 - 16.8V
• Wire Gauge: 14 AWG
