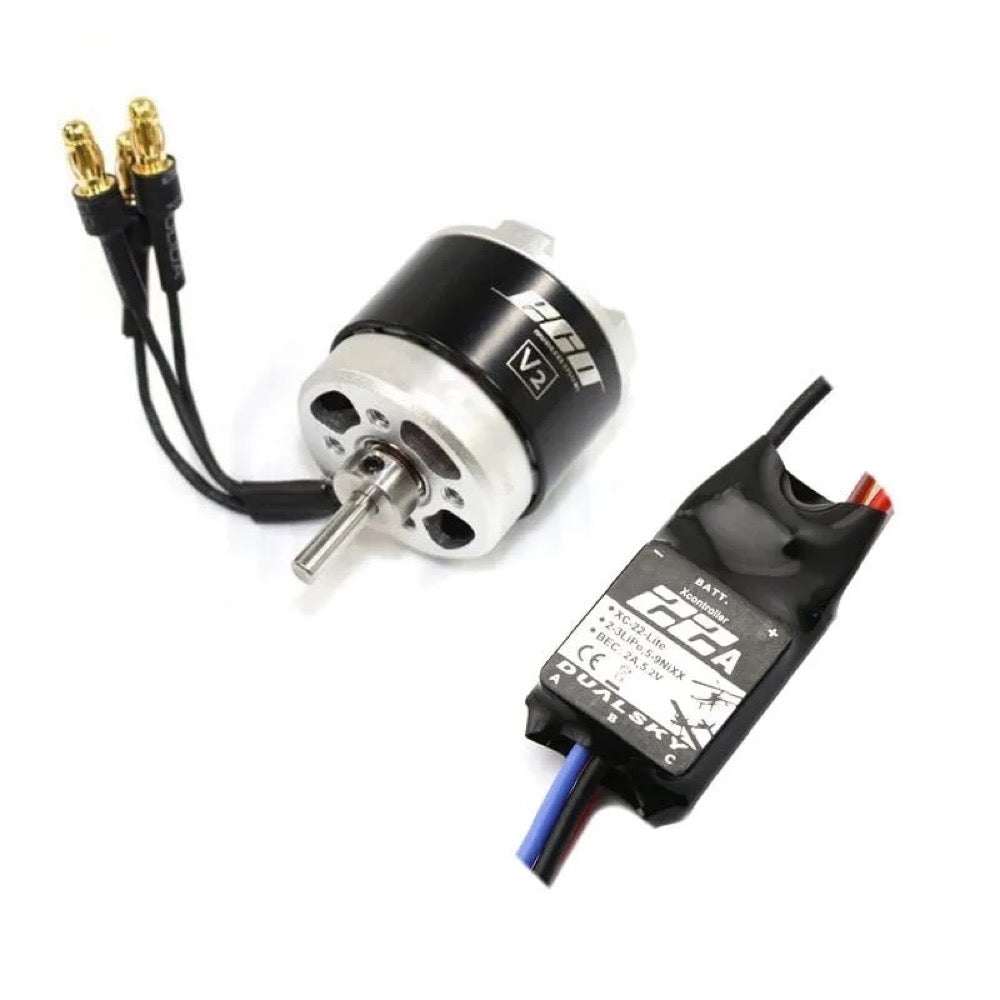

This Dualsky 400 Mini Tuning Combo consists of the Dualsky ECO 2312C 960kv motor and XC-22-Lite ESC.

The Spektrum™ Smart Firma™ 1/8th ESC + Motor Combo is a great choice for 1/8th scale buggies on 4S LiPo power. The motor features a high-precision magnetic encoder and rotor position sensor that provides an excellent one-to-one control feel when driving at any speed and at any angle.

The Spektrum Firma Sensored System is a combo that includes a Sensored 2200kv Motor and the Firma 130 Amp Sensored ESC, providing a perfect upgrade for 1/8th scale buggies.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before without installing extra components that work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.

Firma ESCs gather the data and send it to your transmitter in real time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

This ESC comes bundled with a Spektrum Firma 2200Kv Sensored Brushless Motor, which is capable of handling everything this ESC can put out and is perfect for getting you driving with Spektrum Smart technology.

ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real-time, including RPM, voltage, temperature, balance, capacity, and speed.* *See the compatibility chart for more information

EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC5™ connector equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.

SMART TECHNOLOGY BATTERY DATA

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides battery telemetry that's automatically transmitted to your compatible Spektrum radio in real-time. On your transmitter screen, you'll be presented with helpful information such as the number of cycles, battery percentage, individual cell voltage, and more!

MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

FAST, POWERFUL M4 PROCESSOR

The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

Features

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Multiple options for easy programming:
• Button programming
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Forward programming directly from the TX when used with compatible SPM transmitters
• Multi-point protection:
• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection
• Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
• Comes bundled with Spektrum Firma 2200Kv Brushless Motor
• Compact for easy installation in most applications
• Rugged plastic case with mounting tabs
• Aluminum heat sink for high efficiency
• Cooling fan
• Adjustable high-power BEC
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
• Limited 1-year warranty

Specification

• Amperage: 120A or larger
• Auto Cutoff: Yes
• Battery Connector: Solder tabs (user installable IC5 lead included)
• Battery Input Lead: None, IC5
• BEC: Yes
• BEC Continous Current: 5A
• BEC Voltage: 6V or 7.4V
• Brakes: Yes
• ESC Type: Sensored Brushless
• Forward: Yes
• Input Voltage: 7.4V - 14.8V
• Low-Voltage Cutoff Programmable: Yes
• Maximum Burst Current: 760A
• Maximum Continuous Current: 130A
• Motor Output Lead: Solder tab
• Motor Type: Brushless Sensored
• Number of Poles: 4
• Overload Protection: Yes
• Programmable: Yes
• Reverse: Yes
• RPM/Volt (Kv): 2200Kv
• Sensored: Yes
• Shaft Diameter: 0.197" (5 mm)
• Shaft Length: 0.728" (18 mm)
• Speed Control: Included
• Technology: Smart

Contents

• (1) Spektrum™ Firma™ Smart Sensored ESC
• (1) Spektrum™ Firma™ 2200Kv Sensored Brushless Motor
• (1) Spektrum Smart Sticker Sheet
• (1) IC5 Battery Lead
• (1) Product Manual

Firma Brushless Motor / ESC 2-in-1 Combo, 6000Kv: IC2

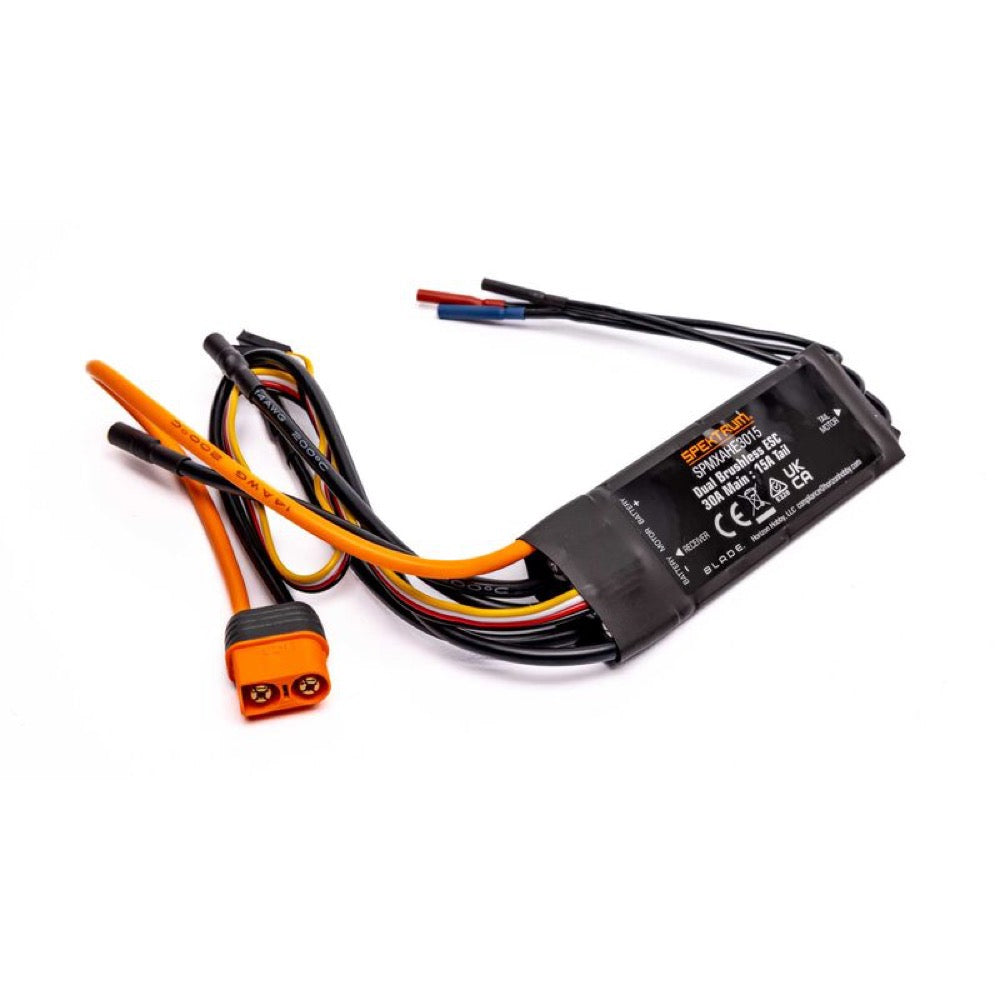

Avian Dual ESC 30A Main, 15A Tail 3S-4S: Eclipse 360

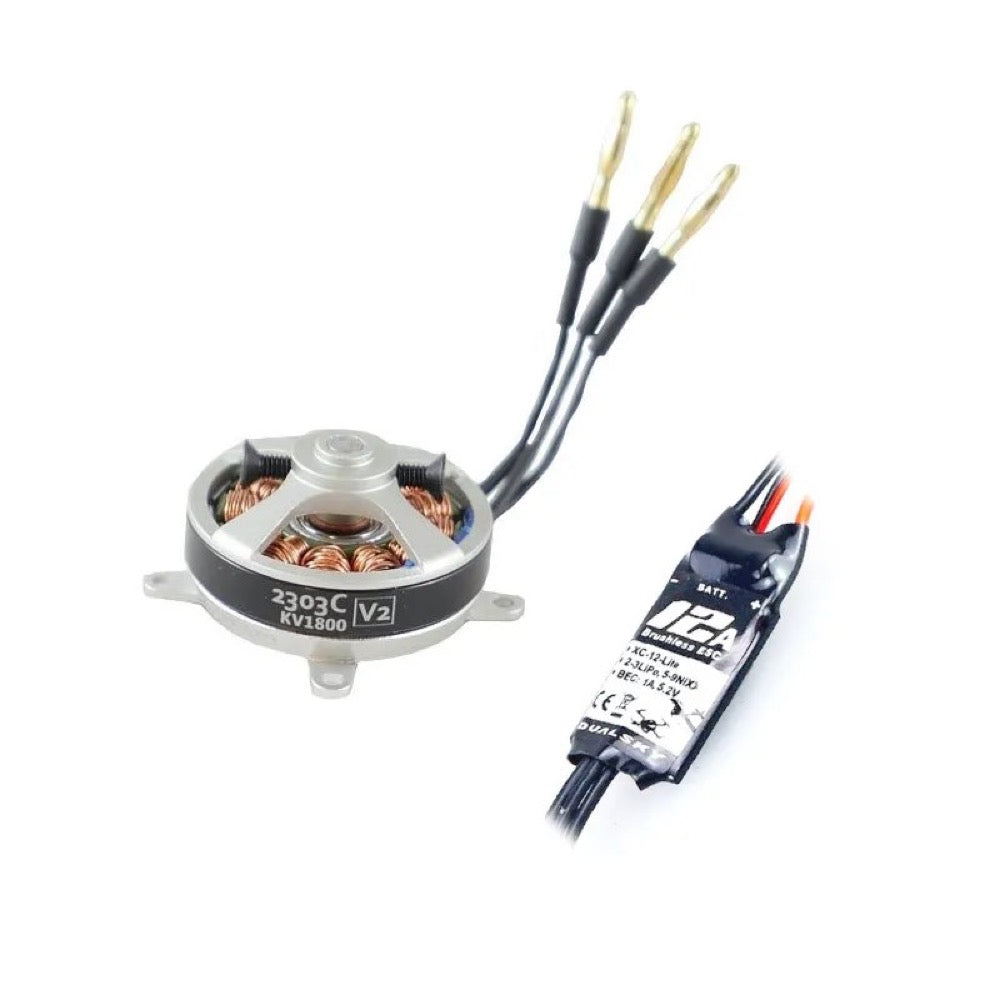

This Dualsky 180 Micro Tuning Combo consists of the Dualsky ECO 2303C 1800kv motor and XC1210BA ESC.

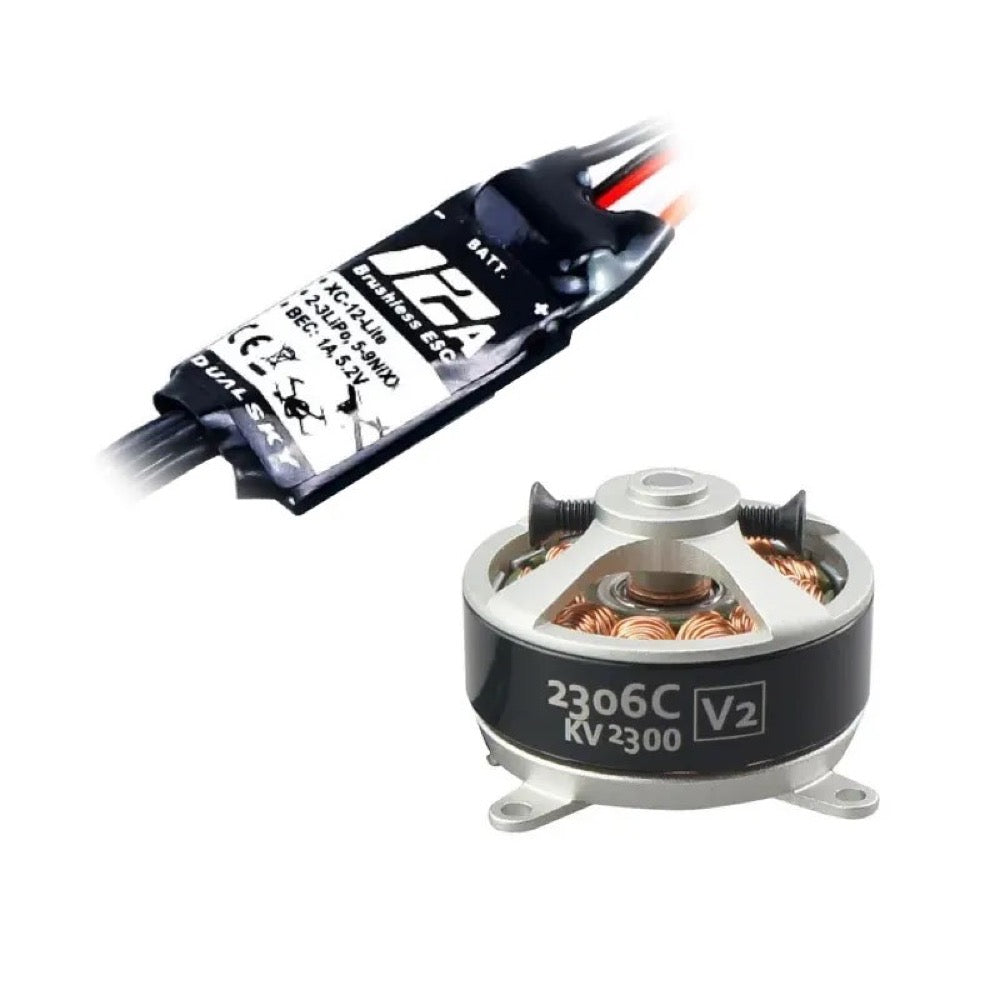

This Dualsky 200H 2300kv High RPM Tuning Combo consists of the ECO2306C motor and XC1210BA V2 12A Lite ESC.

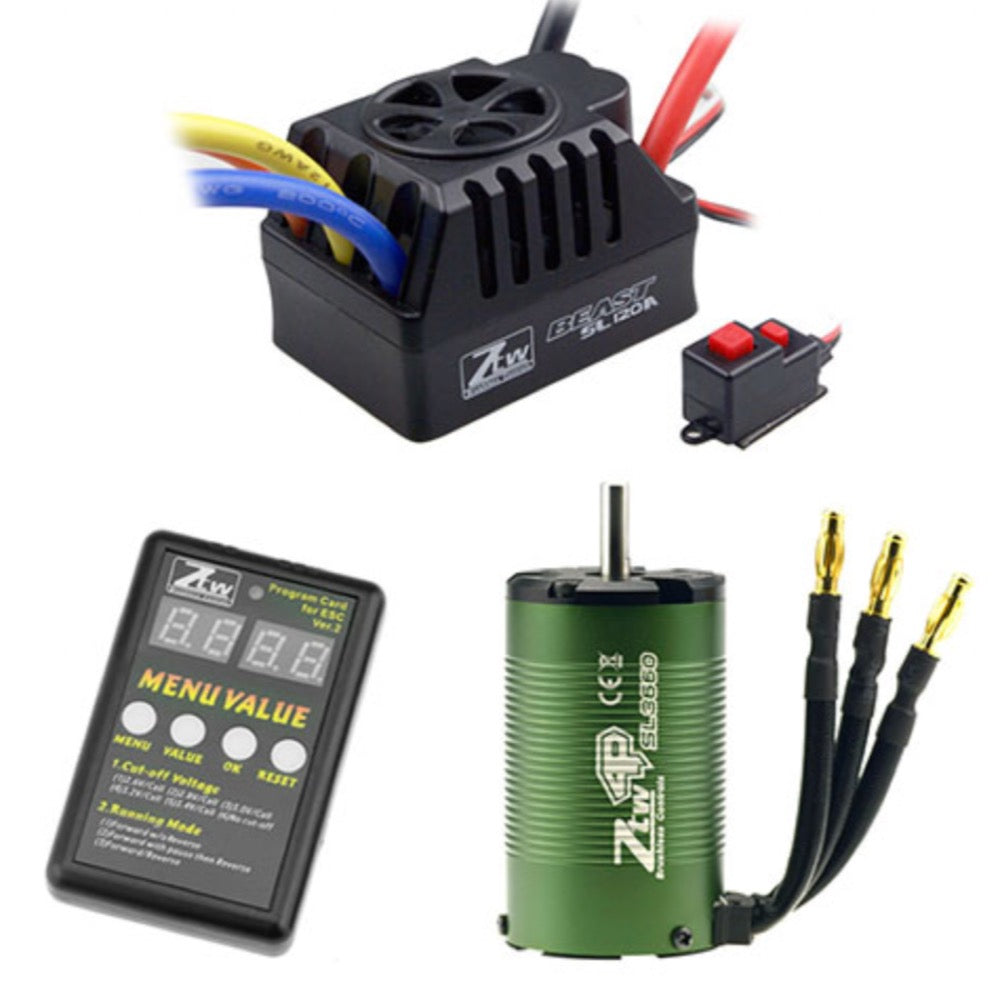

ZTW 411202103 1:10 Beast Combo SL 120A 3500kv 550 4P SL 3660 3D

Specifications

• Continuous Current : 120A
• Burst Current(10s) : 760A
• Battery Cell : 6.0V/8.4V Adjustable/5A
• BEC output : 5-18NC/2-6Lipo
• Cutt-off Voltage:3.0V/Cell
• Running Model:Forward with pause then Reverse
• Motor Timing:Normal
• Initial Acceleration:High
• Throttle Percent Reverse:60%
• Throttle Limit:0%
• Percentage Braking:50%
• Percentage Drag Brake:0%
• Motor Rotation:Normal
• Neutral Range:4%
• BEC Output:6.0V

Type

• Brushed / Brushless : Brushless
• High Voltage / Normal : Normal

Size

• Width : 48mm
• Length : 55mm
• Hight : 37mm
• Weight : 142g

Wires & Connectors

• Power Wires : 12＃AWG，160mm-Red/160mm-Black
• Motor Wires : 12＃AWG，160mm-Black
• Signal Wires : （Black/Red/White）30C，300mm Normal JR male
• Switch wire : （Black/Red/White）30C，90mm
• Power Plug(Yes/No) : no

ESC Programing

• Transmitter
• Jumper Program Card
• LED Program Card
• LCD Program Card : yes
• WiFi Program Card : yes
• USB interface : yes

Firmware

• Firmware Upgrade : yes

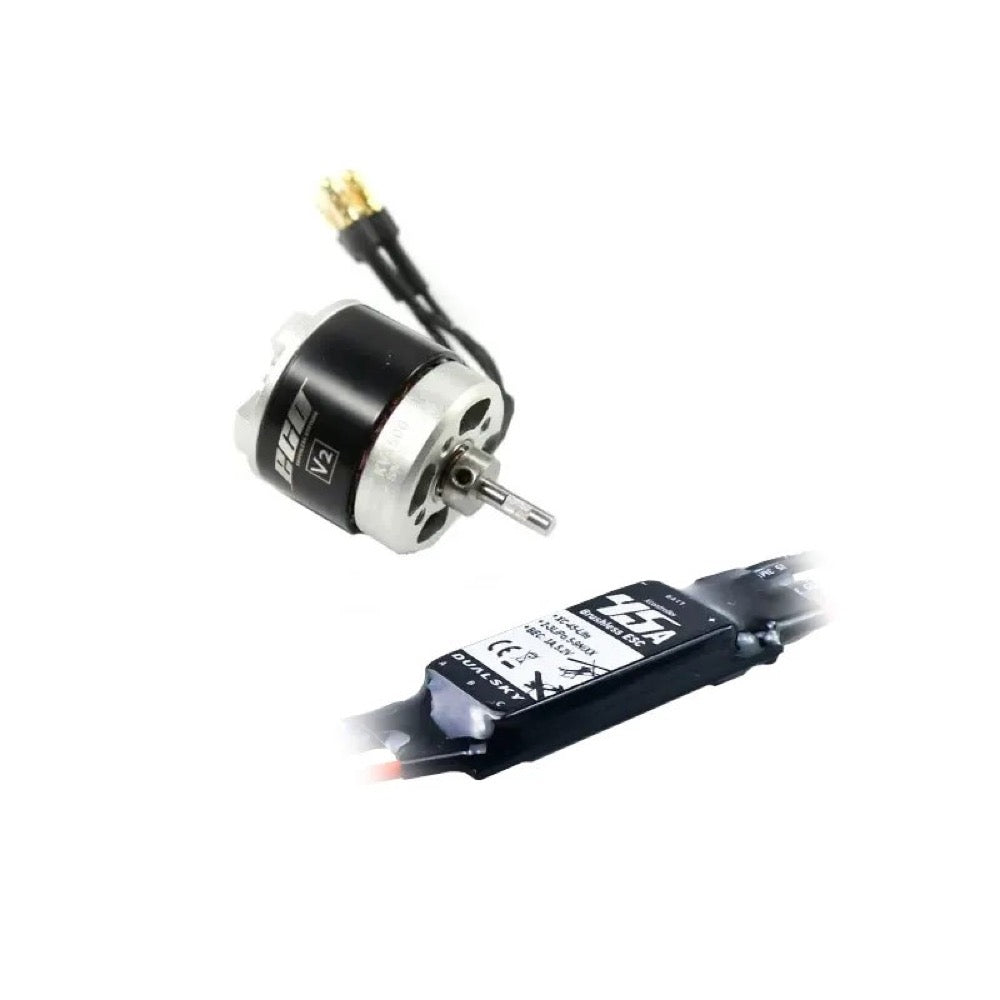

Dualsky 400H High RPM Tuning Combo with 2312C 1500kv Motor and 45A Lite ESC

Features

• For airplane and heli models
• Affordable
• Easy to operate
• Compatible with the prog card V2

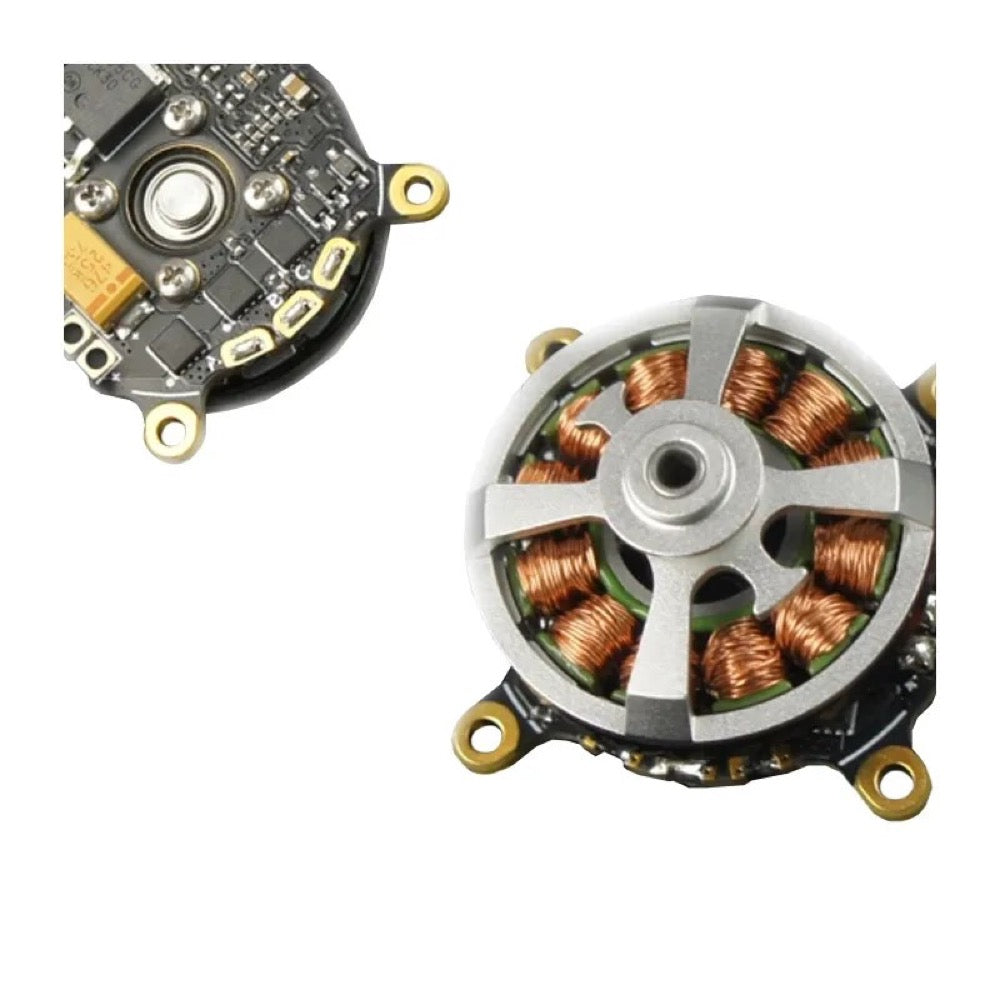

This is the Dualsky 2202 Typhoon series motor, RTR edition. This motor features an intergrated ESC board, saving you space and weight in your small F3P models!

Features

• Great for small F3P models
• RTR edition features an integrated ESC, saving you weight and space
• 3mm hollow shaft
• Sleek spoked design
• New arc magnets
