This Dualsky SUMMIT 100XHV Brushless ESC is designed for 3D aircraft or fixed-wing UAVs.

Features

• Designed for 3D airplanes and fixed-wing UAVs
• New generation 32-bit ARM electric drive system
• High performance TOLL package MOSFETs for excellent stability
• Excellent motor drive capability, supporting GA series 28-pole motors
• All metal CNC housing with built-in fan, also designed with an external fan fixed interface
• Compact design with built-in capacitors
• Multiple protection measures are implemented, throttle, voltage, current, temperature, and low RPM
• 100% load test passed
• Efficient driving core, abundant torque
• Effictivley avoid sync-loss conditions
• Supports efficient SINE wave working mode
• Regenerative braking supported
• Rorational direction can be set. Bidirectional operation is also supported
• Supports a variety of telemetry protocols (SBus2, EXBus, SRXL2)
• Flight modes can be switched by the Mode button
• Type-C USB port for firmare updating and programming
• Supports fixed wing govenor mode (in Beta, with subsequent firmware update)

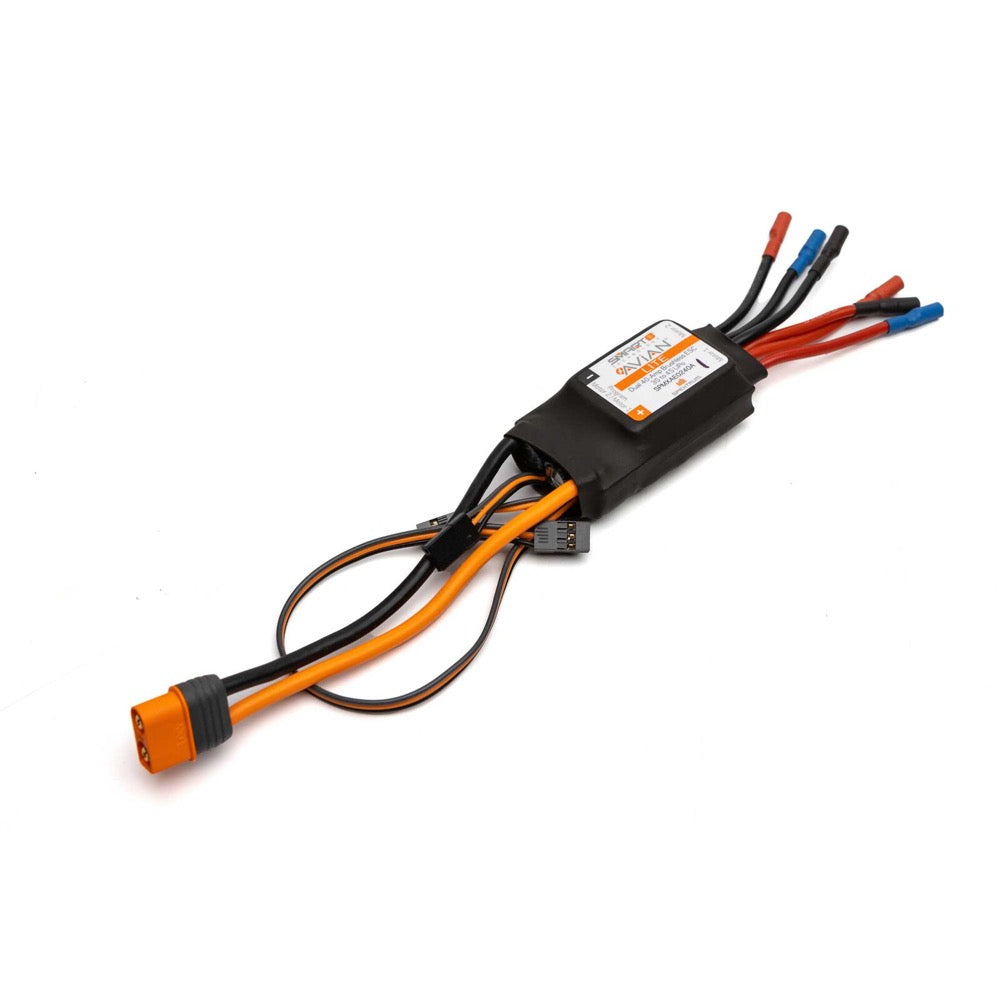

Avian 40 Amp Dual Brushless Smart ESC, 3S-4S

Specifications

• Application: Aircraft
• Auto Cutoff: Yes
• Technology: Smart
• Connector: Type IC3
• BEC: Yes
• Input Voltage: 3 - 4S LiPo

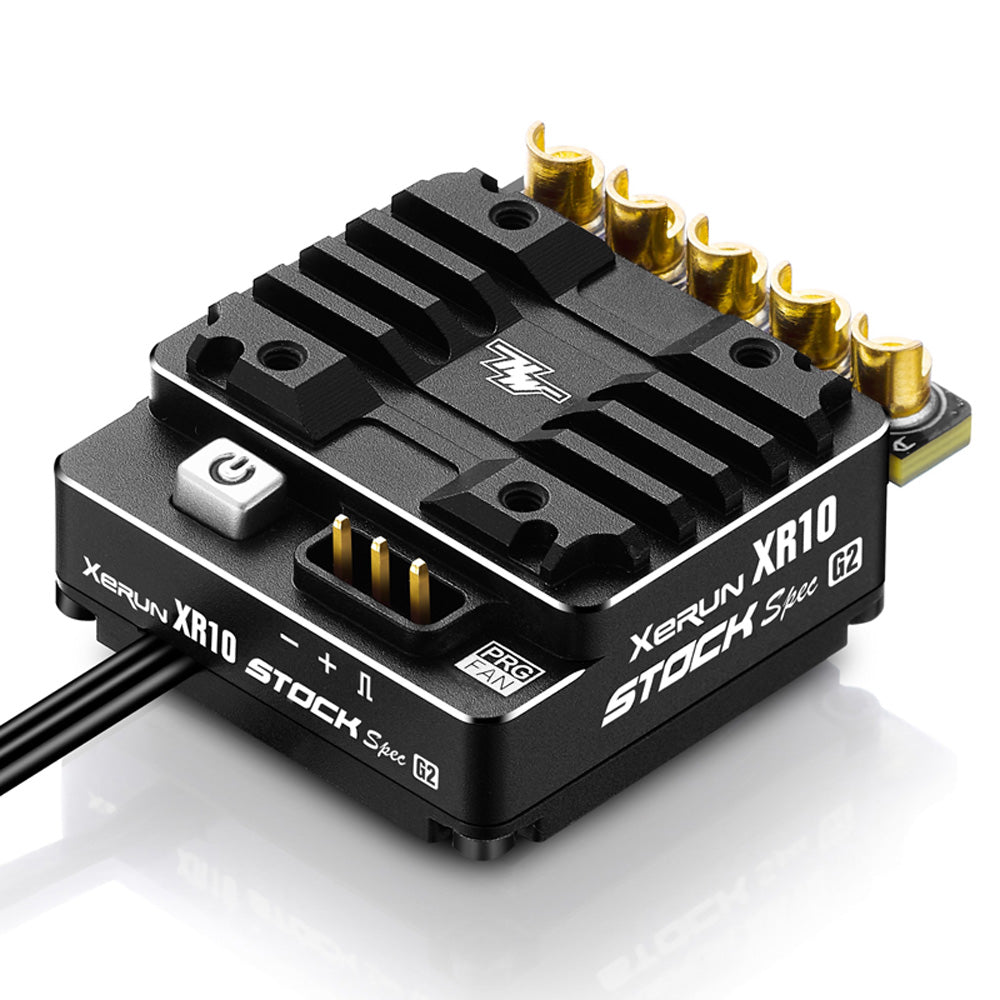

HOBBYWING XERUN XR10 STOCK SPEC G2 100A SPEED CONTROL

The XR10 Stock Spec G2 ESC is smaller and lighter than the standard XR10 Pro range and is the mini version of XR10 Pro 160A. The super small size (34.8 x 30 x 13.8mm) makes the installation convenient and the light weight provides more weight margin when adjusting the balance of the chassis.

Reliable hardware combined with great software (contains 3 common ready-to-use profiles) creates an ideal power solution to the STOCK class of 1/10 scale touring car, buggy racing.

This ESC features the data-logging function which can record the maximum ESC & motor temperatures, the minimum battery voltage, the maximum motor RPM and others in real time and allows users to check the data via the LCD G2/Pro program box or OTA Programmer after each use (items sold separately).

Features

• Increased Maximum Current Rating
• Special Design for STOCK Class Racing
• Programming/Upgrading/Data Reading Wirelessly
• Small Size & Light Weight
• Upgraded Super Internal BEC
• Adjustable Throttle & Brake PWM Frequencies
• Data-logging Capability

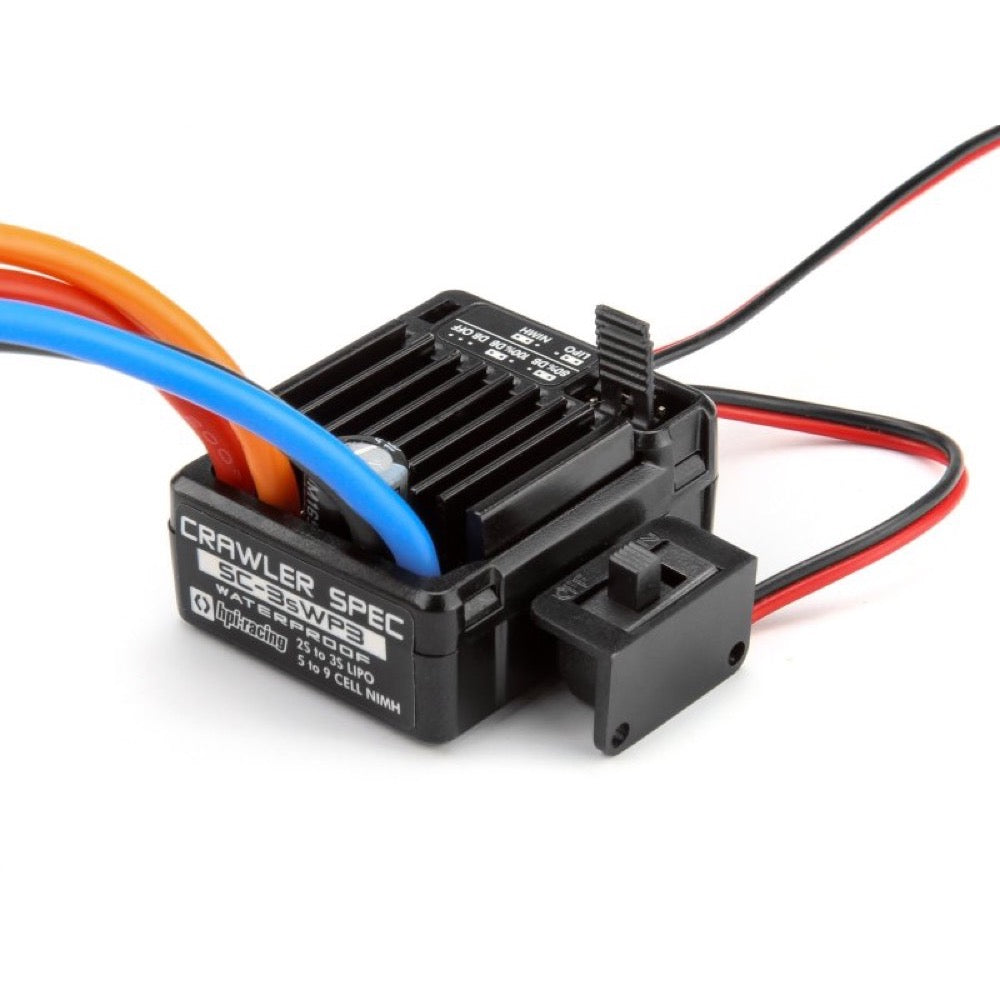

The SC-3SWP3 is a powerful and durable speed controller that is also fully waterproof, making it the only choice for anyone who enjoys playing on the beach, in snow or even through mud!

The ESC is programmed with the use of jumpers to select one of three settings:

1. F/R with 100% Drag Brake - Crawler mode for steep and rough terrain.
2. F/R with 80% Drag Brake - HDC mode for moderately steep terrain
3. F/B/R Drag Brake Off - Higher speed, open trail driving

The Hill Descent Control (HDC) function will maintain a smooth controlled speed while descending. When the throttle position is at neutral, brakes will be applied automatically. Additional braking can be applied manually as needed for extreme descents. Once throttle position is returned to neutral, HDC will continue to function.

If you've got plenty of power to strap into your RC, you can count on the SC-3SWP3 to handle it: able to handle LiPo power of 2S and 3S or between 5 and 9 NiMH cells, this speedo can handle just about anything can you fit into the chassis! Of course, a safety cut-off is fitted to protect your LiPo batteries.

Specification

• Forward Continuous Current: 60A
• Forward Burst Current: 360A
• Reverse Continuous Current: 20A
• Reverse Burst Current: 90A
• Input: 2-3S LiPo, 5-9 cell NiMH/NiCd
• Applications: 1/10 off-road crawler
• Motor Limit: 2S LiPo or 6 cell NiMH: 540 or 550-size motor great than or equal to 12 turn, RPM over 30,000 at 7.2v
• Motor Limit: 3S LiPo or 9 cell NiMH: 540 or 550-size motor great than or equal to 18 turn, RPM over 20,000 at 7.2v
• Resistance: FWD 0.002 Ohm, BWD 0.004 Ohm
• PWM Frequency: 1 KHz
• BEC: 6V/3A
• Dimensions: 36x29.5x17.5mm
• Weight: 41g

NOTE: Before driving in wet conditions, make sure that other electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

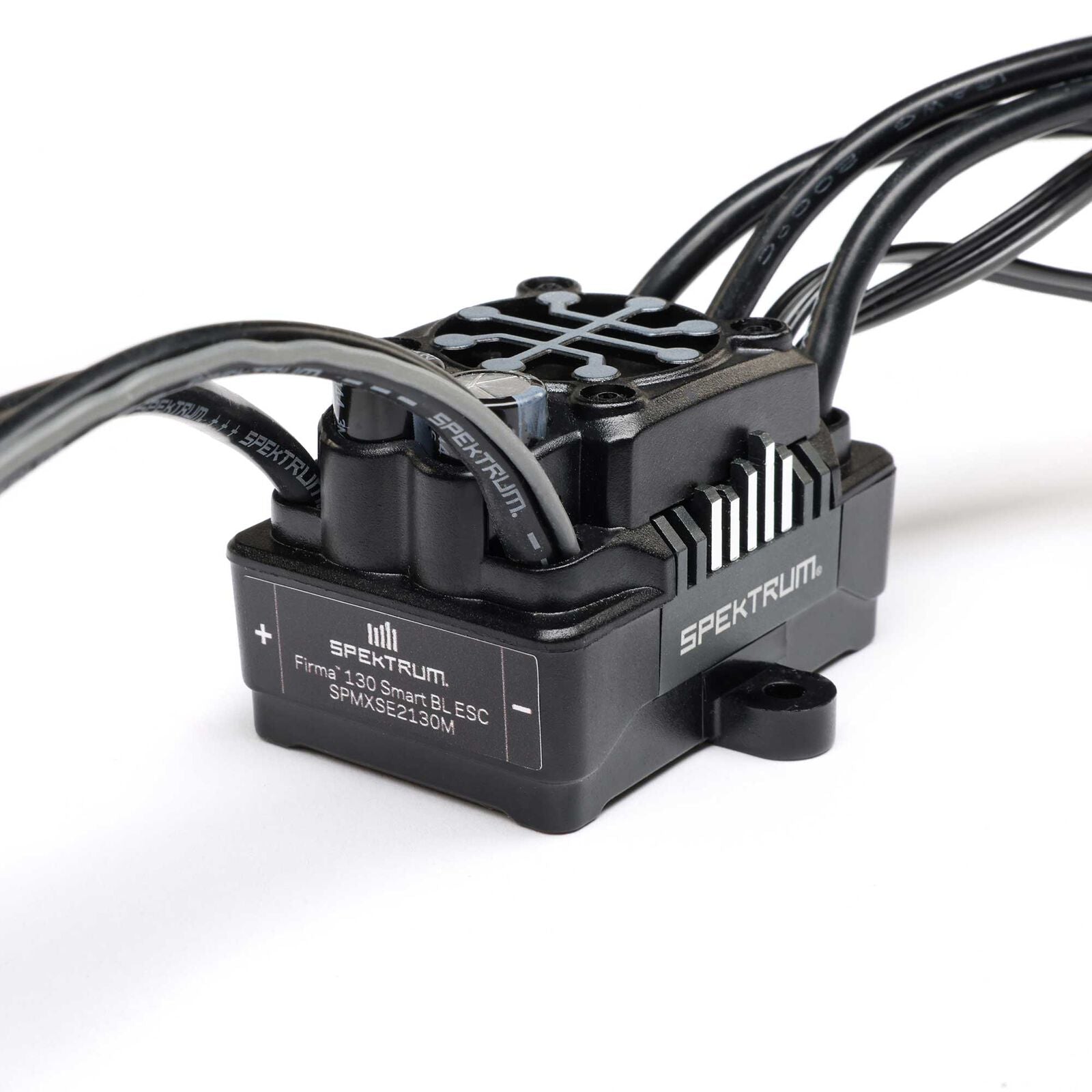

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you more confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever without installing extra components that work independently. You won't need additional wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.

Firma ESCs gather the data and send it to your transmitter in real-time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Features

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Waterproof*
• Programming optimized for LMT 2.0 Trick Modes/Freestyle Modes
• Multiple options for easy programming:
• Button programming
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• TextGen interface
• Multi-point protection:
• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection
• Developed and designed by Spektrum™ engineers in partnership with the industry's
  leading ESC manufacturer
• Compatible with the Losi LMT 2.0
• High current adjustable BEC (6v or 7.4v @ 4 Amps)
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case with mounting tabs
• Aluminum heat sink for high efficiency
• Cooling fan
• Adjustable high-power BEC
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC™ connectors, backward compatible with EC™ connectors
• Limited 1-year warranty

EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.

WATERPROOF

The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.

ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real-time, including RPM, voltage, temperature, balance, capacity, and speed.*

Smart ESC SMART TECHNOLOGY BATTERY DATA

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides battery telemetry that's automatically transmitted to your compatible Spektrum radio in real-time. On your transmitter screen, you'll be presented with helpful information such as the number of cycles, battery percentage, individual cell voltage, and more!

MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

TEXTGEN INTERFACE

When used with Spektrum transmitters with on-screen telemetry, the ESC can also be programmed easily through the TextGen on-screen prompts.

FAST, POWERFUL M4 PROCESSOR

The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

Contents

• (1) Spektrum™ Firma™ Smart ESC
• (1) Spektrum Smart Sticker Sheet
• (1) Product Manual

Requires

• (1) Spektrum™ Surface Receiver
• (1) Spektrum Smart Technology LiPo Battery
• (1) Spektrum Transmitter

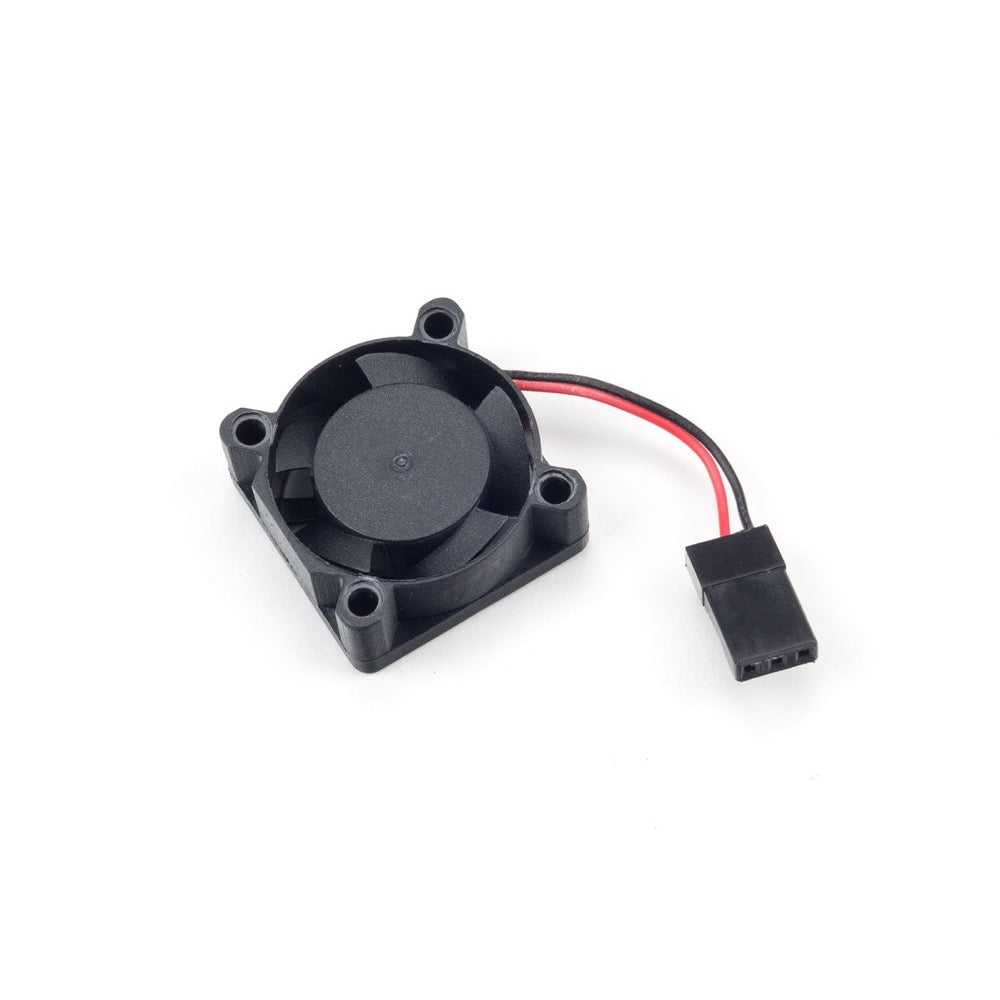

This 25mm ESC Fan is a direct replacement for the fan of your BLX ESC.

Features

• Tough composite material for long-lasting durability and premium performance in all conditions
• Easy to fit for fast and efficient vehicle servicing
• Dimensions: 25 x 25 x 10mm

Includes

• 1 x ESC Fan per pack
