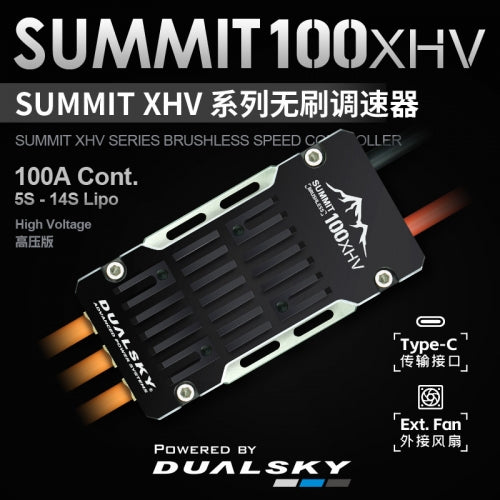

This Dualsky SUMMIT 100XHV Brushless ESC is designed for 3D aircraft or fixed-wing UAVs.

Features

• Designed for 3D airplanes and fixed-wing UAVs
• New generation 32-bit ARM electric drive system
• High performance TOLL package MOSFETs for excellent stability
• Excellent motor drive capability, supporting GA series 28-pole motors
• All metal CNC housing with built-in fan, also designed with an external fan fixed interface
• Compact design with built-in capacitors
• Multiple protection measures are implemented, throttle, voltage, current, temperature, and low RPM
• 100% load test passed
• Efficient driving core, abundant torque
• Effictivley avoid sync-loss conditions
• Supports efficient SINE wave working mode
• Regenerative braking supported
• Rorational direction can be set. Bidirectional operation is also supported
• Supports a variety of telemetry protocols (SBus2, EXBus, SRXL2)
• Flight modes can be switched by the Mode button
• Type-C USB port for firmare updating and programming
• Supports fixed wing govenor mode (in Beta, with subsequent firmware update)

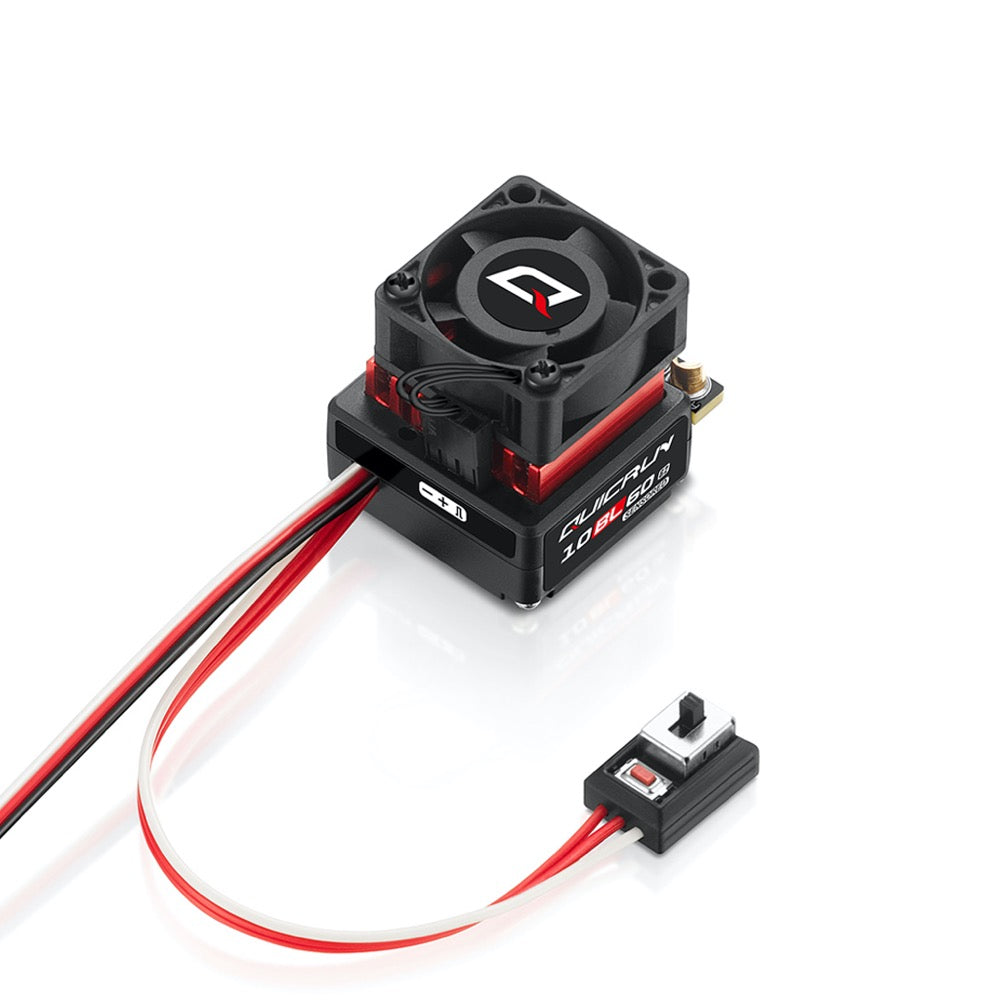

Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control. Outstanding quality, amazing price Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design.

Outstanding quality, amazing price

Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful built in BEC

Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo timing technology

With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability

• Low voltage protection

• Over-temperature protection

• Throttle signal loss protection

• Overload protection

Continuous current 60A. Peak Current 200A

A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability

Support multiple programming methods

The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment

This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Specs

• Cont/Peak Current: 60A/200A

• Motor Type: Sensored/sensorless Brushless Motors

• Applications: 1/10 Touring, Buggy, Drift, 1/12 & 1/14 Vehicles

• Motor Limit: 85T 3650 size motor

• LiPo Cells: 2S LiPo

• BEC Output: 6V/7.4V @ 4A (Switch-mode)

• Cooling Fan: Poweres by BEC voltage

• Size: 35mm (L) x 31mm (W) x 30.8mm (H) with Fan

• Weight: 66.5g (with wires)

• Programming Port: Shared with Fan port

The XC13036HV ESC from Dualsky can work with 5-12S batteries.

This is the LRP SXX Stock Spec Competition Brushless Speed Control with MK III firmware. Attention, stock racers! Now you too can use the World Championship technology of the LRP SXX competition speed control series! LRP has combined the revolutionary technology of the 2008-2009 IFMAR World Championship SXX TC Spec with new developments in stock-spec speed control technology to bring you the SXX Stock-Spec Brushless Speed Control.

Features

• Dual ADPC Max Software: Independent adjustment of “Feel” and “Boost” for maximum flexibility and high power.

• Twin BEC: Constant 6V/3A output with 3.0V to 7.4V batteries. No need for receiver battery for 1S LiPo or 4-cell NiMH Batteries.

• Revolutionary Internal Temp Check System 3: Allows you to read the maximum internal temperature for both the speed control and motor.

• AutoCell System 2 (3.0V to 7.4V input voltage): Fully adjustable cut-off system for all types of cells.

• Extra Small Size: 30x34x21mm for easy installation in most vehicles.

• C3 Technology: Revolutionary Copper Core Cooling technology for lowest-running temperature.

• MK III Firmware

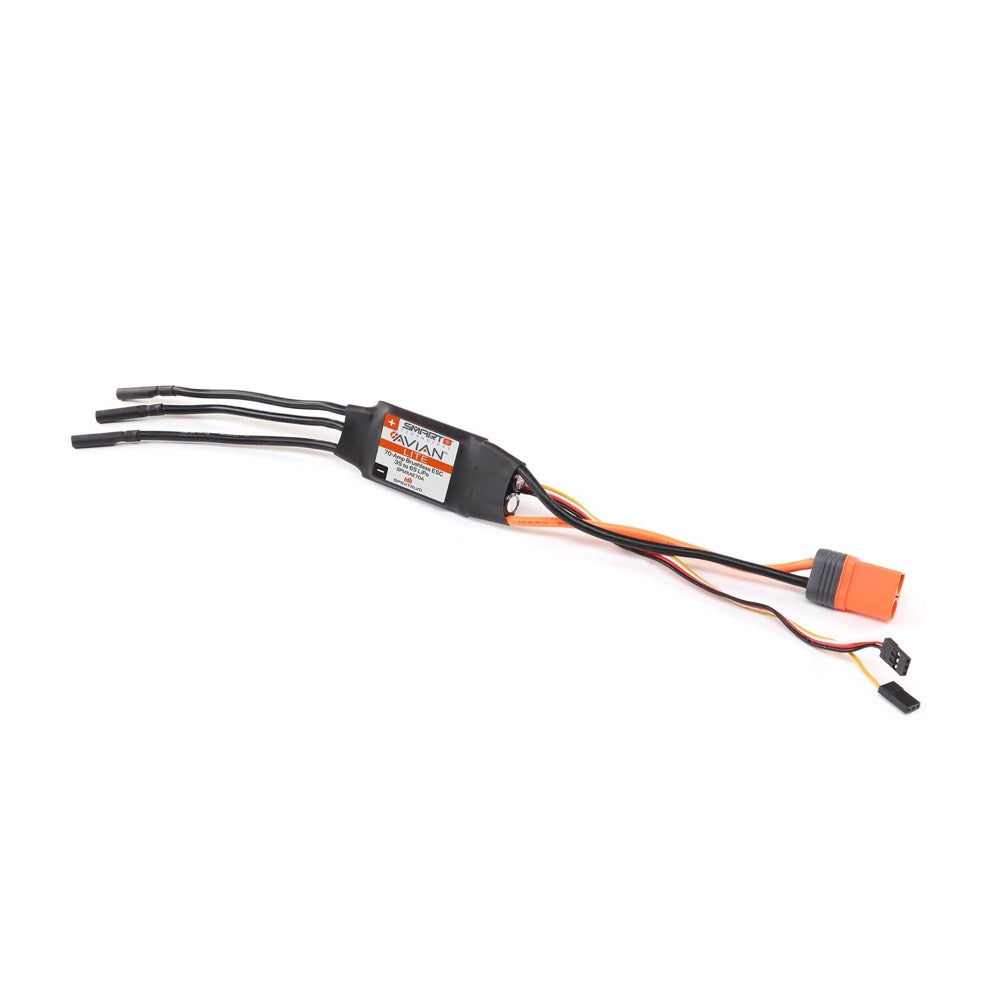

Avian 45-Amp Smart Lite Brushless ESC, 3S-4S: IC3

Specification

• Adjustable Timing: Yes
• BEC: Yes
• Connector Type: IC3
• Programmable: Yes
• Technology: Smart

This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers, and tanks.

Features

• Water-proof and dust-proof, suitable for all weather races.

• Small in size, with a built-in capacitor module.

• Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).

• Great current endurance capability.

• Great built-in BEC output capacity.

• Automatic throttle range calibration, easy to use.

• ESC parameters are easy to set with jumpers.

• Over Voltage Protection

• Low voltage cut-off protection for battery

• Over-heating protection

• Throttle signal loss protection.

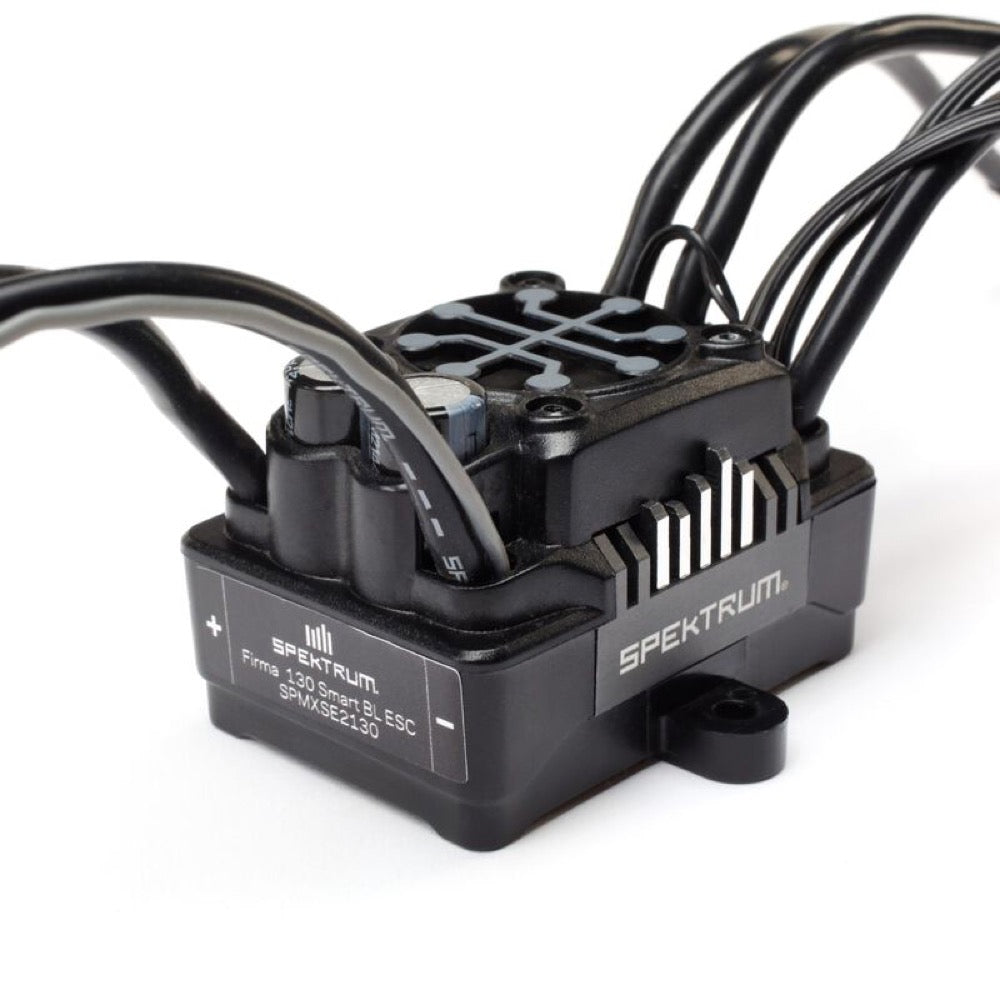

Spektrum™ Firma™ 130A Brushless Smart ESC for surface vehicles is waterproof and delivers power and intelligence all in one. Without additional sensors or modules, it feeds battery and ESC telemetry data straight to your radio in real-time, all over one connection.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you more confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever without installing extra components that work independently. You won't need additional wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.

Firma ESCs gather the data and send it to your transmitter in real-time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Features

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Waterproof
• Multiple options for easy programming:
  • Button programming
  • Smart ESC Programming Box
  • SmartLink USB Updating and Programmer application
• Multi-point protection:
  • Over-current protection
  • Automatic LiPo low-voltage cutoff
  • Thermal protection
  • Failsafe protection
• Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
• Ideal for 2WD and 4WD 1/10th scale surface applications running on 2S - 4S LiPo setups
• High current adjustable BEC (6V or 7.4V @ 4 Amps)
• Ready to install — no soldering required
• Compact for easy installation in most applications
• Rugged plastic case with mounting tabs
• Aluminum heat sink for high efficiency
• Cooling fan
• Adjustable high-power BEC
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
• Limited 1-year warranty

WATERPROOF

The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.

EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.

ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed

SMART TECHNOLOGY BATTERY DATA

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more

MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

FAST, POWERFUL M4 PROCESSOR

The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

Specification

• Amperage: 120A or larger
• Auto Cutoff: Yes
• Battery Connector: Solder tabs (user installable IC5 lead included)
• Battery Input Lead: None, IC5
• BEC: Yes
• BEC Continous Current: 5A
• BEC Voltage: 6V or 7.4V Adjustable @ 5A
• Brakes: Yes
• Connector Type: IC5
• ESC Type: Brushless
• Forward: Yes
• Input Voltage: 7.4V - 14.8V
• Low-Voltage Cutoff Programmable: Yes
• Maximum Burst Current: 760A
• Maximum Continuous Current: 130A
• Motor Limit: 3S less than 4000Kv, 4S less than 3000Kv
• Motor Output Lead: Solder tab
• Motor Type: Brushless
• Overload Protection: Yes
• Programmable: Yes
• Reverse: Yes
• Sensored: Yes
• Technology: Smart
• Water-Resistant: Yes

Contents

• (1) Spektrum™ Firma™ Smart ESC
• (1) Spektrum Smart Sticker Sheet
• (1) Product Manual

Requires

• (1) Spektrum™ Surface Receiver
• (1) Spektrum Smart Technology LiPo Battery
• (1) Spektrum Transmitter

The Dualsky 100A 12S OPTO Brushless ESC is suited for 2m FAI, F3A and 3D models that weigh up to 10kg.

Features

• Low voltage cut-off
• Overheating protection
• Signal loss auto cut-off
• Normal, Soft or Super-Soft start-up modes available for both fixed wing and helicopter setups
• Supports all motor types up to 210,000 rpm (2 Poles motors)
• Adjustable cut-off - either stop motor or reduce the power
• Dualsky Linear Brake Mode (DLBM) - Brake strength can be adjusted by the transmitter when switched on
• Dualsky Governor Mode (DGM) ready
• Extremely low resistance, factory high-quality mosFETs for high current usage
• Smooth and accurate throttle control throughout the range
• Throttle digital signal sampling, compatible with the signal frequency of 14 ms Normal mode and 7 ms high-speed mode (HS mode)
• Suitable for all brands of transmitter as the throttle range can be re-calibrated
• Fully PC programmable when used with the Dualsky USB link (not included)
• Compatible with the Dualsky programming card (sold separately) for easy re-programming at the field

Specification

• Dimensions (L x W x D): 90 x 55 x 20mm
• Weight (g): 140
• Number of Cells: NiXX 15 - 36, 18 - 43.2V / LiPo 5 - 12, 18.5 - 44.4V
• Resistance (Ri)(Ohm): 0.0023
• Max Cont. Current (A): 100A
• Max Cont. Output (W): 4200W
• Max Burst Current (A): 130A
• Max Burst Output (W): 5304W
• BEC/ Dissipative Power: N/A, OPTO
• Programmable: Throttle + ProgCARD+ USB LINK
• Input Wires: 150mm, 12AWG, DC3
• Output Wires: 90mm, 12AWG, DB4
• Signal Wire: 300mm JR
• Description: High Voltage
• Application: 2m FAI F3A and 3D, Up to 10kg large models
