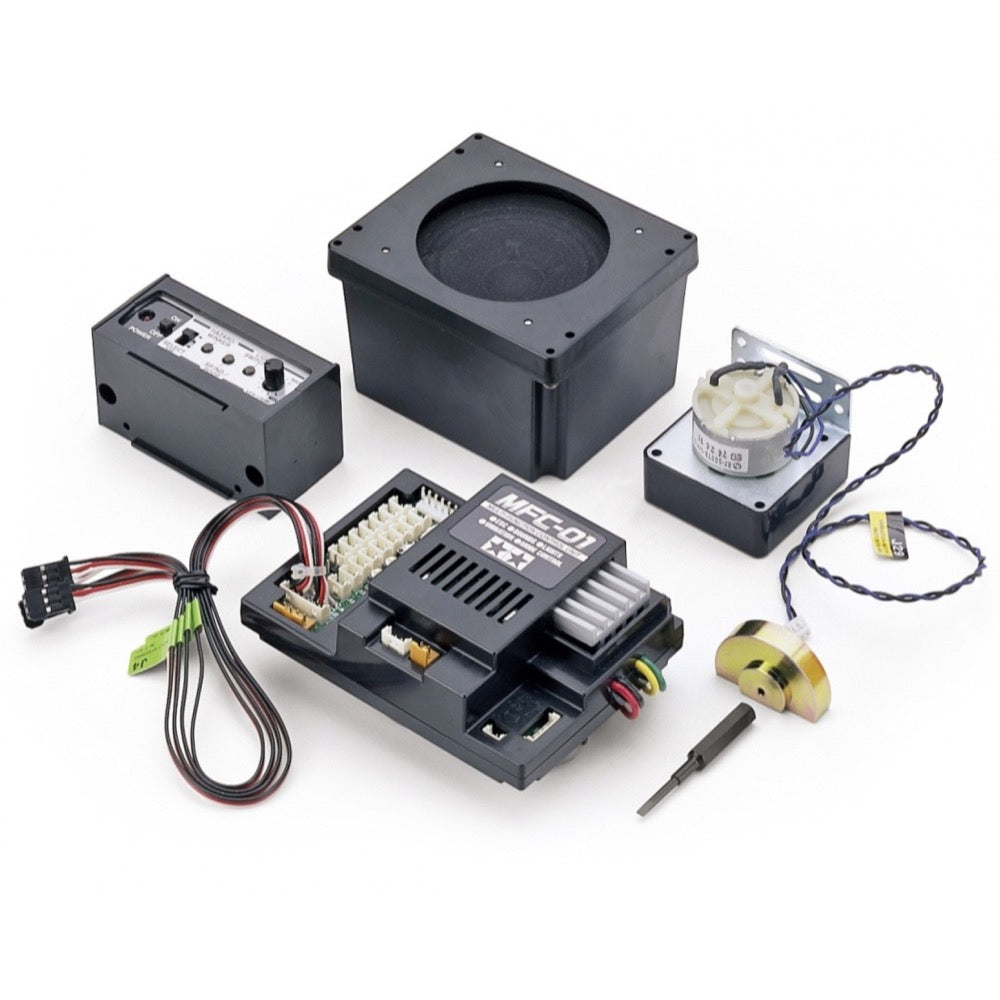

Tamiya presents incredible sound and action options for any 1/14 scale R/C Tractor Truck with the all R/C Tractor Truck Multi-Function Control Unit. This system, when mounted on the truck is located inside the cabin with speaker to the front and the MFC-01 unit to the rear. The control unit is mounted inside the left tool box for easy access. An ESC has been built in to the unit, enabling realistic running at very low speeds.

By using your transmitter sticks and the trims you can control the truck movements (forward/backward running and turns), horn, motorized support legs (Item #56505) (sold separately), headlights, position lamps, roof lamps and speed indicators. You can also activate the back lamp, tail lamps and blinkers/hazard lamps as well as engine revving.

30A ESC: AeroScout

Specification

• Part Type: Electronics

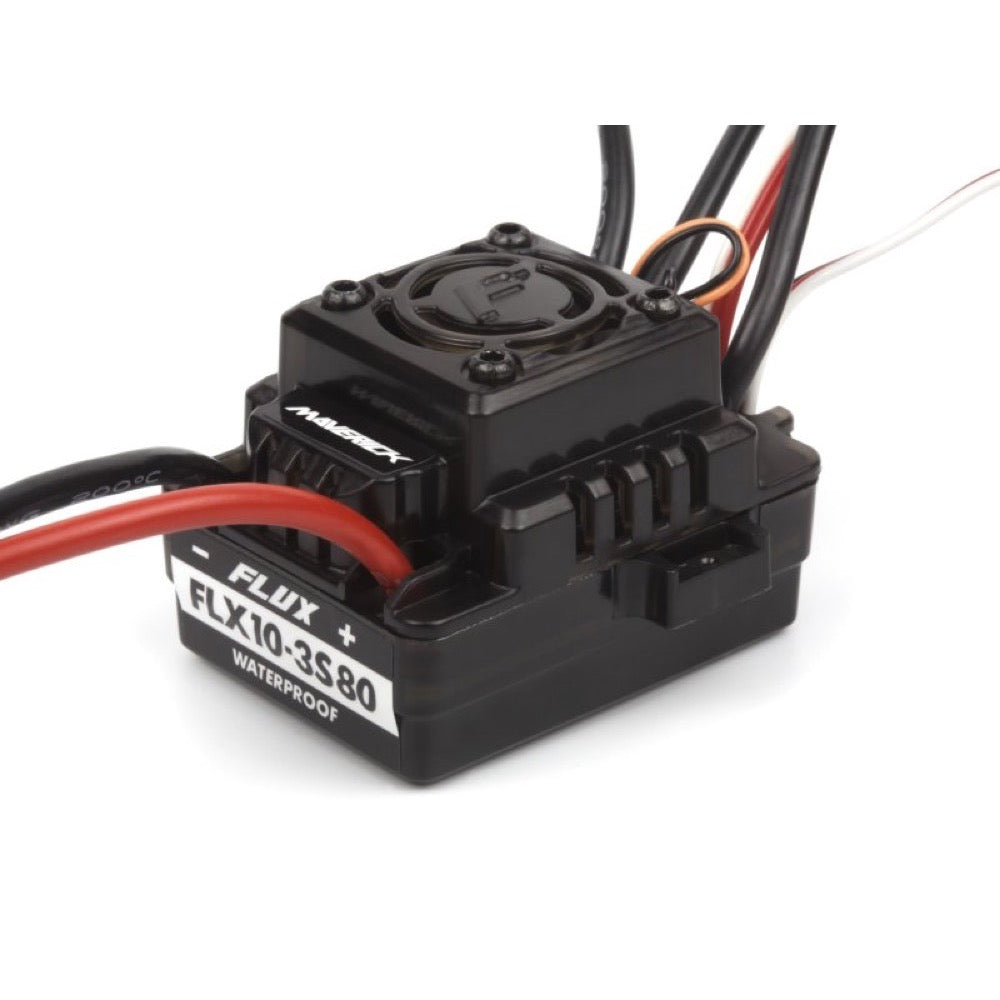

#150634 - FLX10-3S80 Flux ESC with XT60

The FLX10-3S80 Flux ESC is the perfect match for the FLX10-3660-3500KV 1/10th scale brushless motor - it's able to pump up to 80 amps of power to the motor for amazing stunts, colossal top speeds, and wheel-spinning sideways action!

Complete waterproof protection means you can take your truck equipped with the FLX10-3S80 ESC into territory that would scare off other drivers: puddles, mud, and more! A large fan sits on top of the case inside a protective cover to keep things cool when the weather's warm and you've been driving hard.

Specification

• Input Voltage: 2-3S LiPo
• Continuous Current: 80A
• Burst Current: 540A
• Motor Limit: 2S LiPo <600KV, 3S <400KV
• BEC: 6V Switching BEC, 2A Continuous Current
• Battery Connector: XT60
• Motor Connector: 4.0mm Bullet
• Dimensions: 50.5x56.2x35.4m (W/Fan)
• Application: 1/10th Buggy/Monster Truck

The FLX10-3S80 ESC & FLX10-3660-3500KV Motor requires very powerful batteries to get the most out of them - please make sure that you use the right combination! HPI highly recommend the use of high quality LiPo batteries. Using batteries with low ratings, or the use of lower quality LiPo batteries, may cause damage to your batteries and/or speed control. Using batteries below the specified ratings may void the warranty of the speed controller and/or batteries.

NOTE: Before driving in wet conditions, make sure that other electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

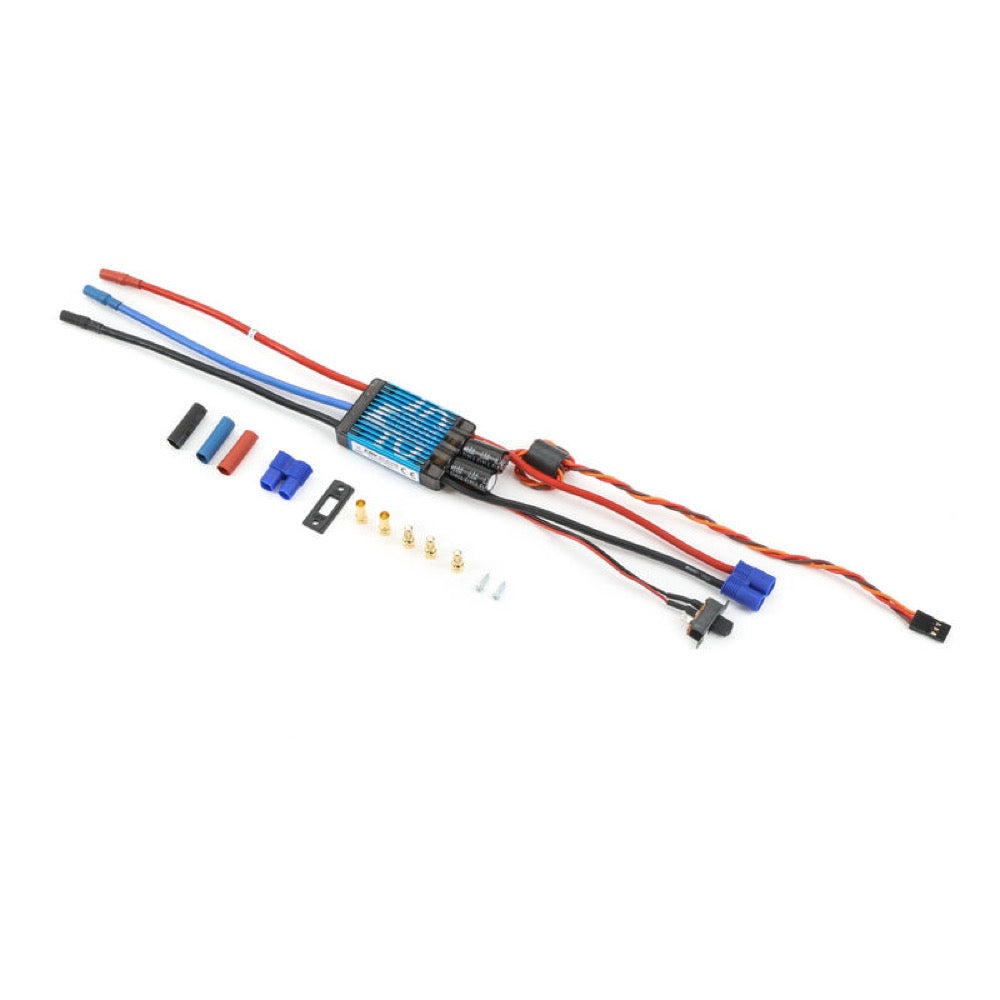

E-flite® 40-Amp Pro Switch-Mode BEC Brushless ESC (V2) is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.

Features

• Up to 40 amps continuous current with proper air flow and 55 amps burst current (15 seconds)
• 5A continuous current, 5V Switch-Mode BEC Circuit (Proper cooling and airflow required)
• Stronger BEC for support of most 3-axis stabilization systems
• Drive up to 7 analog or 6 digital standard-sized servos with the BEC
  3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
• Finned heat sinks
• Programmable motor braking
• Safe power-arm mode prevents accidental starts
• Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 70% of battery starting voltage
• Programmable throttle input range
• Programmable soft start for helis and airplanes
• Auto motor shut down if signal is lost or there is interference
• Programmable timing—5 user-selectable ranges to use with a large variety of brushless motors
• Utilizes new smaller Mosfet technology to minimize weight
• Radio System Power ON /OFF Switch
• Prewired connectors—E-flite EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads

Specs

• Amperage: 40-60
• Brakes: Yes - Programmable
• Connector Type: EC3
• Input Voltage: 10.8V - 22.2V
• Output Connector: 3.5mm Bullet
• Part Type: Electronics
• Programmable: Yes
• Wire Gauge: 13 AWG

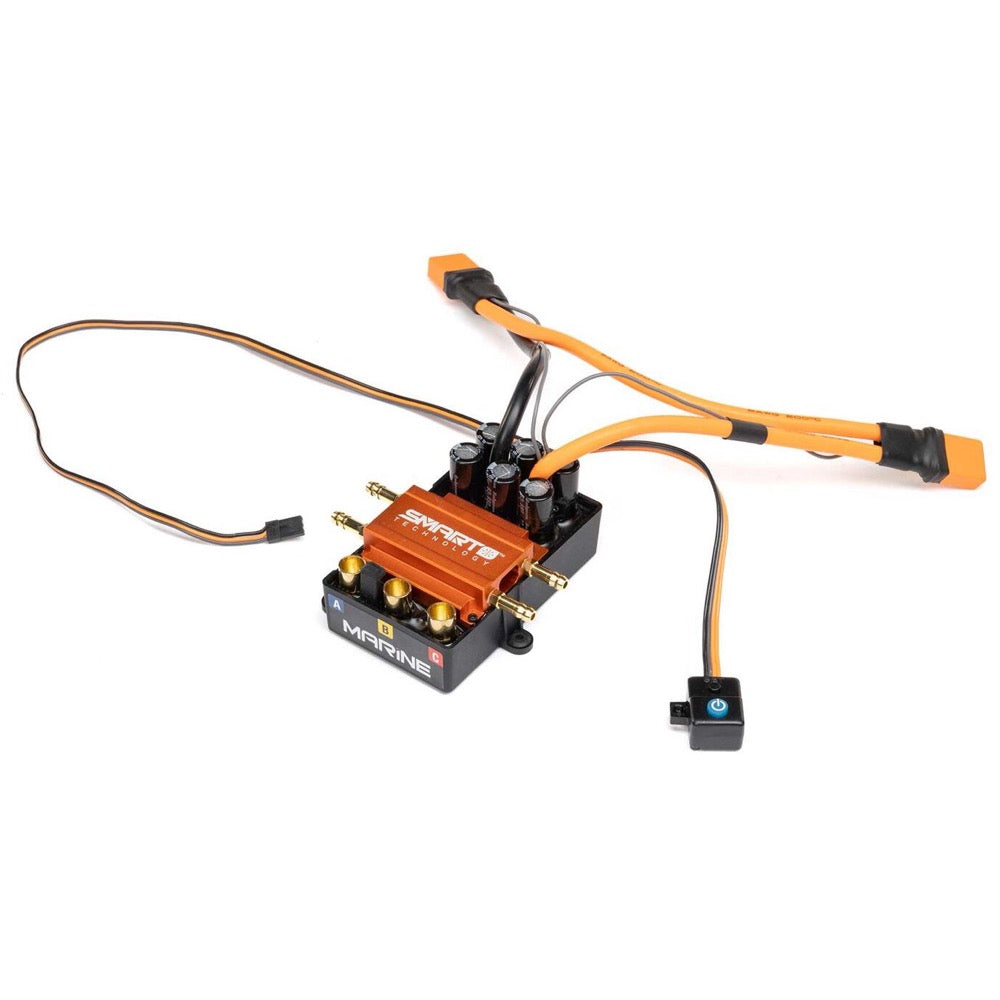

Feature-packed Spektrum™ Firma™ Smart ESCs deliver power and intelligence all-in-one, with no additional modules or links required. Capable of a 1200 Amp burst current, the waterproof Firma 200A Smart Brushless Marine ESC powers your boat through almost any condition imaginable, with explosive acceleration and ultra-smooth performance — while feeding real-time telemetry straight to your Spektrum™ transmitter! Additionally, the dual IC5's provide flexibility in running 3S-6S batteries. The Smart data wire on the innovative IC5™ connector replaces sensors, sending telemetry information to a compatible Spektrum transmitter directly from the Firma™ Smart ESC.

Features

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Water-cooled for maximum performance
• Waterproof (See manual for details).
• Multiple programming options
• Multi-point protection

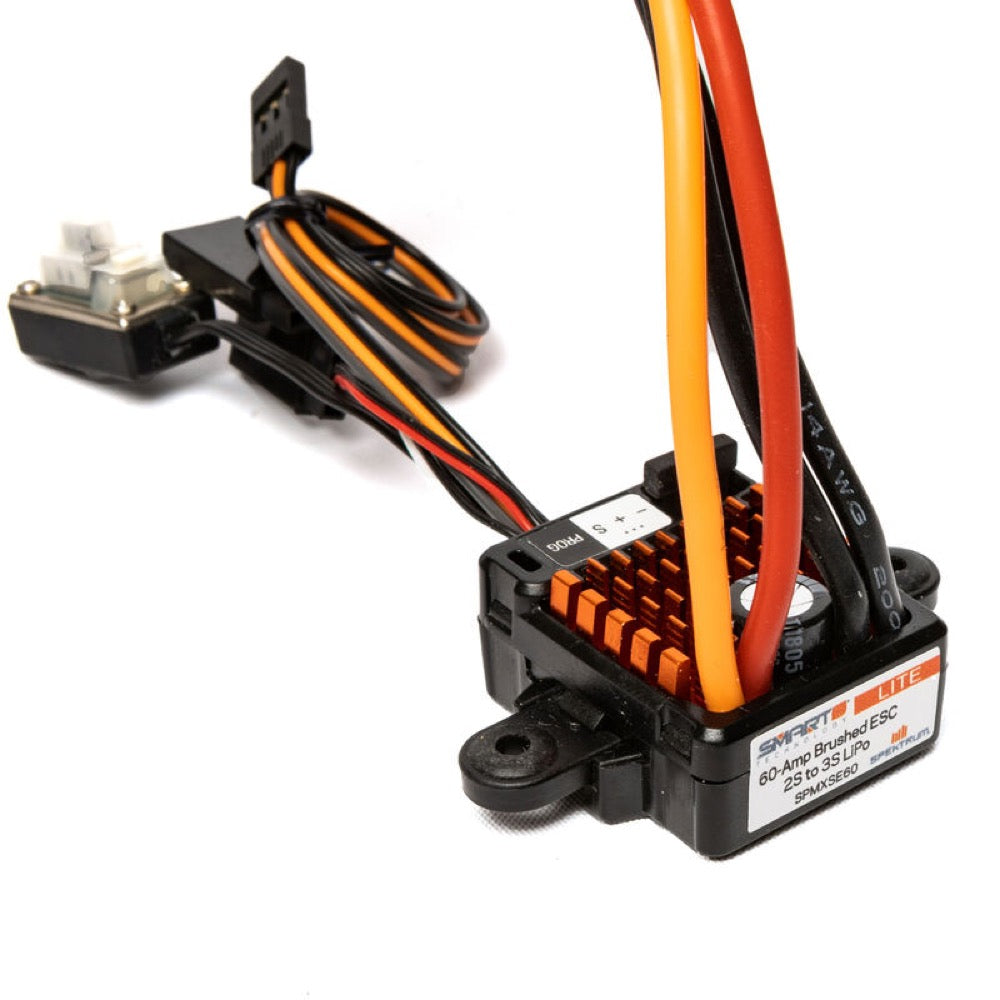

The Spektrum Firma 60 amp Brushed Smart ESC is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers, scalers, crawlers, and bashers.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as motor current, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Features

• Smart all-in-one telemetry
• Smart Lite functionality
  • Provides Spektrum Smart ESC data such as input voltage, esc temperature, and Text Gen Telemetry data over one wire. No additional sensors required. Smart Lite ESCs do not provide Smart Battery data.
• Integrated LED light power outputs for simple installation without the need of additional receiver ports
• Includes 2 LED Light Strings (Red and White)
• 60 Amp continuous power - excellent for 1/10 scale on-road and off-road racing and 1/10 scale crawlers and scalers
• 2S-3S LiPo Compatible
• Waterproof ESC*
• Multiple options for easy programming:
  • Smart ESC Programming Box
  • SmartLink USB Updating and Programmer application
  • Programming from Transmitter via Text Gen Telemetry
• Multi-point protection:
  • Over-current protection
  • Automatic LiPo low-voltage cutoff
  • Thermal protection
  • Failsafe protection
• Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Aluminum heat sink for high efficiency
• Adjustable high-power BEC (6V or 7.4V, 4amp)
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
• Limited 1-year warranty

PRO-LEVEL DRAG BRAKE ADJUSTMENT

The Spektrum Firma 60 amp Brushed Smart ESC features a huge range of drag brake adjustability, allowing for drivers to expertly tune their models depending on their driven train and vehicle weight. Featuring fine levels of adjustability for Drag Brake Percentage and Drag Brake Rate that is perfect for tuning your crawlers and scalers for expert level rock crawling performance.

WATERPROOF

The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.

EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.

ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including voltage, temperature, balance, capacity, and motor current.

MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Using the Smart Firma™ ESC Programming Box, you can easily change settings on the trail to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available. And for those with a Text Gen capable, programming and adjustment of ESC settings can be performed, right from your Spektrum transmitter, no additional modules or wires needed!

SMART TECHNOLOGY BATTERY DATA

Multiple programming options are available. Using the Smart Firma™ ESC Programming Box, you can easily change settings on the trail to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available. And for those with a Text Gen capable, programming and adjustment of ESC settings can be performed, right from your Spektrum transmitter, no additional modules or wires needed!

Specification

• Amperage: 60A
• Auto Cutoff: Yes
• BEC: Yes
• BEC Continous Current: 4A
• BEC Type: Switching
• BEC Voltage: 6V / 7.4V User Selectable
• Brakes: Integrated with ESC
• Connector Type: IC3, 4mm Bullet
• Forward: Yes
• Input Voltage: 2–3 Cell Li-Po / Li-Fe; 5–9 Cell Ni-MH / Ni-Cd
• Low-Voltage Cutoff Programmable: Yes
• Maximum Continuous Current: 60A
• Motor Limit: 540 / 550 Size Motors
• Motor Type: Brushed
• Overload Protection: Yes
• Product Application: Crawling, Surface
• Product Height: 0.71" (18 mm)
• Product Length: 1.41" (36 mm)
• Product Weight: 1.76 oz (50 g)
• Product Width: 1.18" (30 mm)
• Programmable: Yes
• Reverse: Yes
• Technology: Smart
• Water-Resistant: Yes

Contents

• (1) Spektrum Firma 60A Brushed Smart ESC
• (2) Light Strings (red and white)
• (1) Product Manual

Requires

• Spektrum™ Surface Receiver
• 540 – 550 size Brushed motor
• 2S or 3S Lipo Battery with EC3 or IC3 Connector
• Spektrum Transmitter

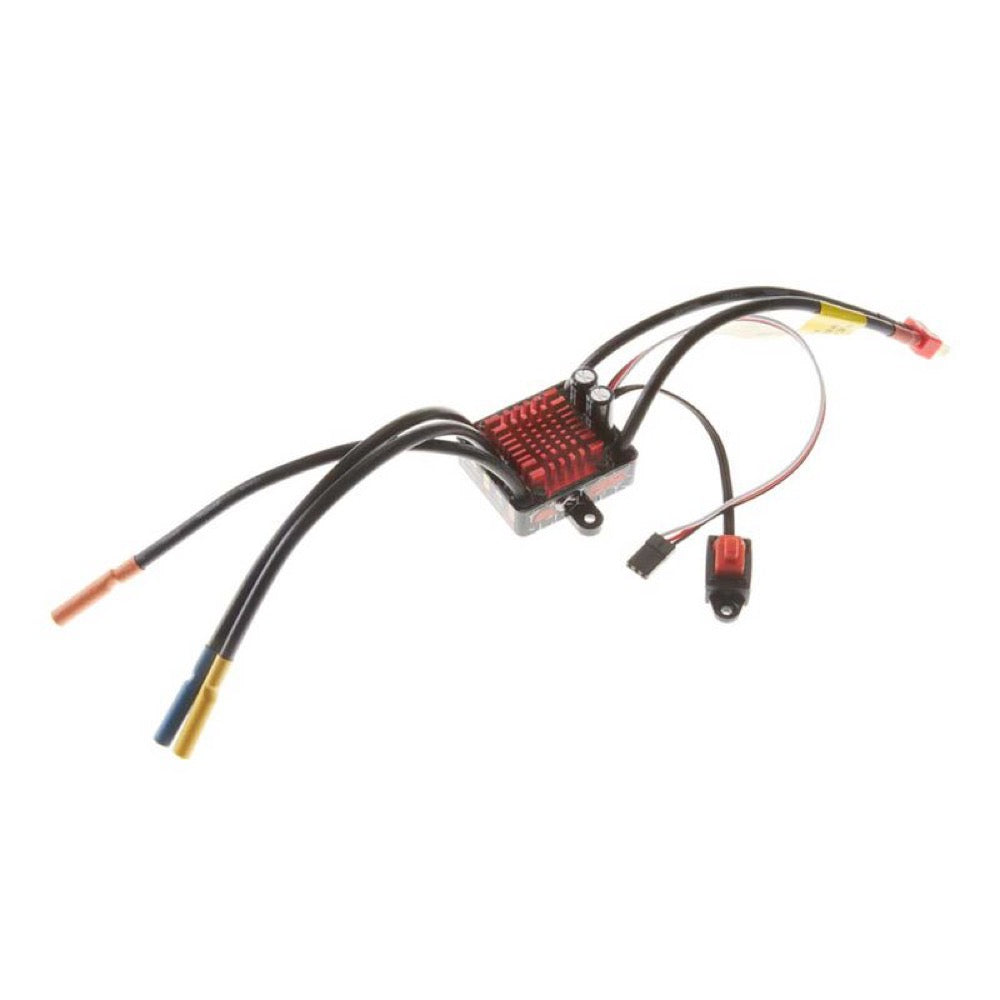

The BLX85 60A waterproof ESC provides consistent power control and is 3S LiPo ready.

Fitted with T-connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX85 ESC has over-voltage protection, and a two-stage LiPo cutoff for added battery management.

The fitted high-quality wires and 6V BEC unit are combined with a three mode throttle profile (fwd/reverse/brake) to provide the ultimate driving experience.

2S and 3S LiPo compatibility. 6 to 7 Cell NiMh compatibility.

Recommended battery specification: 4000mAh - 25C minimum 2S or 3S battery pack

Features

• Waterproof ESC and power switch for rugged reliability in all conditions
• Integrated heatsink for reduced heat during extreme running - 6.0V BEC
• 60A continuous, 420A burst current capability
• Simple, single button set up
• Forward, brake, reverse throttle modes
• User programmable function
• LiPo or NiMh modes
• Over current protection
• BEC overload protection
• LiPo and NiMh cutoff to protect your batteries
• 5000kV Motor limit

Includes

• 1 x ARRMA BLX85 Brushless ESC

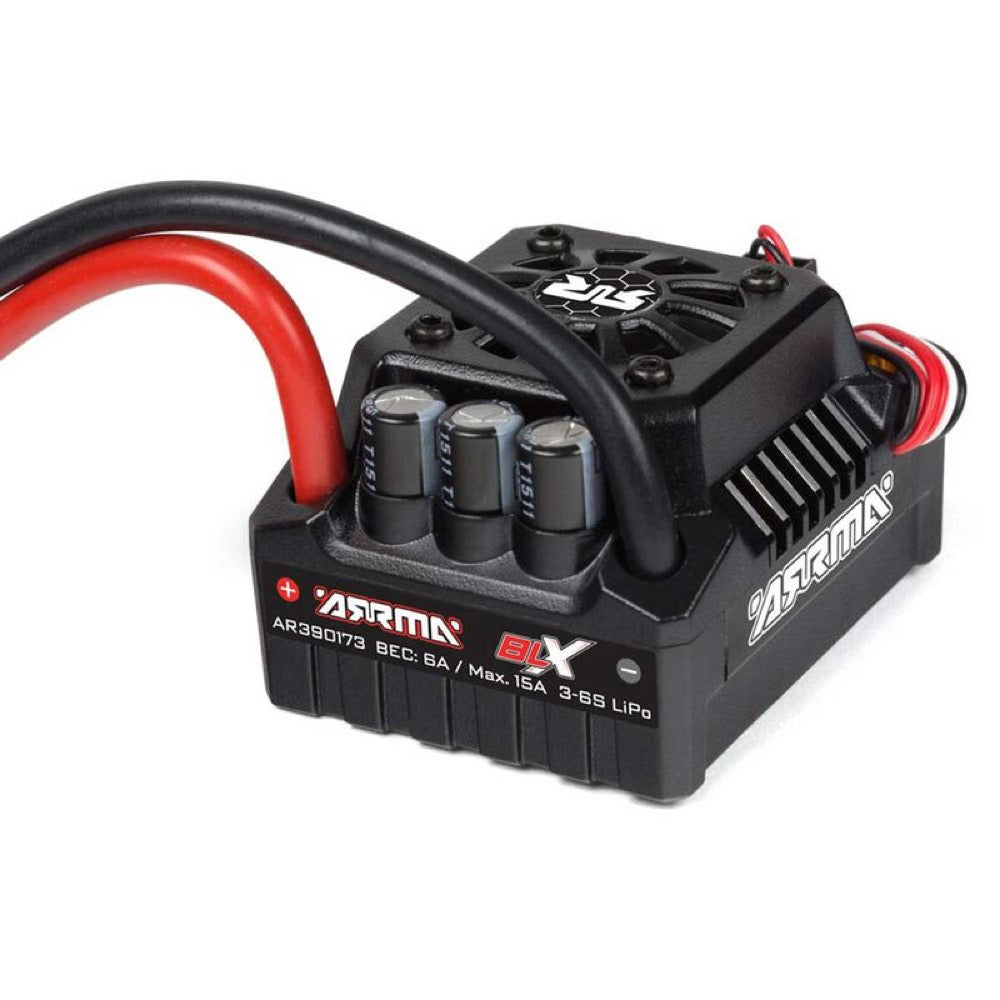

The BLX200 150A waterproof ESC provides consistent power control and is 6S LiPo ready.

Fitted with super-reliable XT90 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX200 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.

The BLX200 ESC features user adjustable parameters that include the punch setting, brake force strength and motor rotation direction. These parameters can be set simply using the setup button located on the ESC switch.

The fitted 10AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

Recommended battery specification: 5000mAh - 35C minimum - Per battery pack (battery specification dependent on model/usage)

Features

• 150A Continuous Current Handling
• 6V/6A BEC Circuit
• 5 Punch Level Settings
• 3 Brake Strength Settings
• Adjustable Motor Rotation Direction
• Over-Temperature Protection
• 2-Stage LiPo Cut Off
• Genuine AMASS XT90 Battery Connectors

Includes

• 1 x BLX200 ESC
• 2 x Female AMASS XT90 Connectors (for battery packs)
• 1 x Instruction Manual
