Product Detail

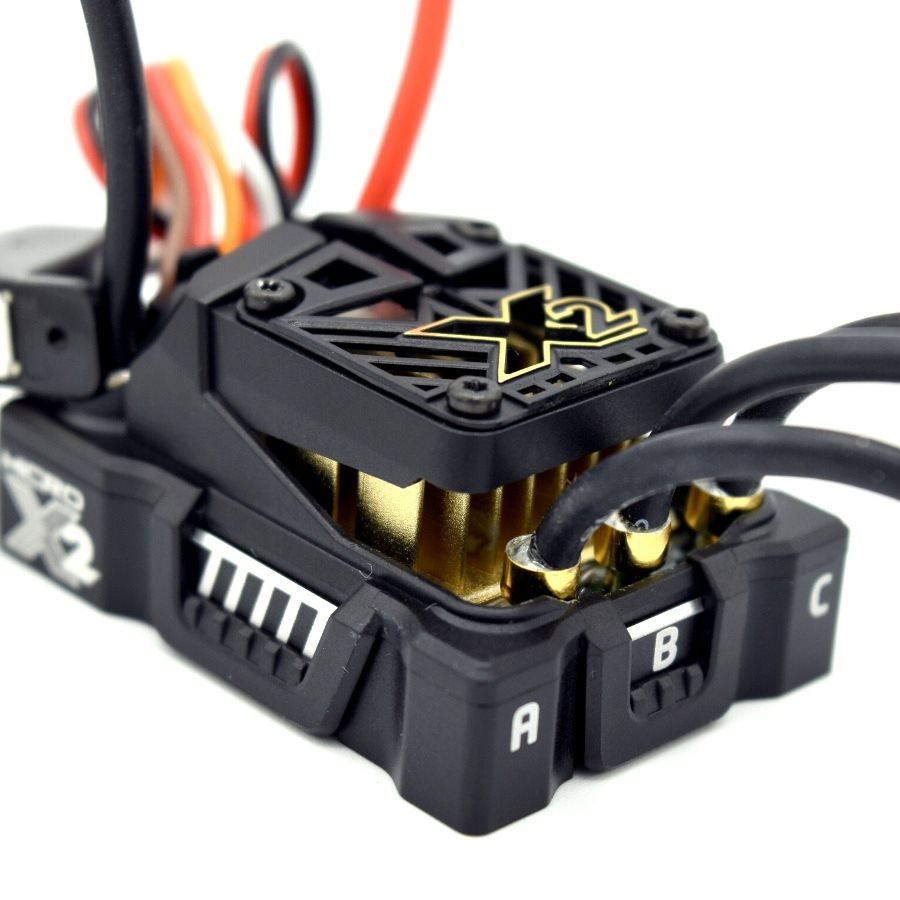

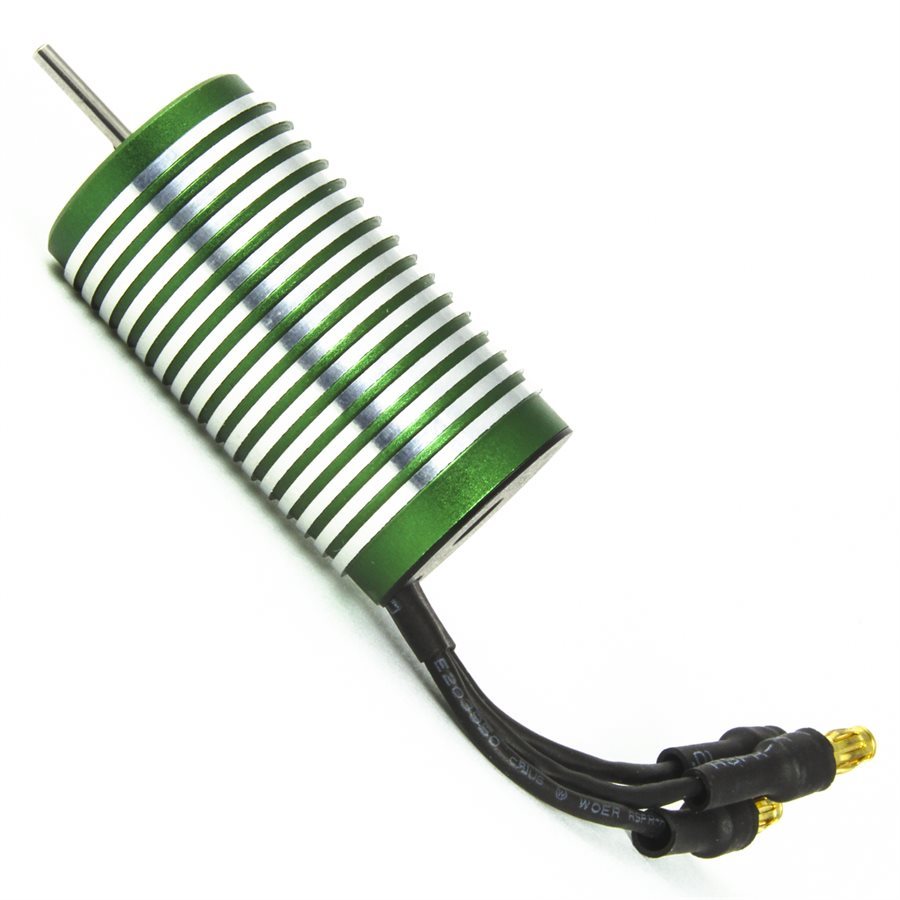

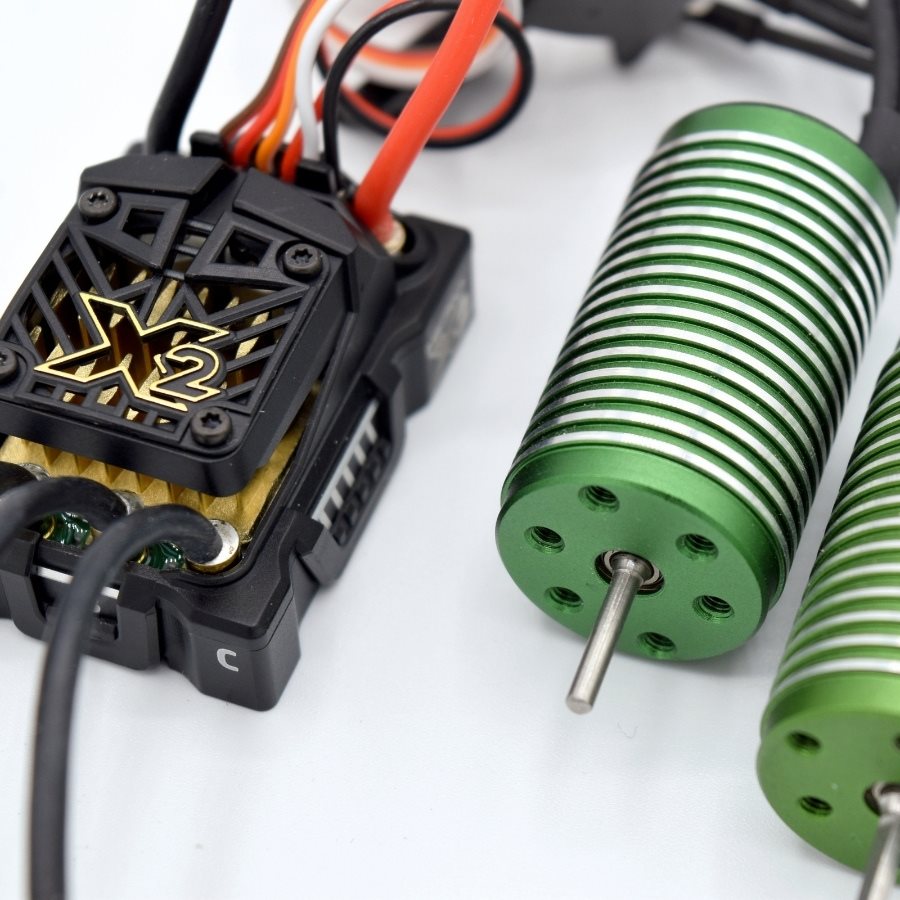

Technical Specs Mamba Micro X2 ESCInput Voltage Range: 2S-4S LiPo (16.8V Max) (3S max with included 0808-5300Kv motor)BEC Specifications: Adjustable; 5.5V or 7.5V (default 5.5V) 2A PeakOperating Environment: Waterproof* design allows for use in nearly any environmentBrake: ProportionalReversible: Yes, but may be disabledOn/Off Switch: Yes, waterproofCooling Fan: Not includedSize (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")Weight (with wires): 1.66 oz / 47 gramsConnectors: 3.5 mm bulletsItems Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.Product Use Statements:Applying voltages higher than 16.8 volts will cause irreparable damage to your controller, voiding your warranty.Minimum recommended battery capacity for 1:18 scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).Mamba Micro X has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.Application Guidelines: 1:18 scale RC hobby vehicles weighing up to 2lbs.Max. Recommended Vehicle Weight: 2 lbs, with batteries, ready-to-run, with included 0808-5300KV motorProgrammability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.Tech Notes: *Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.Technical Specs 0808-5300Kv Brushless Sensorless MotorInput Voltage Range: 2S-3S LiPo, 4-9 cell NiMHKv: 5300Max. RPM: N/ASize: Length: 1.5" (38mm)Diameter: 0.79" (20mm)Weight (w/wires): 1.8 oz. (50g)Shaft Size: Diameter: 0.08" (2mm)Length: 12mmMounting Hole Specifications: 2.5mm holes @ 1/2”, 14MM, 5/8”Cooling Fan: NoConnectors: 3.5mm male bulletsProduct Use Statements: N/AApplication Guidelines: Up to 3S LiPo and weighing in at up to 2lbs.Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-RevoMax. Recommended Vehicle Weight: 2lbsTech Notes: Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
