Product Detail

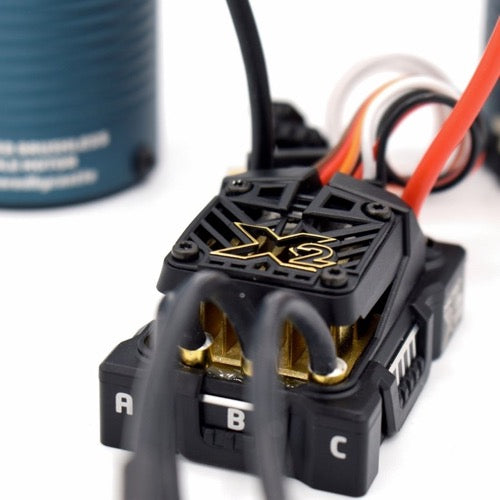

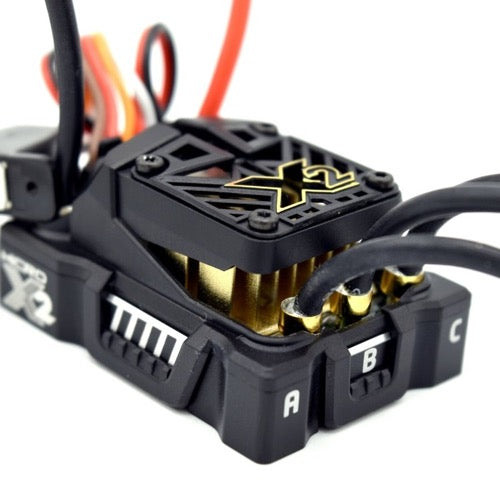

Technical Specs Mamba Micro X2 ESCInput Voltage Range: 2S-4S LiPo (16.8V Max)BEC Specifications: Adjustable; 5.5V or 7.5V (default 5.5V) 2A PeakOperating Environment: Waterproof* design allows for use in nearly any environmentBrake: ProportionalReversible: Yes, but may be disabledOn/Off Switch: Yes, waterproofCooling Fan: Not includedSize: 41.6 mm x 29.4 mm x 21.3 mmWeight (with wires): 1.66 oz / 47 gramsConnectors: 4.0 mm bulletsItems Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.Product Use Statements:Applying voltages higher than 16.8 volts will cause irreparable damage to your controller, voiding your warranty.Recommended battery capacity for 1:18 scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).Mamba Micro X has 4.0mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)Telemetry Link Capable: Yes, with Castle Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.Tech Notes: *Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.Technical Specs 1406-2280Kv Sensored MotorInput Voltage Range: 2S-4S LiPoKv: 2280Max. RPM: 100,000Size: Length: 49.5mmDiameter: 36mmWeight (w/wires): 197 g / 6.9ozShaft Size: Length: 15mmDiameter: 1/8" (3.17mm)Mounting Hole Specifications: M3 @ 25mmCooling Fan: Optional - Coming SoonConnectors: 4mm male Castle Bullet ConnectorsApplication Guidelines: Ideal for 1:10 scale low speed rock crawlers/trail runners on 2S-3S weighing less than 8lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs.Max. Recommended Vehicle Weight:Tech Notes:Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommends applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
