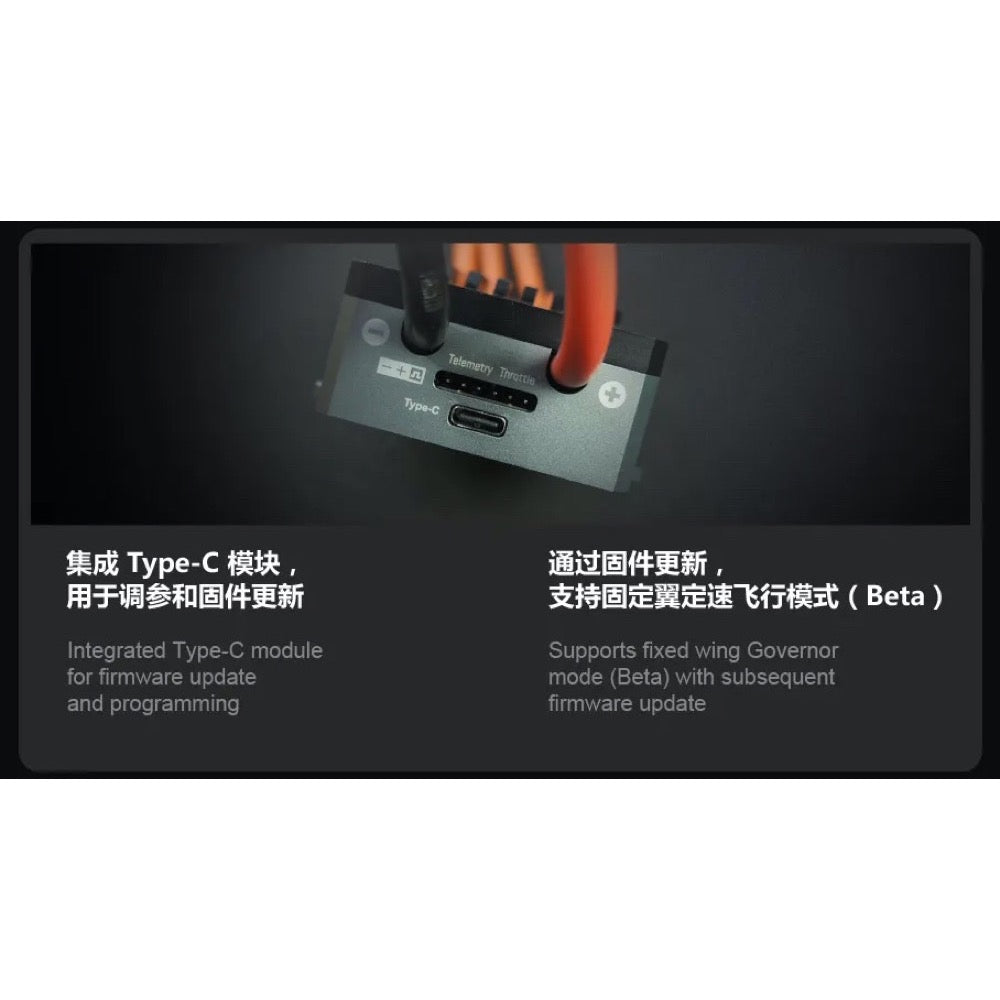

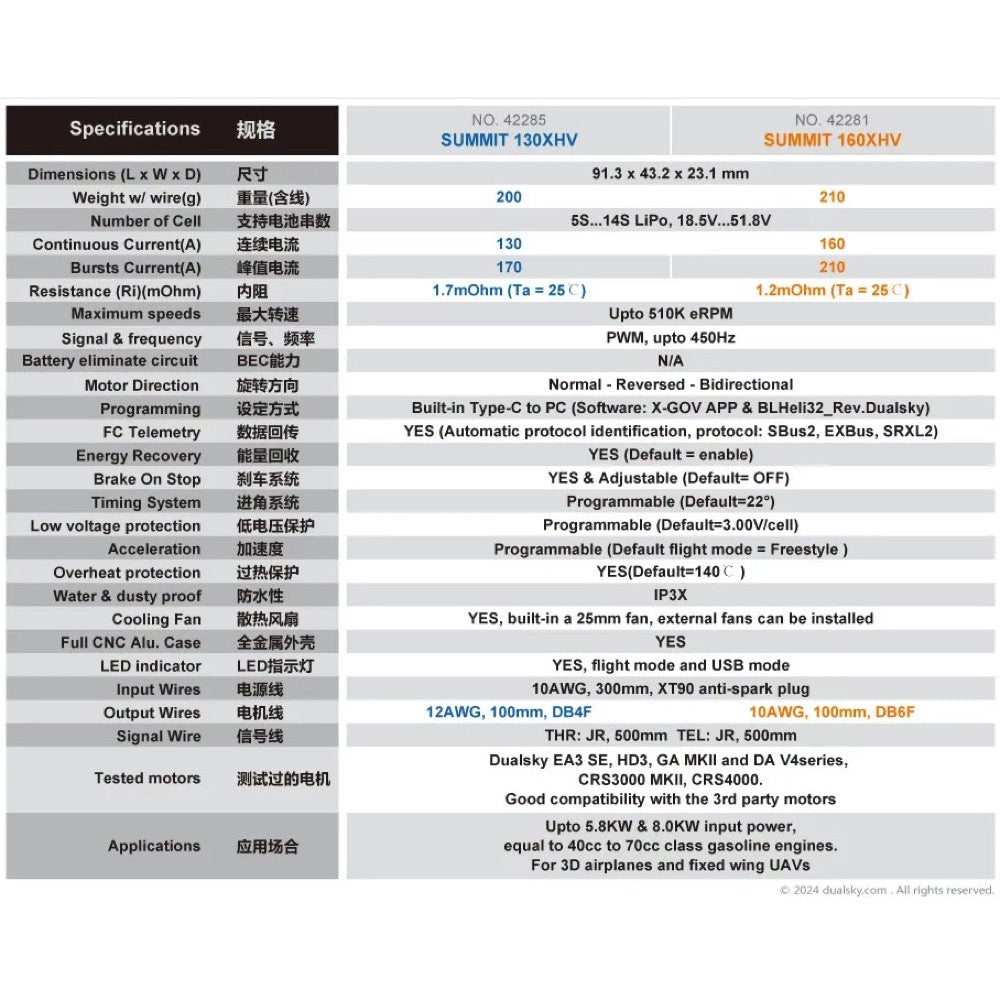

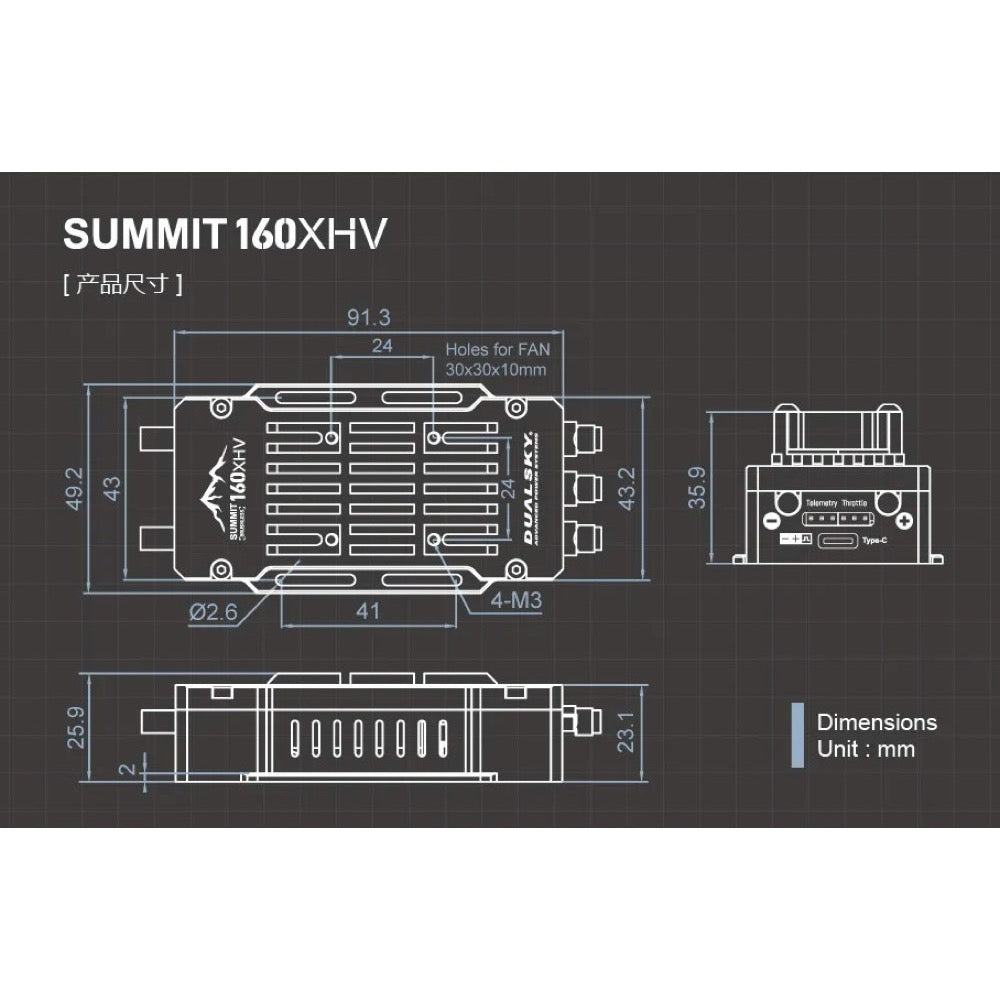

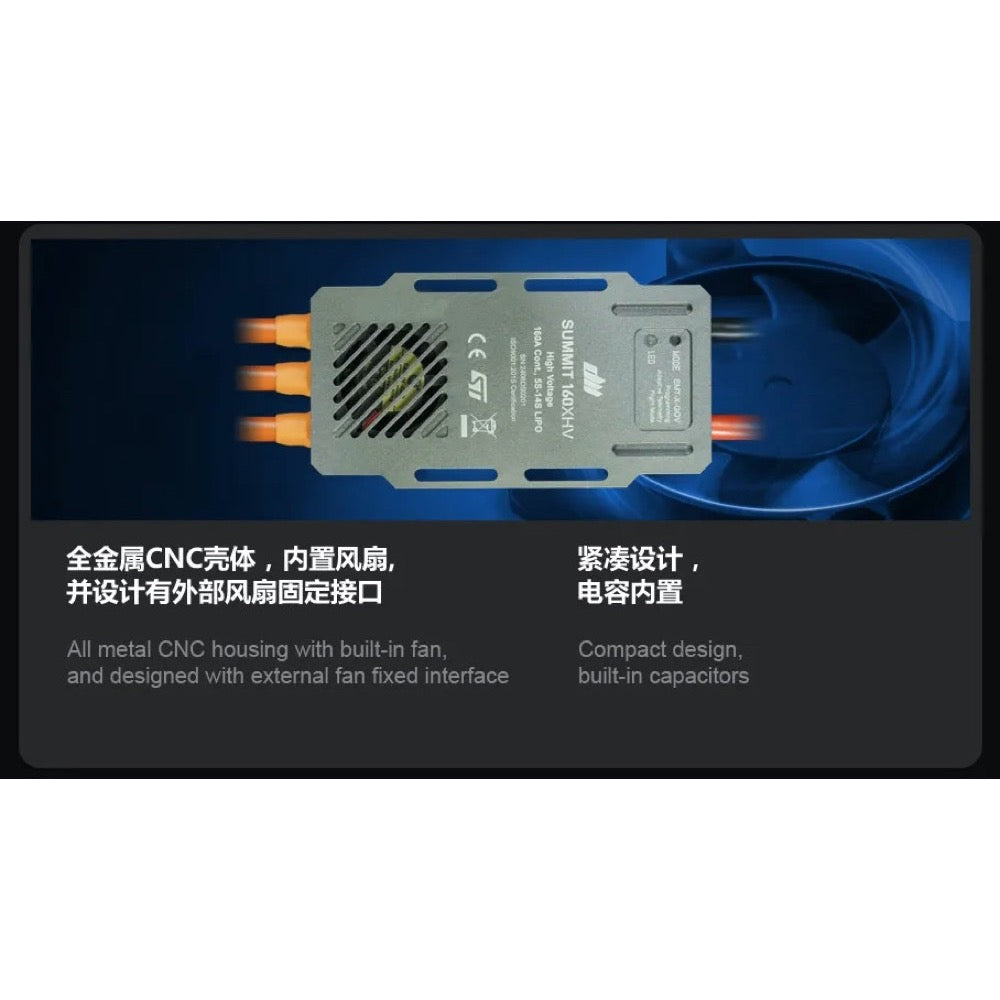

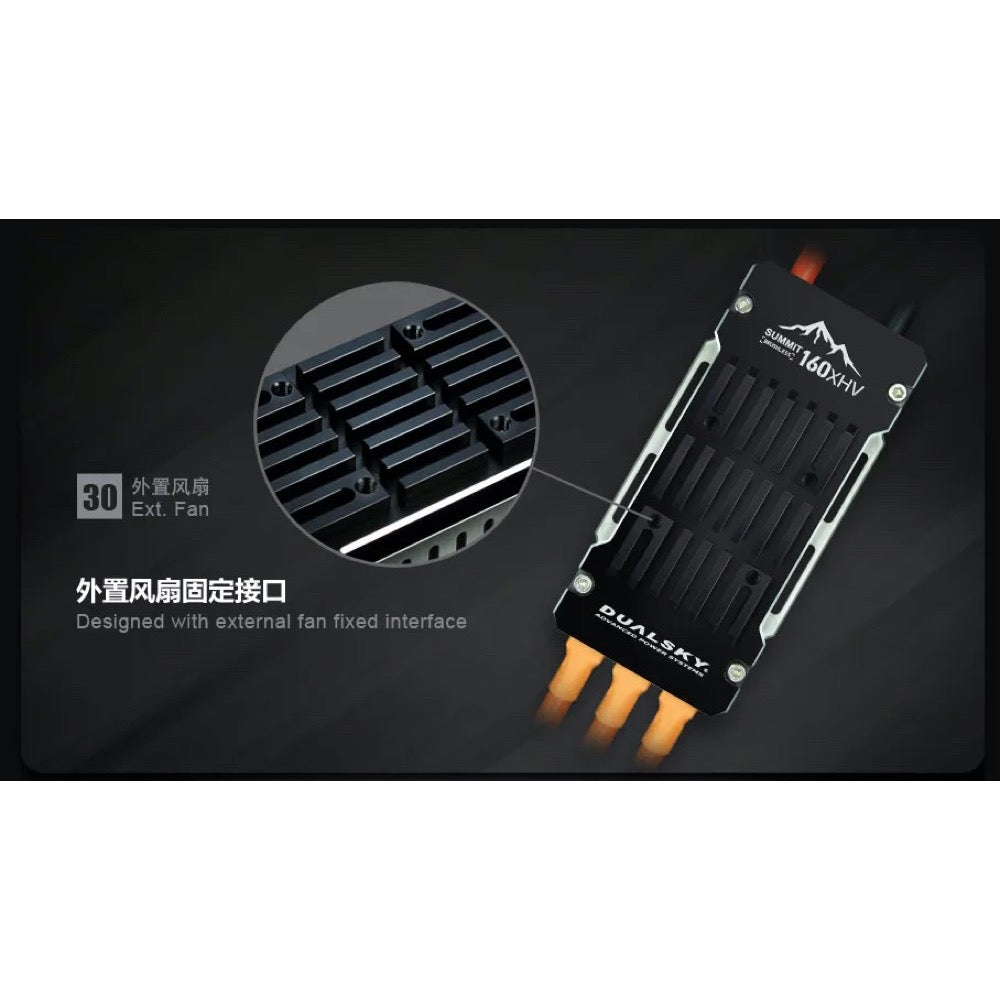

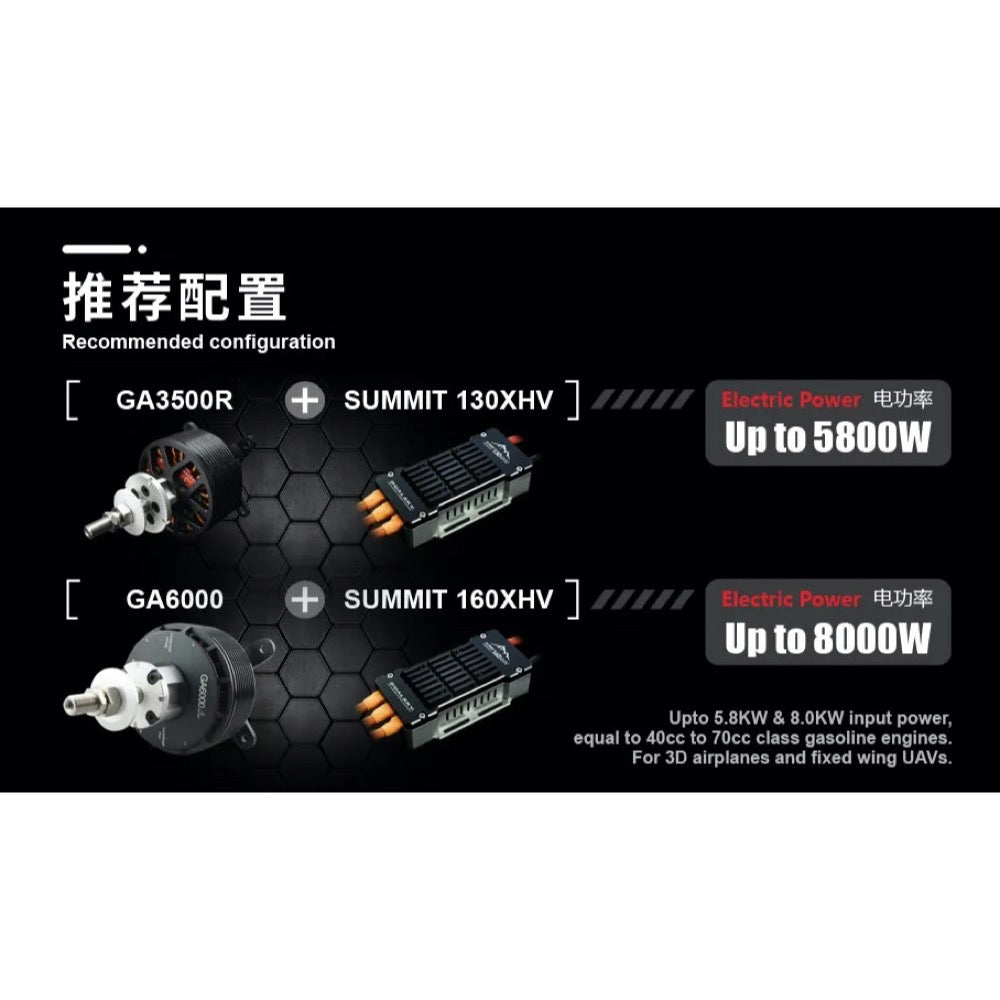

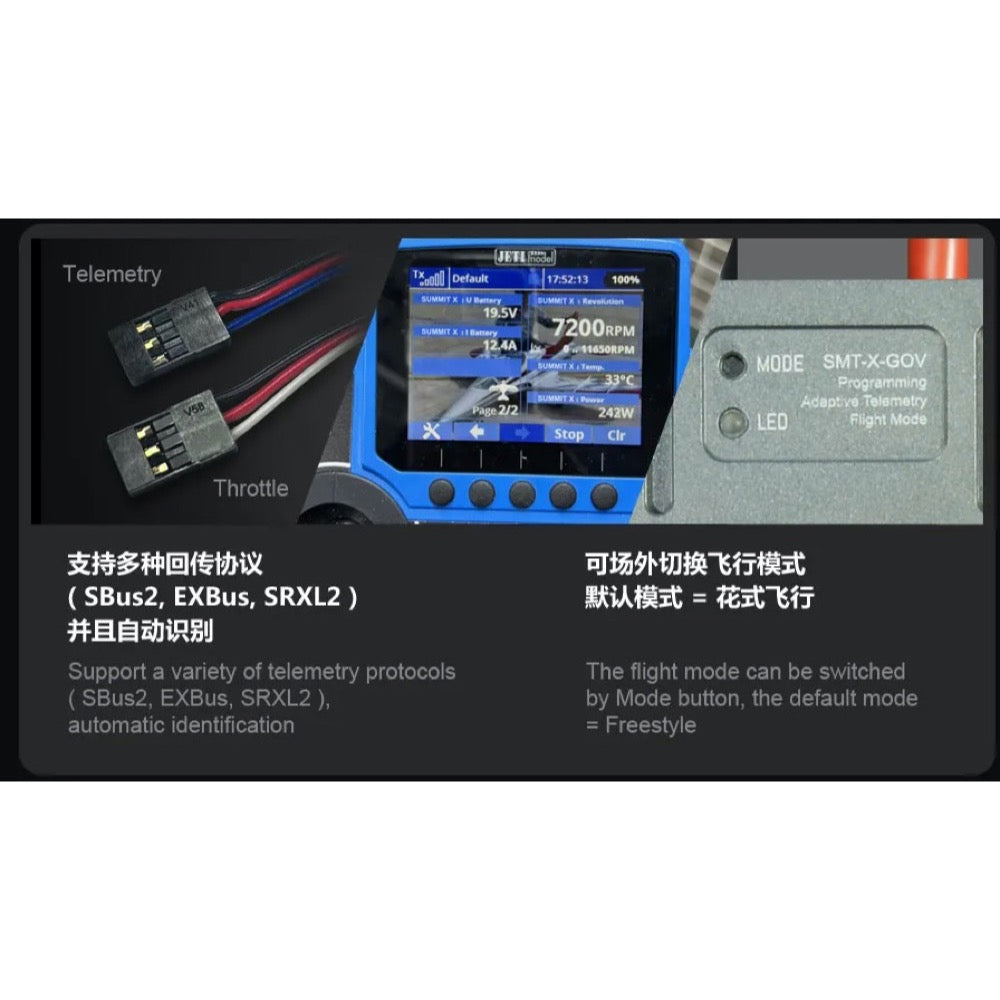

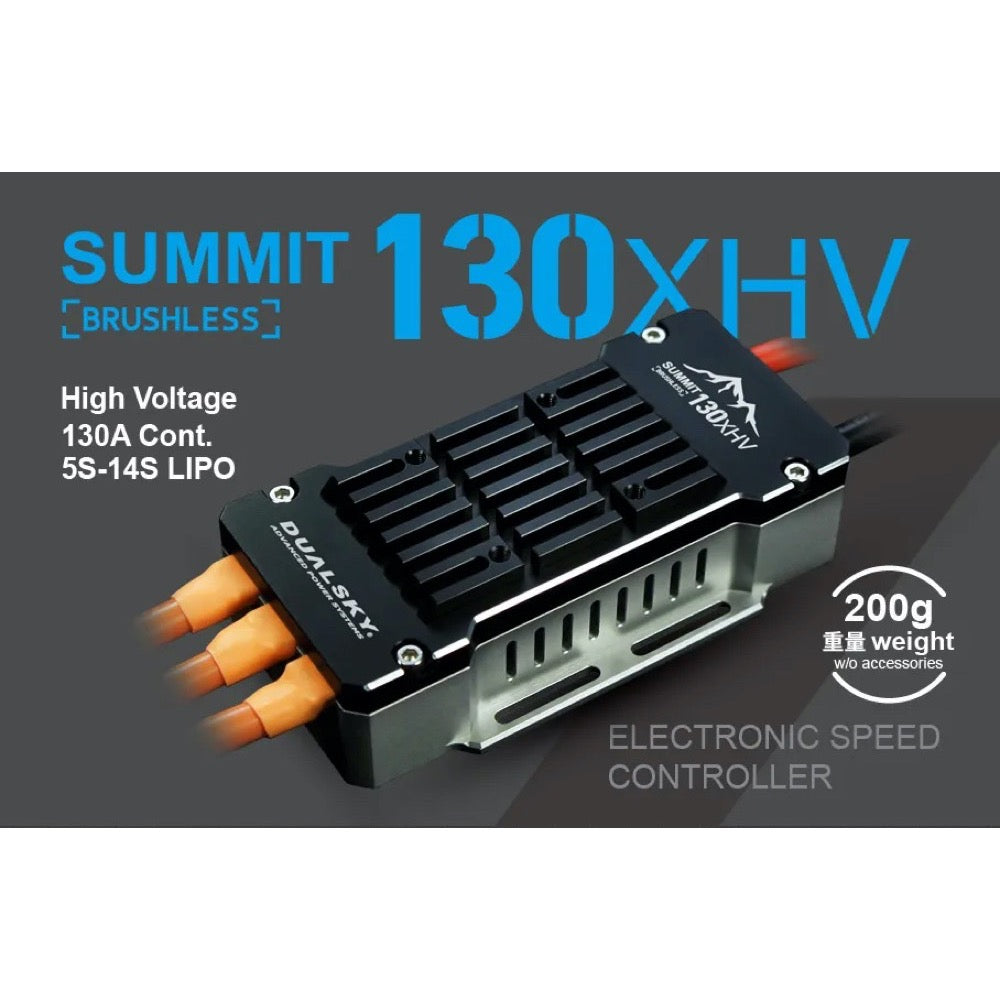

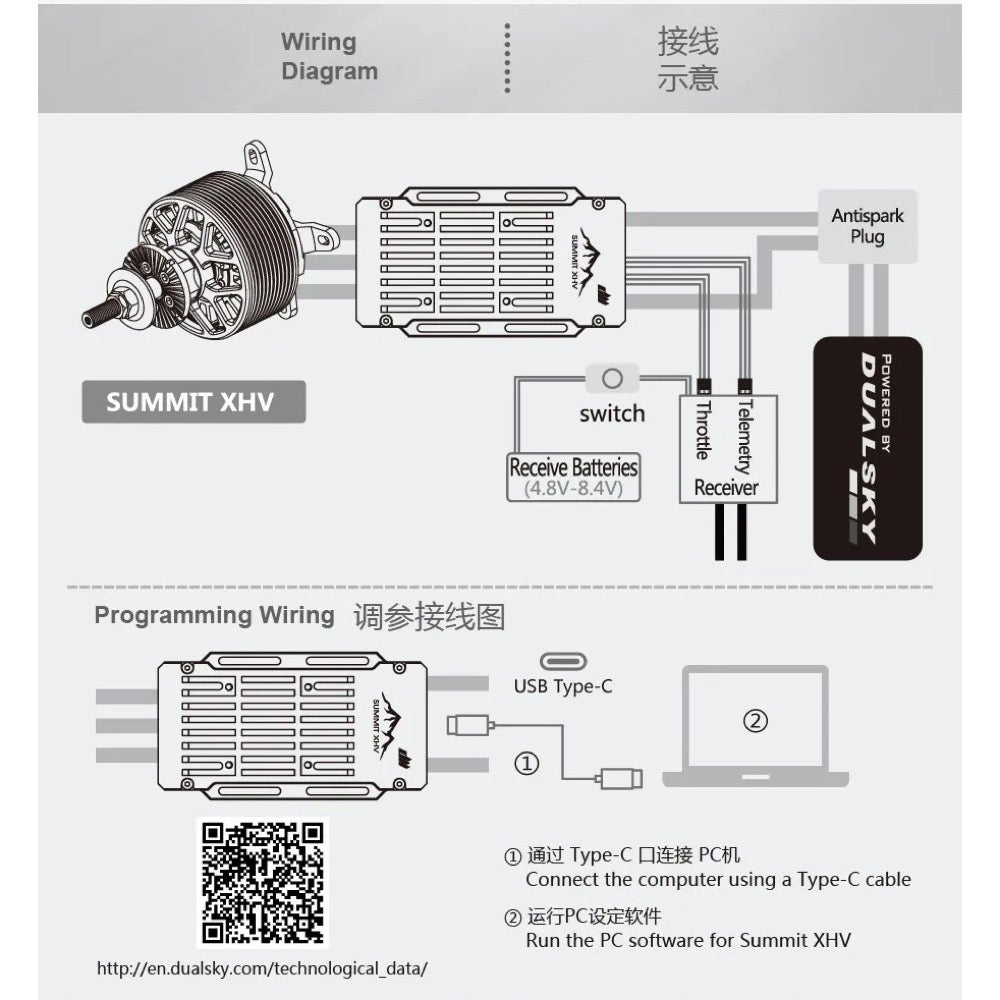

Dimensions (L x W x D): 91.3 x 43.2 x 23.1 mmWeight w/ wire(g): 200gNumber of Cell: 5S-14S LiPo, 18.5V - 51.8VContinuous Current(A): 130Bursts Current(A): 170Resistance (Ri)(mOhm): 1.2 mOhm (Ta = 25 degrees celcius)Maximum speeds: Upto 510K RPMSignal & frequency: PWM, upto 450HzBattery eliminate circuit: N/AMotor Direction: Normal - Reversed - BidirectionalProgramming: Built-in Type-C to PC (Software: X-GOV APP & BLHeli32_Rev.Dualsky)FC Telemetry: YES (Automatic protocol identification, protocol: SBus2, EXBus, SRXL2)Energy Recovery: YES (Default = enable)Brake On Stop: YES & Adjustable (Default= OFF)Timing System: Programmable (Default=22°)Low voltage protection: Programmable (Default=3.00V/cell)Acceleration: Programmable (Default flight mode = Freestyle)Overheat protection: YES(Default=140 C)Water & dust proof: IP3XCooling Fan: YES, built-in a 25mm fan, external fans can be installedFull CNC Alu. Case: YESLED indicator: YES, flight mode and USB modeInput Wires: 10AWG, 300mm, XT90 anti-spark plugOutput Wires: 10AWG, 100mm, DB6FSignal Wire: THR: JR, 500mm TEL: JR, 500mmTested motors: Dualsky EA3 SE, HD3, GA MKII and DA V4series, CRS3000 MKII, CRS4000. Good compatibility with the 3rd party motorsApplications: Up to 5.8KW & 8.0KW input power, equal to 40cc to 70cc class gasoline engines. For 3D airplanes and fixed wing UAVs
