Product Detail

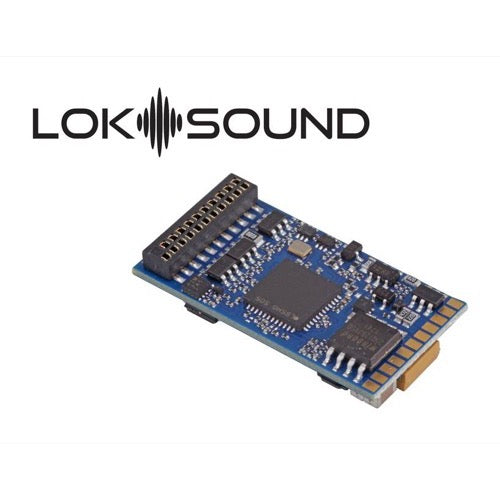

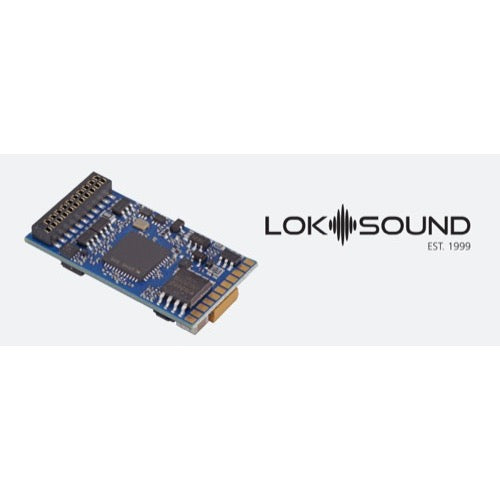

Operation under DCC with RailComPlus®, M4, Motorola® and Selectrix®32 switchable functions (depending on the control panel)32-bit processorDigital class "D" amplifier with up to 3 W power (LokSound 5 XL: 13 W)Each channel in 16-bit resolution and 31250 kHz sample rateSound memory with 128 Mbit capacityMotor control with 50 kHz switching frequencyRC servos and Susi modules can be controlled3 new, individually adjustable brake controlsTwo-stage heavy duty simulationUpdateable with ESU-LokProgrammerLokSound 5Universal sound decoder for gauges H0 and 0Motor current 1.5 ADepending on the interface, up to 12 amplified function outputs for special functions (total: up to 15 outputs)10 sound channels can be played simultaneouslyFactory fitted with 11x15mm "sugar cube" speakers with adjustable sound capsule setPowerPack storage capacitor can be connected as an optionDimensions: 30mm x 15.5mm, height dependent on interfaceInterfaces8-pin NO 652PluxX226-pin NO 65121MTC21MTC MKL
