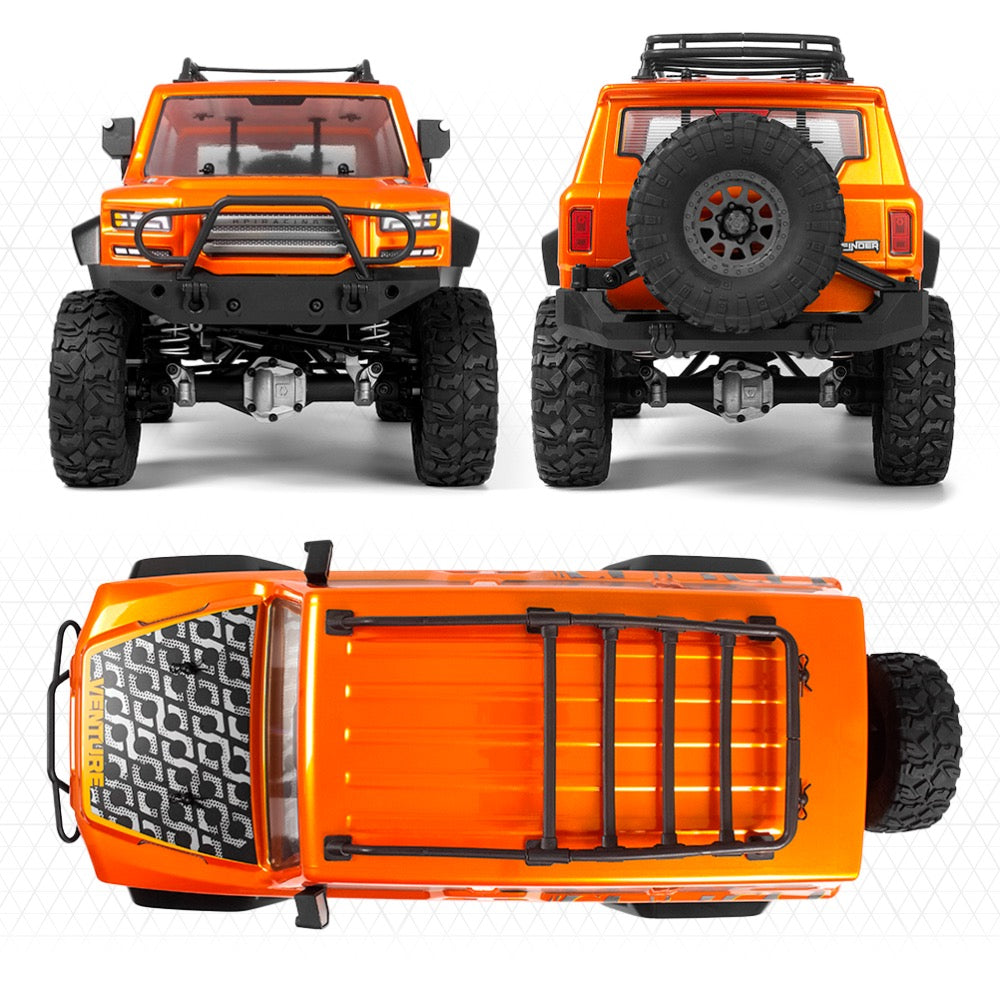

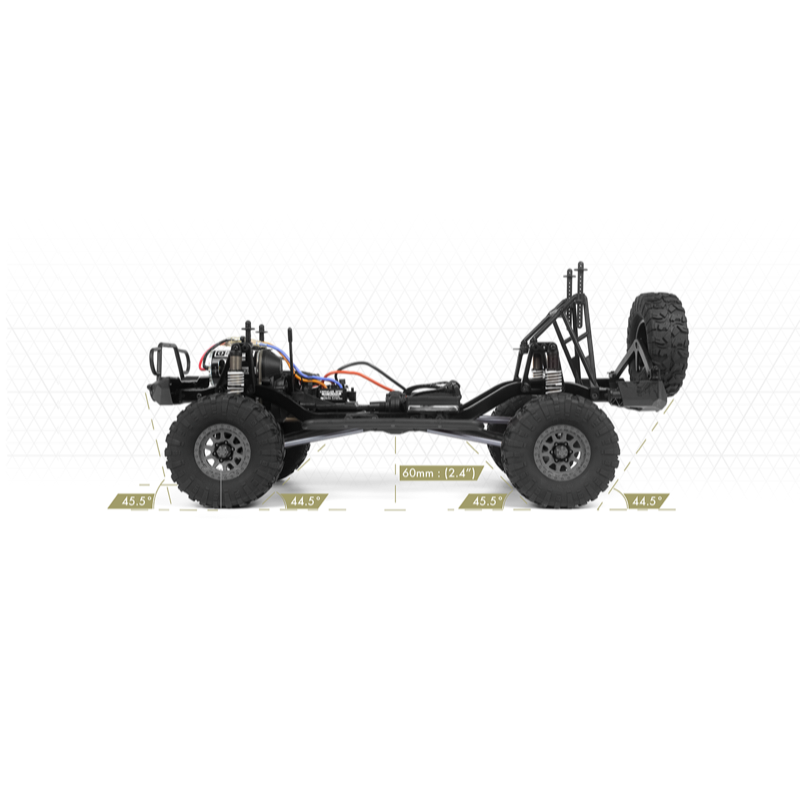

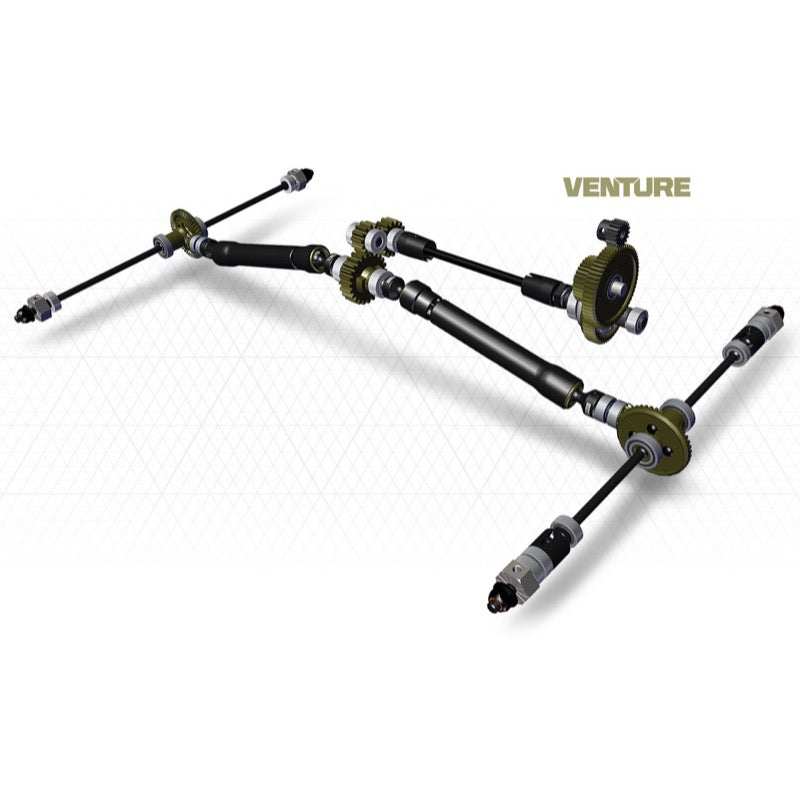

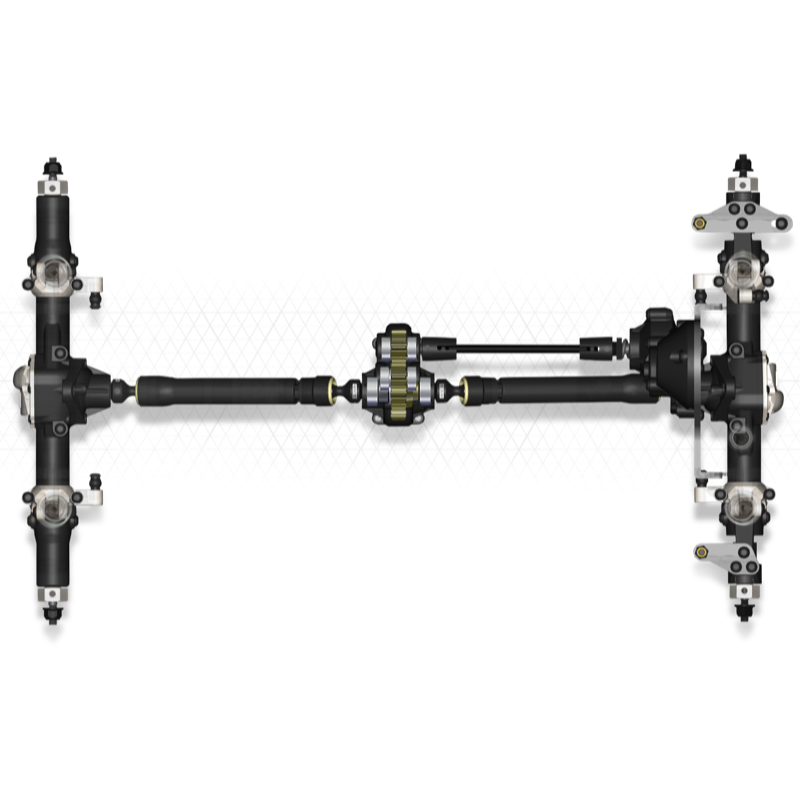

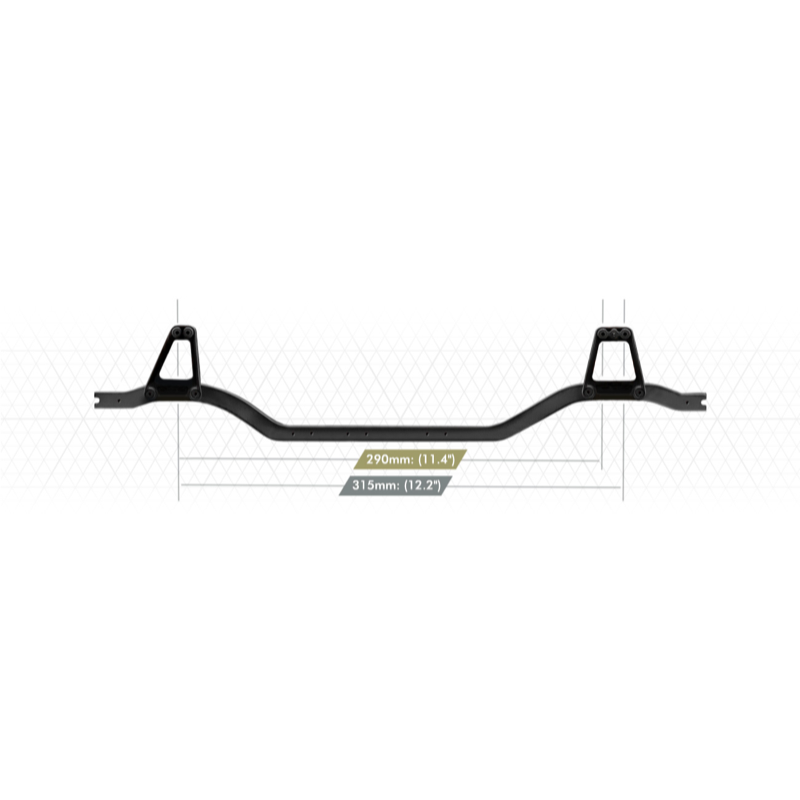

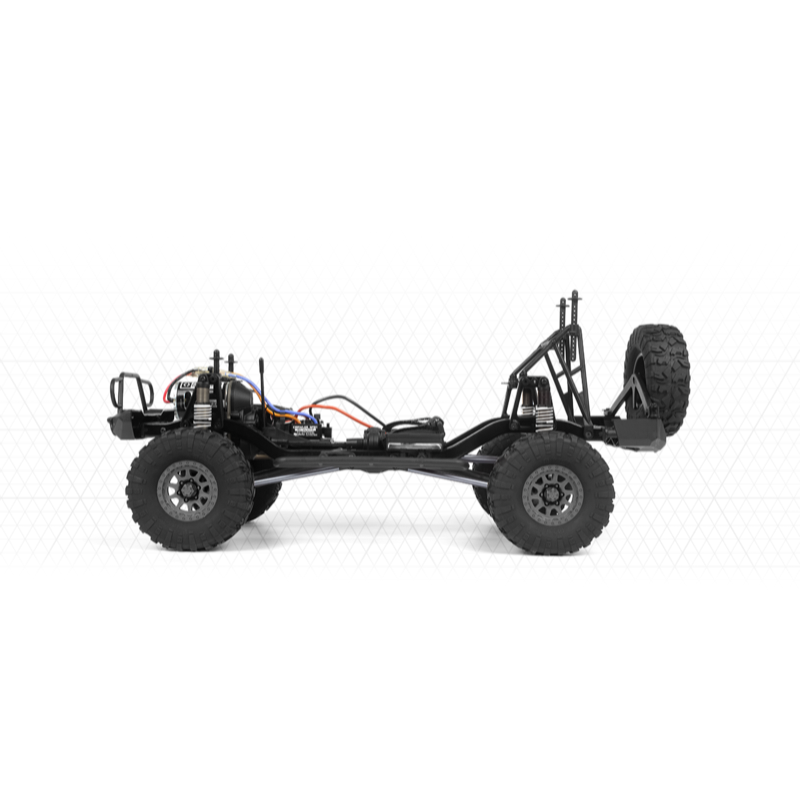

DIMENSIONSLength: 527mm (20.7")Width: 227mm (9")Height: 238mm (9.4") with roof rack, 217mm (8.5") without (will vary depending on tire choice and suspension settings)Wheelbase: 311mm (12.3")Front overhang: 101mm (3.9")Rear overhang: 135mm (5.3")WEIGHTRunning weight: 2.4kg (5.3lbs)Weight without battery: 2.1kg (4.7lbs)Body Weight: 0.21kg (7.44oz)CAPABILITYBreak-over angle: 44.5 degreesApproach angle: 55 degDeparture angle: 45.5 degMax climb angle: 49 degMax tilt angle: 28 degAxle articulation: 30 degGround clearance 68mm capable: (2.7")Ground clearance at standard ride height 60mm: (2.4")Axle ground clearance 32mm: (1.3")GEARINGDrivetrain ratio: 7.6:1Transmission gearing: 1.53:1Axle gearing: 3.31:1Transfer case gearing: 1.5:1
