Product Detail

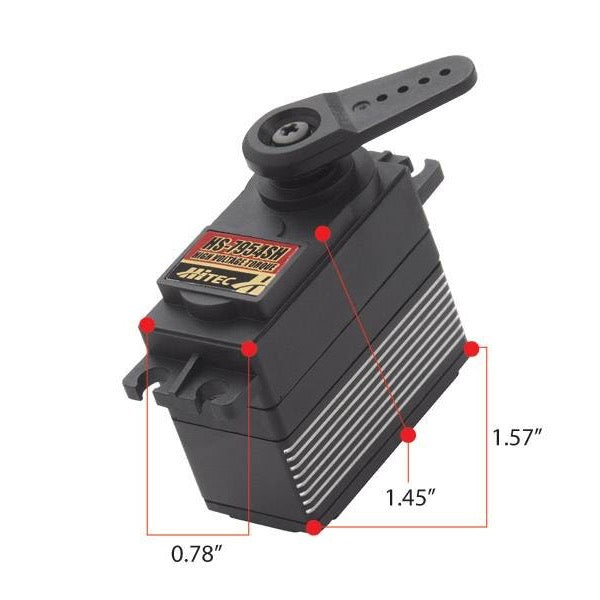

Operating Voltage Range (Volts DC) : 6.0V ~ 7.4V Speed (Second @ 60°) : 0.15 ~ 0.12 Maximum Torque Range oz. / in. : 333 ~ 403 Maximum Torque Range kg. / cm. : 24.0 ~ 29.0 Current Draw at Idle : 9 mA No Load Operating Current Draw : 240 mA Stall Current Draw : 3,000 mA Dead Band Width : 1 µs Dimensions (Metric) : 40.0 x 20.0 x 37.0 Weight (Gram) : 68 Circuit Type : G2 Programable Digital Motor Type : Coreless Metal Brush Gear Material : Steel Bearing Type : Dual Ball Bearing Output Shaft (type / Ømm) : Standard 24 Case Material : Plastic / Aluminum Dust / Water Resistance : Splash Proof Connector Gauge (AWG) / Strand Count : 22 / 60
