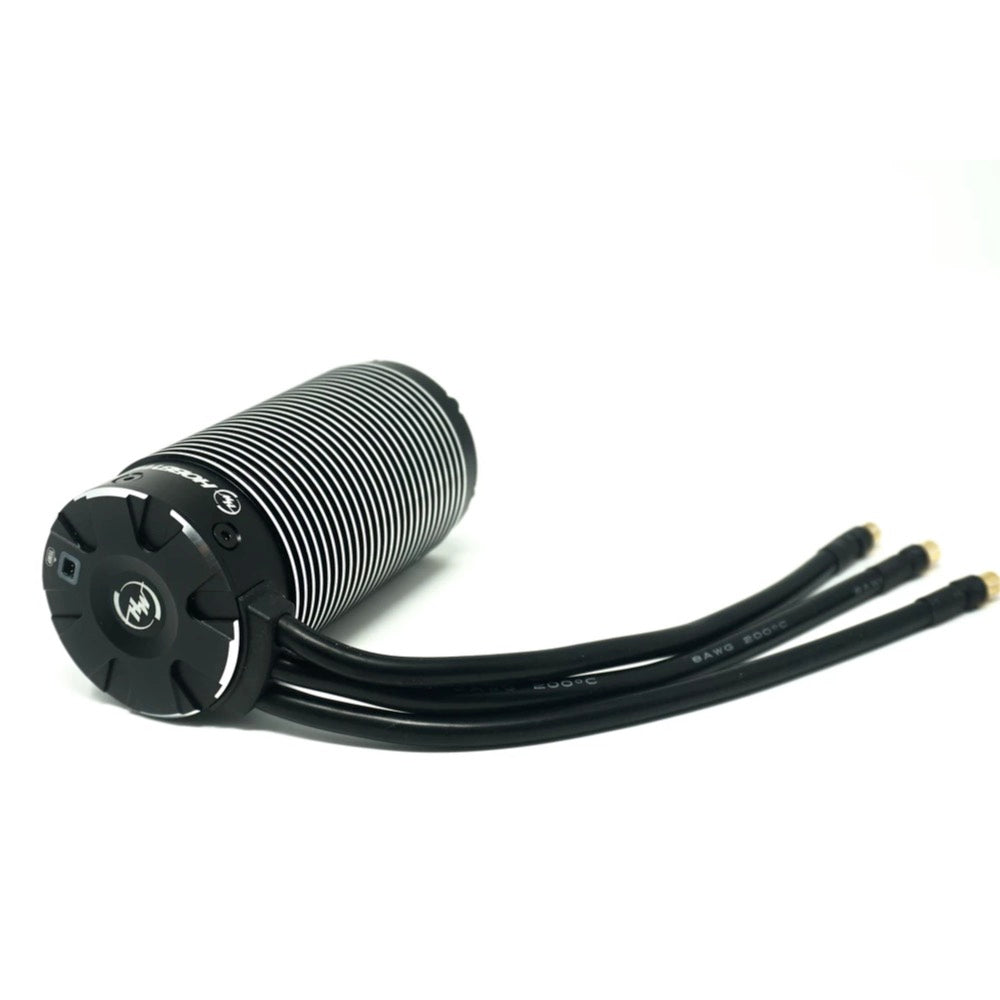

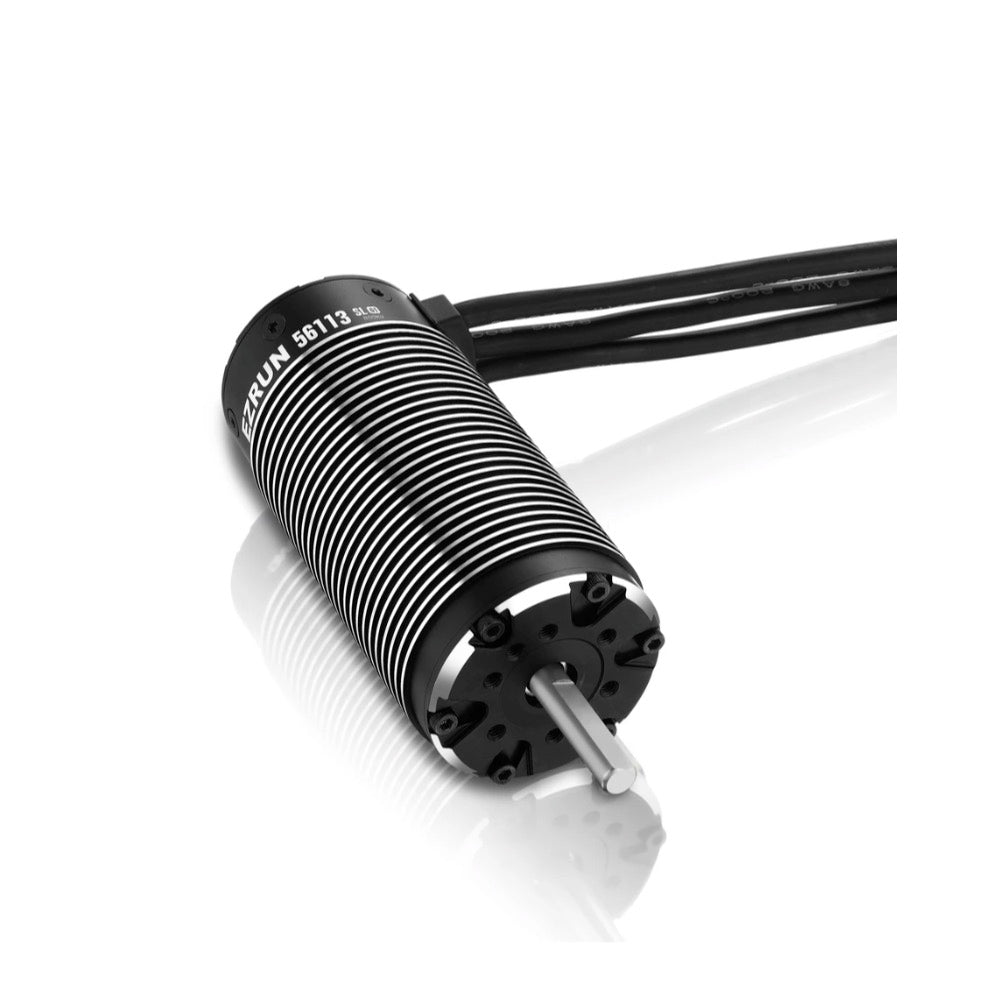

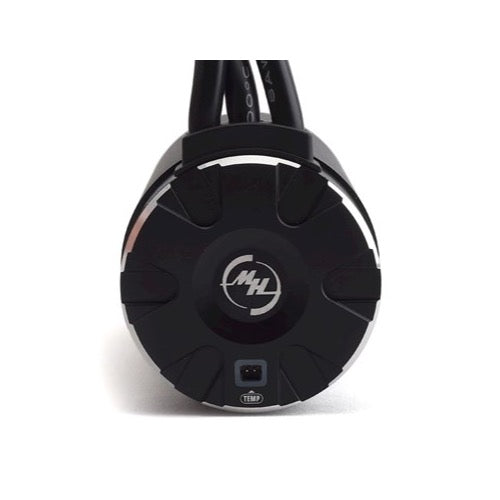

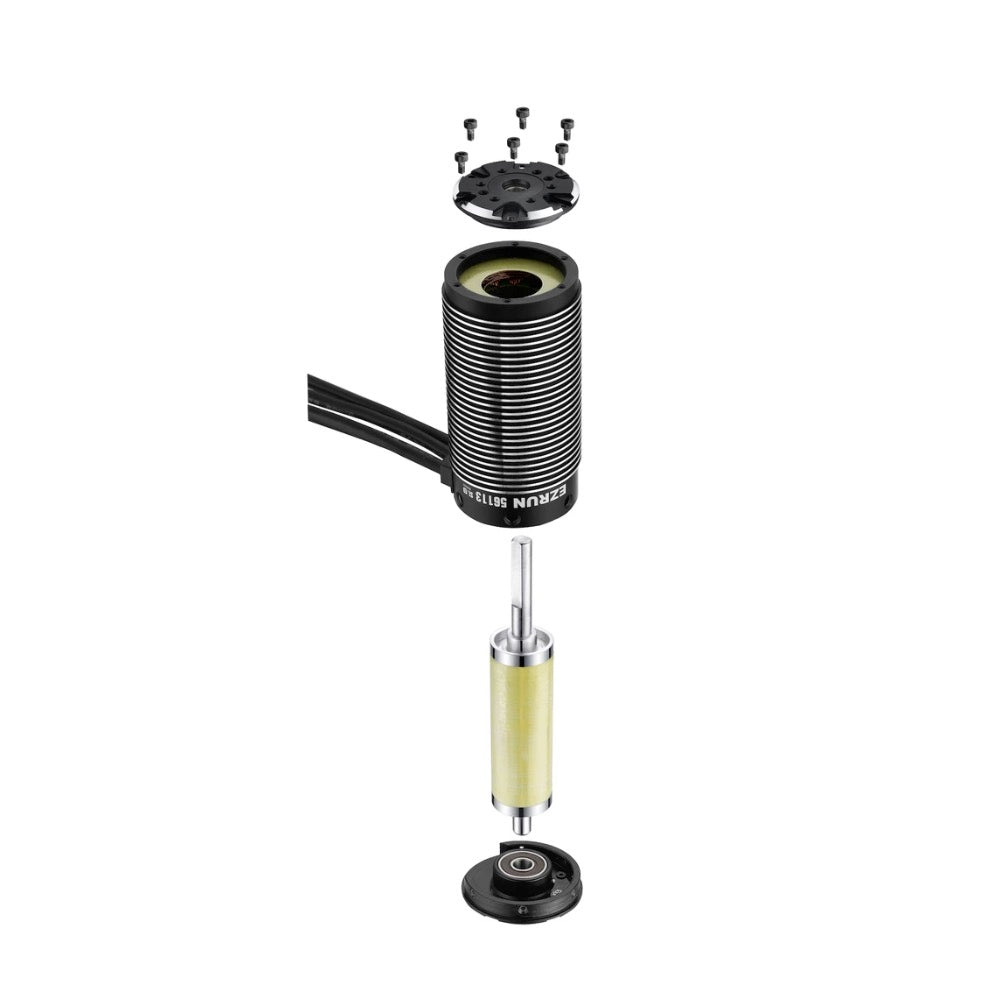

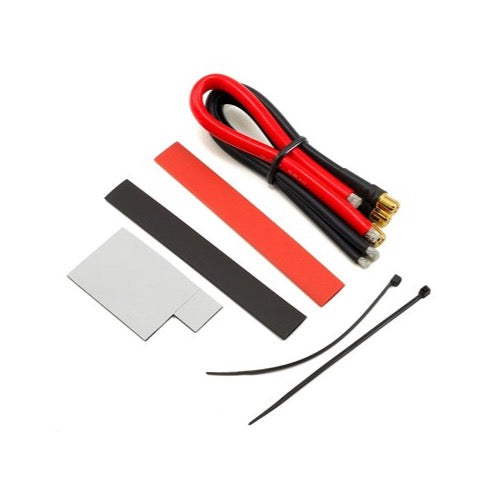

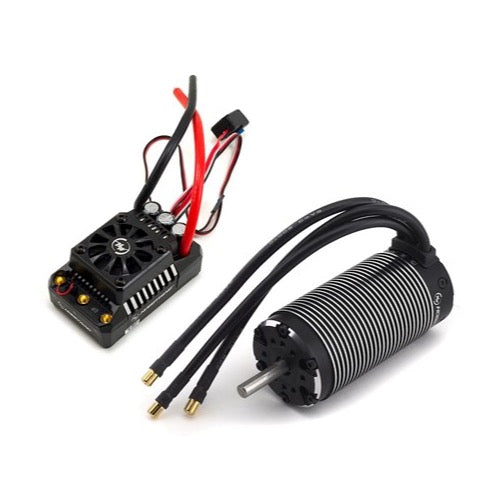

MotorModel: 56113-800KVPole: 4KV (No-load): 800KVResistance: 0.00049 ΩCurrent (No-load): 3.2 AMax. Output Power: 5800 WCurrent at the point of M.O.P: 200 AMotor Diameter: 56mmMotor Length: 113mmShaft Diameter: 8.0mmShaft Length: 31.0mmLiPo Cells: 3-8Weight: 1210g (42.68oz)Application: 1/5th RC Vehicles, Truck/DragsterESCContinuous Current: 200APeak Current: 1,300AMotor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)Applications: 1/5th Touring Car, Buggy, Truggy and TruckMotor Limit: With 8S LiPo/24-Cell NiMH: KV ≤1000 (58110 size motor)LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPoBEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)Cooling Fan: Powered by the stable BEC voltage of 6V/7.2VConnectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)Size (LxWxH): 93.35x58.12x47.81mmWeight: 342gProgramming Port: FAN /PRG Port
