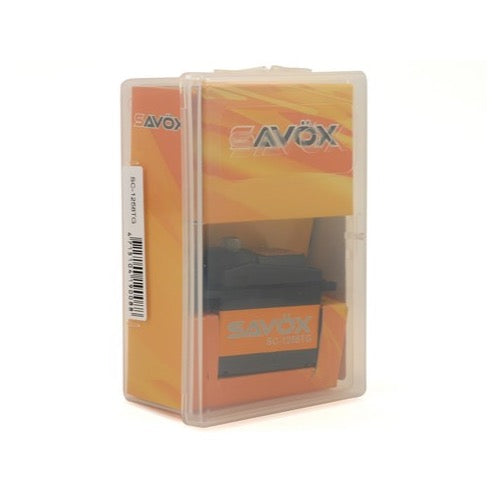

Savox SA1258TG SA-1258TG Super Speed Titanium/Alloy Servo

$56.00 $86.39

num:

Free & Fast Shipping

30-Days Money-Back Guarantee

Lifetime Quality Warranty

Torque @ 4.8v - 9.6kg/133.3oz-in Torque @ 6v - 12.0kg166.6oz-in Speed @ 4.8v - 0.10 sec/60 deg Speed @ 6v - 0.08 sec/60 deg Dimensions L x W x H (mm): 40.8 x 20.2 x 37.2 Weight: 64g Operating Temperature: 14° - 122°F (-10° - 50°C) Running Current (no load): 100mA @4.8V, 120mA @6.0V Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V Idle Current: 5mA @4.8V, 5mA @6.0V Wire Length: 250 +/- 5mm251 +/- 5mm252 +/- 5mm25 Tooth Bearings: 2BB Operating Travel: 100° (1000 → 2000 µ second) Neutral Position: 1500 µ second Pulse Width Range: 800 → 2200 µ second Maximum Travel: Appx 130° (900 → 2100 µ second) Refresh Rate: 333 Hz Motor Type: Coreless
