This Dualsky SUMMIT 100XHV Brushless ESC is designed for 3D aircraft or fixed-wing UAVs.

Features

• Designed for 3D airplanes and fixed-wing UAVs
• New generation 32-bit ARM electric drive system
• High performance TOLL package MOSFETs for excellent stability
• Excellent motor drive capability, supporting GA series 28-pole motors
• All metal CNC housing with built-in fan, also designed with an external fan fixed interface
• Compact design with built-in capacitors
• Multiple protection measures are implemented, throttle, voltage, current, temperature, and low RPM
• 100% load test passed
• Efficient driving core, abundant torque
• Effictivley avoid sync-loss conditions
• Supports efficient SINE wave working mode
• Regenerative braking supported
• Rorational direction can be set. Bidirectional operation is also supported
• Supports a variety of telemetry protocols (SBus2, EXBus, SRXL2)
• Flight modes can be switched by the Mode button
• Type-C USB port for firmare updating and programming
• Supports fixed wing govenor mode (in Beta, with subsequent firmware update)

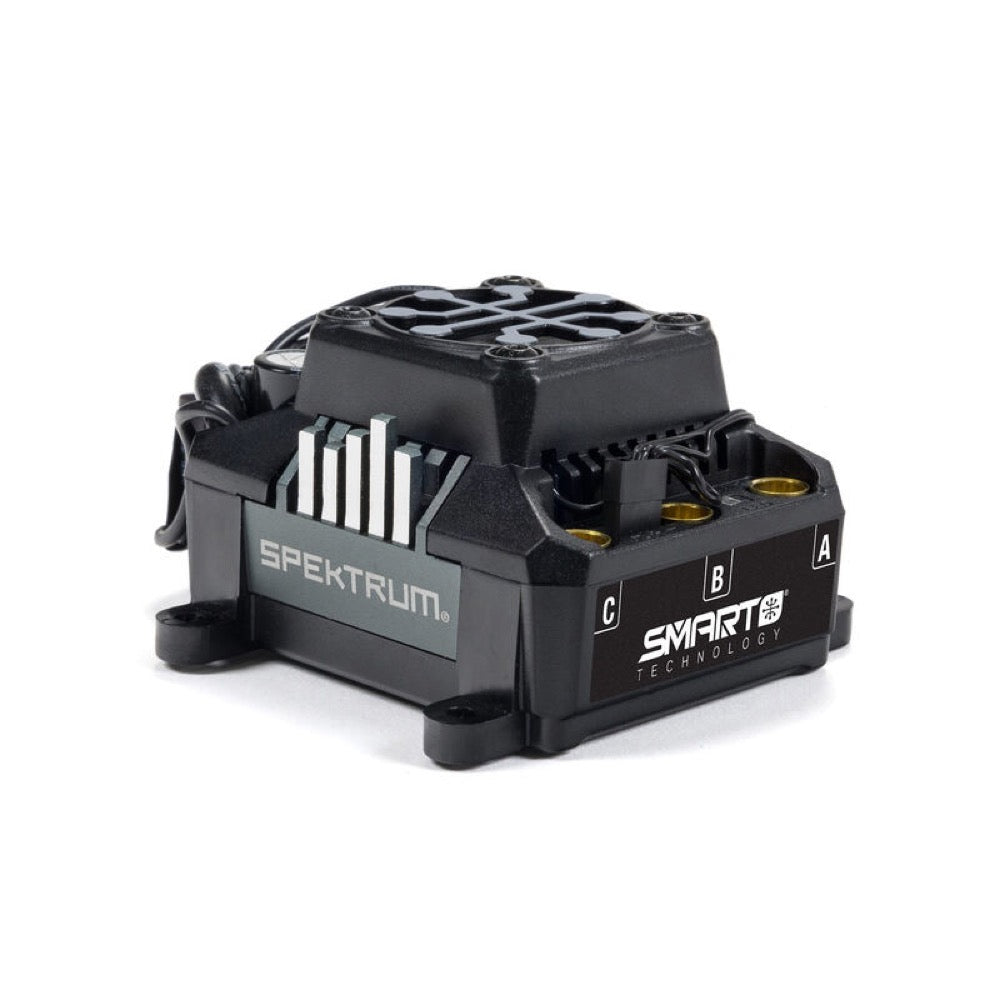

This Firma 160A Black Edition Smart ESC deliver power and intelligence all-in-one, no additional modules or links required. This waterproof, 160A brushless ESC drives your vehicle through almost any conditions imaginable, with explosive acceleration and ultra-smooth performance.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Features

• Enhanced electronic design and hardware for improve reliability
• Black Edition Case
• Expanded programmable options (see manuals and support for more information)
• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Button programming
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Multi-point protection:
• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection
• Waterproof
• Multiple options for easy programming:
• Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case with mounting tabs
• Aluminum heat sink for high efficiency
• Cooling fan
• Adjustable high-power BEC
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
• Limited 1-year warranty

EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.

ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed

SMART TECHNOLOGY BATTERY DATA

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!

MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

Specification

• Auto Cutoff: : Yes
• Battery Input Lead: 10AWG Dual IC5, EC5 compatible
• BEC: Yes
• BEC Continous Current: 8A
• BEC Type: Switch Mode
• BEC Voltage: 6V or 8.4V (User Selectable)
• Brakes: Yes
• Connector Type: IC5
• Forward: Yes
• Input Voltage: 3S - 8S LiPo
• Low-Voltage Cutoff Programmable: Yes
• Maximum Burst Current: 1050A
• Maximum Continuous Current: 160A
• Motor Output Lead: 6.5mm Female Bullets
• Overload Protection: Yes
• Product Height: 1.8" (46 mm)
• Product Length: 2.7" (69 mm)
• Product Weight: 9.9oz (280g)
• Product Width: 3.03" (77 mm)
• Programmable: Yes
• Reverse: Yes
• Technology: Smart
• Water-Resistant: Yes

Contents

• (1) Spektrum™ Firma™ Smart ESC
• (1) Spektrum Smart sticker sheet
• (1) Firma 160 Amp Brushless Smart ESC Product Manual

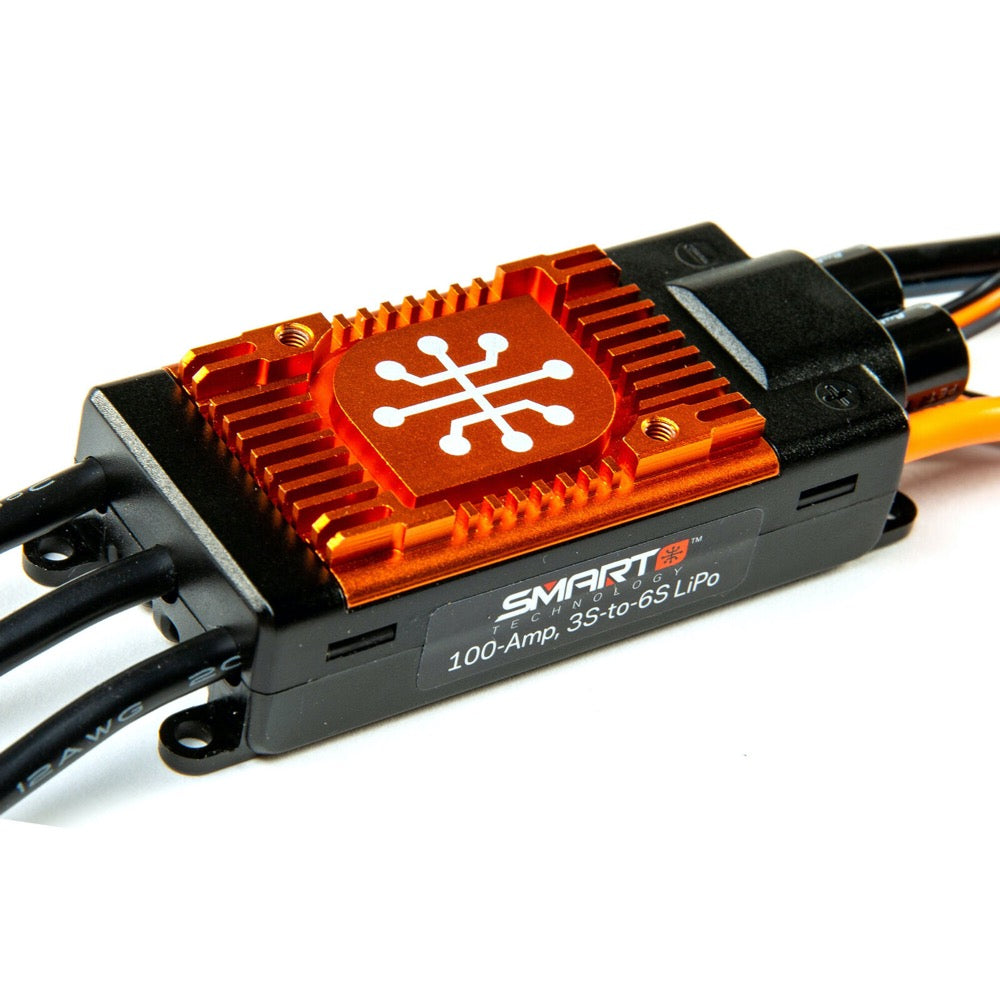

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

One-Wire Telemetry

No need to connect multiple wires, sensors, modules, and links. With Avian™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.

Multiple options for easy programming

• Smart ESC Programming Box

• SmartLink USB Updating and Programmer application

• Throttle stick programming

Multi-point protection

• Over-current protection

• Automatic LiPo low-voltage cutoff

• Thermal protection

• Failsafe protection

EC3™/EC5™ Backwards Compatible

Avian™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3™ and EC5™ connectors are also compatible with Avian ESCs for basic operation and ESC telemetry.

Smart Technology Battery Data

When used with a Spektrum™ Smart LiPo battery, your Avian™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!

Multiple Programming Options

Multiple programming options are available. Throttle stick programming can be used with nothing more needed. Using the Smart ESC Programming Box, you can easily change settings at the field to suit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is also available.

Fast, Powerful M4 Processor

The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

Smart ESC Thrust Reversing

Now included with Smart Avian ESCs is the ability to reverse the motor at the flip of a switch! This allows for pilots to use the power system for increased mobility on the ground as well as acting as a brake for models requiring more runway to land. This function requires a Smart compatible Spektrum Transmitter and Receiver and needs to be activated with in the ESC parameters.

On-Screen ESC Programming

Avian ESCs now come updated to allow pilots to program any ESC parameter, right from their Spektrum Transmitter, via the Avian Prog telemetry screen. This makes it easier to make quick setting changes, adjustments and experimentation to maximize power output or efficiency , right on the flight line, no extra boxes or modules required! This function requires a Smart telemetry compatible Spektrum Transmitter and Receiver.

Features

• Smart all-in-one telemetry

• Fast, powerful 32-bit ARM M4 processor

• Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer

• Compact for easy installation in most applications

• Ready to install — no soldering required

• Rugged plastic case

• Heat dissipating design

• Tabs included for a hard mount

• Aluminum heat sink for high efficiency

• Adjustable high-power BEC

• Dual BEC power connectors

• Firmware updatable through the Smart ESC Programming Box and SmartLink PC application

• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  Limited 1-year warranty

Contents

• (1) Spektrum™ Avian™ Smart ESC for the E-flite F-16 Falcon 80mm EDF (EFL87850)

• (1) Spektrum Smart sticker sheet

• (1) Product Manual

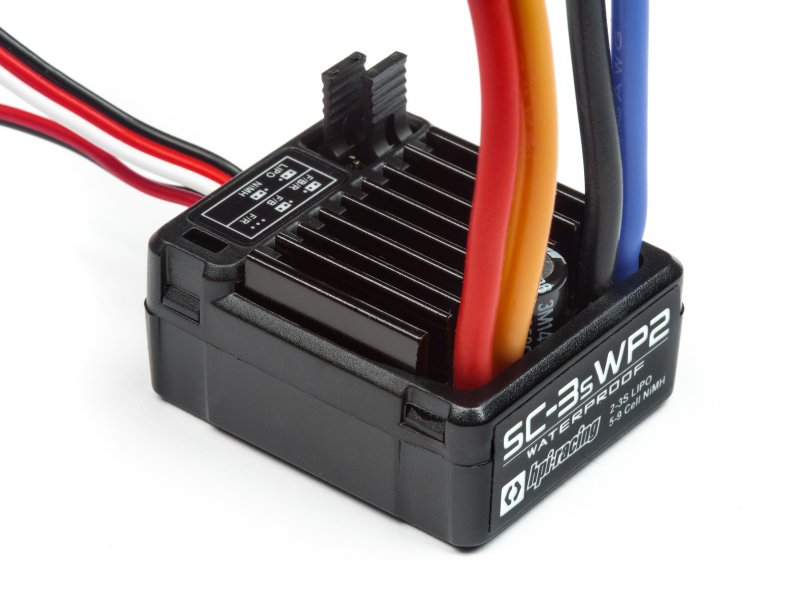

Waterproof, powerful, rugged and now even smaller than before!

The SC-3SWP2 is a powerful and durable speed controller that is fantastic for RC vehicles of all types! Whether you've got a touring car, buggy or truck, this is the ideal unit to control the power for any vehicle equipped with a brushed motor of 12 turns or more. The SC-3SWP2 is also fully waterproof, making it the only choice for anyone who enjoys playing on the beach, in snow or even through mud!

This new 'version 2' is smaller than the original, making it perfectly sized to fit in the tight spaces of the latest RC vehicles, whether you have a touring car racer or desert buggy!

If you've got plenty of power to strap into your RC, you can count on the SC-3SWP2 to handle it: able to handle LiPo power of 2S and 3S or between 5 and 9 NiMH cells, this speedo can handle just about anything can you fit into the chassis! Of course, a safety cut-off is fitted to protect your LiPo batteries.

The SC-3SWP2 is great for all kinds of 1/10th scale vehicles

• buggies
• touring cars
• drifters
• Mini racers
• desert buggies
• vintage touring cars
• stadium trucks
• short course trucks
• desert trucks

Fit the SC-3SWP2 in your RC vehicle so you can see for yourself what toughness, versatility and durability is all about!

Features

• 2S or 3S LiPo with voltage protection
• 5-9 cell NiMH or NiCd
• Suitable for all types of 1/10th scale vehicles

Specifications

• Forward Continuous Current: 60A
• Forward Burst Current: 360A
• Reverse Continuous Current: 30A
• Reverse Burst Current: 180A
• Input: 2-3S LiPo, 5-9 cell NiMH/NiCd
• Applications: 1/10 on-road, off-road buggy, short course truck, truggy, crawler, tank, boat
• Motor Limit: 2S LiPo or 6 cell NiMH: 540 or 550-size motor greater than or equal to 12 turns, RPM limit 30,000 at 7.2v
• Motor Limit: 3S LiPo or 9 cell NiMH: 540 or 550-size motor greater than or equal to 18 turns, RPM limit 20,000 at 7.2v
• Resistance: FWD 0.001 Ohm, BWD 0.002 Ohm
• PWM Frequency: 1 KHz
• BEC: 6V/3A
• Dimensions: 36.5x32x18mm
• Weight: 39g

NOTE: Before driving in wet conditions, make sure that other electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend disconnecting the fan from the ESC before driving in wet conditions and allowing it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when underwater. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

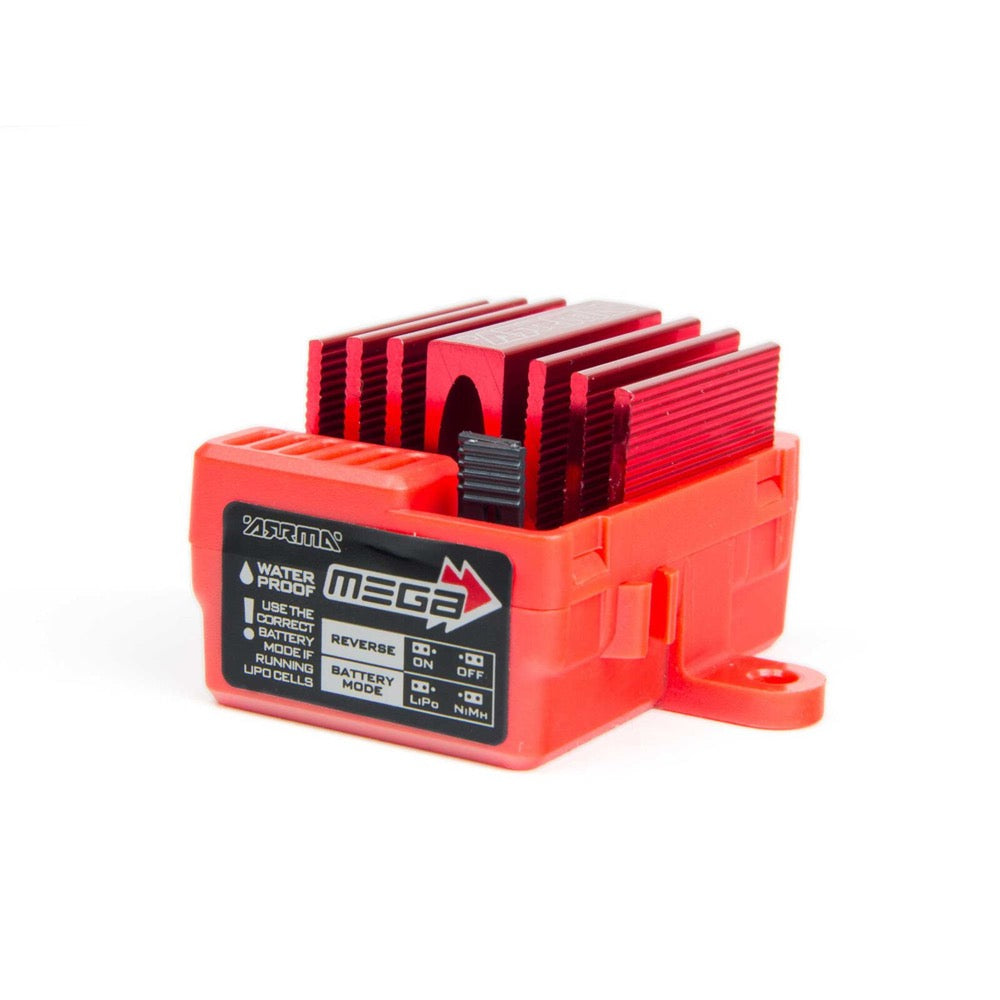

This high-quality ARRMA MEGA ESC unit (with integrated LiPo protector) will provide consistent and safe power control in your ARRMA vehicle.

Features

• Fitted with reliable IC3 connector
• Capable of running 2S LiPo or 6 or 7 cell NiMh, this MEGA ESC has over-voltage protection for safe voltage management when under heavy operating conditions
• Cool-looking integrated red anodized heatsink for increased heat dissipation
• Durable motor and battery connection cables for safe and reliable power transfer - Waterproof power switch
• Strong and durable red nylon case with dedicated chassis mount tabs for additional secure fit
• Etched 'ARRMA' livery for cool looks and quality assurance

Includes

• 1 x ARRMA MEGA Brushed ESC

80-Amp Brushless ESC Pro Switch-Mode with 8A BEC
