Kyosho MX020B Rc Unit 2.0 (Mini-Z 4X4/Ra-46) [Mx020B]

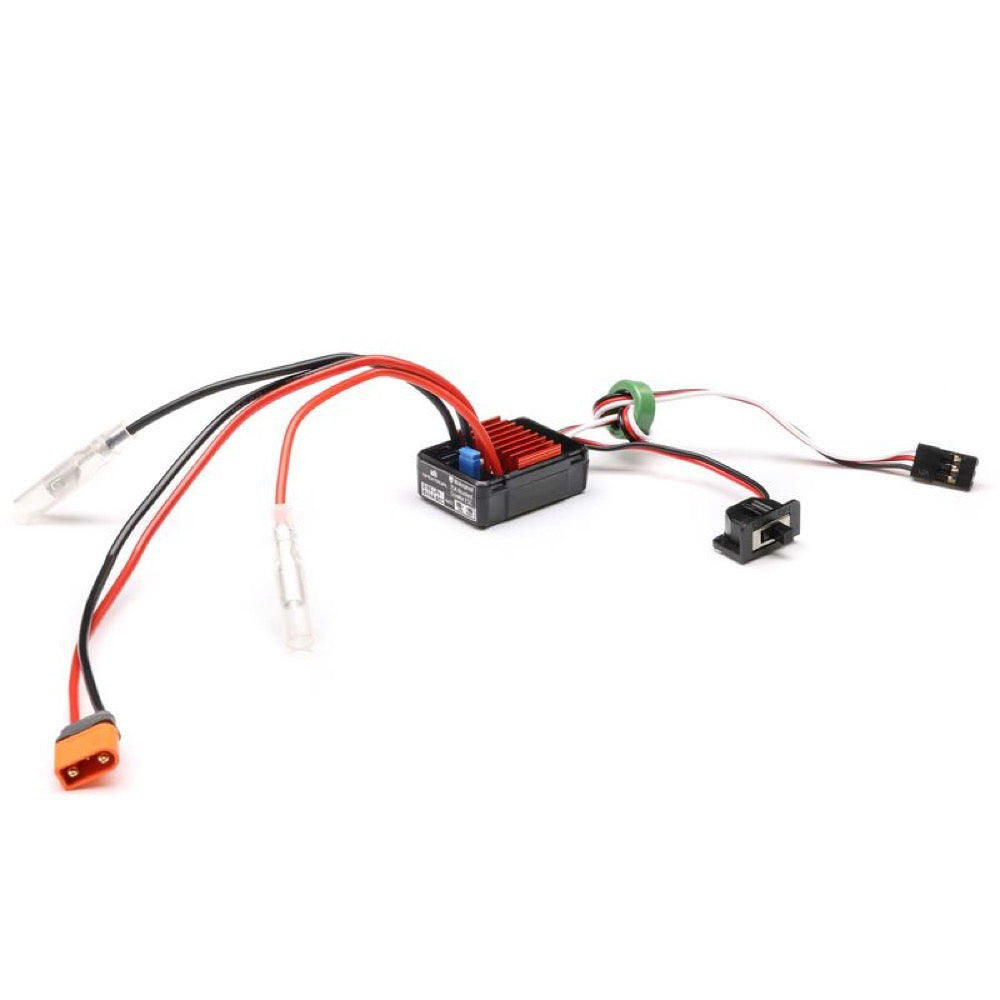

Feature-packed Firma™ Brushed ESCs deliver power and intelligence all-in-one, with no additional modules or links required. This waterproof, 25A Brushed ESC drives your 1/16-1/18th scale crawler/scaler through almost any condition imaginable, with explosive acceleration and ultra-smooth performance — while feeding real-time telemetry straight to your Spektrum™ transmitter!

Features

• Ideal for 2WD and 4WD 1/16-1/18th scale crawlers/scalers running on 2S - 3S Lipo setups
• High current adjustable BEC (6v @ 4 Amps)
• Waterproof (see instructions for details)
• Multi-point protection
• Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case
• Aluminum heat sink for high efficiency
• High heat resistant IC™ connector, backward compatible with EC™ connectors
• Limited 1-year warranty

Specification

• Amperage: 25A
• Battery Connector: IC2
• BEC Continous Current: 4A (Switch mode)
• BEC Voltage: 6V
• Dimensions: 34.0 x 24.0 x 14.0 (mm)
• Input Voltage: 2-3S LiPo and 5-9 Cell NiMH
• Maximum Burst Current: 100A
• Motor Output Lead: 4mm Female Motor Bullets
• Motor Type: Brushed
• Overload Protection: Yes

Contents

• (1) Spektrum™ Firma™ 25A Brushed ESC
• (1) Product Manual

Requires

• (1) Compatible Surface Receiver
• (1) Compatible 2S-3S LiPo Battery with IC2 Connector
• (1) Compatible Transmitter

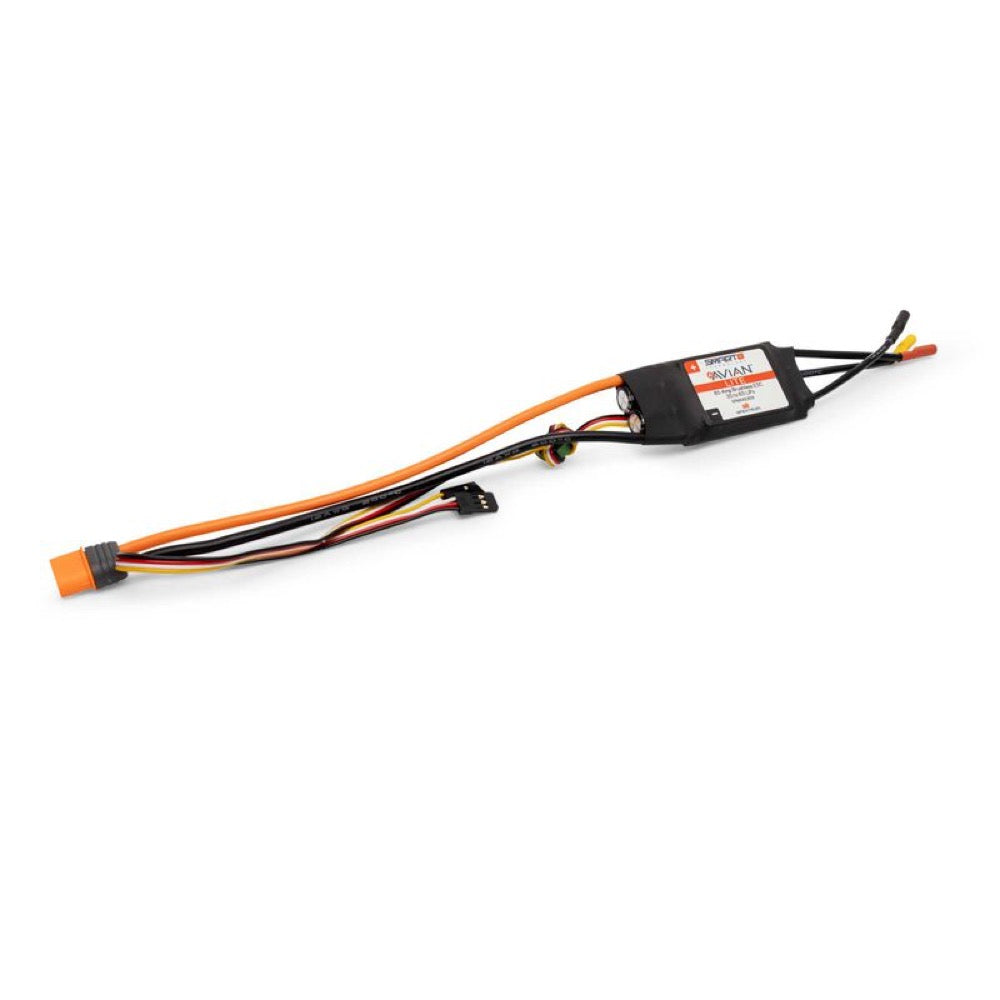

85-Amp ESC w/IC3 battery connector.

Specification

• Amperage: 85A
• Application: Aircraft
• Auto Cutoff: Yes
• BEC: Yes
• BEC Voltage: 6.0V
• Connector Type: IC3
• Forward: Yes
• Input Voltage: 3S-6S
• Low-Voltage Cutoff Programmable: Yes
• Motor Type: Brushless
• Product Application: Air
• Product Height: 0.6" (15 mm)
• Product Length: 8" (203 mm)
• Product Weight: 0.20 lbs (3.3 oz)
• Product Width: 5" (127 mm)
• Programmable: Yes
• Reverse: Yes
• Technology: Smart
• Wire Gauge: 12 AWG

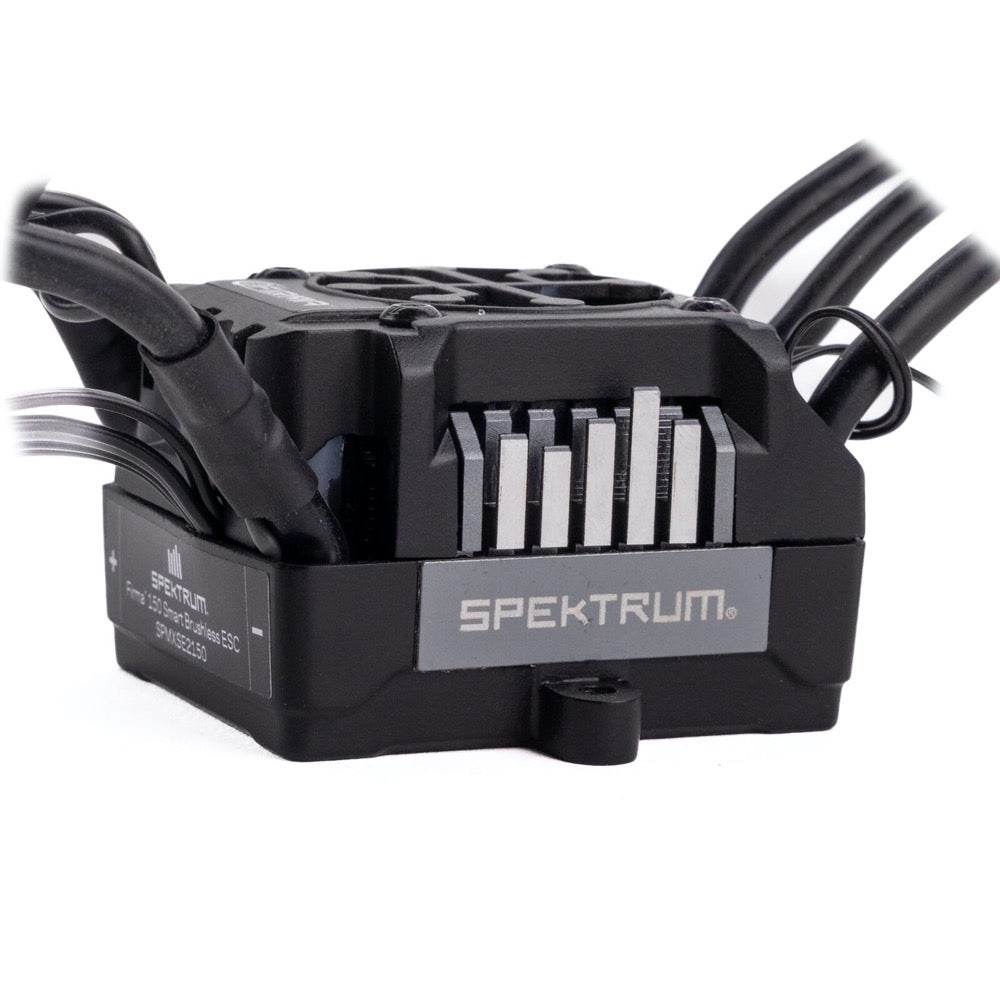

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Features

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Waterproof
• Multiple options for easy programming:
• Button programming
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Multi-point protection:
• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection
• Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case with mounting tabs
• Aluminum heat sink for high efficiency
• Cooling fan
• Adjustable high-power BEC
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
• Limited 1-year warranty

WATERPROOF

The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.

EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.

ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.*

SMART TECHNOLOGY BATTERY DATA

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!

MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

FAST, POWERFUL M4 PROCESSOR

The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

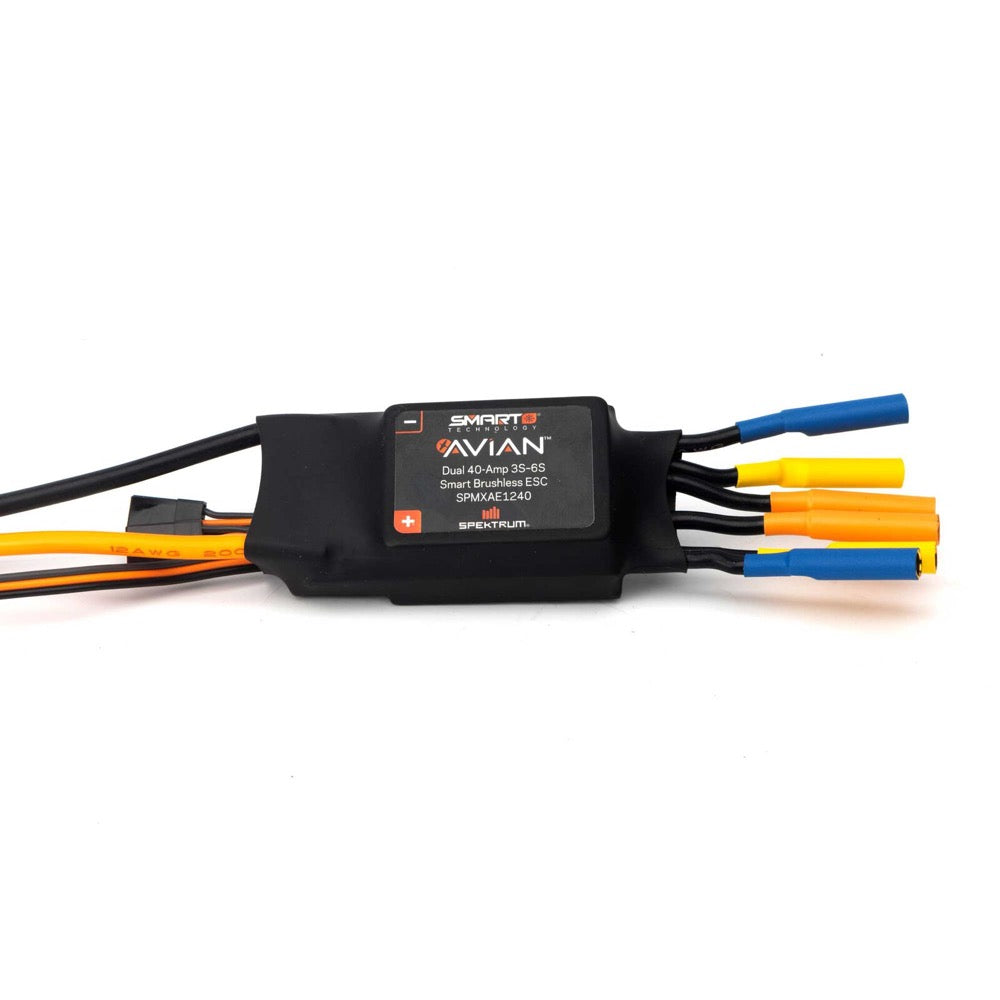

The Spektrum Avian Smart 40A Dual Brushless ESC is the perfect upgrade for 3S-6S twin EDF jets and other twin-powered models. Like other Spektrum Avian ESCs, this ESC delivers power and intelligence all-in-one. Without additional sensors or modules, they feed battery and ESC telemetry data straight to your radio in real time, all over one connection.

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Avian Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

One-Wire Telemetry

No need to connect multiple wires, sensors, modules, and links. With Avian™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.

Smart ESC Thrust Reversing

Now included with Smart Avian ESCs is the ability to reverse the motor at the flip of a switch! This allows for pilots to use the power system for increased mobility on the ground as well as acting as a brake for models requiring more runway to land. This function requires a Smart compatible Spektrum Transmitter and Receiver and needs to be activated with in the ESC parameters.

EC5™ BACKWARDS COMPATIBLE

Avian™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC5™ connector equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data.

Features

• Smart all-in-one telemetry
• 2 x 40 Amp continuous current
• Fast, powerful 32-bit ARM M4 processor
• 2 Program wires with multiple programming options:
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Multi-point protection:
• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection
• Compact for easy installation in most applications
• Heat dissipating design
• Ready to install — no soldering required
• High heat-resistant IC5™ connector, is backwards compatible with EC5™ connectors
• Limited 1-year warranty

Contents

• (1) Spektrum™ Avian™ Dual 40 Amp Brushless Smart ESC, 3S - 6S
• (1) Spektrum Smart Sticker Sheet
• (1) Product Manual
