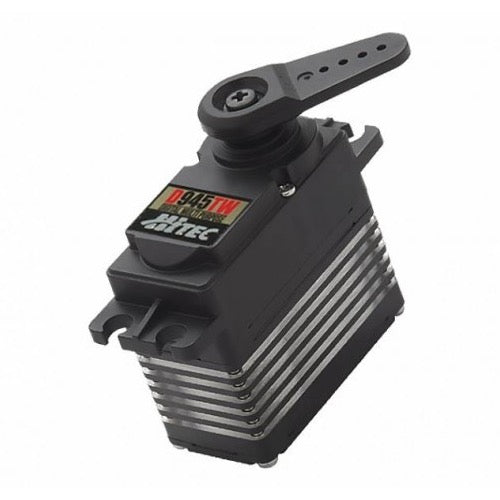

The titanium D-945TW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

Features

• Programmable PWM Digital Amplifier
• 32Bit MCU with 12Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Dust Resistant and Splash Proof Case

Specs

• Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V
• Speed (Second @ 60°): 0.16 ~ 0.12 ~ 0.10
• Maximum Torque Range oz. / in.: 194 ~ 250 ~ 319
• Maximum Torque Range kg. / cm.: 14.0 ~ 18.0 ~ 23.0
• Current Draw at Idle: 30 mA
• No Load Operating Current Draw: 470 mA
• Stall Current Draw: 6,200 mA
• Dead Band Width: 1 µs
• Dimensions (Inches): 1.57 x 0.79 x 1.50
• Dimensions (Metric): 40.0 x 20.0 x 38.0
• Weight (Ounces): 2.4
• Weight (Gram): 68
• Circuit Type: 32bit Programable Digital
• Motor Type: Coreless Metal Brush
• Gear Material: Titanium
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): H25T
• Case Material: Plastic / Aluminum
• Dust / Water Resistance: Splash Proof
• Connector Gauge (AWG) / Strand Count: 20 / 80

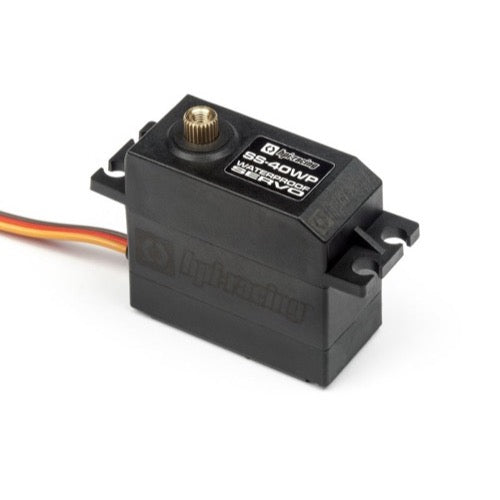

This waterproof, digital, metal gear servo is ideal for bashers and racers looking for a tough and durable servo for absolutely any kind of condition.

Use this in your truck, buggy, touring car, monster truck - any kit that requires a standard-size servo to handle whatever you can drive through!

Features

• Operating Voltage: 4.8-6V
• 4.8V: Speed: 0.13 sec/60 degrees, Torque: 7kg-cm
• 6V: Speed: 0.11 sec/60 degrees, Torque: 10kg-cm
• Servo Spline: 25T
• Fully waterproof

Dimensions

• Main case: 38x41.8x20.2mm (excluding mounting tabs, servo spline, & cable outlet)
• Mounting tab hole centres: 51.1x9.8mm
• Weight: 60g (excluding servo horn)

Please note: Waterproof guarantee is voided if servo case has been opened.

NOTE: Before driving in wet conditions, make sure that all electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

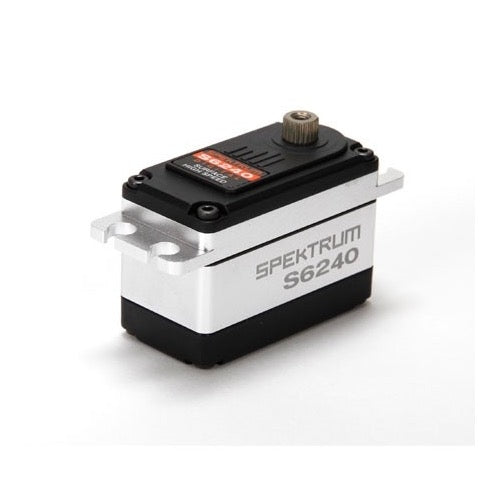

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Features

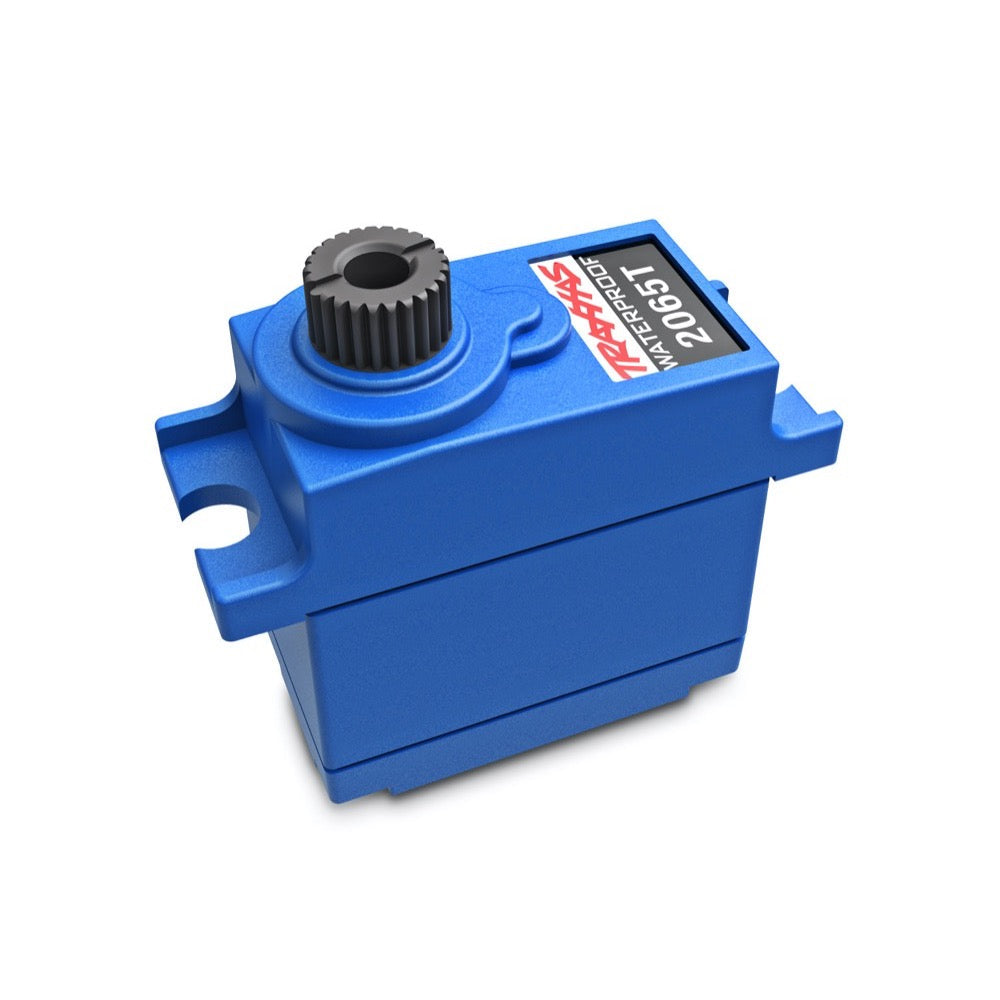

Servo, sub-micro, waterproof

The 2065T waterproof sub-micro servo features a metal main gear for precise control and powerful steering authority.

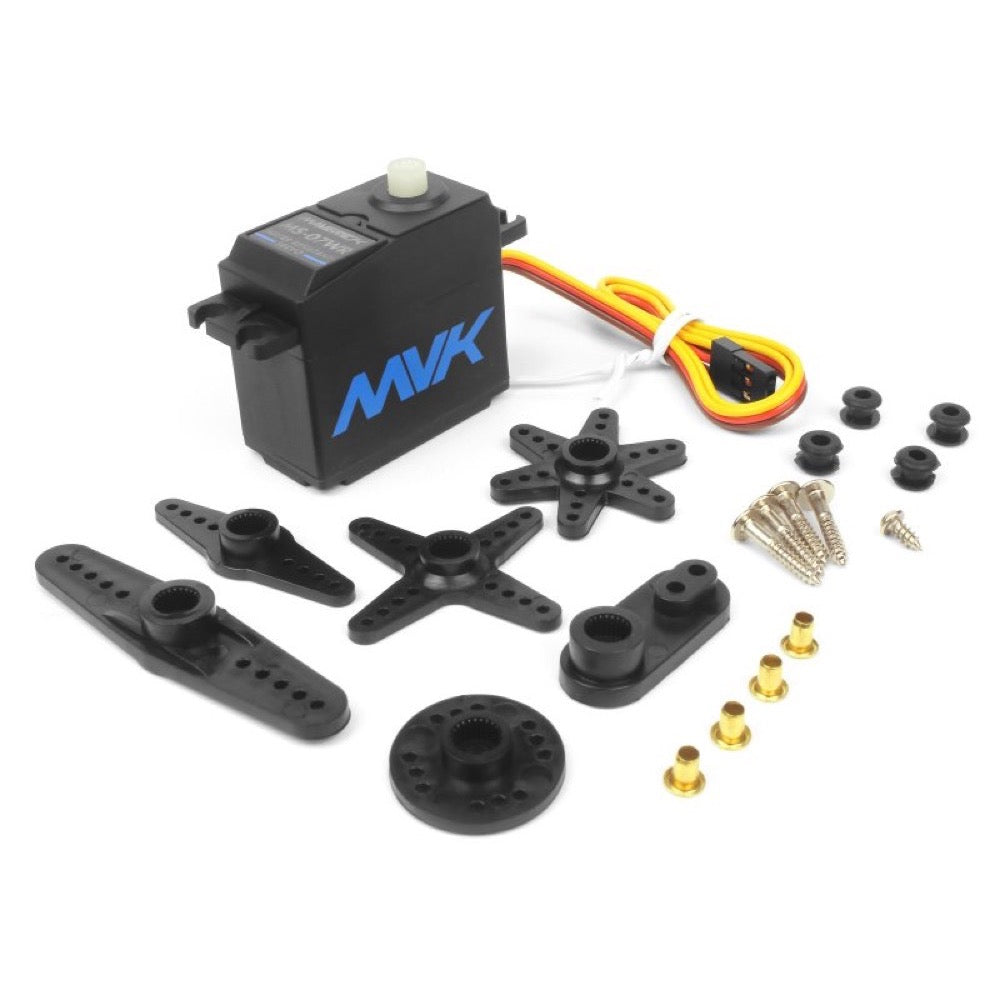

#150623 - Maverick MS-07WR Servo (Water-Resistant/6.0V/7kg/Plastic Geared)

This water-resistant servo is ideal for bashers and racers looking for a tough and durable servo that can be used in wet conditions (e.g. rain, snow, puddles).

Features

• Operating Voltage: 4.8-6V
• 4.8V: Speed: 0.18 sec/60 degrees, Torque: 6kg-cm
• 6V: Speed: 0.16 sec/60 degrees, Torque: 7kg-cm
• Servo Spline: 25T

Specification

• Dimensions: Main case: 40x37.5x20.0mm (excluding mounting tabs, servo spline, & cable outlet)
• Mounting tab hole centres: 49.5.0x9.8mm
• Weight: 46g (excluding servo horn)

NOTE: This servo is water-resistant only, meaning it is resistant to splashes and brief contact with water. It is not waterproof and therefore not suitable for submerged used. Before driving in wet conditions, make sure that all electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

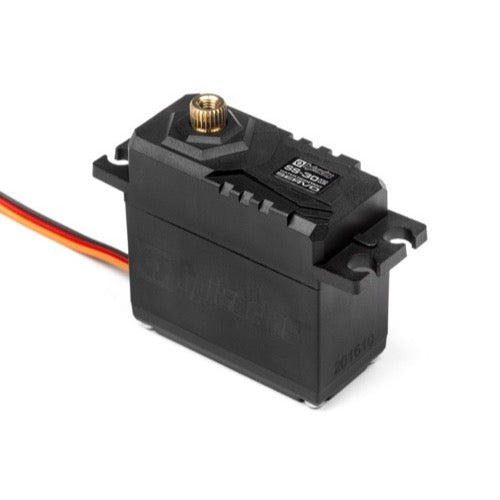

This water-resistant metal geared servo is ideal for bashers and racers looking for a tough and durable servo that can be used in wet conditions (e.g. rain, snow, puddles). Please note, not suitable for submersion.

Features

• Operating Voltage: 4.8-6V
• 4.8V: Speed: 0.19 sec/60 degrees, Torque: 6kg-cm
• 6V: Speed: 0.15 sec/60 degrees, Torque: 8kg-cm
• Servo Spline: 25T

Dimensions

• Main case: 40.7x39.4x20.0mm (excluding mounting tabs, servo spline, & cable outlet)
• Mounting tab hole centres: 50.0x9.8mm
• Weight: 56g (excluding servo horn)

NOTE: This servo is water-resistant only, meaning it is resistant to splashes and brief contact with water. It is not waterproof and therefore not suitable for submerged used. Before driving in wet conditions, make sure that all electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

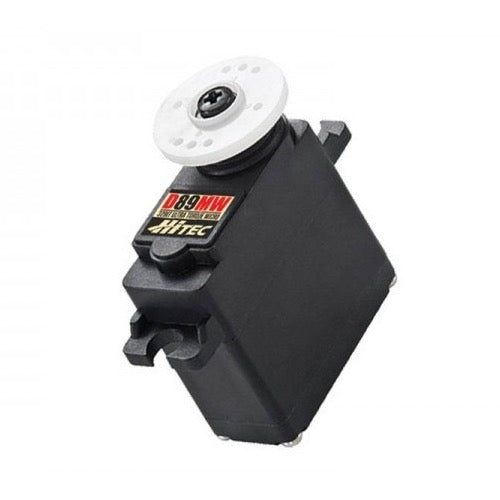

With 32-bit high resolution, ultra-response technology and wide voltage operation, the mighty micro-sized D89MW delivers solid power in a lightweight package. Its efficient coreless motor makes this mini servo a standout in its class.

Specs

• Operating Voltage Range (Volts DC): 4.8V ~ 7.4V
• Speed (Second @ 60°): 0.17 ~ 0.11
• Maximum Torque Range oz. / in.: 74 ~ 118
• Maximum Torque Range kg. / cm.: 5.3 ~ 8.5
• Current Draw at Idle: 30 mA
• No Load Operating Current Draw: 300 mA
• Stall Current Draw: 2,900 mA
• Dimensions (Inches): 1.14 x 0.51 x 1.18
• Dimensions (Metric): 29.0 x 13.0 x 30.0
• Weight (Ounces): 0.88
• Weight (Gram): 25
• Circuit Type: 32bit Programable Digital
• Motor Type: Coreless Metal Brush
• Gear Material: 5 Metal Gears
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): 25 / 6
• Case Material: Plastic

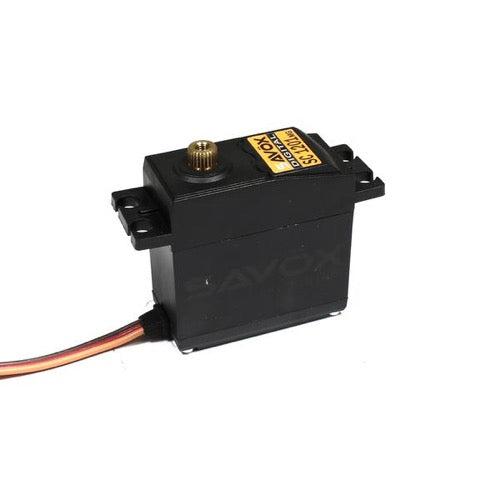

Metal gear train ensures durability and longevity.

Great replacement for RTR crawler, truck and buggy servos.

Excellent choice for budget-conscious customers.

Same height as SW0231MG.

Technical Description

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 300mA @4.8V, 350mA @6.0V
• Stall Current (at locked): 8000mA @4.8V, 10,000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 120° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 164° (800 → 2200 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
