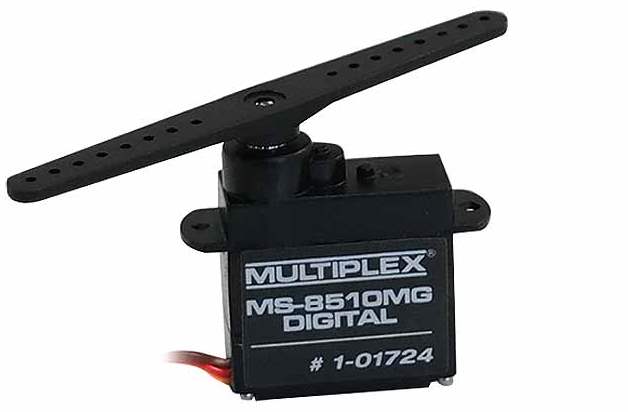

Multiplex Servo MS-8510 MG DIGITAL

The new multiplex indoor servo.

The MS-8510MG Digital is specially designed to meet the needs of indoor pilots.

It's fast, strong, and precise.

Has a sturdy aluminum gear. (Finally no more "caries" after contact with the ground, as with so many other micro servos with plastic gears)

An extra large servo lever is perfect for rope and rod linkage.

Last but not least, thanks to the "honest" 60 degree path, large deflections are possible at full power.

Look forward to many nice flights with the new MS-8510MG Digital

Ps .: The MS-8510Mg Digital is also perfect for F3K, HLG and other models.

Specification

• Width : 8 mm
• Height : 23 mm

• Length : 20 mm

• Weight : 0.005 kg

• Servo type: Micro

• Special features: Digital

• Gear: Metal

• Operating voltage in V: 4.8-6.0 V

• Positioning time s / 60 ° at 6.0 volts: 0.06

• Torque in kgcm at 6.0 volts: 1

• Toothing: 5

• Ball bearings: no

• Waterproof: no

• Brief description servo: the indoor servo

• Recommendation flight: yes

• Recommendation helicopter: no

• Recommendation car: no

• Recommendation boat: No.


Specifications

• Torque(4.8V): 8.6 kg-cm (119.4 oz/in)

• Torque(6.0V): 9.8 kg-cm (136.1 oz/in)

• Speed: 0.16 sec (4.8V) ¦ 0.14 sec (6.0V)

• Operating Voltage: 4.8 ~ 6.0 DC Volts

• Weight: 56.0 g (1.98 oz)

• Bearing Type: Ball Bearing x 2

• Motor Type: DC Motor

• Gear Type: Copper & Aluminum

• Operating Temperature: -20~60°C

• Working frequency: 1520µs / 50hz

• Size: 40.7 x 20.5 x 39.5 mm ( 1.60 x 0.81 x 1.56 in)

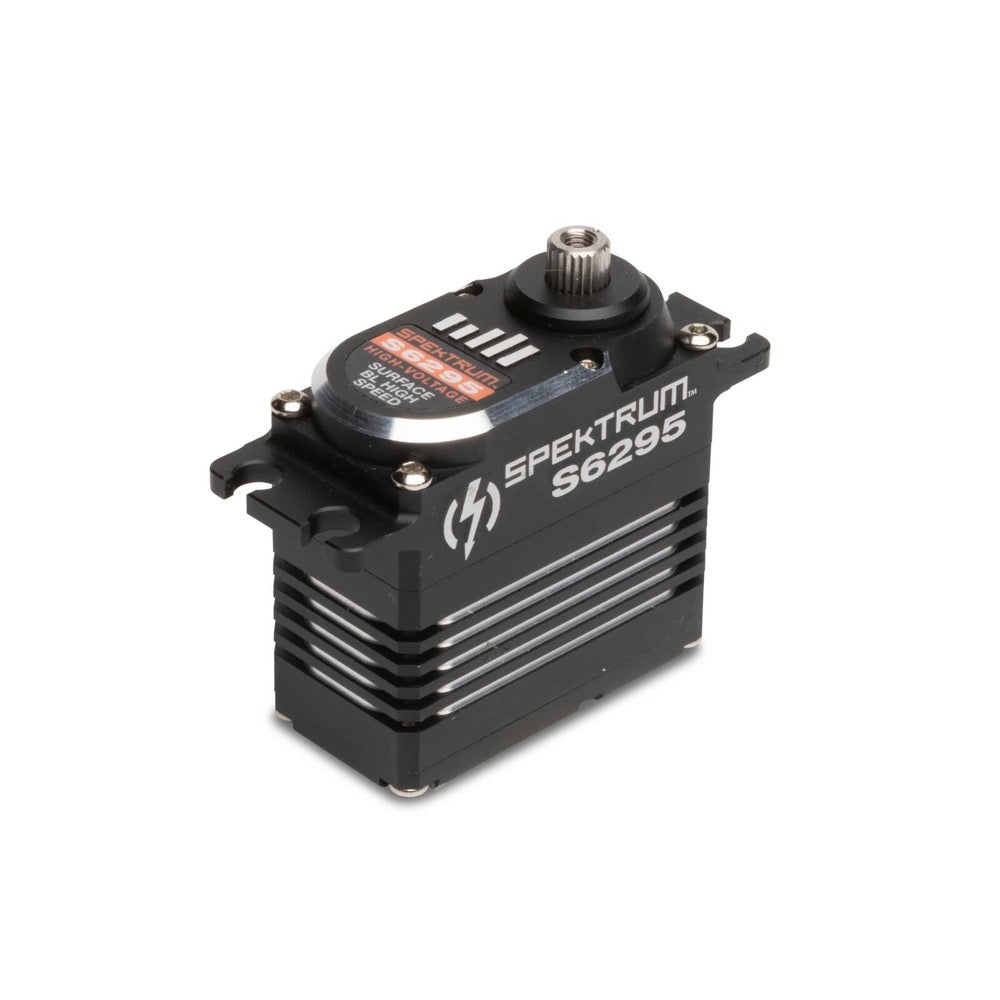

Spektrum High-Voltage Brushless Servos deliver premium power, precision, and performance.

The S6295 is compatible with 8.4V input and boasts a durable, all-aluminum case that helps dissipate heat. Powered by a class-leading brushless powertrain, the S6295 also offers superior protections, such as soft start, over current protection and advanced failsafes. Its metal gear train has been engineered for tight mesh, low wear, and smooth operation. Featuring blindingly fast 0.062 sec speeds, the S6295 servo is a top choice for serious 1/8th scale off-road racers. Equally capable of high-performance operation in crawling and bashing applications that demand fast reactions, maximum torque and holding power. The convenience of a removeable servo lead lets you select different lengths for different vehicle applications.

Features

• Sleek black and silver anodized metal case

• Brushless power and reliability

• High Voltage (HV) Capable (6.0V-8.4V)

• 23T output Spline

• Water Resistant

• Hardened steel gears

• Precision engineered gear train for tight and low wear mesh

• Ultra-fast transit speed (0.062sec at 8.4V)

• Impressive torque (30kg-cm / 416oz-in at 8.4V)

• Engineered to excel in 1/8th Scale Racers, RC Crawlers and Scalers

• Removable standard size servo connector for easy lead swaps

• Soft-Start puts less strain on steering components during start up

• Advanced failsafe and protections

Specifications

• Max Servo Torque: 350-499 oz-in

• Spline Count: 23 - Tooth

• Water-Resistant: Yes

• Product Height: 1.12" (28 mm)

• Servo Type: Digital

• Torque: 416oz-in (30kg-cm) at 8.4V

• Connector Type: Universal

• Product Length: 1.57" (40 mm)

• Product Width: 0.78" (20 mm)

• Servo Operating Voltage: 6.0 - 8.4V (HV)

• Servo Size Category: Standard

• Gear Type: Metal

• Maximum Servo Speed: 0.050-0.099 sec

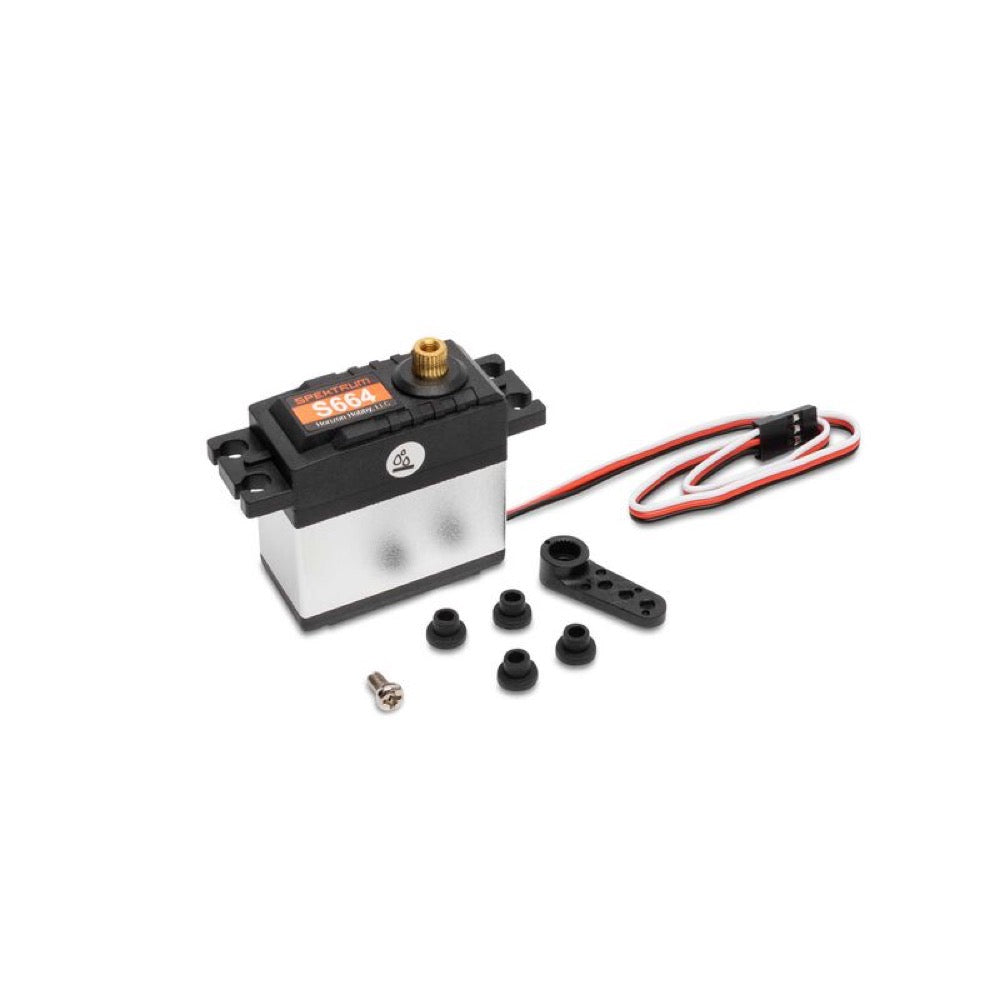

S664 Standard Waterproof Metal Gear Servo 25T

Features

• Waterproof*
• 25 Tooth spline
• Plastic case design
• Metal Gear Train
• Digital servo with 226 oz/in @ 6.0V and 260 oz/in @ 7.4V
• Servo dimensions: 1.58in x .79in x 1.62in
• Input Voltage 6.0V-7.4V
•  *Refer to the instruction manual for more details

Specs

• Gear Type: Metal
• Product Height: 1.62" (41 mm)
• Product Length: 1.58" (40 mm)
• Product Width: 0.79" (20 mm)
• Programmable: No
• Servo Operating Voltage: 6.0 - 7.4V (HV)
• Servo Size Category: Standard
• Servo Type: Digital
• Spline Count: 25 - Tooth
• Torque: 226 oz/in @ 6.0V and 260 oz/in @ 7.4V
• Water-Resistant: Yes

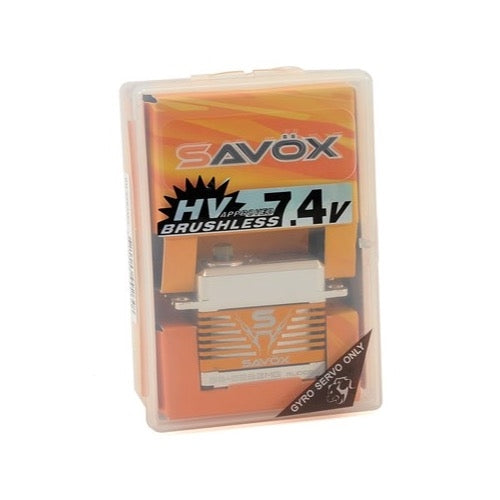

This is the Savox SB-2283MG "High Speed" Brushless Steel Gear Digital Tail Servo. This high voltage brushless digital servo is rated at a speed of 0.048 and a torque of 138.9 oz-in at 7.4V. The 6.0V specs are still respectable at .06 sec/69.4 oz-in making it a great choice for both standard and high voltage heli tail servo applications.
