Specifications

• Torque(4.8V): 3.0 kg-cm (41.7 oz/in)

• Torque(6.0V): 3.5 kg-cm (48.6 oz/in)

• Speed: 0.14 sec (4.8V) │ 0.12 sec (6.0V)

• Operating Voltage：4.8 ~ 6.0 DC Volts

• Weight: 25.0 g (0.88 oz)

• Bearing Type：no

• Motor Type：DC Motor

• Gear Type：Copper

• Operating Temperature：-10℃~50℃

• Working frequency：1520μs / 50hz

• Size：31.0 x 16.3 x 29.5 mm ( 1.22 x 0.64 x 1.16 in)

OVERVIEW

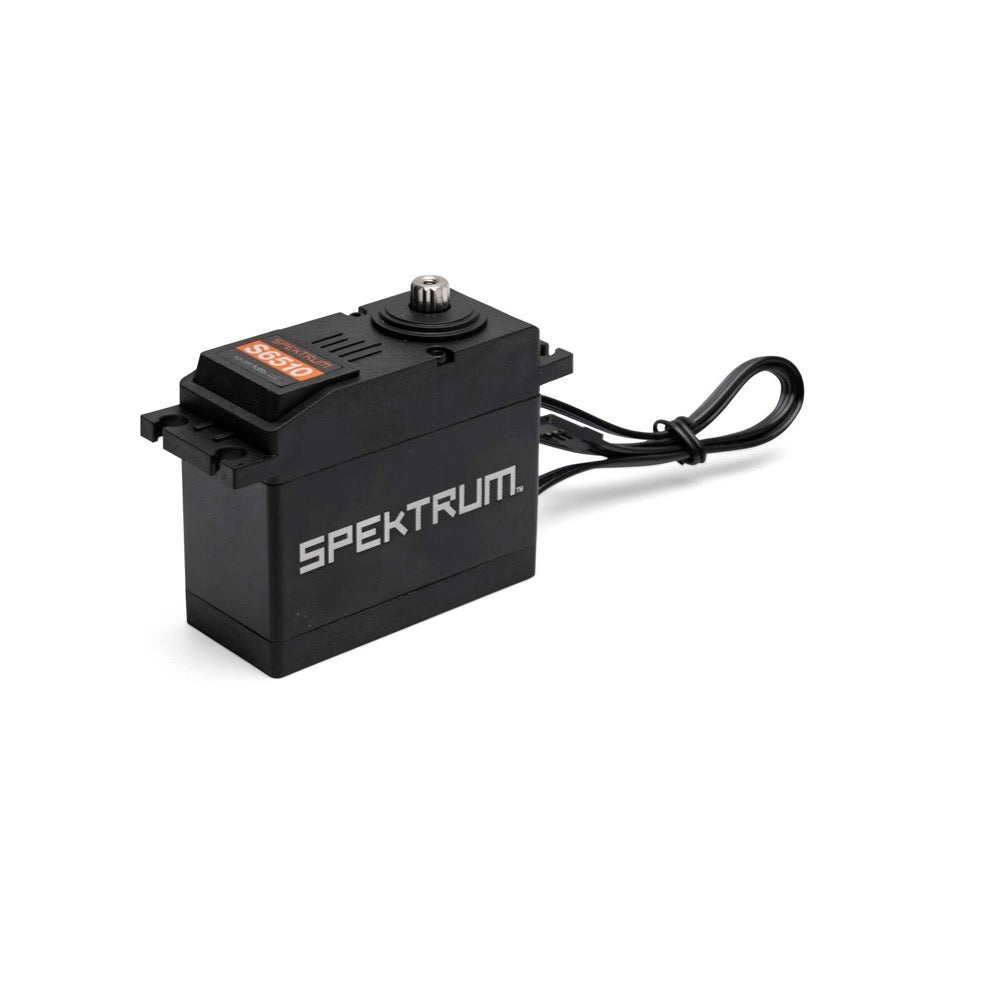

There is a best in-class Spektrum servo that's right choice for most anything you drive, from racing, bashing, or crawling. They are engineered with the finest components and the latest technologies available so you enjoy a sense of precision and power that is second to none. Pushing the limits of a 1/5 scale vehicle thru rough and tumble environments requires top performance from the vehicles servos. Operating in the rough and tumble environments, a servo's performance is pushed to the maximum. The S6510 is designed to give 1/5th scale enthusiasts huge torque (820oz-in @8.4V) to power through the toughest terrains. The S6510 is a perfect upgrade servo from RTR vehicles that includes the S905 or S906 servos, such as the ARRMA 1/5 Kraton 4WD BLX Monster Truck, Losi 1/6 Super Baja Rey, Axial 1/6 SCX6's crawlers and more.

Note: The Losi Super Baja Rey (LOS05021) and Losi Super Rock Rey (LOS05016V2) surface vehicles will need to use LOS351010 Aluminum Steering Servo Mount: Super Baja Rey / Super Rock Rey to properly mount the SPMSS6510 servo.

Features

• High Torque (820oz-in @ 8.4V)

• Ideal servo for 1/5th scale vehicles

• Perfect upgrade from the Spektrum S905 or S906 Servos

• Wide operating voltage (6.0V – 8.4V)

• Dual Ball Bearing proves smooth operation

• Strong metal gear ensures durability

• 15-Tooth Spline

In The Box

• (1) S6510 1/5 Scale High Torque Servo

• (4) Mounting Hardware

• (1) Servo Arm

Specifications

• Servo Operating Voltage: 6.0 - 8.4V (HV)

• Bearing: Dual

• Gear Type: Metal

• Application: Surface

• Product Weight: 7.2oz (204g)

• Spline Count: 15 - Tooth

• Servo Size Category: Giant Scale

• Connector Type" Universal

• Product Length" 2.6" (66 mm)

• Product Width" 1.18" (30 mm)

• Torque: 820oz-in at 8.4V

• Product Height: 2.27" (58 mm)

• Servo Type: Digital

Features

This water-resistant servo is ideal for bashers and racers looking for a tough and durable servo that can be used in wet conditions (e.g. rain, snow, puddles).

NOTE: This servo is water-resistant only, meaning it is resistant to splashes and brief contact with water. It is not waterproof and therefore not suitable for submerged used. Before driving in wet conditions, make sure that all electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

Features

• Operating Voltage: 4.8-6V
• 4.8V: Speed: 0.18 sec/60 degrees, Torque: 6kg-cm
• 6V: Speed: 0.16 sec/60 degrees, Torque: 7kg-cm
• Servo Spline: 25T

Dimensions

• Main case: 40x37.5x20.0mm (excluding mounting tabs, servo spline, & cable outlet)
• Mounting tab hole centres: 49.5.0x10mm
• Weight: 46g (excluding servo horn)

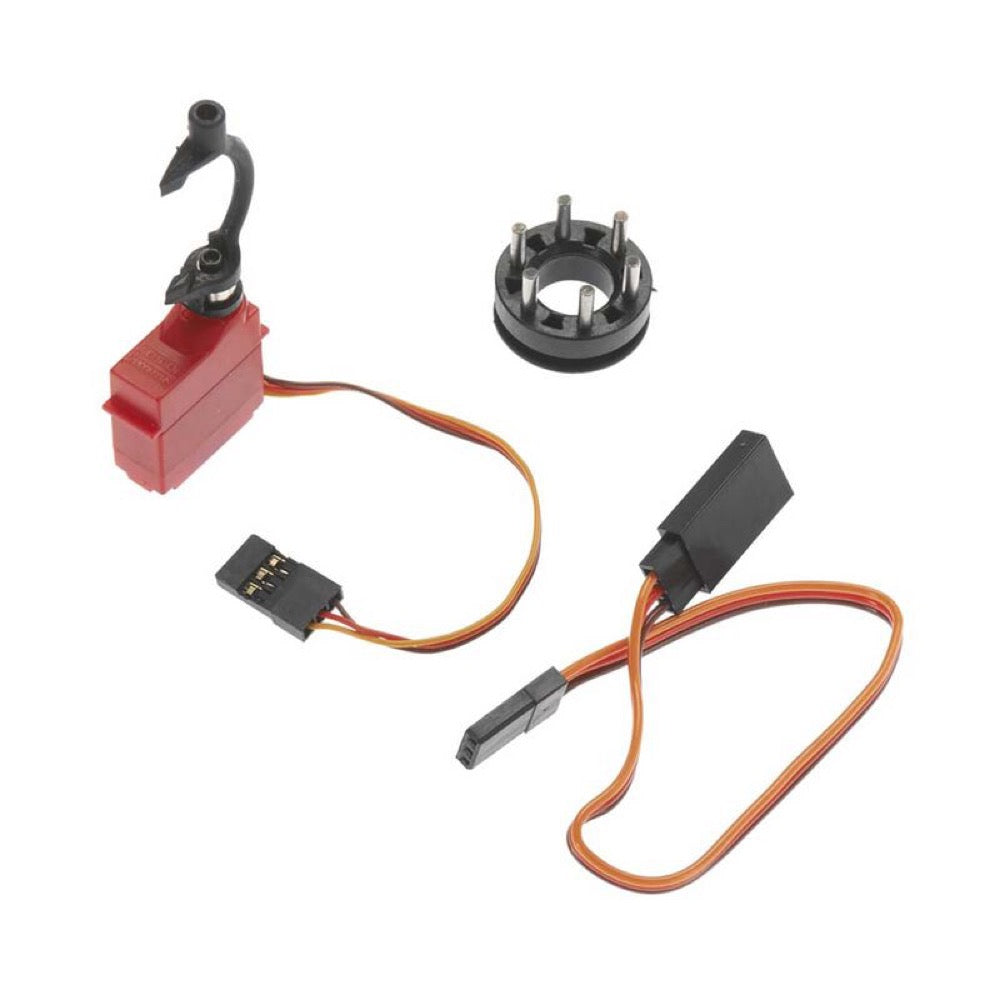

This ADS-08 Diff Locking Servo Set contains one ADS-08 micro servo that is factory fitted with the diff locking actuator. The set also includes the diff locking ring that enables the differentials of your vehicles to be locked on-the-fly.

Also included in the set is a 150mm Servo extension lead for when the diff locking servo is installed in the front or rear diff case of your vehicle.

Features

• ADS-08 Micro servo
• Pre-installed diff locking actuator
• Diff Lock ring
• 150mm Servo extension lead

Includes

• 1 x ADS-08 Servo with locking diff mechanism installed
• 1 x 150mm Servo wire extension lead
• 1 x Diff locking ring

Requires

• This item is sold as a spare part for vehicles with the diff locking functionality, or as an upgrade part for vehicles that can have the diff locking functionality fitted.
• To upgrade a vehicle that can have the diff locking functionality fitted you will need 3 x AR390103 and 1 x AR390160

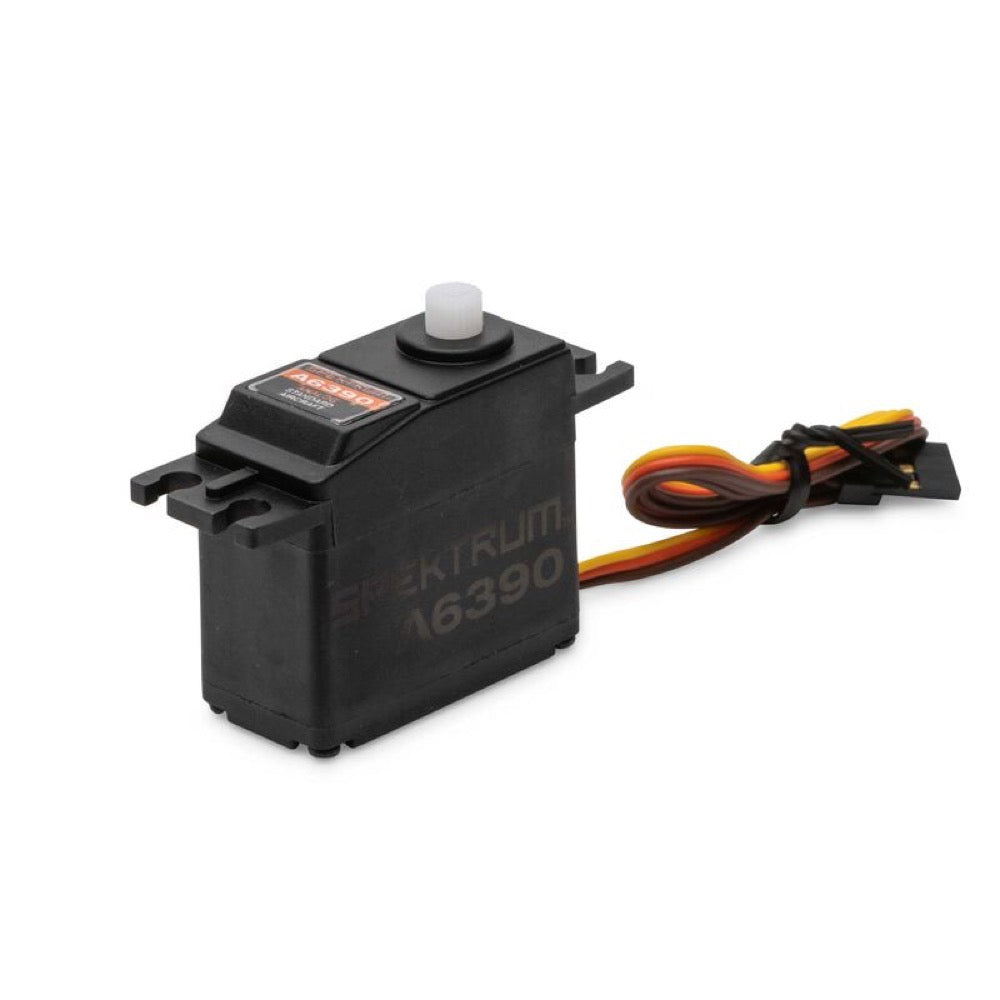

The Spektrum A6390 standard size analog sport servo is the perfect budget solution that offers a lightweight plastic gear train, a budget class leading torque rating of 66 oz/in and quick transit speed of 0.14/60. Single ball bearing output shaft and a robust composite plastic case offers durability you can depend on in your 60 size or smaller trainer and sport models. Includes all the mounting hardware and 3 Heavy Duty plastic arms needed for your project.

Specs

• Application: Air
• Bearing: Single
• Bushing Or Bearing: Bearing
• Connector Type: Universal
• Connector Wire Length: 12" (305 mm)
• Deadband: 3µs
• Gear Type: Nylon
• Input Voltage: 4.8V to 6.0V
• Material: Plastic
• Maximum Servo Speed: 0.17 sec/60 deg @ 4.8V | 0.14 sec/60 deg @6.0V
• Maximum Servo Torque: 48.6 oz-in (3.5kg-cm) @ 4.8V | 66.7 oz-in (4.8kg-cm) @ 6.0V
• Product Application: Air
• Product Height: 1.36" (35 mm)
• Product Length: 1.52" (39 mm)
• Product Weight: 1.3oz (37g)
• Product Width: 0.74" (19 mm)
• Programmable: No
• Rotation Range: 120 deg
• Servo Operating Voltage: 4.8 - 6.0V
• Servo Size Category: Standard
• Servo Type: Analog
• Spline Count: 23 - Tooth
• Water-Resistant: No
• Wire Gauge: 22 AWG

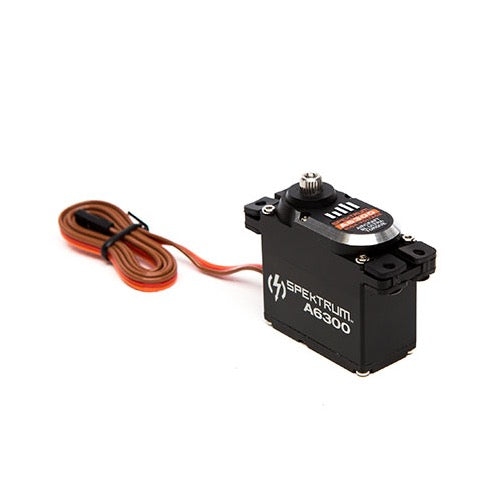

The A6300 is the first in an evolving line of Spektrum brushless servos that provide leading edge performance with uncompromised reliability. Boasting an extremely powerful 530 oz-in torque and a lightning fast .10 sec/60° transit time @8.4v, the A6300 will make RC enthusiasts take a second look at Spektrum Servos.

The A6300 features a top of the line brushless drive train that is recognized as being exceptionally strong and reliable. This durability is expertly matched with a low wear, all metal gear train that is virtually slop free. All housed in a heatsinking, all-aluminum case with preinstalled eyelets and grommets, which makes mounting these servos quick and easy.

The Spektrum A6300 uses these features as a foundation to produce a powerful, consistent, yet efficient servo that will prove to be in a class of its own. It is these awesome capabilities that make the A6300 a fantastic choice for giant-scale models, 3D aerobats, jets or any application where massive amounts of torques and holding power are a must.

FEATURES
