Category Product Lists

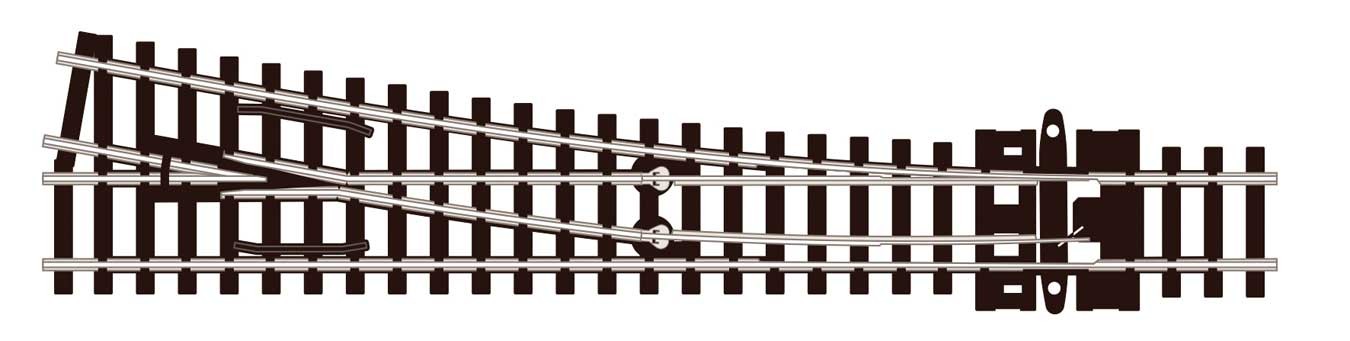

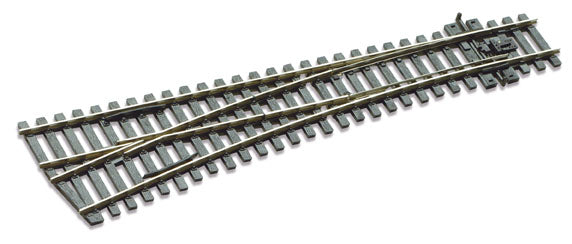

• Medium radius Turnout R/H (unifrog)
• Nominal Radius; 457mm (18in).
• Angle; 10°.
• Length; 137 mm (5 3/8in)
• replaces SL-E395F

UNIFROG combines the features of both Insulfrog and Electrofrog. As supplied the turnouts operate like an Insulfrog: the tip of the frog is a separate, isolated section, so will be dead when connected to a live layout. However, a wire has been welded to the underside of the frog tip that gives the modeller the option of "powering" the frog, i.e. connecting it to a microswitch, or changeover switch, which allows the frog tip to change polarity according to the direction for which the turnout is set. It's a much more versatile option for modellers, as it does not require any additional insulated breaks as these have been incorporated into the turnout. The opportunity has also been taken to modify the design slightly to include the sleepers at both ends of the unit.

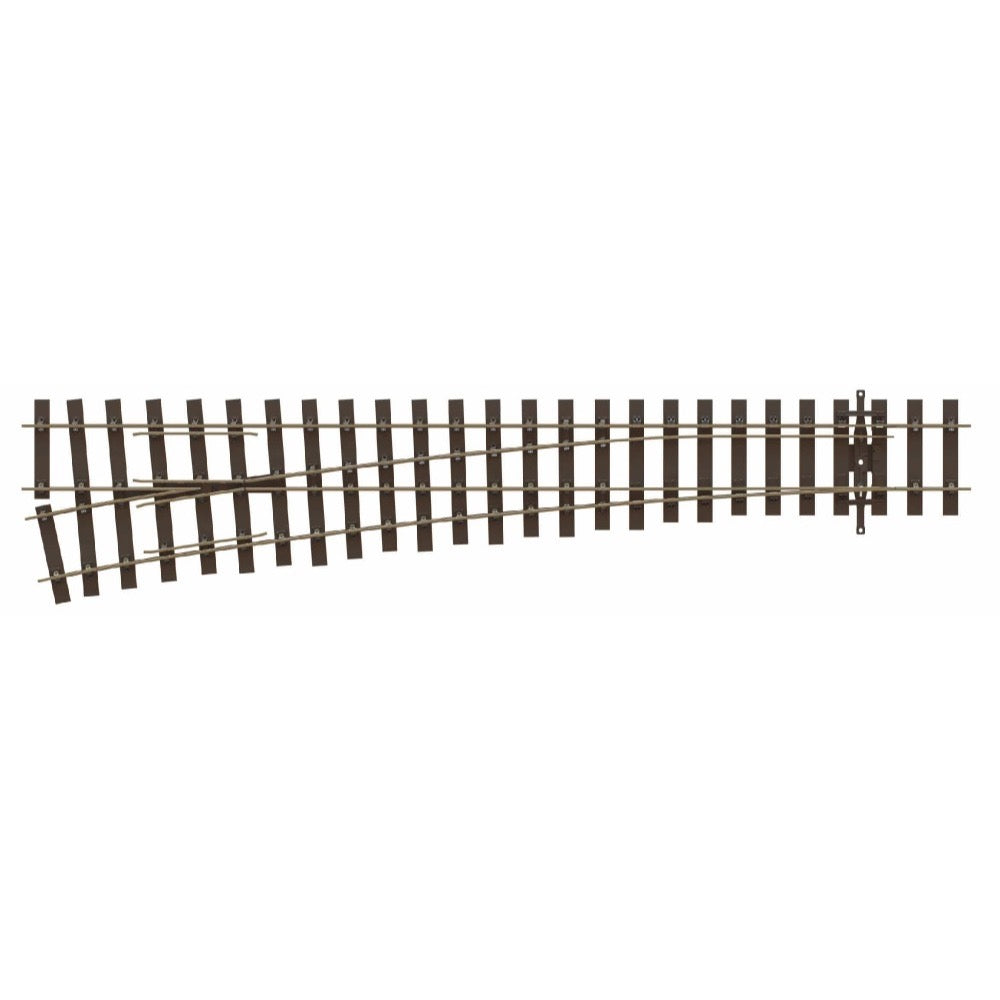

Large Radius Left Hand Turnout Bullhead Track Unifrog

This OO scale bullhead track from Peco represents the common style of track once seen all over the UK (and in some parts of France too!). Even today, bullhead track can still be found on secondary routes and in sidings, so the time frame for this track is very wide. With sleeper dimensions and spacing closer to 4mm/OO scale (despite the track gauge still being 16.5mm), visually this track does look impressive once ballasted and weathered. It was always going to be a compromise, but we think that the result is pleasing to the eye. Certainly, the attention to detail of the rail chair fixings should be noted, a visual necessity for replicating true bullhead track.

Correct track gauge for most commercially available rolling stock - no risk of derailment on curves.

Sleeper depth matches existing Peco track, so fully compatible with other 16.5mm gauge (OO/HO) track in the Peco range.

Rail chairs feature realistic detail, with superb wood grain effect on sleepers.

Accurate bullhead rail profile.

Nickel sliver rail - the best material for electrical conductivity.

Specification

• Product Code: SL-U1189

• Scale: OO

• Approximate Pack Weight: 74g

• Length: 258mm Radius: 1524mm Angle: 12º

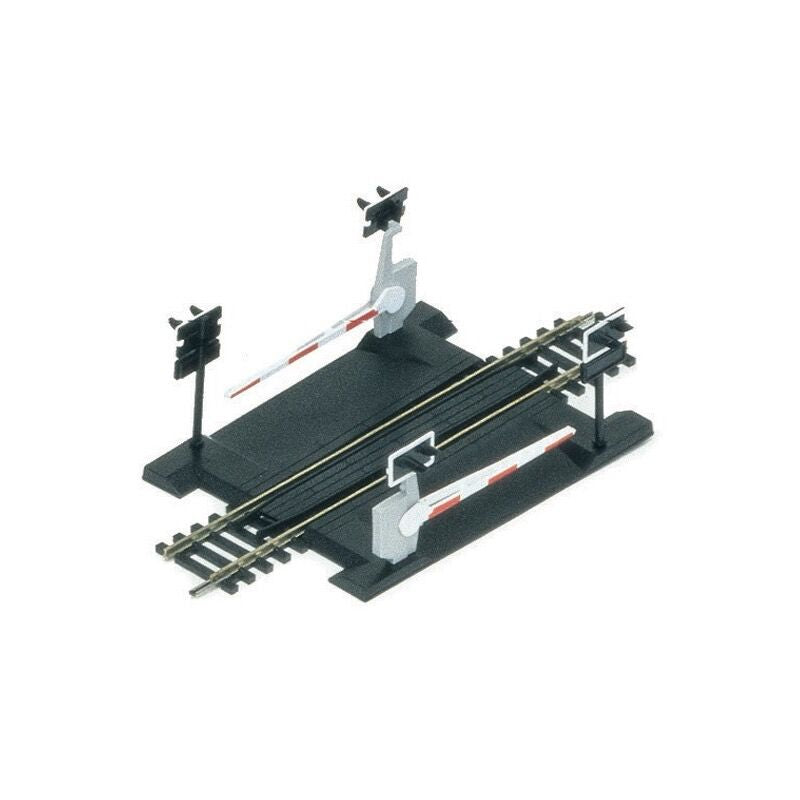

Measuring at 168mm in length, this crossing comes with traditional gates and alternative lifting booms. Road sections clip around any straight section of track. Track not included.

Includes

• 1x Track & Track Accessories

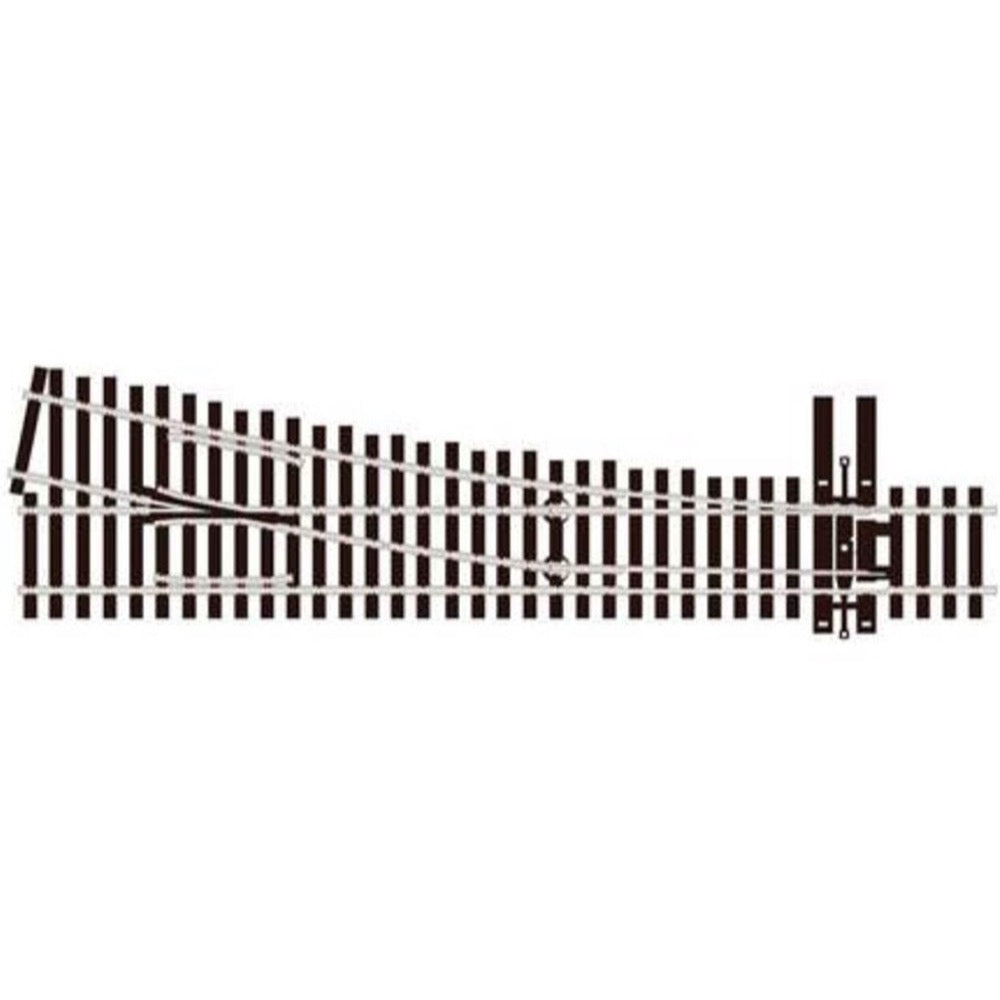

Peco Code 75 Left Hand Medium Radius Turnout

We are pleased to announce the release of the SL-U8361 and SL-U8362 code 83 #6 turnouts. The PECO Streamline “83 Line” Code 83 track system has been many modellers’ premier choice for modelling American railroads since it was launched back in 2004. As part of our ongoing improvements we recently had the opportunity to re-tool the #6 turnout, which now benefits from one piece machine point blades, and the introduction of the Unifrog format to give the modeller options for wiring. We can help you further understand the concept behind Unifrog, which replaces Electrofrog and Insulfrog, but incorporates the benefits of both.

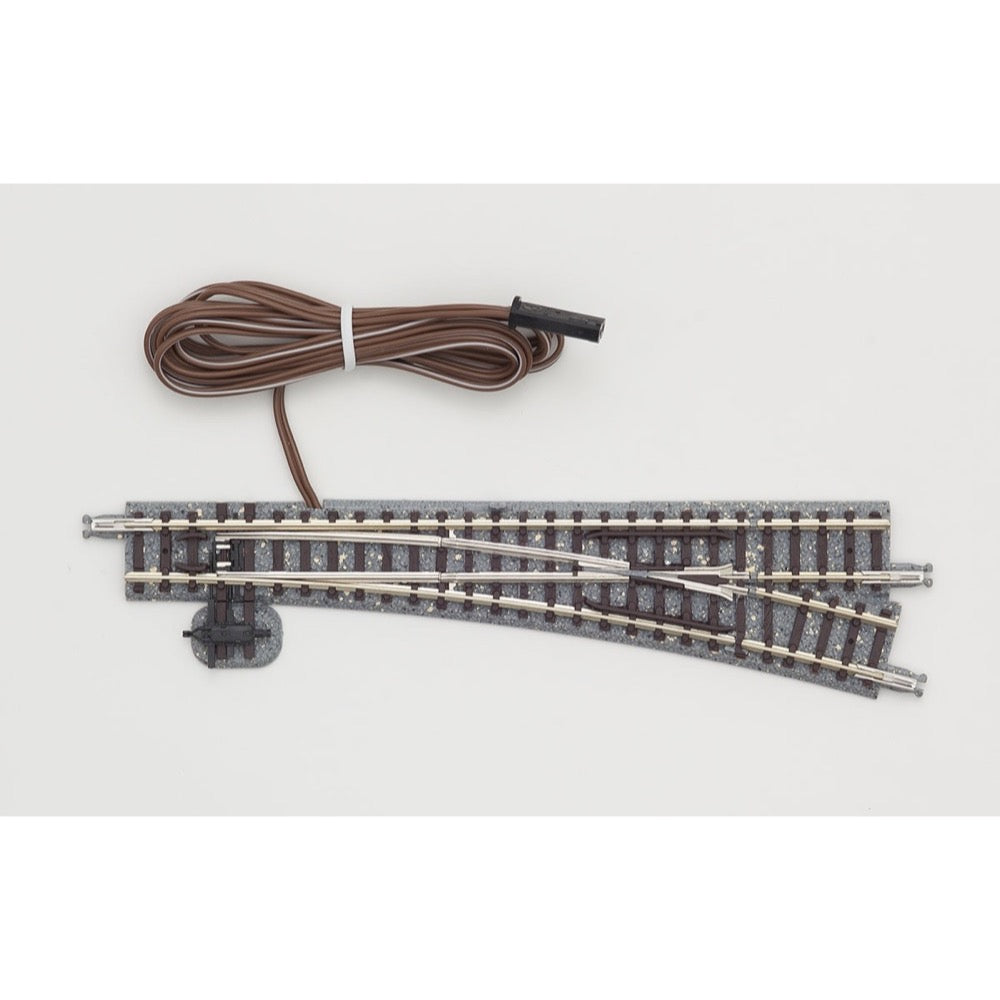

At 140mm long, the N-PR541-15(F) is a standard Tomix electric point that branches to the right and the N-PL541-15(F) is a standard Tomix electric point that branches to the left. It is fully selective and can also be used as a spring point.

Features

• Compatible with conventional Tomix rails
• Rails are joined with claws
• Improved joiners are used
• Operates in combination with Point Control Box N and Power Unit N
• Fully selectable, with +/- current to both rails switched in two directions using two built-in contacts, allowing for simple electrical wiring even in reverse operation or when installing complex points
• Branchs to 37mm double track spacing when combined with existing C541-15 rails
• Using two rails creates a single crossover track with 37mm double track spacing at a distance of 280mm
• Gaps are achieved by replacing with insulated joiners (sold separately)
• Includes dummy point motor, spring point sign, manual switch, sign stickers, etc.

Specification

• Electric point N-PR541-15(F)(Fully selectable)

Measuring at 168mm in length, this double crossing comes with track mounded into the base at intervals to suit standard Hornby twin-track geometry. Supplied with traditional gates as shown and alternative modern barriers.

Includes

• 1x Track & Track Accessories

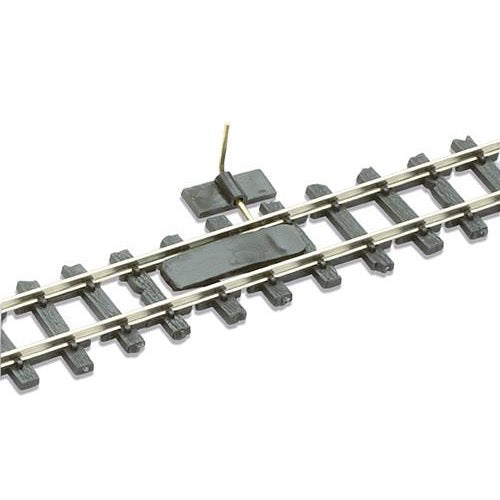

Manual uncoupler for use with 009 couplings

• PECO 009 Irregular and Mainline Code 80 Setrack and Streamline track systems

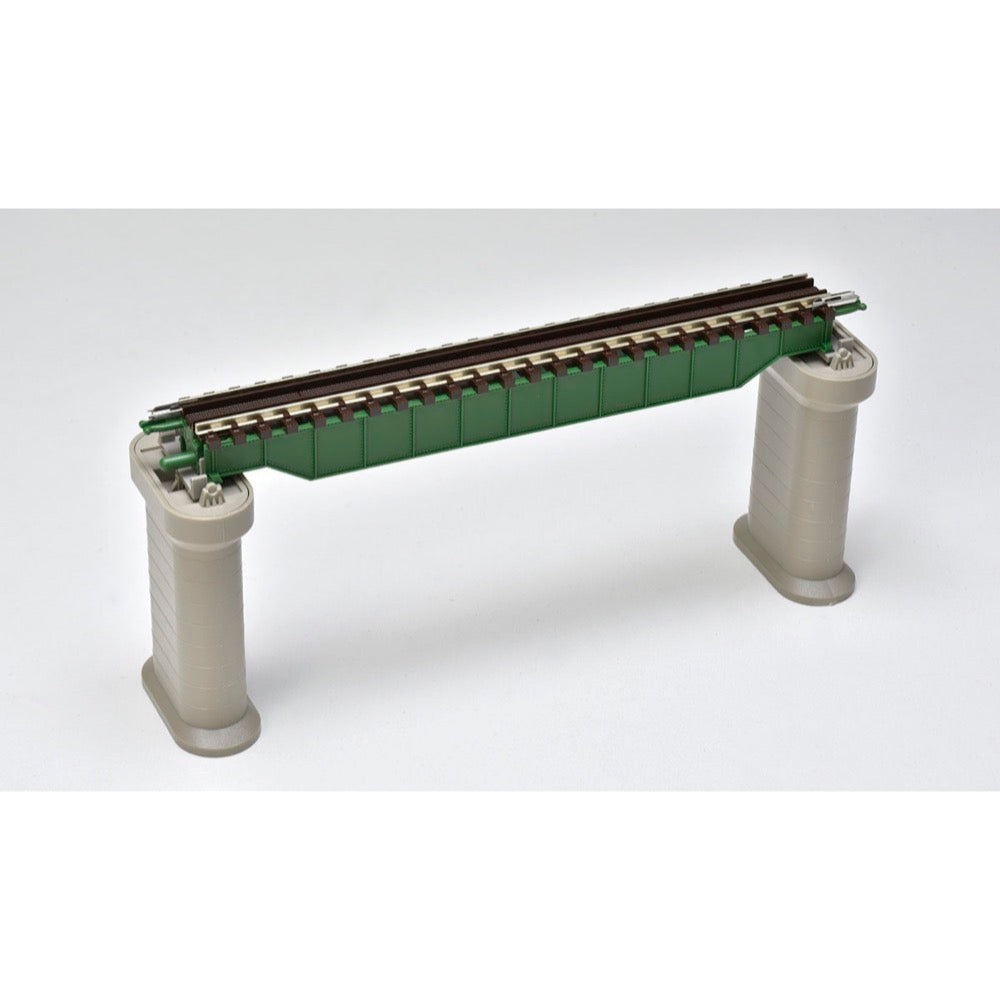

A deck girder bridge is an iron bridge with plate-shaped main girders on both sides, with the tracks on top of the girders.

The structure is simple and easy to construct, but it is not suitable for long iron bridges.

It is sometimes installed in combination with other iron bridges, such as truss bridges.

Features

• Rails can be connected simply and reliably
• An upper deck girder bridge that can be used for a wide range of lines, from main lines to local lines
• The color is dark green, the same color as the <3267> upper deck single-track truss iron bridge S280 (dark green)
• The length of the iron bridge is 140mm, the same length as the straight rail S140
• The sleepers are separate parts molded in brown
• An inspection passage can be installed
• A waiting area can be installed in the center of the iron bridge
• By modifying the inspection passage, it is possible to install the separately sold <3077> single-track overhead line pole, steel frame type, etc.
• The handrails of the inspection passage can be replaced with the separately sold <3080> wide rail walls and handrails, etc.
• When two or more sets of this product are used, the included overhead line pole base can be installed, and the overhead line poles used are the gate-type single-track overhead line poles included with the separately sold <3077> single-track overhead line pole, steel frame type and the separately sold <91045> embankment large curve S-shaped rail set, etc.
• When two or more sets of this product are used, the separately sold <91045> The overhead bare railway pole (steel type) included with the large embankment curve S-shaped rail set can be attached.
