Receiver / ESC Unit: UMX Twin Otter

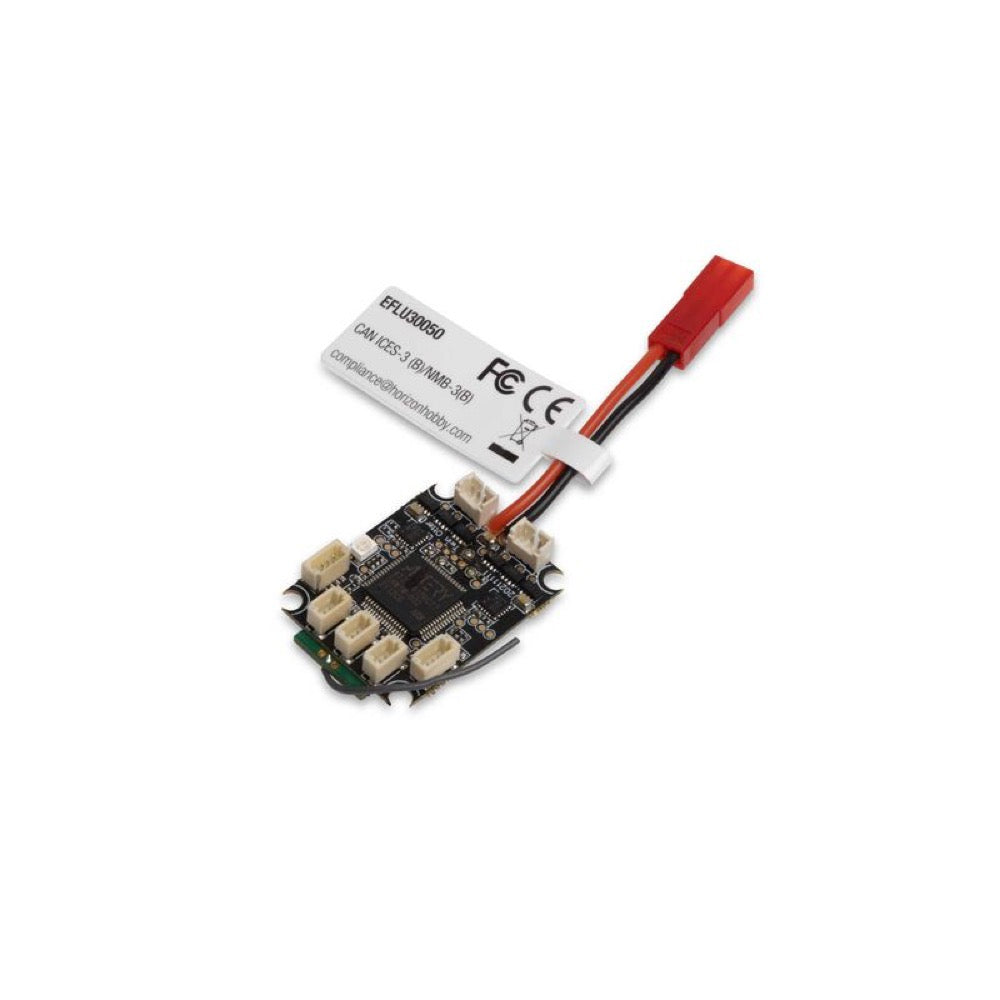

This is a replacement Spektrum RC Flight Controller that includes AS3X and SAFE functionality, originally equipped in the E-Flite UMX A-10 Thunderbolt II 30mm EDF Jet.

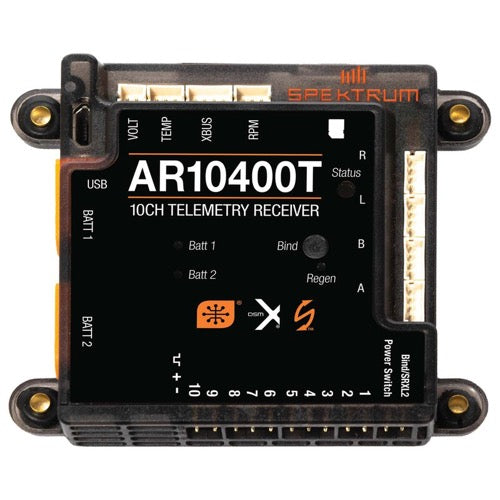

The Spektrum™ AR10400T PowerSafe™ receiver is a feature-packed 10 channel receiver with integrated full-range telemetry. Spektrum PowerSafe receivers are designed for models using numerous servos and accessories that draw excess current such as those found on giant-scale airplanes and jet models. They feature a robust power bus designed to manage high-current loads, as well as dual battery input ports with IC3™ connectors for use with larger battery packs. This makes it possible to support high-current systems straight through the receiver without the need for a separate power distribution system.

If you have a DSMX®/DSM2® transmitter capable of 11ms frame rates, the AR10400T will deliver lightning-fast input-to-output response that is perfect for high-performance applications such as aggressive 3D , IMAC, and Turbine airplanes. Each receiver includes 3 SRXL2 remote receivers that take full advantage of Spektrum MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems, helping insure a solid connection between you and your aircraft.

As an added measure of safety, the Spektrum designed the AR10400T receiver with a proprietary soft switch. Allowing servo current to be routed around the switch, so, should the switch fail for any reason, power to the system will not be interrupted.

A ground-breaking feature on the AR10400T PowerSafe Receiver is the built-in receiver battery energy sensors; giving pilots added awareness of the load and mAh used by the servos, retracts, lights, etc. used by each battery.

Each come with built-in connection ports for RPM, Flight Pack Voltage and Temperature sensors as well as an X-Bus port for additional telemetry options.

Patented PowerSafe™ Redundancy System

The Spektrum™ AR10400T is the ultimate solution for powering high-current draw radio systems. In aircraft with multiple high-current draw servos (e.g. giant-scale aircraft, jets, etc.), PowerSafe redundancy expertly manages power between both connected receiver batteries with true dual battery redundancy. Each battery is isolated and if one fails/shorts the other seamlessly takes over.

Innovative Battery Capacity Monitor

The PowerSafe receivers feature dual battery capacity monitoring through telemetry when used with Spektrum AirWare™ transmitters. Activate the Auto Config function on the telemetry page in your transmitter to display the capacity consumed by the receiver. The capacity used is stored flight to flight and adds until reset. The capacity can be automatically reset when the battery is charged, allowing easy battery capacity monitoring.

Integrated "Black Box" Telemetry Logging

When a micro SD card is inserted into the receiver, during operation, flight information will be logged onto a file on the card including flight log data, battery status and other telemetry data stored over time. If not deleted, older data logs recorded will be deleted, keeping the most recent logs. This can be a handy tool to review flight data over time which can be helpful for diagnosis of performance.

Forward Programming

You can configure the AR10400T receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

Micro USB Port

A user-friendly Micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC Programmer Application.

Integrated Barometer

The Spektrum™ AR10400T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.

Status LEDs

The Status LED will give information about the status of the receiver and give warning codes if there is an issue or condition detected: Differentiate codes/modes by flashing count.

• White Blinking/Breathing - Initializing, not ready to fly
• Red - Failure, failure where you can't fly. Check power or RF.
• Two blinks - 3S Power Detected/Protection engaged
• One blink - No remote detected in port A or not enough remotes detected, need at least 2 remotes connected and one must be in port A.
• Solid Blue - Ready (with recording). Ready to fly recording with SD card
• Solid Green - Ready (without recording). Ready to fly, not recording to an SD card.

Expansive Telemetry Options

In addition to the integrated telemetry sensors, the AR10400T supports an expansive list of Spektrum telemetry sensors and 3rd party telemetry accessories. Easily add powerful telemetry data tools to your model such as GPS, Airspeed Sensors, Engine RPM and Turbine ECU telemetry from supported jet turbine controllers.

Features

• Patented PowerSafe™ redundancy system with dual battery input ports with IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
• Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more

• Micro USB port for easy product registration and firmware updates

• 12V capable for use with 12 volt servo applications (must be activated via Forward Programming)
• Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed

• Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)

• Integrated status LED provides helpful information during start up, warnings and mode indicators

• SRXL2 connectivity for easy, one wire connection to supported devices

• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires

• Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors

• Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules

• Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted.

• Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups

• Capable of high-speed 11ms frame rates

• Binding is easier than ever with four options to initiate the bind process
• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion

• Optional fourth SRXL2 remote receiver can be added for additional RF path redundancy (sold separately)

• Compatible with all Spektrum DSM2 and DSMX transmitters

• Not compatible with Spektrum AS3000 Stabilization Module

• Not compatible with DSM2 AIRMOD JR Module (SPMMSJR720)


Contents

• (1) AR10400T 10 Channel PowerSafe Receiver
• (1) SPM4651T SRXL2 Remote Serial Telemetry Receiver
• (2) SPM9747 SRXL2 DSMS Remote Receivers
• (1) 9" SRXL2 Remote Receiver Extension
• (1) 12" SRXL2 Remote Receiver Extension
• (1) 24" SRXL2 Remote Receiver Extension
• (2) Battery IC3 Connectors
• (2) Charge Receptacles
• (1) Aircraft Telemetry Volt Sensor
• (1) Soft Switch
• (1) Instruction Manual

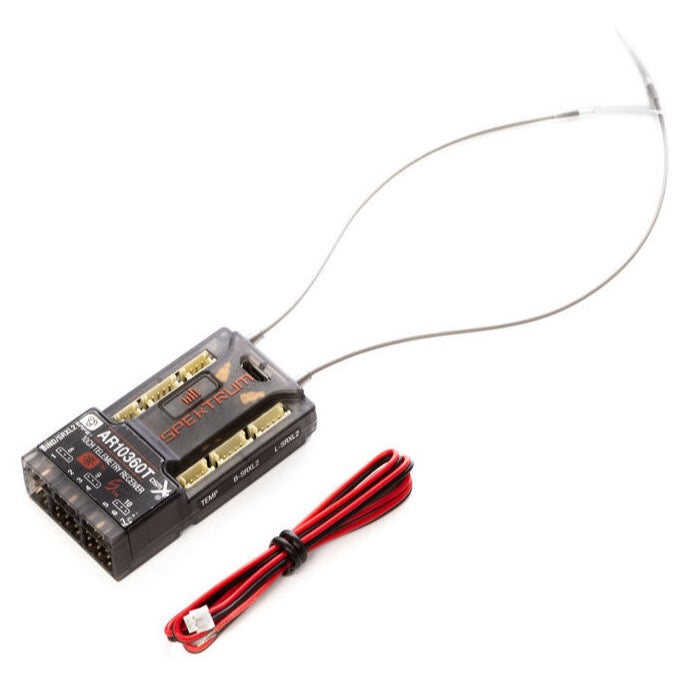

The Spektrum AR10360T 10 Channel AS3X/SAFE Telemetry Receiver is a DSM2 and DSMX capable receiver with a compact footprint to fit in a wide range of aircraft. The AR10360T is a full range 10 channel receiver with built in AS3X stabilization, which counters the effects of wind, turbulence and torque using a 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. There is no delay in control response or limit on control throws. You’ll simply feel like you’re flying an expertly tuned model that does exactly what you want. The AR10360T features full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS, RPM and temperature ports can be used to add additional telemetry sensors available separately. A user-friendly Micro USB port is built into the receiver for easy access to firmware updates and model setup sharing via the Spektrum PC Programmer Application. It also features an SRXL2 port for an SRXL2 Remote Receiver (SPM9747 or SPM4751T), available separately, to add additional RF path redundancy. An SRXL2/Bind servo header is available to connect smart devices, bind with a traditional bind plug, or connect a battery. The AR10360T also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last as well as preset failsafe types set through forward programming.

Features

• Compatible with all Spektrum DSM2 and DSMX transmitters
• Built in AS3X Stabilization System with SAFE flight envelope protection
• AS3X and SAFE set up through forward programming directly from your Spektrum transmitter
• Compact footprint fits most parkflyer size, sport class and giant scale models
• Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need of additional sensors
• VOLT, RPM and TEMP telemetry ports can be used with traditional Spektrum Telemetry Sensors
• XBUS telemetry port for expandable telemetry capabilities, like GPS, Air Speed, Flight Battery Energy and more
• Bind button allows for easy binding and eliminates the use of bind plug
• Two external antennas will ensure secure RF coverage from all angles of the aircraft
• Additional RF path redundancy with up to 2 additional SRXL2 Remote Receivers, SPM9747 or SPM4651T, sold separately
• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
• End pin output pins for easy and compact installation
• Forward Programming capable for setting individual failsafe parameters per channel, programming AS3X and SAFE parameters and more
• Micro USB port for firmware updating and model setup sharing capability

Contents

• (1) AR10360T DSMX 10-Channel AS3X & SAFE Telemetry Receiver
• (1) Spektrum Flight Pack Voltage Sensor
• (1) Product Manual

Requires

• (1) Telemetry Capable DSMX Transmitter
• Servo extension(s) may be required

As3X Technology, 3-Axis Stabilization

Exclusive Spektrum AS3X technology enhances flight stability by countering the effects of wind, turbulence, and other outside forces to help your aircraft fly smoothly and with precision. You’ll feel like you’re piloting an expertly tuned model that performs exactly as you want.

Safe Technology Safe Technology

SAFE (Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X to deliver normal flight performance, but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes.

Forward Programming Forward Programming

You can fully configure the AR10360T receiver wirelessly, directly from any compatible Spektrum transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments. Setup everything from AS3X and SAFE to individual failsafe parameters, right from your fingertips.

Micro Usb Port Micro USB Port

The AR10360T feature a convenient Micro USB port for updating and model setup sharing. Using a common Micro USB Cable (not included) and the latest version of the Spektrum PC Programmer, users can update the main receiver and any remote receivers that are currently attached to the receiver. Also, with the AR10360T, pilots can easily export, share and upload AS3X and SAFE enabled model presets.

Smart Telemetry Smart Telemetry

To enjoy the full benefits of Smart technology, use the A10360T receiver with a Smart ESC and telemetry capable Spektrum DSMX transmitter. Vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter in real time.

Safe Panic Recovery Safe Panic Recovery

Panic is a SAFE Stabilization mode that can return an airplane to level flight from any attitude. This allows the pilot to quickly and automatically bailout of tense situations with the touch of a button. This feature is fully programmable and customizable via the Forward Programming menu on a compatible Spektrum transmitter.

Expanded Innovation

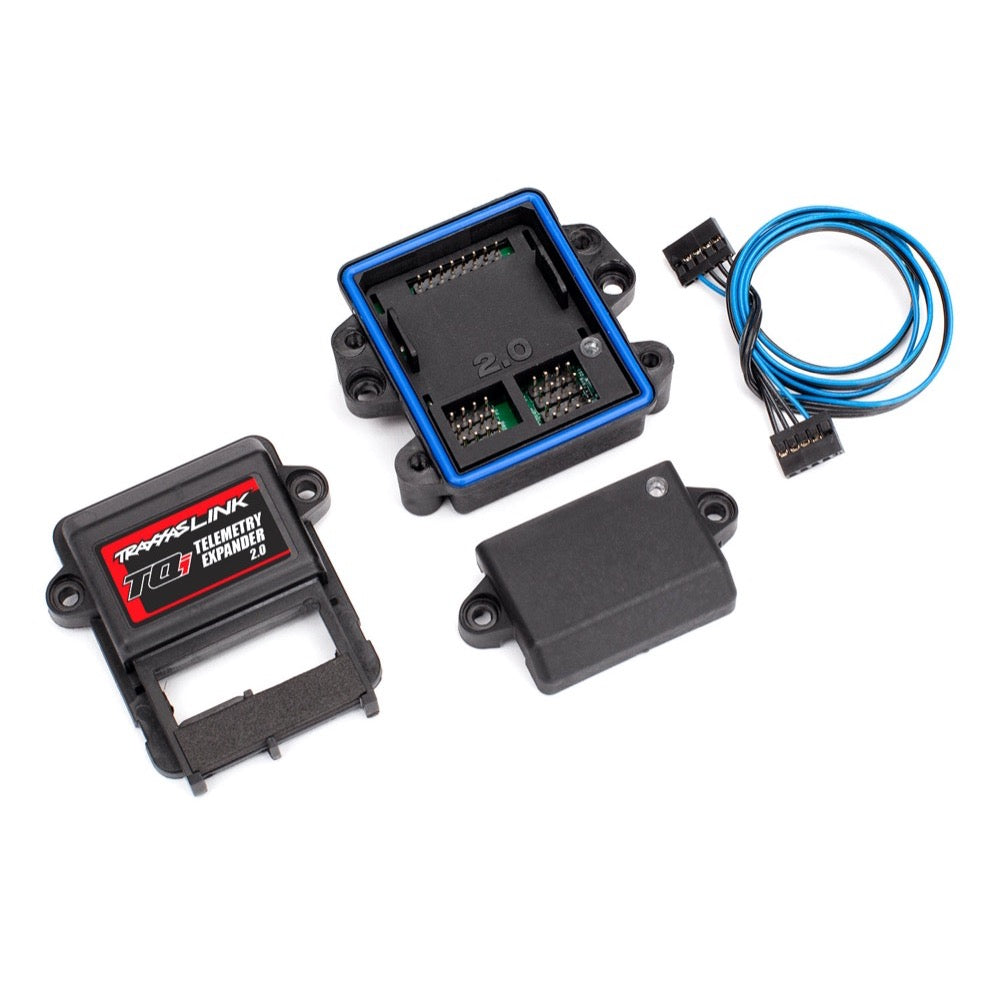

TQi Telemetry Expander 2.0 (#6550X) Inputs (Three-Quarter View)Traxxas telemetry changes the game by allowing you to monitor and record real-time data from your vehicle while you drive. Add the GPS module to the water-sealed Telemetry Expander and track the actual speed of your vehicle in real-time! The Telemetry Expander accepts up to six auto-detectable sensors in addition to the three standard Traxxas sensors. There are currently three auto-detectable sensors to select from: voltage, temperature, and GPS. The Traxxas Link application automatically recognizes sensors, so setup takes only a few moments! Advanced communication bus technology allows you to connect the telemetry expander to your TSM receiver or to your High-Voltage Power Amplifier, or directly to the VXL-6s and VXL-8s electronic speed controls with optional data cables. Install the Telemetry Expander, choose your sensors, and prepare for an all-new RC driving experience!

Features

• Includes receiver data cable (optional data cables available)
• Installs quickly and easily; no parts to replace or swap
• Waterproof case keeps the expander safe from the elements
• Six available ports for connecting auto-detectable plug and play sensors
• Ready to accept plug-in GPS Speed Module (part #6551X, sold separately)
• Requires the TQi radio system with Wireless Module (#6511), TSM receiver (#6533), and Apple iOS or Android mobile device running the Traxxas Link App.

The Benefits of Traxxas Telemetry

The Traxxas TQi radio system, Wireless Link Module, and Traxxas Link App transform your Apple or Android device into a powerful tuning tool with an intuitive, high-definition, full-color graphical user interface. Adjust your radio trims and settings, vehicle profiles, update model memory, and tailor your vehicle for different driving conditions by means of a virtual dashboard and interactive screens. Using the complete TQi system and Traxxas Link app makes pro-level transmitter tuning fast, convenient, and easy.

Open the dashboard from the Traxxas Link home screen to view data from telemetry-ready accessories and sensors. The application recognizes installed auto-detectable telemetry sensors for easy setup. Record and save all displayed data to share with friends and other RC enthusiasts. The Telemetry Expander adds even more functionality with up to six additional sensors and the GPS module. Installation is quick and easy utilizing a single high-speed communications cable to the receiver, or to the High-Voltage Power Amplifier or ESC with optional data cables. Unlock a whole new world of convenience and fun with Traxxas telemetry!

Easy to Install

The Telemetry Expander 2.0 is easy to install with custom, vehicle specific mounting kits from Traxxas. These mounting kits ensure that the Telemetry Expander 2.0 is secured in the model with a clean and rugged solution that delivers the durability you expect from Traxxas.

Easy to Connect

Traxxas models equipped with the TQi radio system

The Telemetry Expander 2.0 connects directly to the TQi receiver using the supplied #6525 communication link cable.

X-Maxx, E-Revo, and Unlimited Desert Racer

Install the Telemetry Expander 2.0 and GPS Module for even more accurate speed measurements compared to the built in speed output from the VXL-6S and VXL-8S electronic speed controls. Plus, add the ability to install additional sensors to monitor parameters such as motor temperature. The Telemetry Expander connects directly to the VXL-6S or VXL-8S electronic speed control using the new Traxxas Data Link Cable #6566 (sold separately). Using the #6566 cable is a plug-and-play solution that conveniently eliminates the need to open the waterproof receiver box to add additional cables.

Vehicles equipped with the #6590 High Voltage power amplifier

The #6590 High Voltage Power supply is used for lighting accessories such as the #8485 off-road lighting set for the Unlimited Desert Racer. The #6550X Telemetry Expander can be conveniently connected directly to the #6590 high voltage power amplifier using the new #6565 Data Link Cable (sold separately). This provides a quick and easy plug-and-play connection without having to open the waterproof receiver box to add additional cables.

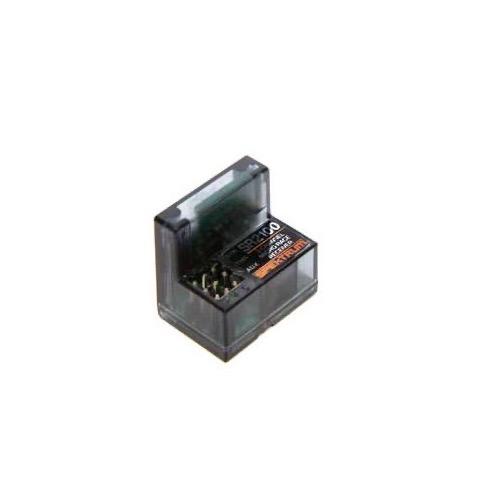

Eliminate clutter and improve your RF performance with the SR2100 DSMR® Micro Race Antenna-Less receiver. The SR2100 features the signal performance you demand while making installing your receiver in a car or truck easier than ever. The Frequency-Agile DSMR technology delivers a super-fast 5.5m/s frame rate in even the noisiest of RF environments.

While small in size the SR2100 is packed full of features. The three-channel design makes it easy to connect your servos, ESCs, transponders, fans or other accessories. Binding to your DSMR-equipped transmitter, such as the DX6R, DX5C, DX5R, and DX4R PRO, is easy thanks to the integrated bind button.

Requires a DSM2/DSMR transmitter capable of a 5.5ms frame rate.

FEATURES

• Built-in antenna
• DSMR protocol
• 3-channel functionallity
• 5.5ms frame rate with very low latency and super high speed response
• Small and lightweight
• Convenient Bind Button
