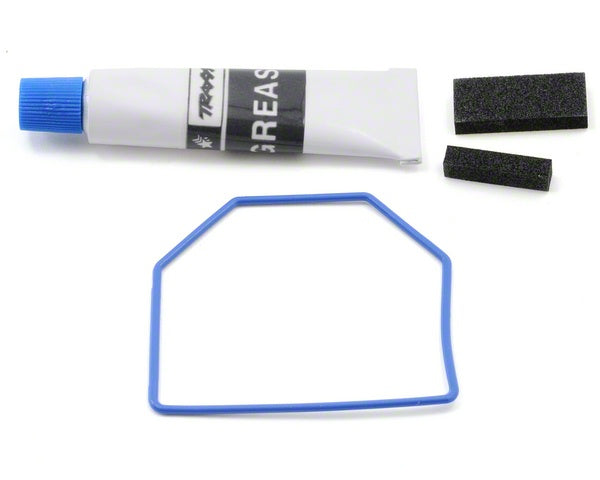

Traxxas seal kit for the 1/16 scale Receiver Box used in the 1/16 scale E-Revo and Slash. Prevents moisture and dirt from entering receiver box.

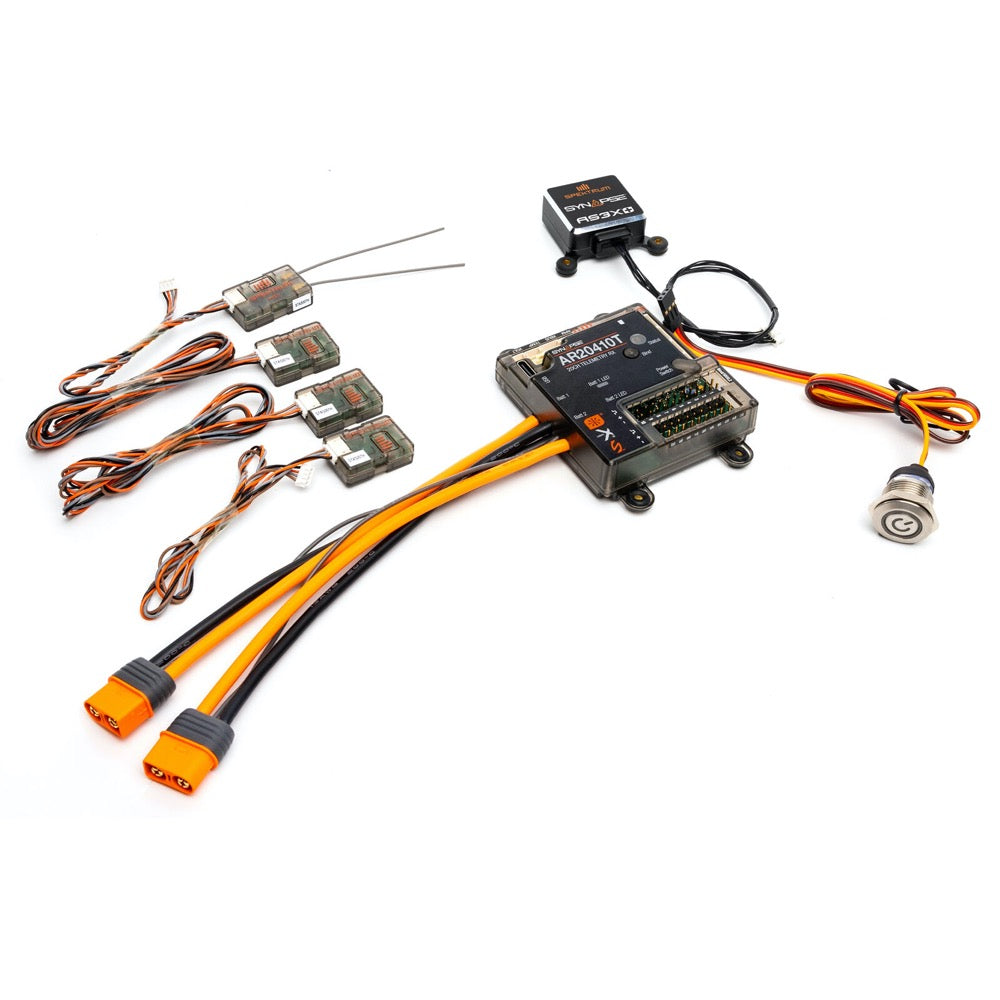

The Spektrum™ AR20410T PowerSafe™ receiver is a feature-packed 20-channel receiver with full-range telemetry. Spektrum PowerSafe receivers are designed for models using numerous servos and accessories that draw excess current, such as those found on giant-scale airplanes and jet models. Now, with innovative features like fast boot recovery, regenerative servo support, remote sleep mode, and the all-new Synapse AS3X+ module.

The revolutionary Spektrum Synapse™ Flight Stabilization Module is vastly improved over its predecessor, the AS3000. Equipped with the all-new AS3X+ stabilization algorithm, the Synapse has been rigorously tested by experts throughout the hobby and has been put to the ultimate test. Spektrum has taken years of customer feedback on the AS3000 and purpose-built the Synapse with turbine aircraft and giant scale in mind. Its lightweight design and innovative features make it the ideal choice for pilots needing the best in-flight stabilization in today’s world of complex models.

Historically, pilots had to reduce the performance of stabilization systems by lowering gains to fine tune to their personal feel. Now, our new parameters of stop lock and release rate allow you to customize the feel of the gyro system while providing optimal stabilization performance.

With the Synapse we are introducing the ability to adjust AS3X+ and SAFE settings with 10 customizable channels for all flight controls. This allows pilots to precision tune their aircraft while in flight. Additionally, we’ve also added support for configuring auxiliary outputs, which means you can now stabilize outputs tied to mixes or other outputs that are separate from your traditional wing types. For example, if you had flaps that were set up to become ailerons using a mix and a flip of a switch, you can now configure those surfaces to have stabilization as well.

We've added support for multiple gyro systems within a single device. This provides the equivalent functionality of running multiple gyro systems or flight controllers within one system, allowing you to add stabilization to unique outputs such as thrust vectoring or canards without the need of buying an additional gyro. Changes were made to the gyro filtering for improved response time. This allowed us to essentially double the effectiveness of our gains in some cases. Ultimately, this helps to further increase aircraft stability in rough air.

Lastly, significant improvements were made to how heading hold mode operates. Now, transitions between user inputs and heading hold are more seamless which provides a more natural feel in flight. With the Synapse we've isolated the sensor in Synapse to combat against acoustic interference that might be seen in some turbine applications. All of that is wrapped in a beautiful aluminum case with three vibration-damped mounting points.

Paired with the new Spektrum AR20410T PowerSafe receiver, it is an incredible combo of advanced stabilization and cutting-edge electronics.

Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver Features

• Patented PowerSafe™ redundancy system with dual battery input ports with IC3 connectors. Perfect for power-hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
• Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
• Fast boot recovery technology allows the gyro system to be rebooted in flight upon any electrostatic discharge or power interruption, providing pilot control within milliseconds using a saved stabilization calibration
• Regenerative servo support for any number of servos
• Forward programming for easy adjustments to failsafe settings, servo frame rate settings, AS3X+ settings, and more
• USB-C port for easy product registration and firmware updates
• 12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
• Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
• Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)
• Integrated status LED provides helpful information during start-up, including warnings and mode indicators
• SRXL2 connectivity for easy, one-wire connection to supported devices
• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need for modules, links, and wires
• Receiver pack energy, voltage sensor, and flight log telemetry data available without the need for additional sensors
• Temperature, imbalance, cycles, and cell voltage telemetry data available when using Smart batteries
• When using an SPM4651T remote receiver, there is full-range telemetry with an integrated barometer providing altitude and vario telemetry without additional modules
• Included Momentary Pushbutton allows booting or shutting down the system. However, shutting down the system requires a specific press-and-hold pattern to prevent accidental shutdowns in case the button fails or disconnects. The switch itself must not be substituted. Additionally, there is a power switch on the receiver itself that can be used instead
• Rubber grommet hard mounts and minimalistic labeling help produce the cleanest model setups
• Capable of high-speed 11ms frame rates. It can be boosted to 5.5ms, if the servo supports it, for improved stabilization when using Synapse
• Binding is easier than ever, with four options to initiate the bind process
• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors, and X-bus for telemetry sensor expansion
• Compatible with new Synapse AS3X+ / SAFE Flight Stabilization Module (SPMAS6000)
• Compatible with all Spektrum DSMX transmitters
• Not compatible with DSM2 AIRMOD JR Module (SPMMSJR720)

Spektrum™ Synapse™ Flight Stabilization Module Features

• The all-new AS3X+ stabilization algorithm provides the ultimate in-flight performance and feel
• 20 stabilized outputs with increased sensor accuracy and data rate
• Thrust vector and canard support with Spektrum’s new multi-gyro system (up to four independent gyro systems in one device)
• Intuitive forward programming makes Synapse the easiest system to set up without the need for any external device
• Machined aluminum and anodized case housing with three grommeted hard mounts
• Gyro sensor is encased in sound and vibration reduction insulation designed for turbine applications
• New parameters and new menus with forward programming
• New Internally mounted locking cable design prevents any possible in-flight disconnection

Contents

• (1) AR20410T 20-Channel PowerSafe Receiver
• (1) SPM4651T SRXL2 Remote Serial Telemetry Receiver
• (3) SPM9747 SRXL2 DSMX Remote Receivers
• (1) 6" SRXL2 Remote Receiver Extension
• (1) 12" SRXL2 Remote Receiver Extension
• (1) 24" SRXL2 Remote Receiver Extension
• (1) 36" SRXL2 Remote Receiver Extension
• (2) Battery IC3 Connectors
• (2) Charge Receptacles
• (1) Aircraft Telemetry Volt Sensor
• (1) Soft Switch
• (1) Instruction Manual
• (1) Synapse AS3X+ / SAFE Flight Stabilization Module
• (3) mounting screws

DESIGNED FOR GIANT SCALE AND TURBINE APPLICATIONS

Spektrum has taken years of customer feedback on the AS3000 and purpose-built the Synapse and AS3X+ algorithm with turbine and giant scale aircraft in mind. We’ve vastly improved the flying characteristics, designed the system to operate flawlessly in noisy turbine environments and given you 20 stabilized outputs. Now, you can genuinely set your new model’s gyro up in less than 5 minutes without a PC, cables or stick position commands. It’s so easy, anyone can do it!

NEXT GENERATION IN FLIGHT STABILIZATION

The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We’ve been able to set up most aircraft in less than 5 minutes including the first flight tuning.

Key AS3X+ improvements include:

• Stop Lock and Release Rate parameters
• Heading Hold improvements
• Improved gryo filtering
• Canard and Thrust Vectoring Support

NOW WITH SAFE

You now have access to our SAFE technology at the flip of a switch which can potentially turn any disastrous situation into a complete recovery. Have the confidence and seconds you need to regroup after an orientation loss or distraction at the field. SAFE can even be selected for the failsafe position with predefined bank and pitch angles. SAFE has saved thousands of aircraft and can potentially save yours.

THRUST VECTOR AND CANARD SUPPORT

Our new multi-gyro system provides support for thrust vectoring and canards. This offers the equivalent functionality of running multiple gyro systems or flight controllers within one system. No additional gyro units needed!

ALUMINUM CASE

The Synapse case is machined aluminum with three grommeted hard mounts for easy installation in most aircraft

ACOUSTIC ISOLATION

Synapse’s gyro sensor is encased in a sound and vibration reduction insulation designed for turbine applications. While other systems require third party sound damping, we’ve designed Synapse to work flawlessly in most turbine applications.

LOCKING SENSOR CABLE

Synapse’s sensor cable is now designed with a locking connector on the RX side and the sensor side is internally mounted inside Synapse. This ensures that your synapse remains connected to your receiver regardless of in-flight vibrations.

SLEEP MODE

The AR20410T receiver features an advanced power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter. This exciting new feature allows you to power up your model’s electronic system at the press of a button. No hatch removal or physical switches are needed, and it is extremely convenient for a day at the flying field.

FAST BOOT RECOVERY

The AR20410T PowerSafe receiver features innovative Fast Boot technology that allows the Synapse system to reboot in flight upon power interruption. The technology skips various start up checks and provides the pilot control instantly using a saved stabilization calibration.

“BLACK BOX” TELEMETRY LOGGING

When a micro-SD card is inserted into the receiver, flight information will be logged for later retrieval. This includes flight log data, battery status and other important telemetry stored over time. This can be helpful for diagnosis performance.

Black Box captures the following data:

holds, frames, fades_0, fades_1, fades_2, fades_3, rssi_dBm, rssi_Pct, fp_volt, rpm_us, rxVoltage, currentA, currentB, voltsA, voltsB, chargeUsedA, chargeUsedB, tempF, altitudeFt, tempC, altitudeM

12 Volt and Regenerative Servo Support 12 Volt and Regenerative Servo Support

The AR20410T Supports 12v servo operation and can handle any number of regenerative servos. A huge leap forward in support for future technology improvements in the servo world.

SRXL2 SUPPORT

Easily connects and communicated with any of Spektrum’s SRXL2 products such as the Spektrum SKY and our Smart ESCs. Additionally, some third party sensors and modules will use SRXL2.

USB C UPDATING AND REGISTRATION

Easily download, install updates and register your receiver on our Spektrum community website. Special cables are no longer required!

MOMENTARY PUSHBUTTON

The included momentary pushbutton is designed to be installed in your aircraft to allow booting and shutting down the system. With a unique press and hold pattern, accidental shutdowns are extremely unlikely. Additionally, the AR20410T receiver has its own power switch that can be used instead.

FOUR BINDING OPTIONS

Binding is easier than ever with four ways to initiate the binding process. Bind button, Forward Programming, use of a bind plug and remote receiver button.

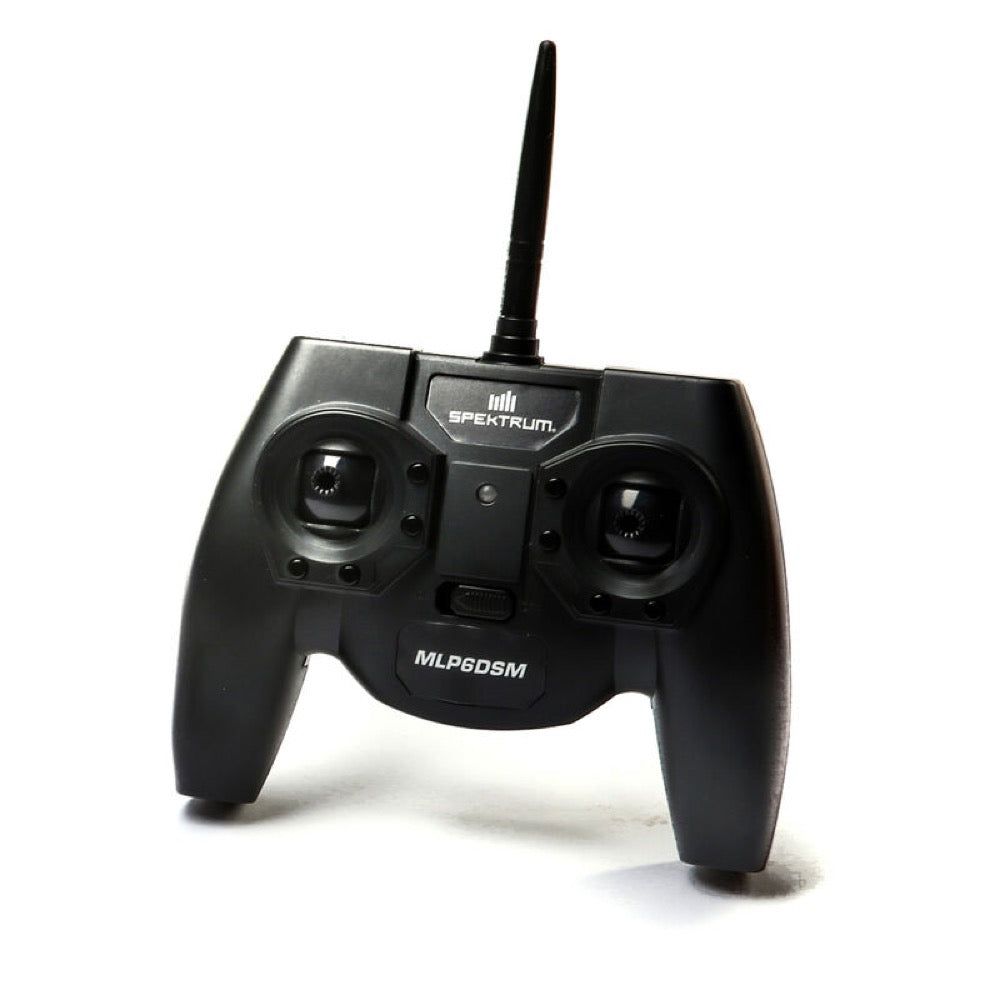

MLP6DSM 6-Channel SAFE Transmitter, Mode 2

Requires (4) AA Batteries

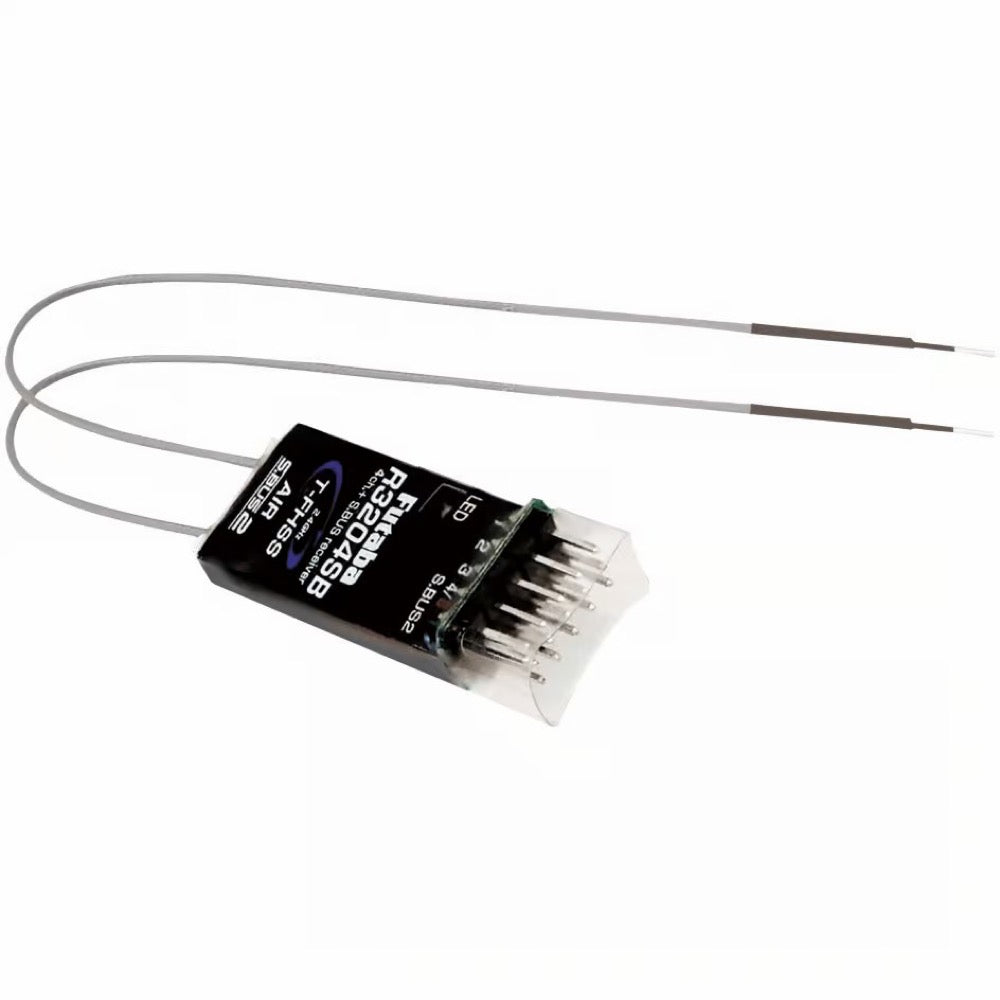

4-channel PWM, 18-channel S.BUS/S.BUS2 T-FHSS receiver, up to 8.4V, with telemetry and dual diversity antenna , 1s lipo capable, weighs only 4.8g.

Specifications

• Protocol: T-FHSS [Air]

• Command Protocol: PWM, S.BUS, S.BUS2

• PWM Channels: 4

• Dimensions: 41.4×18×9.9mm

• Weight: 4.8 g

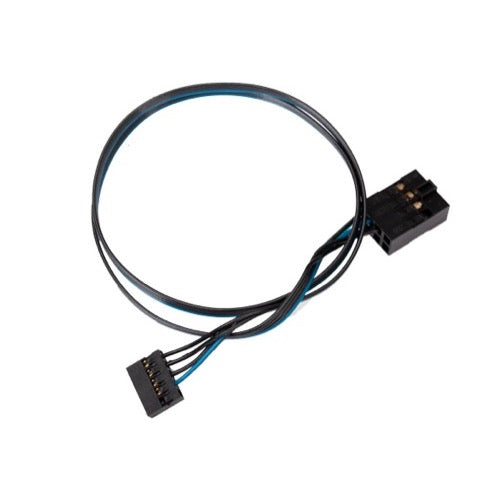

Data Link cable, telemetry expander (connects #6550X telemetry expander 2.0 to the #3485 VXL-6s or #3496 VXL-8s electronic speed control)

Use this data link cable to connect the 6550X telemetry expander 2.0 to the VXL6-6s or VXL-8s speed controls.

Accessory part for these models:

• E-Revo® VXL Brushless
• Sledge™
• Unlimited Desert Racer®

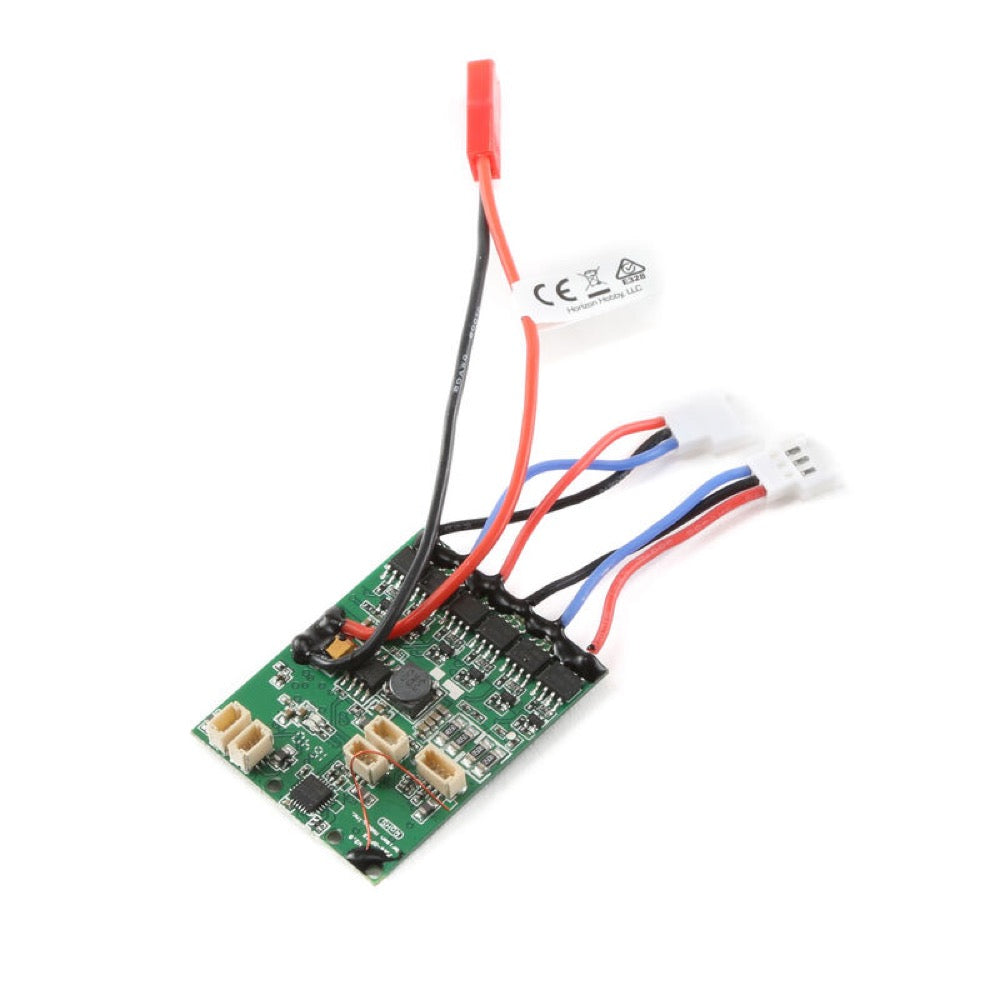

AS6410NBLT DSMX Receiver / Twin Brushless ESC Unit: UMX A-10

Specification

• Technology: AS3X

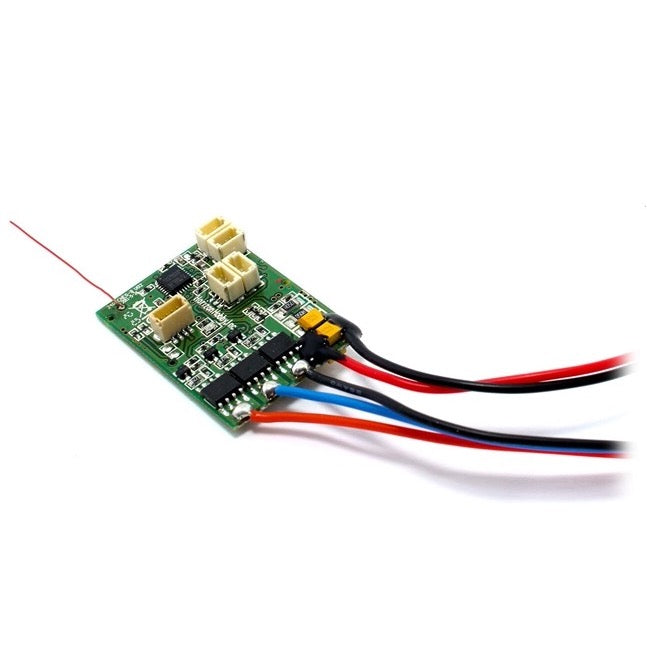

This replacement flight control unit is intended for the Blade 150 S Smart Helicopter. Package includes one flight control unit.

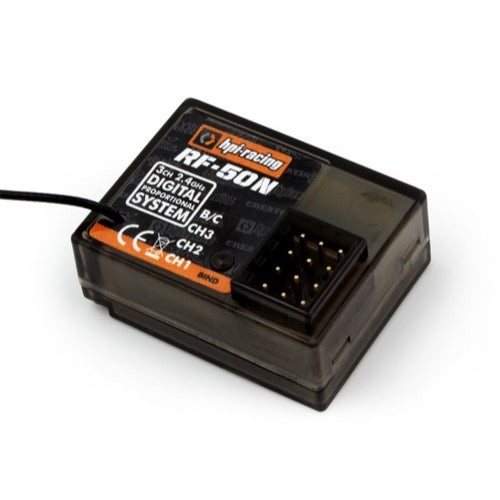

The RF-50N is the latest receiver from HPI-Racing and a great match for the HPI 2.4Ghz TF-41 and TF-50 series transmitters. Simply bind and drive and have fun with your friend's thanks to crystal-free 2.4GHz technology

The RF-50N receiver has been designed with nitro and gas vehicles in mind. It not only has the Signal failsafe function in common with RF-50 but also has a Low-Voltage failsafe which is essential for Nitro and Gas vehicles! Should the radio link ever fail for some reason, or the onboard battery voltage becomes too low, the radio will instantly switch the throttle channel to its failsafe position, which you can set to full brake for a nitro vehicle.

Its tiny size is just 35x26mm and only 16mm high, and its extremely light weight of just 11.5 grams means it won't affect the weight balance, no matter where it's installed.

The RF-50N's PCB features its own silicone jacket within the Hardcase outer for waterproof protection for a true go-anywhere RC experience, allowing you to drive in mud, rain, and snow! And with failsafe protection, you have peace of mind no matter what RC vehicle you drive!

Features

• Waterproof RF-50N receiver, works with HPI TF-41 and TF-50 transmitters
• Digital Frequency-Hopping Spread Spectrum (FHSS) 2.4GHz technology
• Simple radio binding steps
• Adjustable built-in Signal loss and Low-Voltage failsafe
• Run your HPI kit with other drivers without worrying about frequencies!
• 3rd channel plug can be used for a LED light controller, winch, etc., or power a personal transponder
• Ideal for Nitro and Gas RC vehicles which are using 6V Receiver battery packs
• Note: the RF-50N should not be used with alkaline or other non-rechargeable batteries typically used in a 4-cell AA holder.

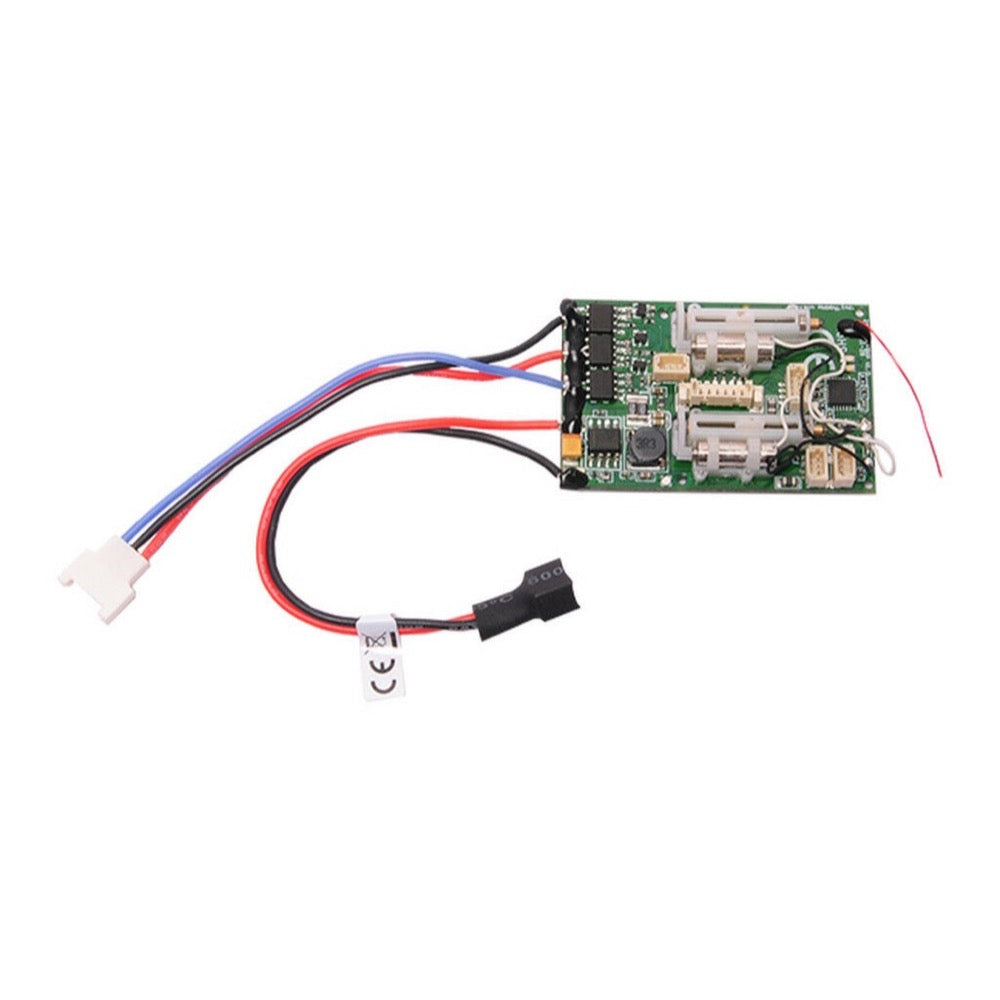

Receiver/ESC unit: UMX Pitts S1S

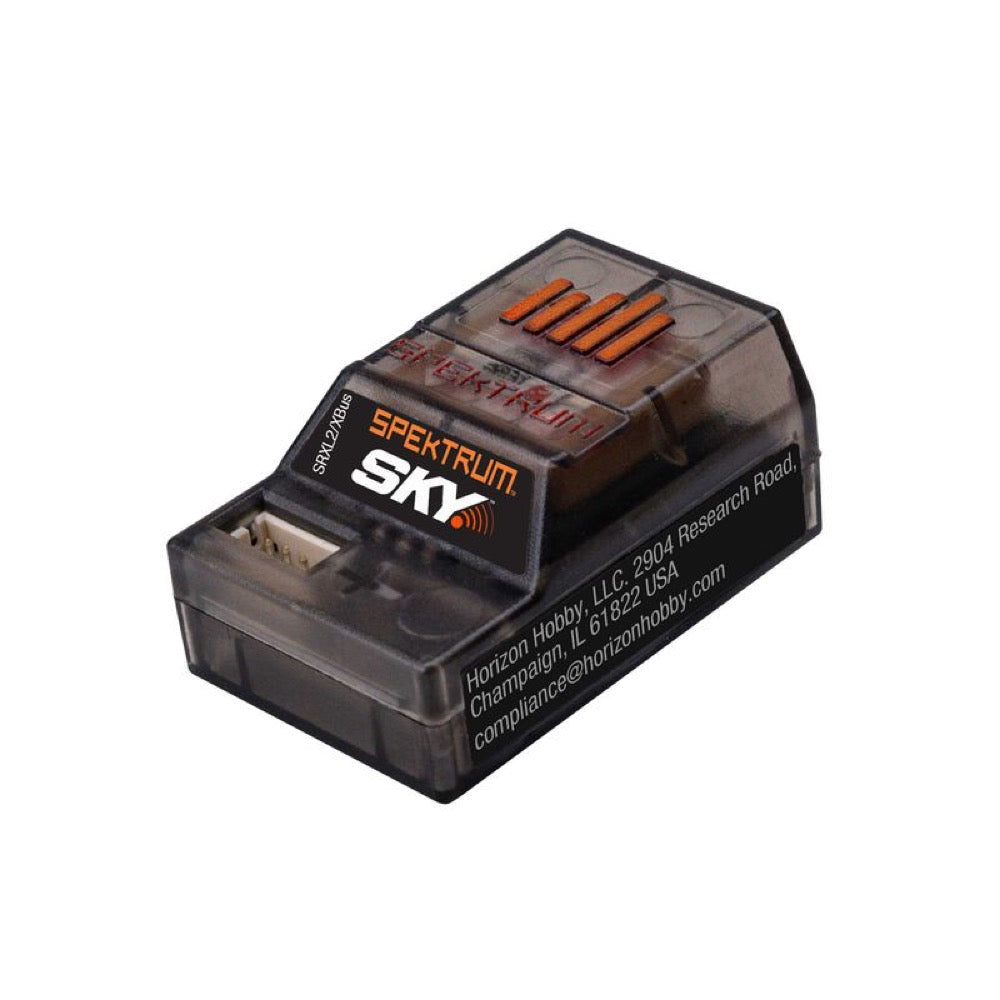

It is now easy for pilots of all skill levels and aircraft to become compliant with the latest unmanned aircraft rulings by the Federal Aviation Administration (FAA). Add the Spektrum™ Sky™ module to any aircraft, register on the FAA website, and you are instantly ready to go.

Horizon Hobby is committed to providing an easy solution to Remote ID (RID) for our customers, both new and old. Additionally, Sky™ features GPS for pinpoint accuracy in the sky. The Sky™ module is designed to make it easy to fly in compliance with the latest Remote ID guidelines.

One way to think about Sky™ and Remote ID is that it’s simply a digital license plate for the aircraft. It provides required information about the aircraft’s location and identification, which, if necessary, can be used by air traffic control or law enforcement to determine who and what is flying.

Sky™ is compatible with aircraft that require RID and airplanes of almost any size and allows your aircraft to be tracked in real-time. Sky™ allows you to be in compliance with the latest Remote ID guidelines by offering a Direct and Broadcast RID solution via Bluetooth.

Please visit our online FAQ for more information.

Features

• FAA RID Compliant
• FCC certified
• Bluetooth 4 and 5 long range
• Supports telemetry through SRXL2 and XBus
• Weighing in at 14g, the module is incredibly tiny
• Easy to use and install
• 3.3V – 9V Input Voltage
• Only requires power to operate (3-Pin Servo, 3-Pin ZH, or 4-Pin ZH Connector)
• No extra cost or hidden fees to operate
• Use when flying RC aircraft in areas not designated as FRIAs (FAA-Recognized Identification Area)
• One Sky™ module can easily be moved from one aircraft to another
  Registration of the Sky™ is completed through the FAA DroneZone website
• Transmits aircraft ground speed, altitude, position, heading, distance, time and unique serial number
• Can be mounted in any location or orientation in the aircraft
• Compatible with non-Spektrum radio equipment

Specs

• Application: Remote ID Module
• Connector Type: ZH Plug, Servo
• Dimensions: 1.376” (34.5mm) x 0.89” (22.5mm) x 0.71” (18mm)
• Input Voltage: 3.3V – 9V
• Part Type: Electronics
• Product Height: 0.71" (18 mm)
• Product Length: 1.376" (35 mm)
• Product Weight: 0.49oz (14.0g)
• Product Width: 0.89" (23 mm)
• Telemetry: Yes
• Water-Resistant: No

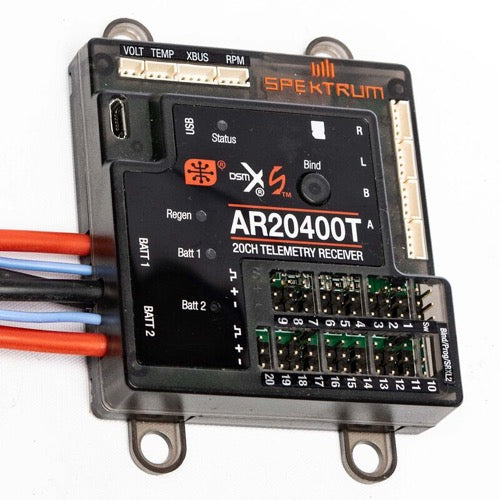

The Spektrum™ AR20400T PowerSafe™ receiver is a feature-packed 20 channel receiver with integrated full-range telemetry. Spektrum PowerSafe receivers are designed for models using numerous servos and accessories that draw excess current such as those found on giant-scale airplanes and jet models. They feature a robust power bus designed to manage high-current loads, as well as dual 13AWG battery input leads with IC3™ connectors for use with larger battery packs. This makes it possible to support high-current systems straight through the receiver without the need for a separate power distribution system.

If you have a DSMX®/DSM2® transmitter capable of 11ms frame rates, the AR20400T will deliver lightning-fast input-to-output response that is perfect for high-performance applications such as aggressive 3D , IMAC, and Turbine airplanes. Each receiver includes 4 SRXL2 remote receivers that take full advantage of Spektrum MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems, helping insure a solid connection between you and your aircraft. As an added measure of safety, the Spektrum designed the AR20400T receiver with a proprietary soft switch. Allowing servo current to be routed around the switch, so, should the switch fail for any reason, power to the system will not be interrupted.

A ground-breaking feature on the AR20400T PowerSafe Receiver is the built-in receiver battery energy sensors. Giving pilots added awareness of the load and mAh used by the servos, retracts, lights, etc. used by each battery.

Each come with built-in connection ports for RPM, Flight Pack Voltage and Temperature sensors as well as an X-Bus port for additional telemetry options.

Patented PowerSafe™ Redundancy System

The Spektrum™ AR20400T is the ultimate solution for powering high-current draw radio systems. In aircraft with multiple high-current draw servos (e.g. giant-scale aircraft, jets, etc.), PowerSafe redundancy expertly manages power between both connected receiver batteries with true dual battery redundancy. Each battery is isolated and if one fails/shorts the other seamlessly takes over.

Innovative Battery Capacity Monitor

The PowerSafe receivers feature dual battery capacity monitoring through telemetry when used with Spektrum AirWare™ transmitters. Activate the Auto Config function on the telemetry page in your transmitter to display the capacity consumed by the receiver. The capacity used is stored flight to flight and adds until reset. The capacity can be automatically reset when the battery is charged, allowing easy battery capacity monitoring.

Integrated "Black Box" Telemetry Logging

When a micro SD card is inserted into the receiver, during operation, flight information will be logged onto a file on the card including flight log data, battery status and other telemetry data stored over time. If not deleted, older data logs recorded will be deleted, keeping the most recent logs. This can be a handy tool to review flight data over time which can be helpful for diagnosis of performance.

Forward Programming

You can configure the AR20400T receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

Micro USB Port

A user-friendly Micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC Programmer Application.

Integrated Barometer

The Spektrum™ AR20400T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.

Status LEDs

The Status LED will give information about the status of the receiver and give warning codes if there is an issue or condition detected: Differentiate codes/modes by flashing count.

• White Blinking/Breathing - Initializing, not ready to fly
• Red - Failure, failure where you can't fly. Check power or RF.
• Two blinks - 3S Power Detected/Protection engaged
• One blink - No remote detected in port A or not enough remotes detected, need at least 2 remotes connected and one must be in port A.
• Solid Blue - Ready (with recording). Ready to fly recording with SD card
• Solid Green - Ready (without recording). Ready to fly, not recording to an SD card.

Expansive Telemetry Options

In addition to the integrated telemetry sensors, the AR20400T supports an expansive list of Spektrum telemetry sensors and 3rd party telemetry accessories. Easily add powerful telemetry data tools to your model such as GPS, Airspeed Sensors, Engine RPM and Turbine ECU telemetry from supported jet turbine controllers.

Features

• Patented PowerSafe™ redundancy system with dual 13 AWG battery leads with IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
• Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more

• Micro USB port for easy product registration and firmware updates

• 12V capable for use with 12 volt servo applications (must be activated via Forward Programming)
• Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed

• Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)

• Integrated status LED provides helpful information during start up, warnings and mode indicators

• SRXL2 connectivity for easy, one wire connection to supported devices

• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires

• Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors

• Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules

• Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted.

• Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups

• Capable of high-speed 11ms frame rates

• Binding is easier than ever with four options to initiate the bind process
• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion

• Optional fourth SRXL2 remote receiver can be added for additional RF path redundancy (sold separately)

• Compatible with all Spektrum DSM2 and DSMX transmitters

• Not compatible with Spektrum AS3000 Stabilization Module

• Not compatible with DSM2 AIRMOD JR Module (SPMMSJR720)


Contents

• (1) AR20400T 20 Channel PowerSafe Receiver
• (1) SPM4651T SRXL2 Remote Serial Telemetry Receiver
• (2) SPM9747 SRXL2 DSMS Remote Receivers
• (1) 9" SRXL2 Remote Receiver Extension
• (1) 12" SRXL2 Remote Receiver Extension
• (1) 24" SRXL2 Remote Receiver Extension
• (1) 36" SRXL2 Remote Receiver Extension
• (2) Battery IC3 Connectors
• (2) Charge Receptacles
• (1) Aircraft Telemetry Volt Sensor
• (1) Soft Switch
• (1) Instruction Manual
