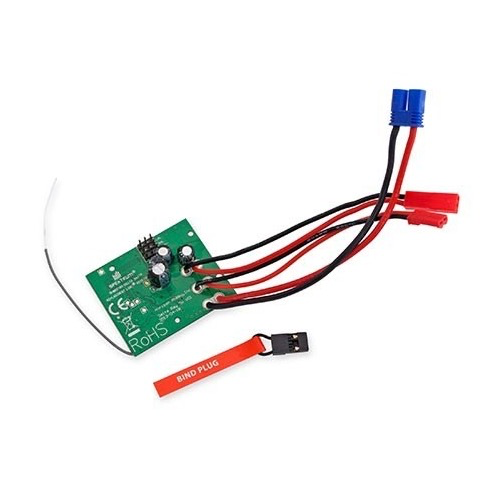

This Spektrum receiver is a replacement for the stock receiver in the HobbyZone Delta Ray RC plane.

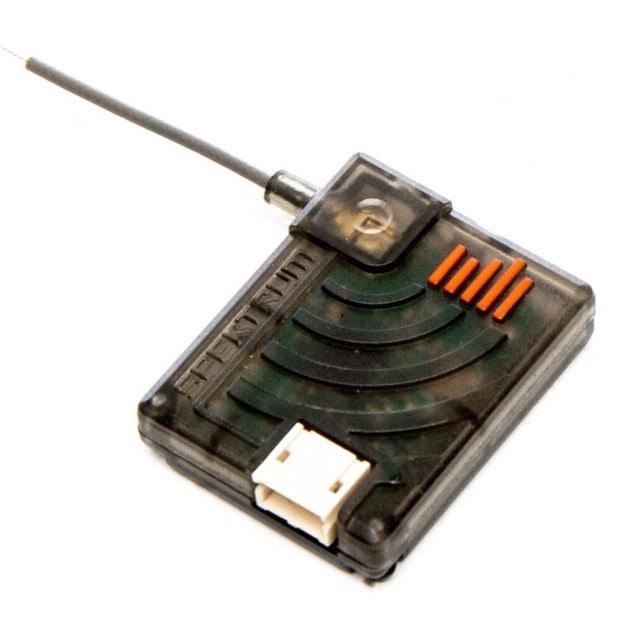

The next generation of Spektrum remote receivers are here with the SPM9745 and SPM9746 Receivers. Featuring a user friendly antenna setup that allows for the antenna to be placed in 2 positions, making installation into those tight projects easier than ever. Fully compatible with DSMX and DSM2 Transmitters*. Use these to add more receiving points on any Spektrum receiver that has 1 or more Remote receiver ports.

The remote receiver includes one 24-inch extension; however, various lengths of receiver extensions can be purchased allowing various placement options for mounting purposes. Additional remote receiver extensions are available in 6", 9", 12", 24" and 36" lengths.

*DSMX Remote Receivers must be used with a DSMX Main Receiver.

Repositionable Antenna

This antenna design allows for easy repositioning with the option to exit the case from the side or top. It also offers added strain relief to the antenna wire, and is optimized to fit into the tightest of Remote control aircraft.

Features

• Case design offers better strain relief on antenna lead
• DSMX with DSM2 Backward compatibility*
• 22ms and 11ms Compatible
• Upgrade for any Spektrum receiver with available remote receiver ports
• Great addition to AR636, AR7350, AR9350, Telemetry Receivers and PowerSafe receivers
• Includes 24 inch extension

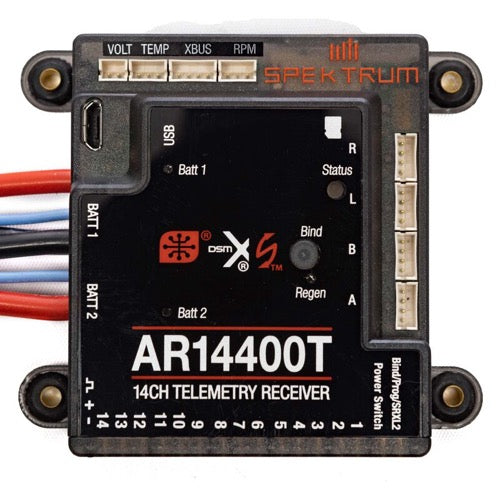

The Spektrum™ AR14400T PowerSafe™ receiver is a feature-packed 14 channel receiver with integrated full-range telemetry. Spektrum PowerSafe receivers are designed for models using numerous servos and accessories that draw excess current such as those found on giant-scale airplanes and jet models. They feature a robust power bus designed to manage high-current loads, as well as dual 13AWG battery input leads with IC3™ connectors for use with larger battery packs. This makes it possible to support high-current systems straight through the receiver without the need for a separate power distribution system.

If you have a DSMX®/DSM2® transmitter capable of 11ms frame rates, the AR14400T will deliver lightning-fast input-to-output response that is perfect for high-performance applications such as aggressive 3D , IMAC, and Turbine airplanes. Each receiver includes 4 SRXL2 remote receivers that take full advantage of Spektrum MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems, helping insure a solid connection between you and your aircraft.
As an added measure of safety, the Spektrum designed the AR14400T receiver with a proprietary soft switch. Allowing servo current to be routed around the switch, so, should the switch fail for any reason, power to the system will not be interrupted.

A ground-breaking feature on the AR14400T PowerSafe Receiver is the built-in receiver battery energy sensors; giving pilots added awareness of the load and mAh used by the servos, retracts, lights, etc. used by each battery.

Each come with built-in connection ports for RPM, Flight Pack Voltage and Temperature sensors as well as an X-Bus port for additional telemetry options.

Patented PowerSafe™ Redundancy System

The Spektrum™ AR14400T is the ultimate solution for powering high-current draw radio systems. In aircraft with multiple high-current draw servos (e.g. giant-scale aircraft, jets, etc.), PowerSafe redundancy expertly manages power between both connected receiver batteries with True dual battery redundancy. Each battery is isolated and if one fails/shorts the other seamlessly takes over.

Innovative Battery Capacity Monitor

The PowerSafe receivers feature dual battery capacity monitoring through telemetry when used with Spektrum AirWare™ transmitters. Activate the Auto Config function on the telemetry page in your transmitter to display the capacity consumed by the receiver. The capacity used is stored flight to flight and adds until reset. The capacity can be automatically reset when the battery is charged, allowing easy battery capacity monitoring.

Integrated "Black Box" Telemetry Logging

When a micro SD card is inserted into the receiver, during operation, flight information will be logged onto a file on the card including flight log data, battery status and other telemetry data stored over time. If not deleted, older data logs recorded will be deleted, keeping the most recent logs. This can be a handy tool to review flight data over time which can be helpful for diagnosis of performance.

Forward Programming

You can configure the AR14400T receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

Micro USB Port

A user-friendly Micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC Programmer Application.

Integrated Barometer

The Spektrum™ AR14400T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.

Status LEDs

The Status LED will give information about the status of the receiver and give warning codes if there is an issue or condition detected: Differentiate codes/modes by flashing count.

• White Blinking/Breathing - Initializing, not ready to fly

• Red - Failure, failure where you can't fly. Check power or RF.

• Two blinks - 3S Power Detected/Protection engaged

• One blink - No remote detected in port A or not enough remotes detected, need at least 2 remotes connected and one must be in port A.

• Solid Blue - Ready (with recording). Ready to fly recording with SD card

• Solid Green - Ready (without recording). Ready to fly, not recording to an SD card.

Expansive Telemetry Options

In addition to the integrated telemetry sensors, the AR14400T supports an expansive list of Spektrum telemetry sensors and 3rd party telemetry accessories. Easily add powerful telemetry data tools to your model such as GPS, Airspeed Sensors, Engine RPM and Turbine ECU telemetry from supported jet turbine controllers.

Features

• Patented PowerSafe™ redundancy system with dual battery input ports with IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
• Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more

• Micro USB port for easy product registration and firmware updates

• 12V capable for use with 12 volt servo applications (must be activated via Forward Programming)
• Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed

• Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)

• Integrated status LED provides helpful information during start up, warnings and mode indicators

• SRXL2 connectivity for easy, one wire connection to supported devices

• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires

• Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors

• Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules

• Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted.

• Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups

• Capable of high-speed 11ms frame rates

• Binding is easier than ever with four options to initiate the bind process
• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion

• Optional fourth SRXL2 remote receiver can be added for additional RF path redundancy (sold separately)

• Compatible with all Spektrum DSM2 and DSMX transmitters

• Not compatible with Spektrum AS3000 Stabilization Module

• Not compatible with DSM2 AIRMOD JR Module (SPMMSJR720)


Contents

• (1) AR14400T 14 Channel PowerSafe Receiver

• (1) SPM4651T SRXL2 Remote Serial Telemetry Receiver

• (3) SPM9747 SRXL2 DSMX Remote Receivers

• (1) 9" SRXL2 Remote Receiver Extension

• (1) 12" SRXL2 Remote Receiver Extension

• (1) 24" SRXL2 Remote Receiver Extension

• (1) 36" SRXL2 Remote Receiver Extension

• (2) Battery IC3 Connectors

• (2) Charge Receptacles

• (1) Aircraft Telemetry Volt Sensor

• (1) Soft Switch

• (1) Instruction Manual

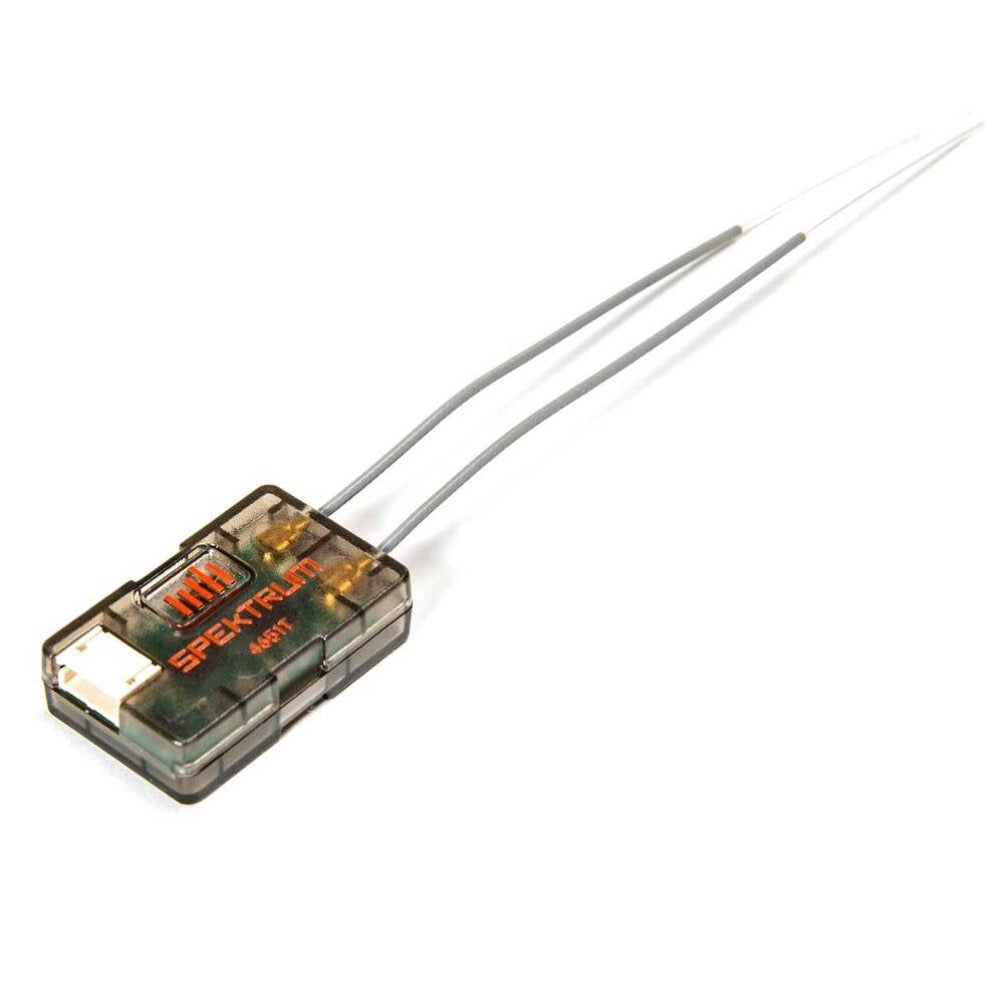

The SPM4651T DSMX SRXL2 Serial Micro Receiver takes the original SPM4649T receiver and adds more value, functionality, longer control and telemetry link range. The SPM4651T uses our feature-rich SRXL2 protocol to give pilots a blazing fast serial data connection with up to 20 channels. SRXL2 is a powerful and open source communication protocol developed by Spektrum. It greatly improves bi-directional communication between the radio system and flight controller for added telemetry functionality and flight control configuration right from the pilots Spektrum Transmitter*, all over one signal wire.

The SPM4651T is small, lightweight, and ideal for Heli, Multi-Rotor and FPV Enthusiasts. It also features a simple bind button so pilots no longer need to carry a separate receiver or bind plug to bind. Dual antennas provide receiver diversity for solid signal and the long coax antennas help to provide maximum signal strength in all orientations for challenging installations where carbon fiber, metal and batteries shield the antenna. And with Spektrum DSMX 2.4GHz RF protocol the Spektrum SRXL2 Serial Telemetry Receiver provides remarkable range and interference free performance.

The SPM4651T DSMX SRXL2 Serial Micro Receiver takes the original SPM4649T receiver and adds more value, functionality, longer control and telemetry link range. The SPM4651T uses our feature-rich SRXL2 protocol to give pilots a blazing fast serial data connection with up to 20 channels. SRXL2 is a powerful and open source communication protocol developed by Spektrum. It greatly improves bi-directional communication between the radio system and flight controller for added telemetry functionality and flight control configuration right from the pilots Spektrum Transmitter*, all over one signal wire.

The SPM4651T is small, lightweight, and ideal for Heli, Multi-Rotor and FPV Enthusiasts. It also features a simple bind button so pilots no longer need to carry a separate receiver or bind plug to bind. Dual antennas provide receiver diversity for solid signal and the long coax antennas help to provide maximum signal strength in all orientations for challenging installations where carbon fiber, metal and batteries shield the antenna. And with Spektrum DSMX 2.4GHz RF protocol the Spektrum SRXL2 Serial Telemetry Receiver provides remarkable range and interference free performance.

Features

• SRXL2 Technology
• Low Noise Amplifier - Helps Reduce Interference and Produce Extended Control Link Range
• Small, Lightweight and Perfect for Heli, Multi-Rotor and FPV Enthusiasts
• Wide Voltage Input Range (3.3v -8.4v)
• Full Range Telemetry
• Dual Diversity Antennas
• Bind Button for Easy Binding - No Plug Required

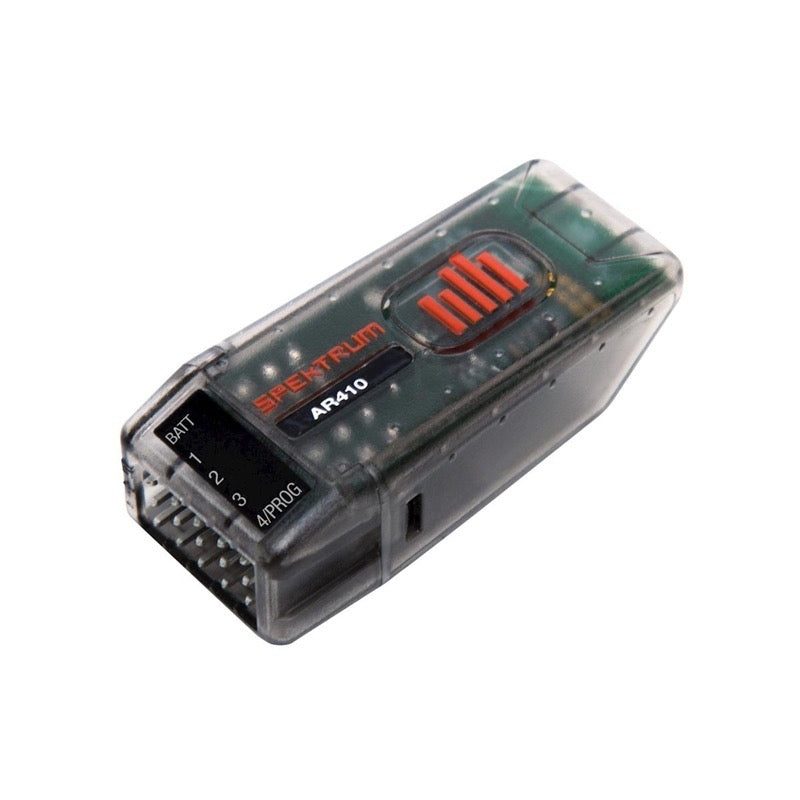

The Spektrum AR410 air receiver is a full-range, 4-channel sport receiver with DSMX/DSM2 compatibility and a compact footprint that’s streamlined to fit in a wide range of models. More than just a simple box that connects your servos, the AR410 features an internal antenna design that delivers a whole new world of installation ease that includes a higher-level of durability and convenience while maintaining superior full-range performance for your electric or engine powered aircraft.

In addition, the AR410 has been integrated with fly-by range telemetry that includes flight log and receiver battery pack voltage data. Access to telemetry is automatic when used with telemetry-capable Spektrum transmitters. There’s nothing to do in order to enjoy the peace-of-mind instantly knowing receiver battery voltage offers.

No more bind plugs! Instead, a large bind button is used to enter the bind mode. All combined Spektrum gives you more in a basic receiver, like the AR410, so that you can fly with the highest sense of confidence possible and have more fun.

Unlike old technology that requires an external antenna to achieve adequate reception, the new AR410 features an internal antenna design that offers superior full-range performance. In addition, installation is easier than ever, plus there’s no longer a risk of failure due to long-term wire exposure or abuse.

New technology eliminates the need for the old bind plug. With the AR410, a large top-located button makes binding more convenient than ever while two bind-sequence options make the process simpler by allowing you to bind while powering up or after receiver power is connected.

Built into the AR410 is telemetry that automatically delivers vital data to your Spektrum telemetry-capable transmitter. With fly-by range, you can retrieve flight log data such as any fades, frame losses or holds and see receiver voltage status in real-time.

Features

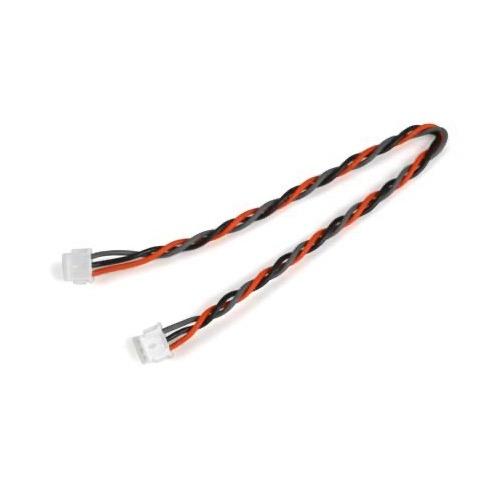

Spektrum Antenna Extension 6 inch for satellite Receivers

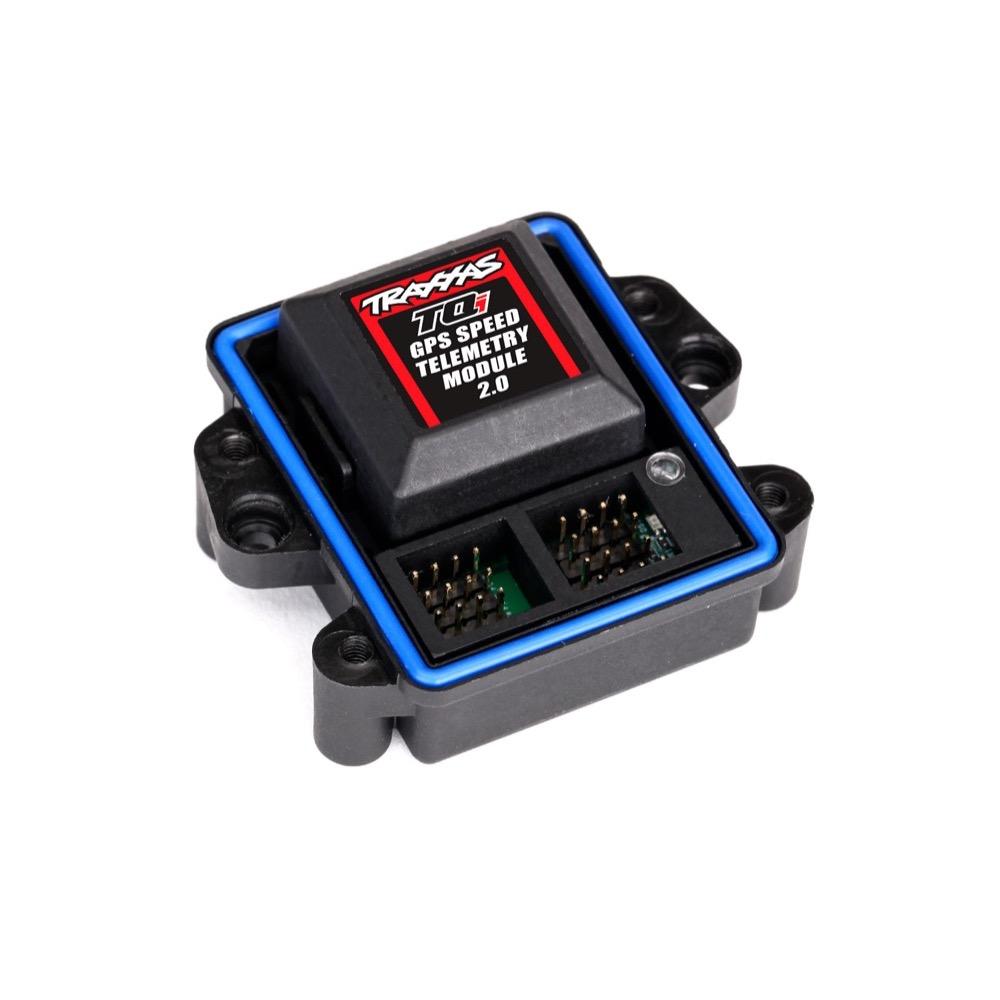

Seal kit, expander box (includes o-ring, seals, and silicone grease)

Refresh your Telemetry Expander Module with this seal kit. Includes new O-rings, seals, and silicone grease.

Accessory part for these models:

• 4-Tec® 2.0 AWD Chassis
• 4-Tec® 2.0 VXL AWD Chassis
• Bandit® VXL
• Chevrolet® Corvette® Stingray
• E-Revo® VXL Brushless
• Factory Five '33 Hot Rod Coupe
• Factory Five '35 Hot Rod Truck
• Ford® F-150 Raptor
• Ford® Fiesta® ST Rally
• Ford® GT
• Ford® Mustang GT
• Hoss® 4X4 VXL
• Jato®
• Maxx®
• Rustler® 4X4 VXL
• Rustler® 4X4
• Rustler® VXL
• Rustler®
• Slash 2WD Unassembled Kit
• Slash 4X4 Ultimate
• Slash 4X4 VXL
• Slash 4X4
• Slash VXL
• Slash
• Slayer® Pro 4X4
• Sledge™
• Stampede® 4X4 Unassembled Kit
• Stampede® 4X4 VXL
• Stampede® 4X4
• Stampede® VXL
• Summit
• T-Maxx®
• Toyota® GR Supra GT4®
• TRX-4® 1979 Chevrolet® Blazer
• TRX-4® 1979 Ford® Bronco
• TRX-4® 2021 Ford® Bronco
• TRX-4® Equipped with Traxx®
• TRX-4® Scale and Trail™ Crawler
• TRX-4® Sport Unassembled Kit
• TRX-4® Sport
• TRX-4® Unassembled Kit
• TRX-6® Mercedes-Benz® G 63® AMG 6X6
• TRX-6® Ultimate RC Hauler
• Unlimited Desert Racer®
• X-Maxx®
• XO-1®
