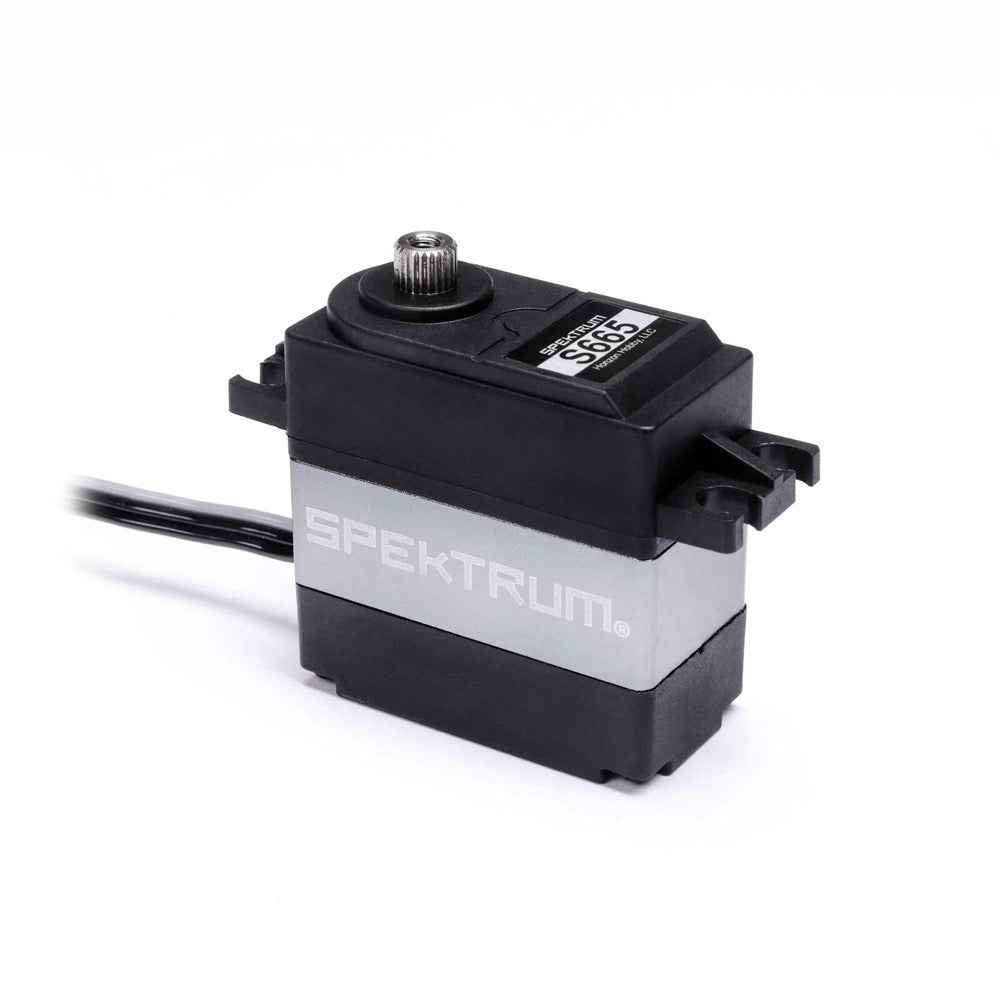

S665 Standard High Torque Steel Gear Servo, 25T

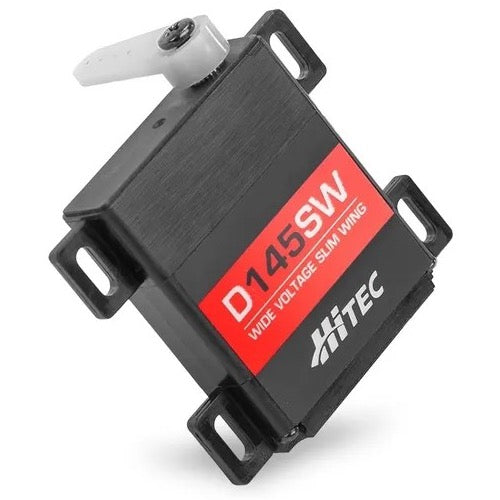

Hitec HS-D145SW 10mm Slim Wing 32 Bit Programmable & High Response Steel Gear servo

Features

• 10mm thickness to suit the thinnest airfoils
• 6.0 kg.cm of power @ 7.4V
• Programmable 32 Bit Wide Voltage
• High Resolution & High Response
• Smart Sense Technology
• Programmable
• Digital MOSFET Amplifier
• High positioning speed
• High positioning force
• High holding force
• Steel gears
• 2 ball bearings
• 25 tooth servo horn
• Wing servo mounting frame is included
• The long life is due to the uniquely designed steel transmission and the robust servo housing.
• The D145SW surface servo is ideally suited for thin surface profiles in glider models and an application as a motorgearbox combination for industrial applications.

Specs

• 4.8 V Torque: 3.9 kg.cm
• 4.8 V Speed: 0.21sec/60°
• 6.0 V Torque: 4.9 kg.cm
• 6.0 V Speed: 0.17sec/60°
• 7.4 V Torque: 6.0 kg.cm
• 7.4 V Speed: 0.14sec/60°
• Operation Voltage: DC 3.5~8.4V
• Dimensions: 30.0 x 10.0 x 37.0mm
• Weight: 24g

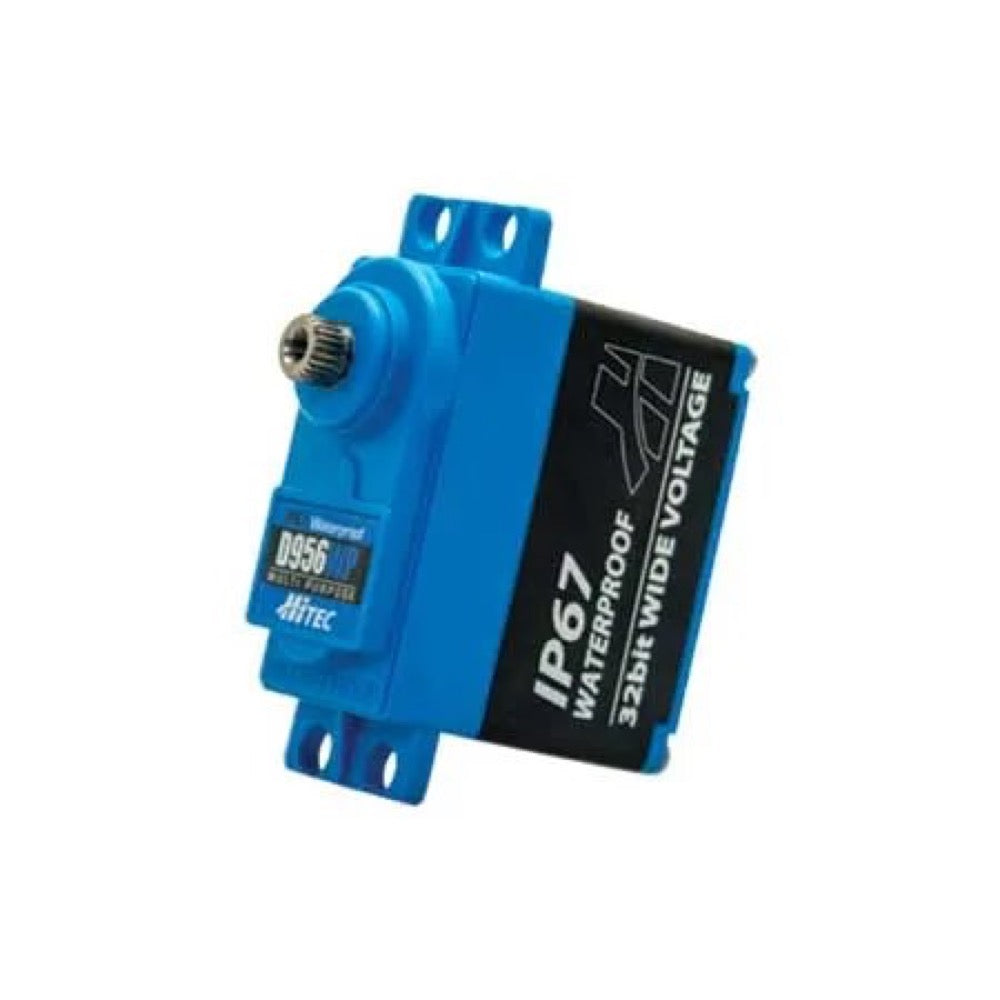

Hitec D956WP D Series Multi Purpose Waterproof Servo

Features

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminium Heat Sink Centre Case
• Water Resistant and Waterproof Proof Case

Specs

• Operating Voltage Range (Volts DC): 4.8V ~ 7.4V
• Speed (Second @ 60°): 0.19 ~ 0.12
• Maximum Torque Range oz. / in.: 251 ~ 405
• Maximum Torque Range kg. / cm.: 18.0 ~ 29.0
• Current Draw at Idle: 30 mA
• No Load Operating Current Draw: 500 mA
• Stall Current Draw: 5,200 mA
• Dead Band Width:" 1 µs
• Dimensions (Inches): 1.57 x 0.78 x 1.46
• Dimensions (Metric): 40.0 x 20.0 x 37.0
• Weight (Ounces): 2.4
• Weight (Gram): 68
• Circuit Type: 32bit Programable Digital
• Motor Type: Coreless Metal Brush
• Gear Material: MK 1st Gear & 3 Steel Alloy Gears
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): H25T
• Case Material: Plastic / Aluminum
• Dust / Water Resistance: IP67 Rating
• Connector Gauge (AWG) / Strand Count: 20 / 80
• Sport Plane: 30 - 40%
• Sailplane: 2 meters and up
• 3D Performance: 30 - 40%
• Scale: 30 - 40%
• On Road: 1/8th
• Monster Truck: 1/8th
• Buggies: 1/8th
• Truggies: 1/8th
• Short Course / Truck: 1/8th
• Crawlers: 1/8th
• Sail Boat: = >1M & Scale

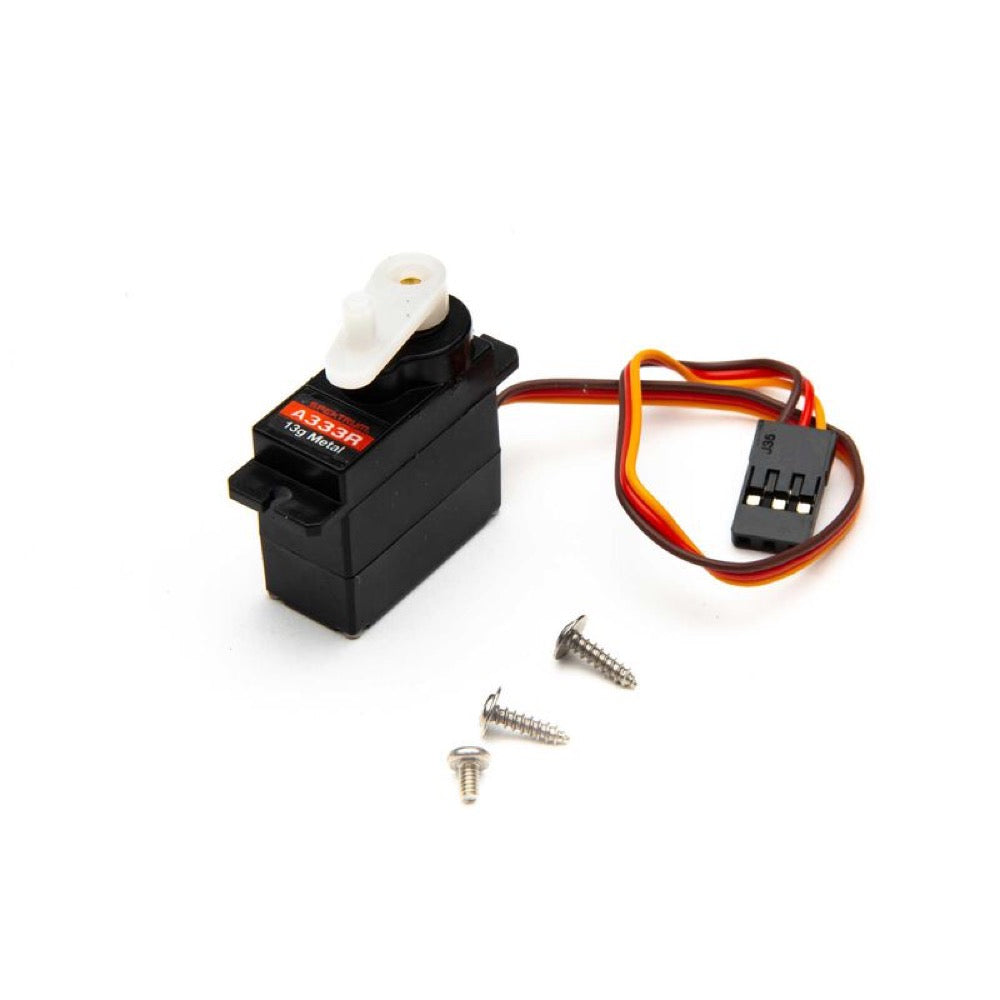

A333R Analog 13g Metal Gear Aircraft Servo, Reversed

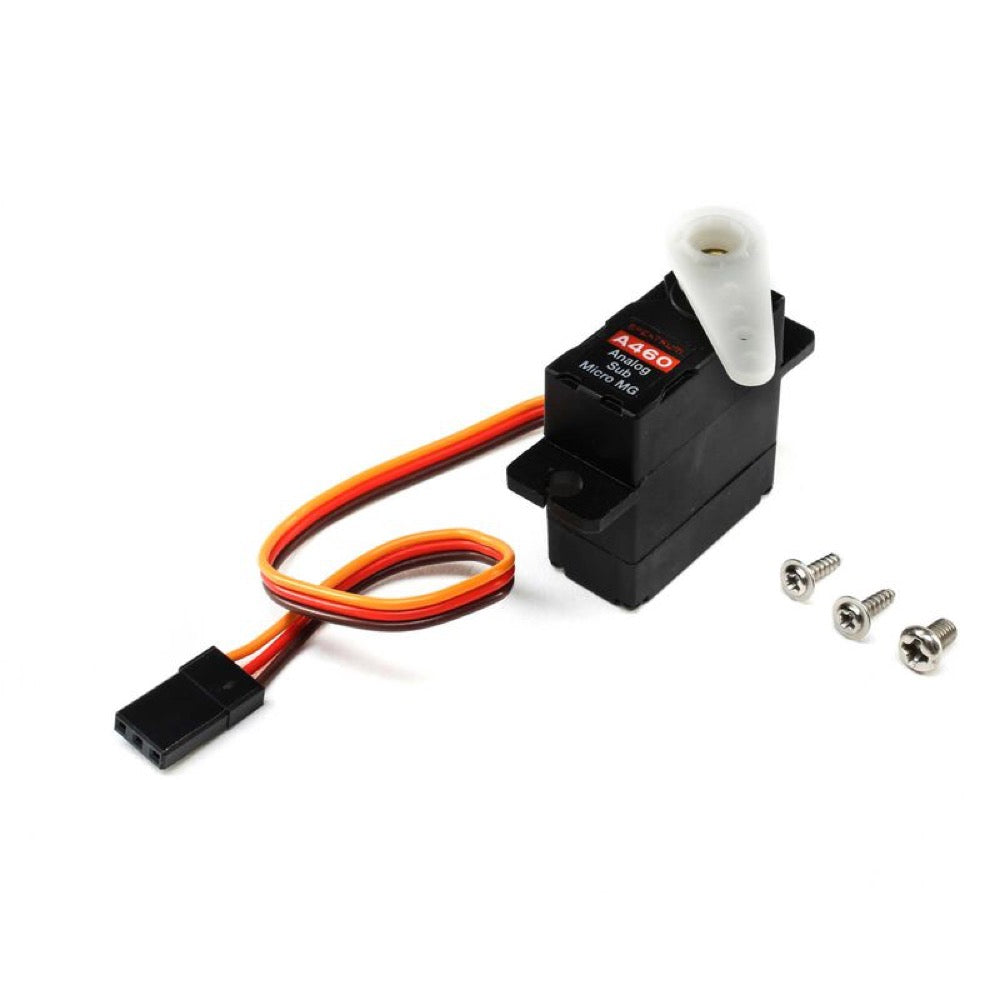

A460 Sub-Micro Analog 23g Metal Gear Aircraft Servo

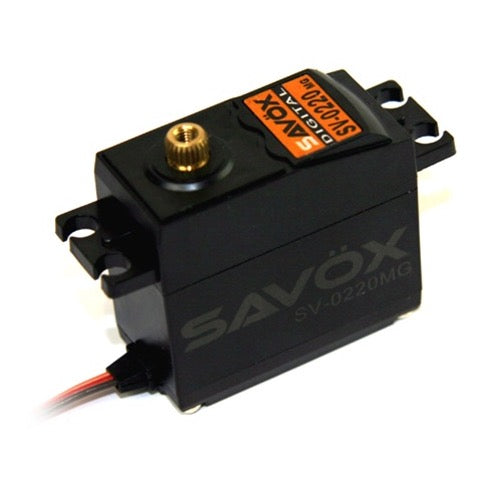

This is the Savox SV-0220MG High Voltage Digital Servo.

Features

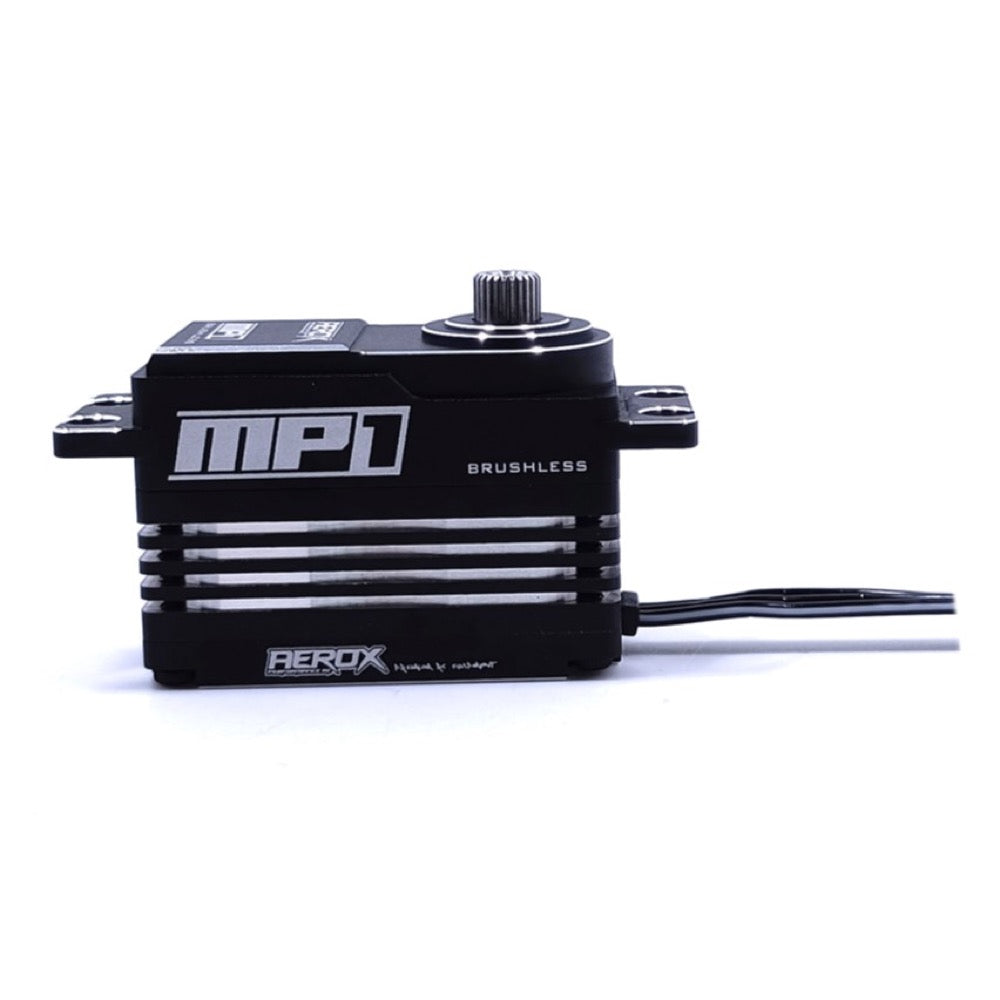

Introducing the new AEROX MP1 1/10th Brushless Servo.

This servo is for high level competition, boasting a full metal case, brushless motor, titanium and steel gears and is perfectly specified for speed and torque requirements for 1/10th Off Road Buggies.

Tested and approved by Schumacher engineers and team drivers to perform at the highest level!

Primarily designed as a mid size servo for 1/10th Off Road Cars, however the AEROX MP1 can be used in many vehicle types.

The MP1 has a 4 pole brushless motor giving higher performance, longer life, greater heat resistance and faster response.

Specifications

• Torque(6.0V): 20.0 kg-cm / (277.7 oz/in)

• Torque(7.4V): 26.0 kg-cm / (361.1 oz/in)

• Torque(8.4V): 30.0 kg-cm / (416.6 oz/in)

• Speed: 0.083 sec (6.0V)

• Speed: 0.067 sec (7.4V)

• Speed: 0.055 sec (8.4V)

• 25T Spline

• Operating Voltage: 6.0 ~ 8.4 DC Volts

• Weight: 63 g (2.22 oz)

• Bearing Type: Ball Bearing x 2

• Motor Type: Brushless Motor

• 25T Spline

• Gear Type: 7075+Steel

• Operating Temperature: -20℃~60℃

• Working frequency: 1520μs / 1666hz

• Size: 41.0 x 20.0 x 29.0 mm

Supports the following radio modes;

• SANWA : NOR / SHR / SSR / SUR / SXR

• Futaba : NOR / SR / UR

• Flysky Noble NB4 : NOR / SR / SFR

Spektrum SPMSA150C A150 Float Servo

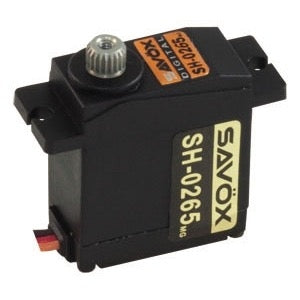

The Savox SH-0265MG metal-gear, digital, micro servo has a nice balance of torque and speed to fit many applications.

Features

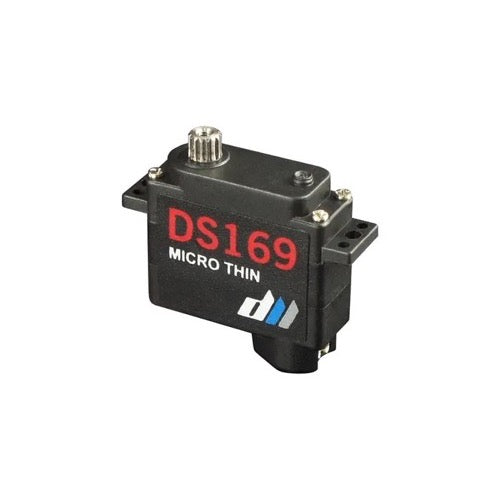

The Dualsky DS169 servo is HV, Micro Thin and features metal gears supported by 2 BB.

Features

• Dual ball-bearing
• Precision mould injection case
• Lightweight and low noise
• Designed for small to large size RC gliders, F5K, F5J, e-RES
