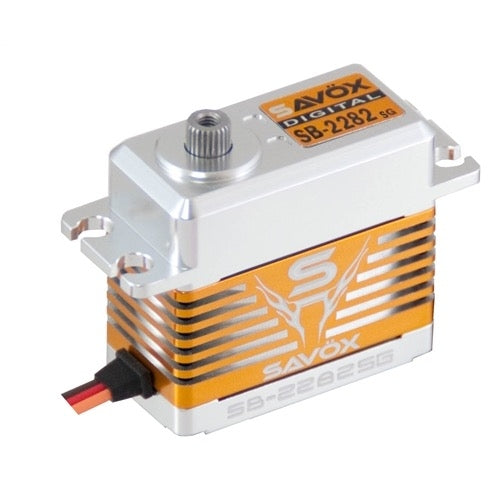

Savox SB2282SG FMJ Standard Servo High Torque 23kg/.075
92.00
$
The SB2282SG is a high speed servo running at .075sec transit @ 7.4V with a healthy torque rating of 319.4oz in. This servo is a great choice for your large class heli cyclic.
Features

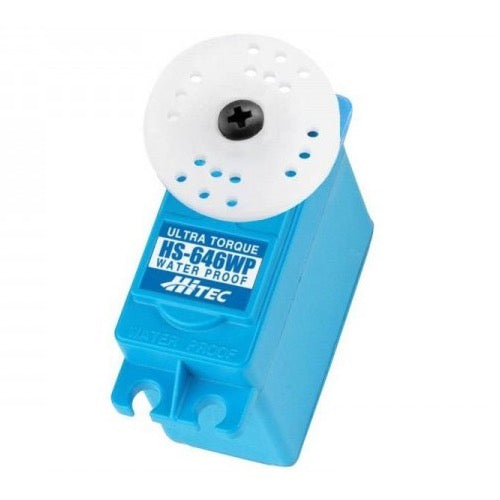

Hitec HRC32646S HS-646WP Ultra Torque HV Waterproof Servo MG Clearance
39.00
$
Our waterproof servos have what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, our analog waterproof servos have the industry’s first IP67* rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the HS-646WP will dependably keep your mind at ease.
Features
- Industry's First IP67Rated Waterproof Case
- * IP = International Protection Code | 6 = Dust Tight | 7 = Immersion up to 1M
- Strong ThreePole Ferrite Motor
- Metal Gear Train with MP First Gear
- Dual Ball BearingSupported Output Shaft
- 7.4v 2Cell LiPo Capability
- Programmable Circuitry
Specs
- Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
- Speed (Second @ 60°): 0.20 ~ 0.17
- Maximum Torque Range oz. / in.: 133 ~ 161
- Maximum Torque Range kg. / cm.: 9.6 ~ 11.6
- Current Draw at Idle: 8 mA
- No Load Operating Current Draw: 600 mA
- Stall Current Draw: 2,200 mA
- Dead Band Width: 4 µs
- Dimensions (Metric): 41.8 x 21.0 x 40.0
- Weight (Gram): 60
- Circuit Type: HT7003 WP Analog
- Motor Type: 3 Pole Metal Brush Ferrite
- Gear Material: Metal
- Bearing Type: Dual Ball Bearing
- Output Shaft (type / Ømm): Standard 24
- Case Material: Plastic
- Dust / Water Resistance: IP 67
- Connector Gauge (AWG) / Strand Count: 22 / 60

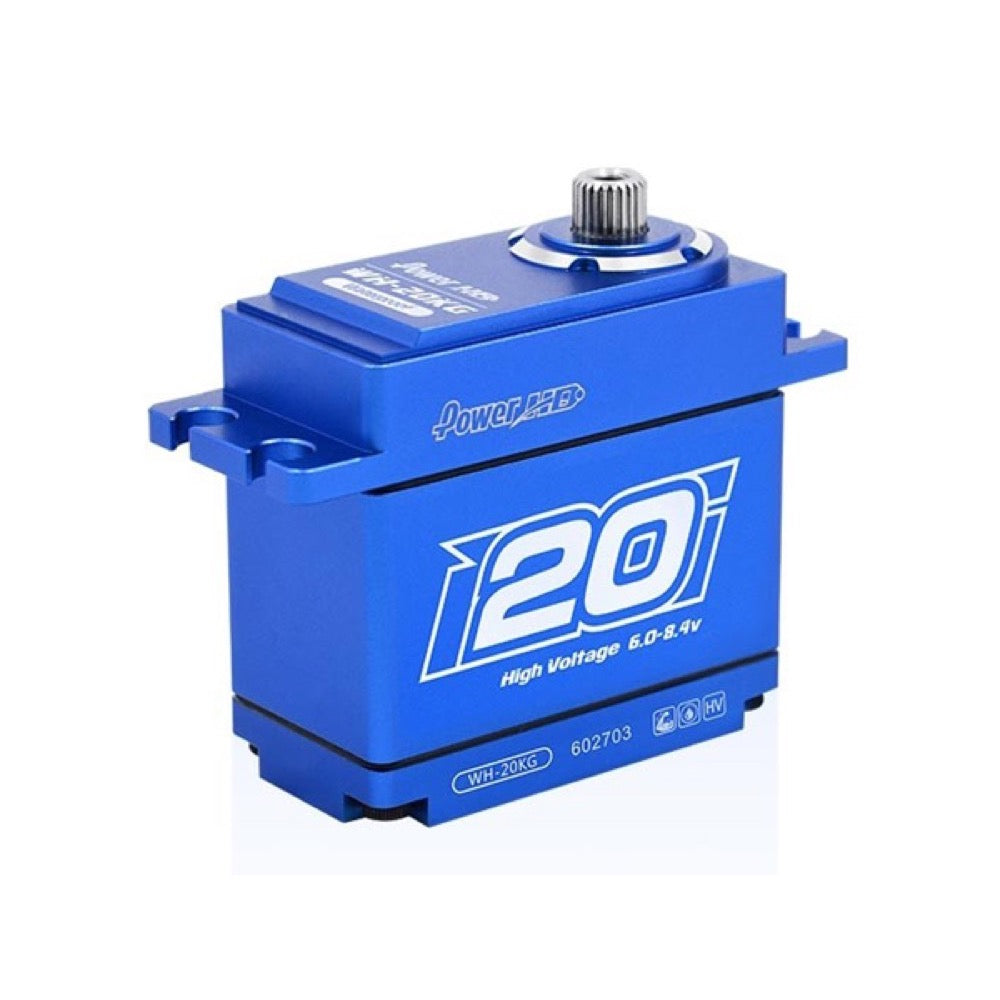

Power HD WH-20KG Standard Coreless Motor Steel & Aluminium Gear Digital Waterproof Servo
52.00
$
Specifications
- Torque(6.0V): 15.0 kg-cm ( 208.3 oz/in)
- Torque(7.4V): 18.0 kg-cm ( 250.0 oz/in)
- Torque(8.4V): 20.0 kg-cm ( 277.7 oz/in)
- Speed: 0.11 sec (6.0V)│0.09 sec (7.4V)│0.08 sec (8.4V)
- Operating Voltage：6.0 ~ 8.4 DC Volts
- Weight: 82.0 g (2.89 oz)
- Bearing Type：Ball Bearing x 2
- Motor Type：Coreless Motor
- Gear Type：Titanium & Steel
- Operating Temperature：-20℃~60℃
- Working frequence：1520μs / 333hz
- Size：40.7 x 20.5 x 38.5 mm ( 1.60 x 0.81 x 1.52 in)

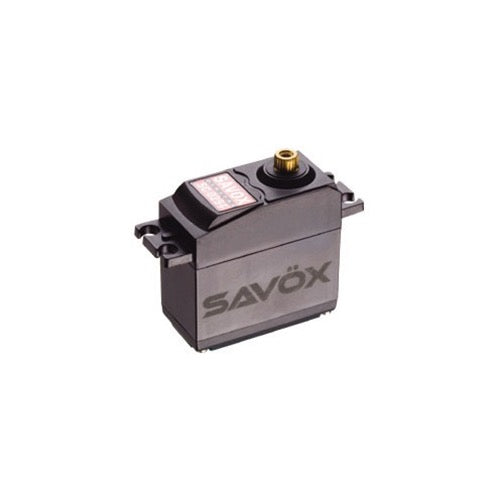

Savox SC0254MG High Torque Standard Digital Servo
17.00
$
This is the Savox SC-0254MG High Torque Standard Size Digital Servo.
