Coming from Power HD is the new design waterproof HV servo LW-30MG. 30kg/cm, with stable performance, high torque, stronger locking force double, less gear slop, double ball bearings, and 25T metal spline, it is ideal for RC crawler,boat, aircraft, etc.

Features

• Full CNC Machined Aluminium body

• Power HD Waterproof design

• compatible with 4.8-7.2v voltage

• Anodised in Blue

• Genuine Power HD product

Specifications

• Torque(4.8V): 18.0 kg-cm (250.0 oz/in)

• Torque(6.0V): 23.5 kg-cm (326.4 oz/in)

• Torque(7.2V): 30.0 kg-cm (416.6 oz/in)

• Speed: 0.18 sec (4.8V) ? 0.16 sec (6.0V)? 0.14 sec (7.2V)

• Operating Voltage?4.8 ~ 7.2 DC Volts

• Weight: 62g (2.19 oz)

• Bearing Type?Ball Bearing x 2

• Motor Type?DC Motor

• Gear Type?Copper & Aluminium

• Operating Temperature?-20?~60?

• Working frequency?1520?s / 333hz

• Size?40.5 x 20.5 x 39.3 mm ( 1.59 x 0.81 x 1.55")

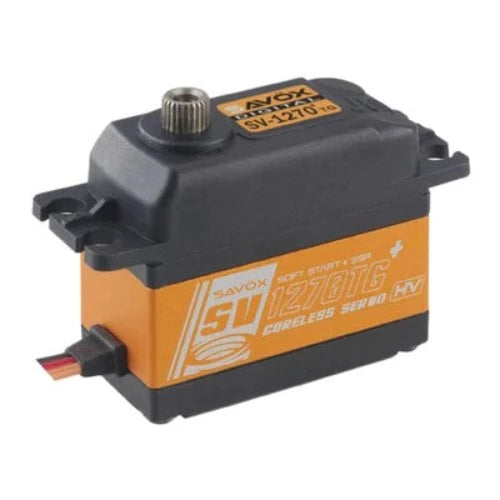

The Savox SV-1270TG Plus Digital High Voltage "Monster Torque" Titanium Gear Servo is built to handle extreme requirements, with a great combination of speed and high torque. It's a fantastic choice for 1/8 applications.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features

• Super strong, precision made titanium gears provide durability that will survive heavy use.

• Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications

• The servo that racers desire.

Specifications

• Torque @ 7.4v - 40.0kg/555.5oz-in

• Torque @ 8.4v - 45.0kg/624.9oz-in

• Speed @ 7.4v - 0.11 sec/60 deg

• Speed @ 8.4v - 0.10 sec/60 deg

Technical Details

• Operating Temperature: 14° - 122°F (-10° - 50°C)

• Running Current (no load): 120mA @6.0V, 150mA @7.4V

• Stall Current (at locked): 5500mA @6.0 V, 6800mA @7.4V

• Idle Current: 5mA @4.8V, 5mA @6.0V

• Wire Length: 200 ± 5mm

• Output Gear Spline: 25 Tooth

• Bearings: 2BB

• Operating Travel: 100° (1000 → 2000 µ second)

• Neutral Position: 1500 µ second

• Pulse Width Range: 800 → 2200 µ second

• Maximum Travel: Appx 130° (900 → 2100 µ second)

• Refresh Rate: 333 Hz

• Motor Type: Coreless

Spare Parts

• SGSV1270TG - Servo Gear Set with Bearings, for SV1270TG

• CSV1270TG - Top & Bottom Servo Case with Screws, for SV1270TG

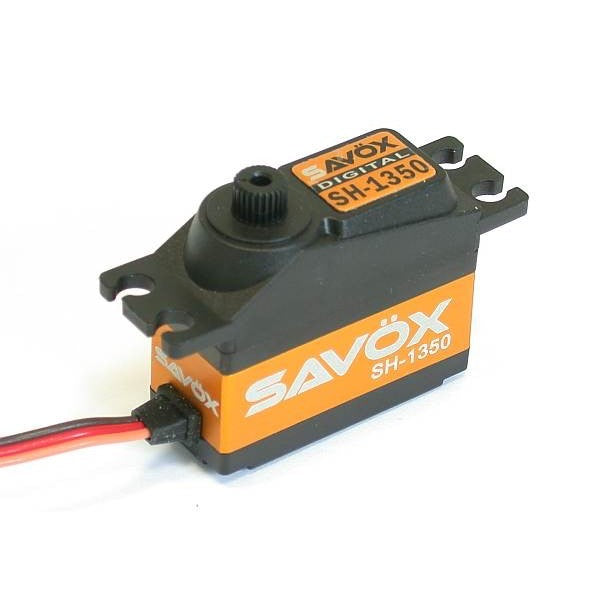

This is the Savox SH-1350 Super Torque Mini Digital Servo.

Features

This is the Savox SC-0255MG Micro Metal Gear Digital Servo.

Features

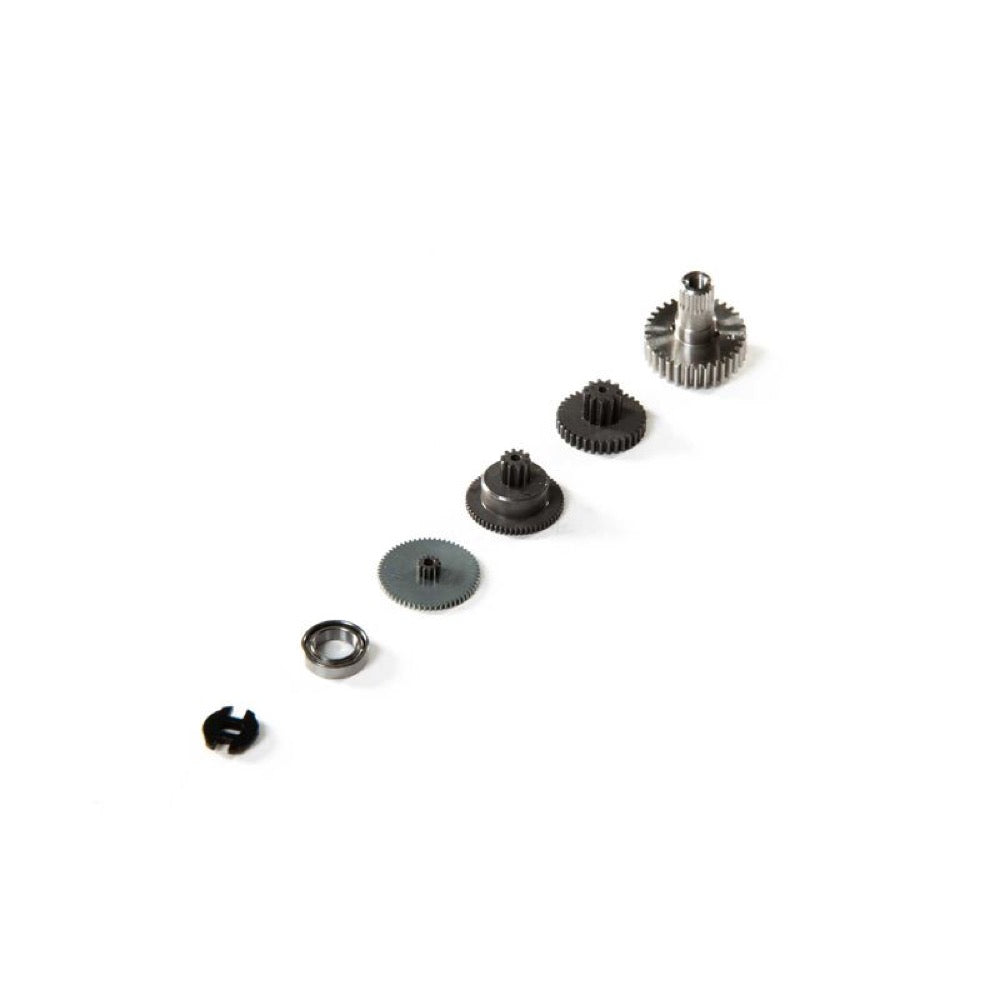

Gear Set A6310

Specifications

• Part Type: Gears

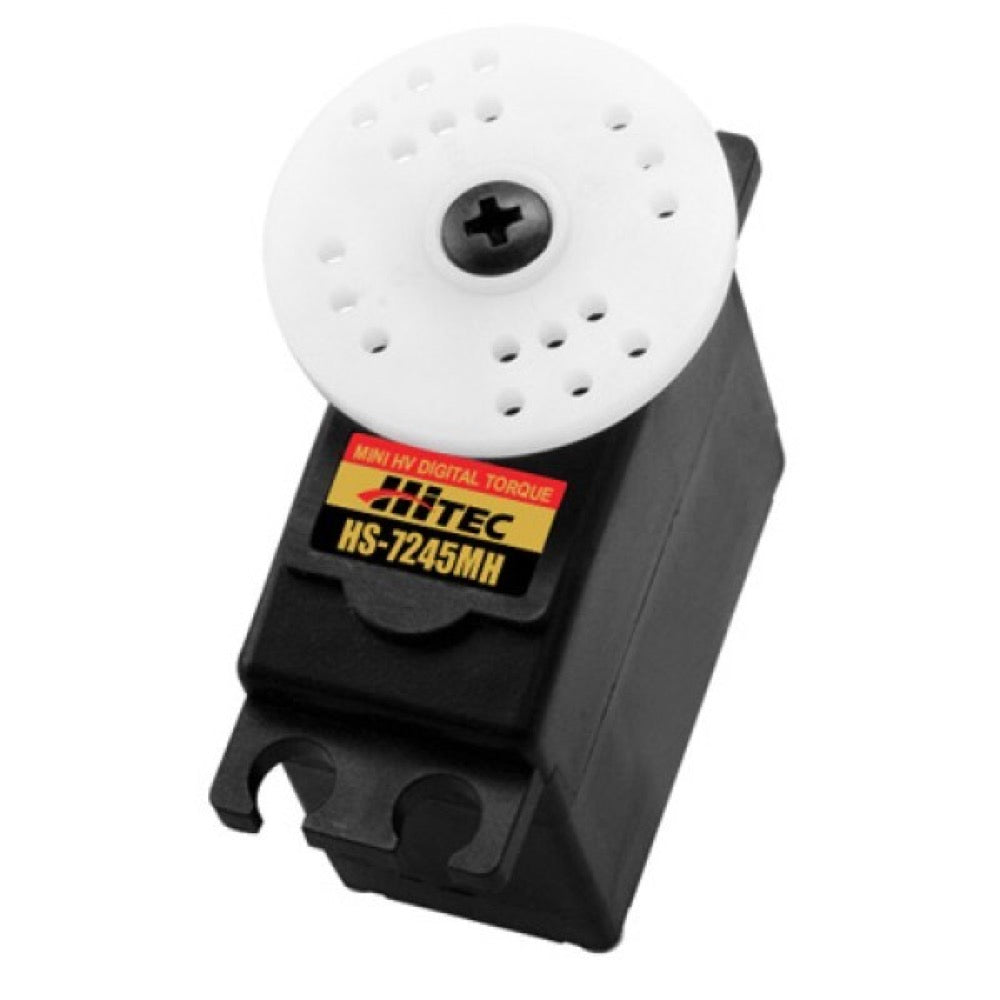

Hitec HS-7245MH High Voltage Digital Mighty Mini Servo. Coreless Motor.G2 C - (HTHS-7245MH)

Specs

• Application: .40 to .60-sized glow and electric planes; 500-550 electric helis; 1/12 scale on-road and 1/18 scale rock crawlers
• Torque: 72 oz-in (5.2 kg-cm) @ 6.0V; 89 oz-in (6.4 kg-cm) @ 7.4V
• Speed: 0.13 sec/60° @ 6.0V; 0.11 sec/60° @ 7.4V
• Length: 1.28 in (32.4mm)
• Width: 0.66 in (16.8mm)
• Height: 1.29 in (32.8mm)
• Weight: 1.20 oz (34.0 g)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Motor Type: Coreless
• Connector Type: Universal
• Gear Type: Metal
• Voltage: 6.0V-7.4V

This Servo is a standard size metal gear servo that can be used as a replacement on vehicles requiring at least 7kg-cm (97oz-in) of torque with a 25T output spline.

Specification

• Product Height: 1.55" (39 mm)
• Product Length: 1.58" (40 mm)
• Product Weight: 0.13 lb
• Product Width: 0.79" (20 mm)
• Servo Operating Voltage: 6.0 - 7.4V (HV)
• Servo Type: Digital
• Spline Count: 25 - Tooth
• Torque: 88 oz/in (6.37 kg/cm) @ 6.0V, 103 oz/in (7.42 kg/cm) @ 7.2V

Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, blindingly fast performance more efficiently than servos with conventional motors. Heavy-duty servo lead-wire includes the convenience of a quick-release cable connection. The all-aluminum case provides the ultimate solution in durability and heat dissipation. Precision metal gears satisfy even the most critical heli pilot who wants hassle-free control.

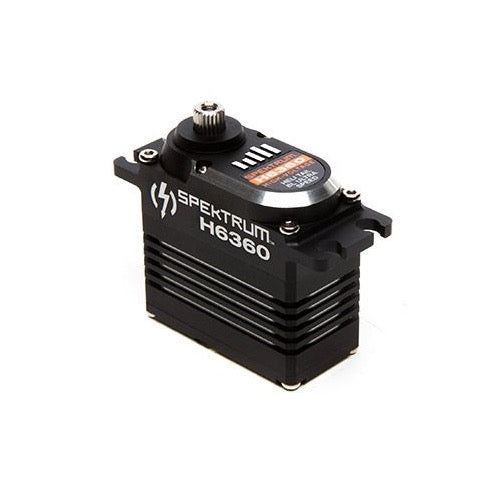

The Spektrum H6360 tail servo uses this solid foundation, to achieve blinding transit speeds of .04 sec with an outstanding balance of durability and value, in addition to the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding tail-rotor control choice for of 550- to 700-class electric and nitro helis.

HITEC HS-D955TW Ultra Response, Wide Voltage, Ultra Torque, Splash Proof, Servo with Titanium Alloy gears.

Applications

• Aircraft 20~120 Class
• All EP 600~700 & GP 30~90 Class Helicopters
• 1/10~1/4 Scale Car Steering & Throttle
• Nitro & Gasoline Boats
• 32bit MCU/12bit ADC

Hitec's new 32bit ADC allow the best ever response in the hobby industry. You can also udtilize Hitec's PC interface to customize your D-series servos for maximum performance (EPA, Resolution set, Fail safe, Soft Start), in a multitude of applications.

Wide Voltage

Hitec's First Wide Voltage capability supports all types of receiver batteries, from 4.8 to 7.4 volts.

Features

• Operation Voltage: DC 3.5~8.4V
• Wide Voltage, Ultra Torque Digital Servo
• Programmable Digital Amplifier with MOSFET Drive
• Durable Titanium Alloy Gears with Dual Ball Bearing
• Ultra Hardness Gear Shaft with 3 Axial Metal Bushing
• Heat Sink for Motor
• Water & Dust Resistance (Splash Proof)
• H25T 25 tooth spline horn Gear
• 3mm Horn Screw (' ' & HEX Socket Screw Included)

Specs

• 4.8V Torque: 18.0kg.cm
• 4.8V Speed: 0.19 sec/60º
• 6.0V Torque: 24.0kg.cm
• 6.0V Speed: 0.15sec/60º
• 7.4V Torque: 29.0kg.cm
• 7.4V Speed: 0.12sec/60º
• Dimensions: 40 x 20 x 37 mm
• Weight: 66g
