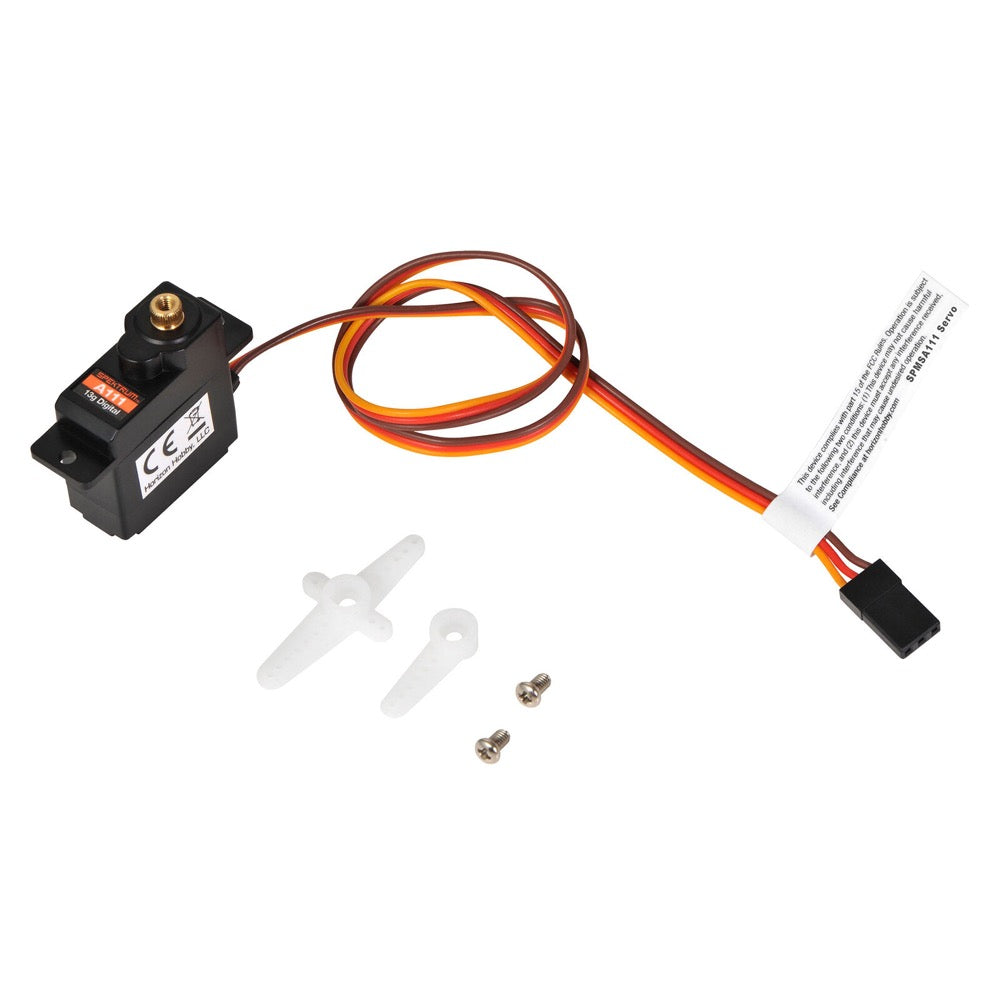

This is a 13g metal-geared digital servo with a single-sided arm, double arm, and two servo arm screws. It has a lead length of 330mm. Used on rudder and elevator.

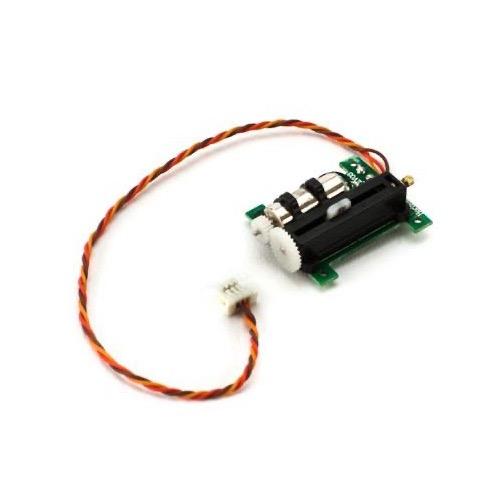

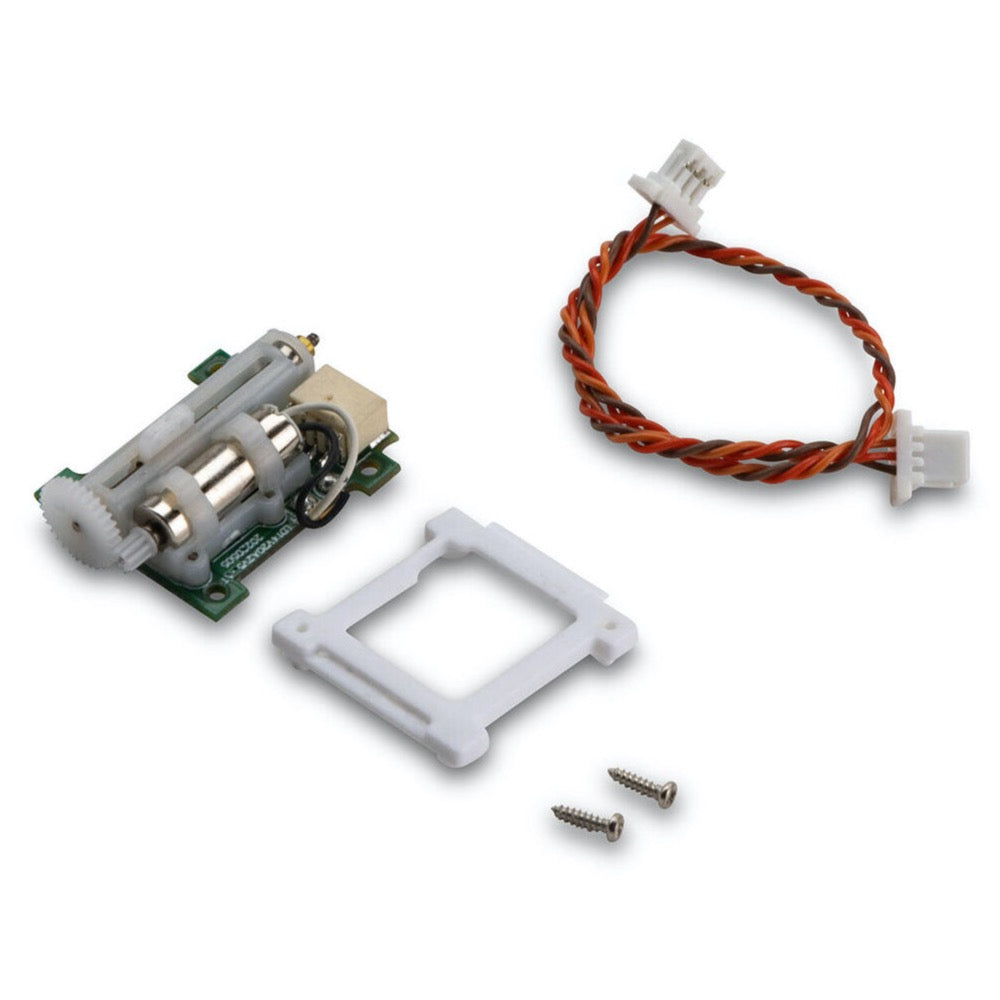

A201 2.3g Long-Throw Linear Servo

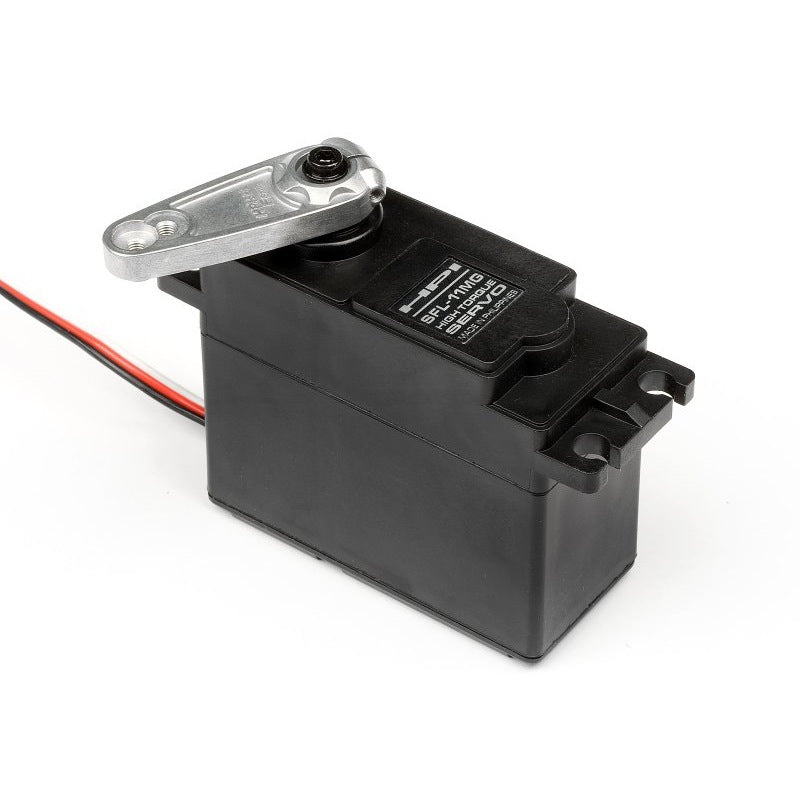

Dramatically increase the strength of your steering with the SFL-11MG servo, which is fitted with metal gears for extra power!

This is a 1/5th scale large-size servo with a surprising amount of power available: nearly 25kg-cm at 6 volts, making it ideal for single-servo control of the Baja buggy and truck front wheels!

Note: this servo requires a 25-tooth servo horn/arm, which may be different than the servo you are replacing in your HPI kit.

NOTE: NOT WATERPROOF! Before driving in wet conditions, make sure that all electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

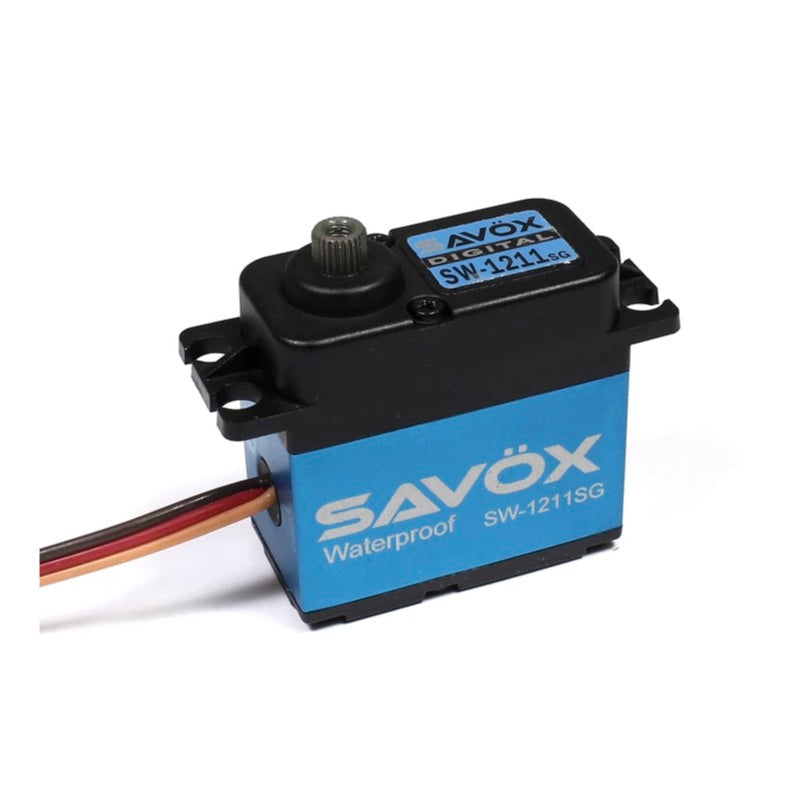

The SW1211SG is the premier waterproof digital servo in the Savox Lineup. This coreless servo has 208.3 oz-in of torque and a speed of .10 at 6.0V. It combines leading edge technology with super high 12-bit (4096) resolution and steel gears for one versatile and waterproof servo! This is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.

Features

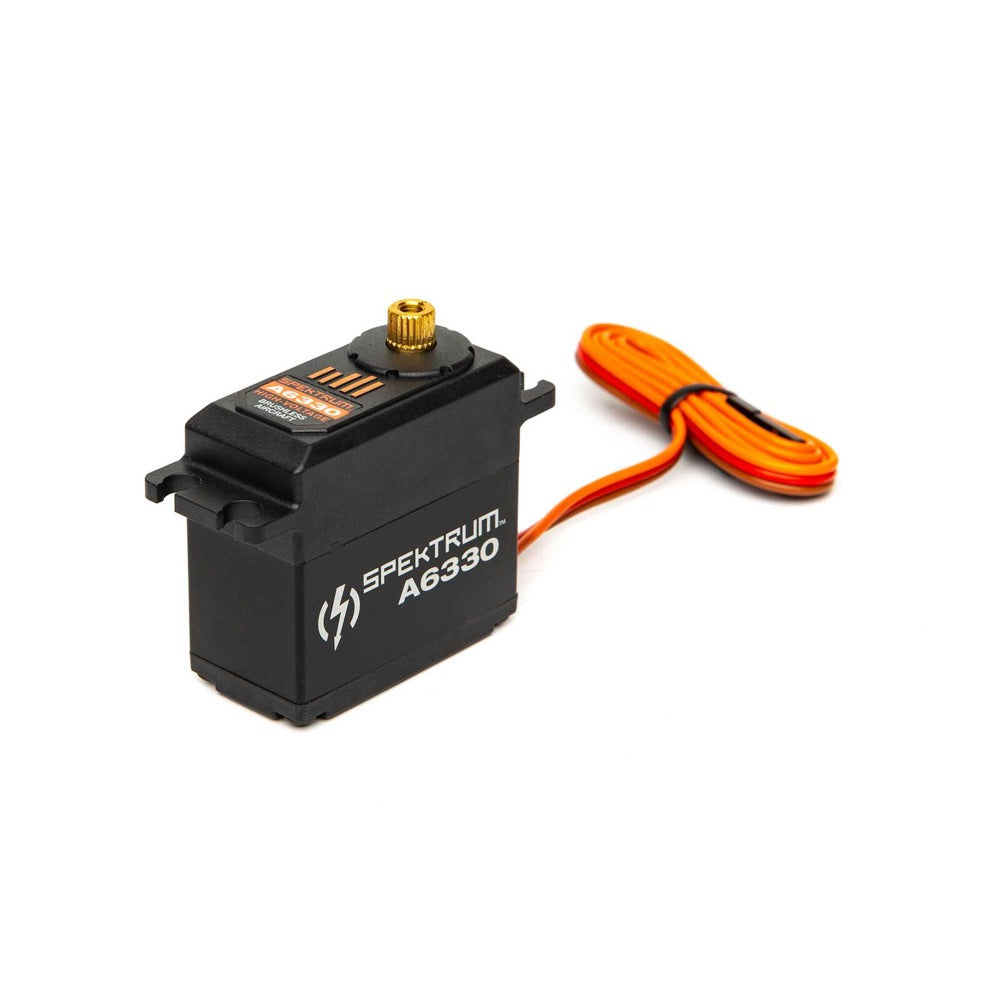

The Spektrum A6330 high-torque, high-speed brushless servo delivers amazing performance for a wide range of vehicles and aircraft.

The Spektrum A6330 high-torque, high-speed brushless servo delivers amazing performance for a wide range of vehicles and aircraft. High-Voltage (HV) capable, the A6330 can produce an impressive 248 oz-in of torque (17.8kg) and a remarkable 0.10 sec/60 degree transit speed with 8.4V input. The Low-wear, all metal gear drive train is powered by a long-lasting brushless motor and supported with dual ball bearings for smooth operation. A strong metal case adds durability and enhanced heat dissipation.

Other features include: integrated servo failsafe, over-current and over-temperature protection, long 18 inch (457mm) lead for easy installation, initialization start tone to indicate servo readiness, and soft start to prevent damage during unintended initializations. Like all Spektrum 6300 Series servos, the A6330 delivers reliability, consistency and performance that are second to none.

*Torque and Transit @ 8.4V

Features

• Brushless motor provides long lasting durability and impressive power and speed
• High Voltage (HV) capable (6.0-8.4v input range)
• Outstanding torque and speed in a standard servo size (248 oz-in and .10 sec/60° @8.4v)
• Durable and long lasting brushless motor
• Low wear and tightly meshed all metal gear train
• Dual bearing supported drive train helps maximize smooth operation
• Aluminum center servo case helps keep operating temperatures low
• Soft start helps prevent component and airframe damage during un-intentional initializations
• Over Current and Temperature protection
• Helpful initialization start tone lets pilot know when the servo is ready
• Integrated servo failsafe holds last known position if signal is lost and power is maintained
• Frequency : 50-400hz

Specification

• Application: Airplane
• Bearing: Dual Ball Bearing
• Bushing Or Bearing: Bearing
• Connector Type: Universal
• Gear Type: Metal
• Input Voltage: 6 - 8.4V
• Maximum Servo Speed:
  0.13 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V
• Maximum Servo Torque:
  126.6 oz-in (9.11 kg-cm) @ 6.0V; 178 oz-in (12.82 kg-cm) @ 7.4V; 248 oz-in (17.86 kg-cm) @ 8.4V
• Motor Type: Brushless
• Product Application: Air
• Product Height: 1.56" (40 mm)
• Product Length: 1.58" (40 mm)
• Product Weight: 2.25oz (71g)
• Product Width: 0.79" (20 mm)
• Programmable: No
• Rotation Range: 120 degree
• Servo Operating Voltage: 6.0 - 8.4V (HV)
• Servo Size Category: Standard
• Servo Type: Digital
• Spline Count: 23 Teeth
• Water-Resistant: No
• Wire Gauge: 22 AWG

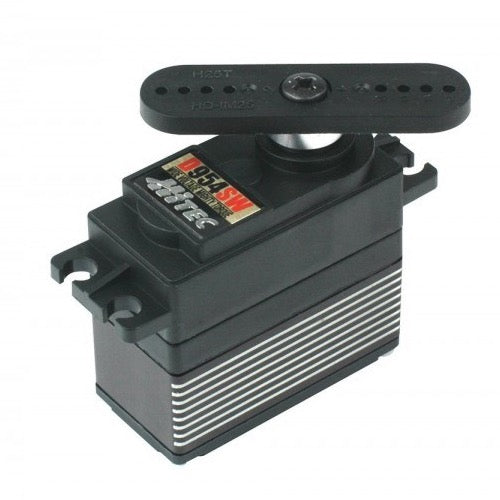

The new D954SW servo from HITEC uses coreless motor and 7.4V highvalue. The 32bit MCU and 12bit ADC applied to high-end servo ensure smooth, accurate moderation and neutrality. In addition, the HFP-30 product has been programmed for optimal use in various environments. Wide (4.8 ~ 8.4) voltage function is available for various battery types, ensuring excellent servo operation characteristics even with voltage variations. The 3mm servo horn screw and 25T spline standard, which are standard on standard servo, are designed to be compatible with various servo accessories.

Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Features

• High Resolution 32bit Digital Circuitry w/ 12bit ADC
• 1M Cycle, Long Life Potentiometers
• Wide Operating Voltage (4.8 ~ 7.4V)
• IP65 Rated Cases
• 25 Tooth Output Shaft
• Customization and Modification Options Available

Specs

• Operating Voltage Range (volts DC): 4.8V ~ 7.4V
• No Load Speed (second @ 60°): 0.19 ~ 0.12
• No Load Speed (RPM): 53 ~ 83
• No Load Speed (deg. per sec.): 316° ~ 500°
• Maximum Torque Range (oz. / in.): 251 ~ 405
• Maximum Torque Range (kg. / cm.): 18.0 ~ 29.0
• Maximum Torque Range (Ncm.): 176.5 ~ 284.4
• Current Draw at Idle (mAh): 30
• No Load Operating Current Draw (mAh): 500
• Stall Current Draw (mAh): 5200
• Dimensions (millimeters): 40.0 x 20.0 x 37.0
• Weight (grams): 68
• Motor Type: Coreless
• Rated Motor Lifecycle: 25,000 Cycles
• Position Sensor: Mech Pot
• Position Sensor Rated Lifecycle: 1 Million
• Gear Material: MK 1st Gear & 3 Steel Alloy Gears
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): 25 / 6
• Case Material: Plastic / Aluminum
• Dust / Water Resistance: Dust / Splash
