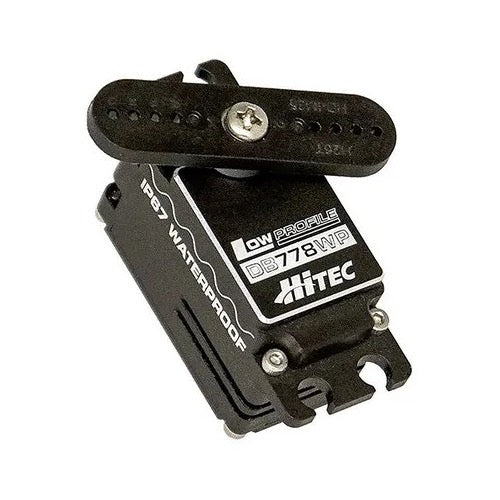

Hitec is excited to introduce their latest DB-Series brushless servo, the high-performance, low profile DB778WP. Manufactured with “hitecnology” industrial servo innovation, the DB778WP’s design and premium-quality construction was built for demanding commercial applications, yet its superior torque also makes it the perfect hobby servo for 1/10th 2WD & 4WD off-road buggies and touring cars.

Features

• Voltage Range is 3.7V - 8.4V
• Ultra-efficient brushless motor
• Hardened steel gears
• All aluminium case
• IP-67 waterproof rated
• High response, high resolution circuitry
• 32-Bit MCU Technology / 4096 Resolution
• Smart sense technology for servo analytics
• Full programmability with DPC11 or HFP-30 (sold separately)
• H25T Industry standard output spline

Specs

• Application: Surface Cars & Trucks
• Bushing Or Bearing: Bearing
• Connector Type: Universal
• Gear Type: Metal
• Input Voltage: 3.7v - 8.4v
• Speed (Second @60°): 0.08 @ 8.4V
• Max Servo Torque: 200-349 oz-in
• Overload Protection: Yes
• Product Height: 1.04" (26 mm)
• Product Length: 1.61" (41 mm)
• Product Weight: 2.4 oz (68 g)
• Product Width: 0.82" (21 mm)
• Programmable: Yes
• Resolution: 4096
• Rotation Range: 180 Degree
• Servo Operating Voltage: 4.8 - 8.4V (HV)
• Servo Size Category: Low Profile
• Servo Type: Digital
• Spline Count: 25 - Tooth
• Torque: 283.56 oz/in @ 8.4v
• Water-Resistant: Yes

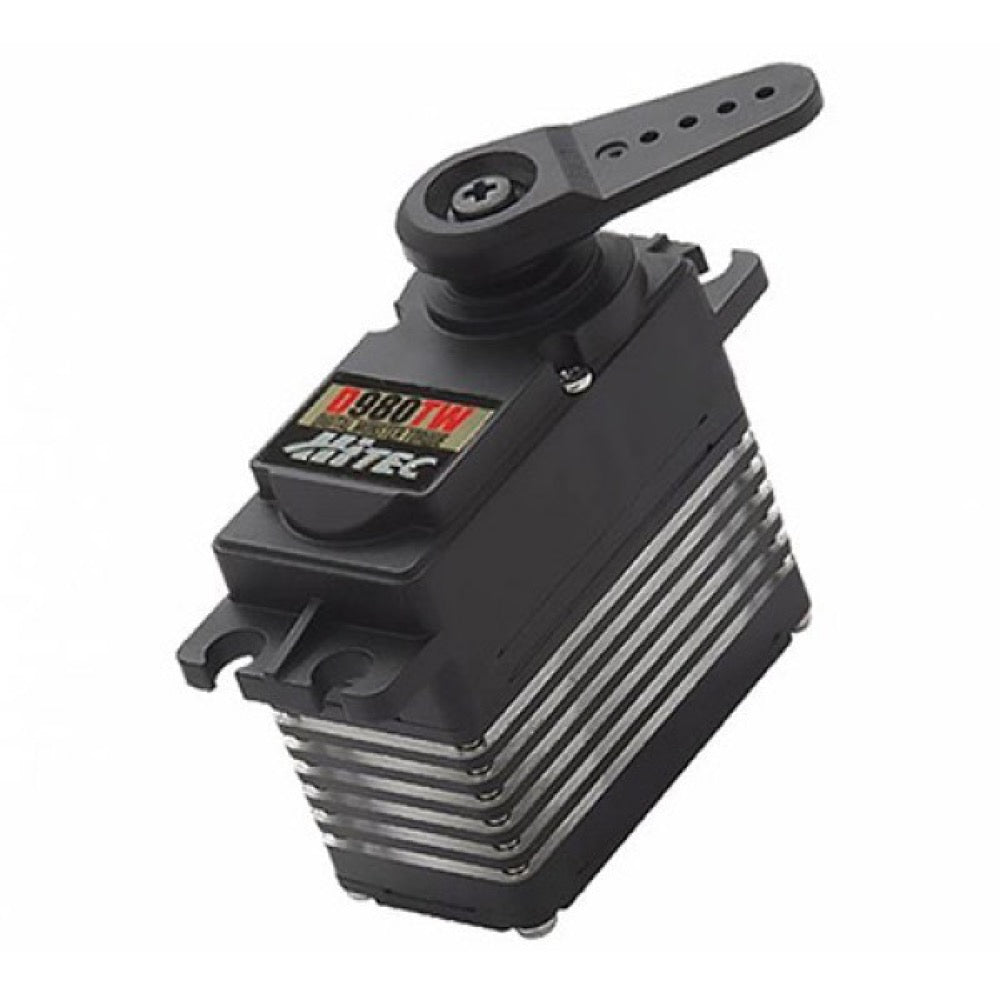

Hitec HS-D980TW Monster Torque. Ultra Response. Wide Voltage (4.8 -7.4v) Ti - (HTHS-D980TW)

Specs

• Torque: 361 oz-ini @ 4.8v, 500 oz-in @ 6.0v, 611 oz-in @ 7.4v
• Speed: 0.28 @ 4.8v, 0.21 @ 6.0v, 0.14 @ 7.4v
• Dimensions (WxLxH): 1.72 x 0.88 x 1.57 in (43.7 x 22.4 x 39.9 mm)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Gear Type: Metal
• Gear Material: Titanium

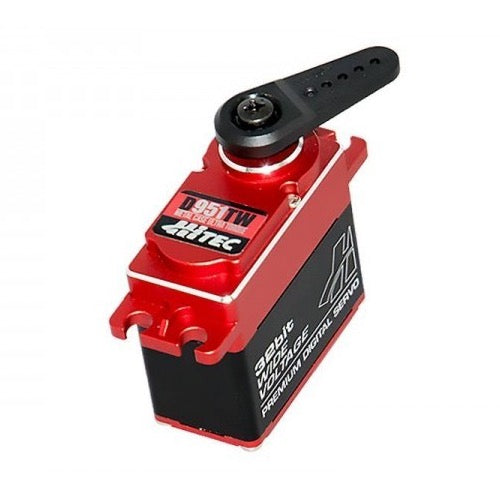

Hitec’s D-Series servo line sets new standards for advanced, programmable technology. Powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science, these powerhouses dominate the servo arena. Their potent combination of wide voltage capabilities, high resolution, rapid response, and patented Smart Sense technology brings maximum performance to all radio control applications. The members of this particular D-Series group are all designed with our extremely durable titanium gears; and the D941TW, D946TW and D951TW trio boast full metal cases. When you demand ultimate reliability and unprecedented advanced engineering, look to the power of the D-Series servos!

Features

• High Response Circuitry
• Wide Voltage Capabilities
• 32Bit MCU Technology
• Full Programmability
• Smart Sense Technology for Servo Analytics
• 25Tooth Output Spline

Specs

• Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V
• Speed (Second @ 60°): 0.23 ~ 0.17 ~ 0.14
• Maximum Torque Range oz. / in.: 292 ~ 403 ~ 486
• Maximum Torque Range kg. / cm.: 21.0 ~ 29.0 ~ 35.0
• Current Draw at Idle: 30 mA
• No Load Operating Current Draw: 500 mA
• Stall Current Draw: 6,200 mA
• Dead Band Width: 1 µs
• Dimensions (Inches): 1.57 x 0.79 x 1.50
• Dimensions (Metric): 40.0 x 20.0 x 38.0
• Weight (Ounces): 2.4
• Weight (Gram): 68
• Circuit Type: 32bit Programable Digital
• Motor Type: Coreless Metal Brush
• Gear Material: Titanium
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): H25T
• Case Material: Aluminum
• Dust / Water Resistance: Splash Proof
• Connector Gauge (AWG) / Strand Count: 20 / 80

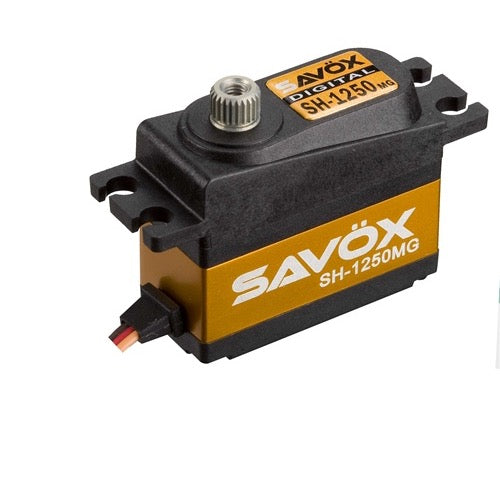

This is the Savox SH-1250MG Super Torque Metal Gear Micro Digital Servo-savsh1250mg.

Features

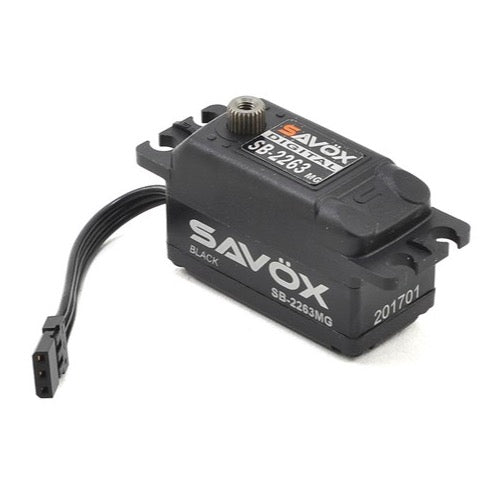

Savox's SB-2263MG Black Edition "High Speed" Low Profile Brushless Steel Gear Servo features a sleek black aluminum center case with laser etched details, as well as a shorter heavy duty wire. These servos combine leading edge technology with super high 12 bit (4096) resolution. These servos also feature a brushless motor/controller unit, and use a 'bullet proof' all steel gear set for unmatched strength that makes them ideal for 1/10 touring car and off road applications that require a high speed servo.

Features

*NOTE: Certain combinations of receiver and ESC have been found to cause "Brown Out" issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.

This is a replacement Traxxas Sub-Micro Waterproof Servo

Features

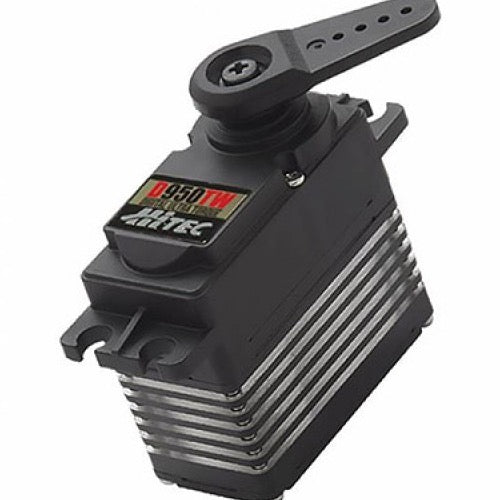

Hitec HS-D950TW Ultra Torque. Ultra Response. Wide Voltage (4.8 -7.4v) Tita - (HTHS-D950TW)

Specs

• Type: Digital
• Torque: 292 oz-in @ 4.8v, 403 oz-in @ 6.0v, 486 oz-in @ 7.4v
• Speed: 0.23 @ 4.8v, 0.17 @ 6.0v, 0.14 @ 7.4v
• Dimensions (WxLxH): 1.57 x 0.79 x 1.50 in (39.9 x 20.1 x 38.1 mm)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Gear Type: Metal
• Gear Material: Titanium

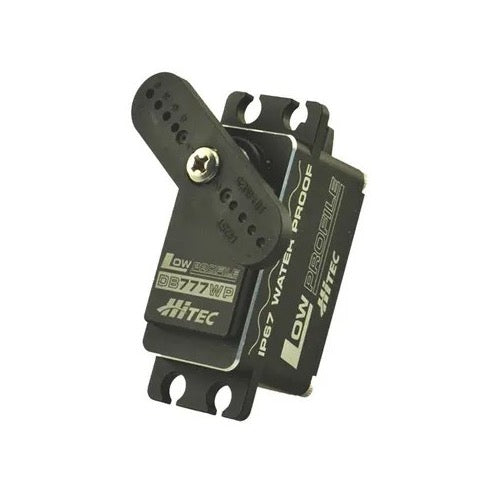

Hitec is excited to introduce the new addition to their D-Series servo line, the high-performance, low profile DB777WP. Designed with a full metal, IP-67 rated waterproof case, this advanced, programmable servo is our fastest, low profile option for 1/10 buggy and touring car drivers.

Features

• Voltage range is 4.8V - 8.4V
• Ultra-efficient brushless motor
• 32-Bit MCU Technology / 4096 Resolution
• Smart Sense technology for servo analytics
• High response, high-resolution circuitry
• Full metal case
• Full programmability
• 1M cycle, long-life potentionmeter
• IP-67 waterproof rated
• H25T - industry standard output spline

Specs

• Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
• Speed (Second @ 60°): 0.08 ~ 0.06
• Maximum Torque Range oz. / in.: 111 ~ 153
• Maximum Torque Range kg. / cm.: 8.0 ~ 11.0
• Current Draw at Idle: 35mA / 40mA
• No Load Operating Current Draw: 250mA / 350mA
• Stall Current Draw: 3500mA / 4500mA
• Dead Band Width: 1usec
• Dimensions (Inches): 1.61 x 0.83 x 1.04 in.
• Dimensions (Metric): 41.0 x 21.0 x 26.5
• Weight (Ounces): 2.4
• Weight (Gram): 68
• Circuit Type: 32bit Programable Digital
• Motor Type: Brushless
• Gear Material: Metal
• Bearing Type: Brushless
• Output Shaft (type / Ømm): H25T
• Case Material: Aluminum
• Dust / Water Resistance: IP-67 Rated
• Connector Gauge (AWG) / Strand Count: 20AWG / 80
