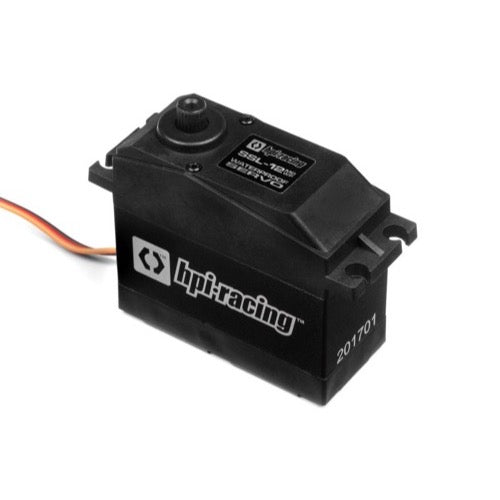

HPI 120020 HPI SSL-12MGWP Servo Waterproof 7.4V 35KG Metal Geared
This waterproof, digital,large scale metal gear servo is ideal for bashers and racers looking for a tough and durable servo for absolutely any kind of condition.
Use this in your Baja buggy or truck, or any kit that requires a large scale servo.
Features
- Operating Voltage: 6-7.4V
- 6V: Speed: 0.18 sec/60 degrees, Torque: 28kg-cm
- 7.4V: Speed: 0.15 sec/60 degrees, Torque: 35kg-cm
- Servo Spline: 25T
Dimensions
- Main case: 65.8x59.1x30.0mm (excluding mounting tabs, servo spline, & cable outlet)
- Mounting tab hole centres: 75.0x18mm
- Weight: 200g (excluding servo horn)
Please note: Waterproof guarantee is voided if servo case has been opened.

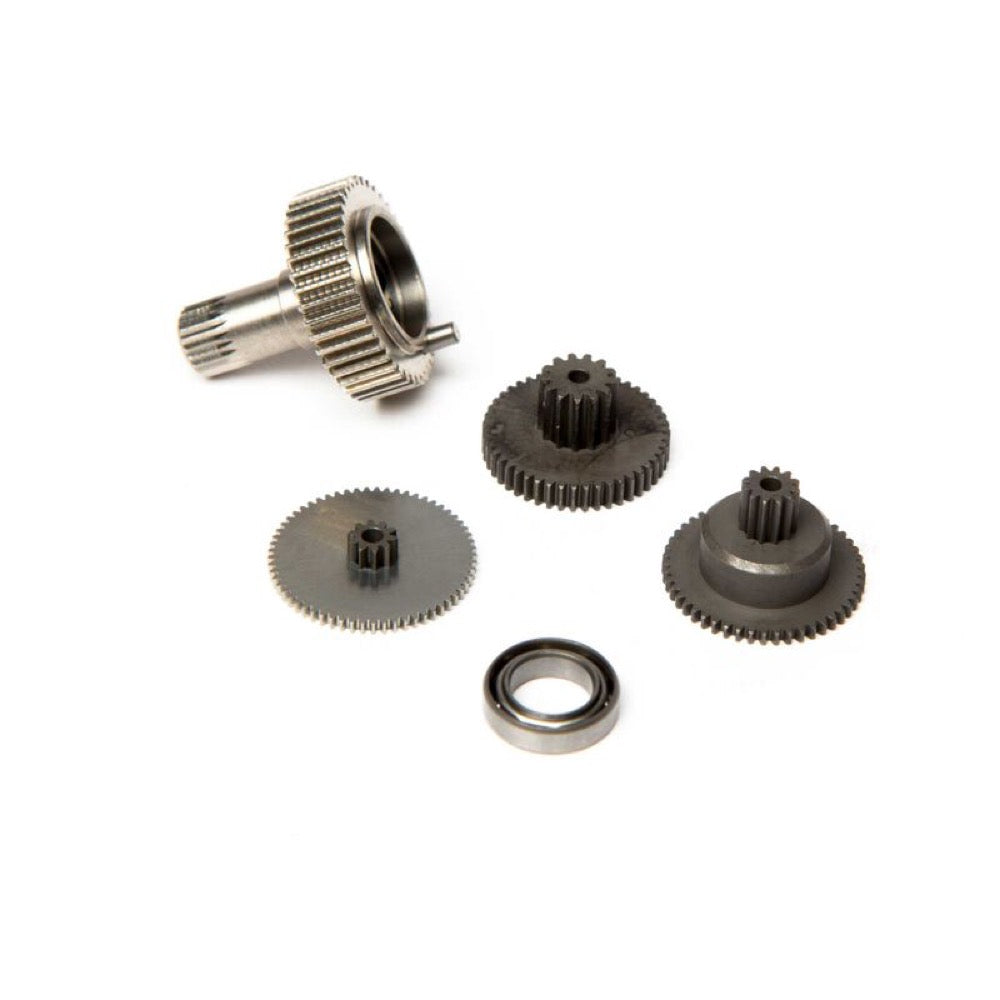

Spektrum SPM6836 Replacement Servo Mechanics, 2.3-Gram 2030L
Spektrum Replacement Servo Mechanics 2.3 Gram 2030L

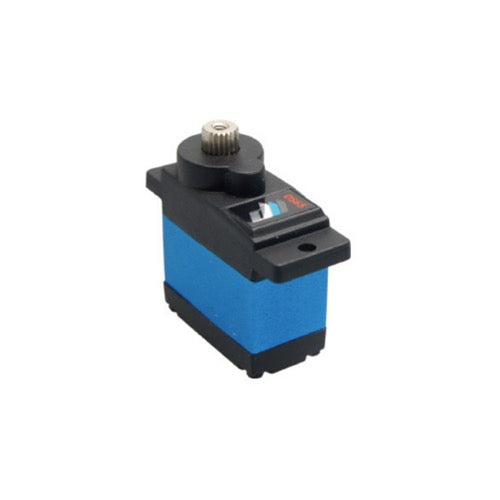

Dualsky DS65 DS65 Micro Digital Servo 1.5kg at 6.0v
Dualsky DS65 Micro Digital Servo, 1.5kg at 6.0v

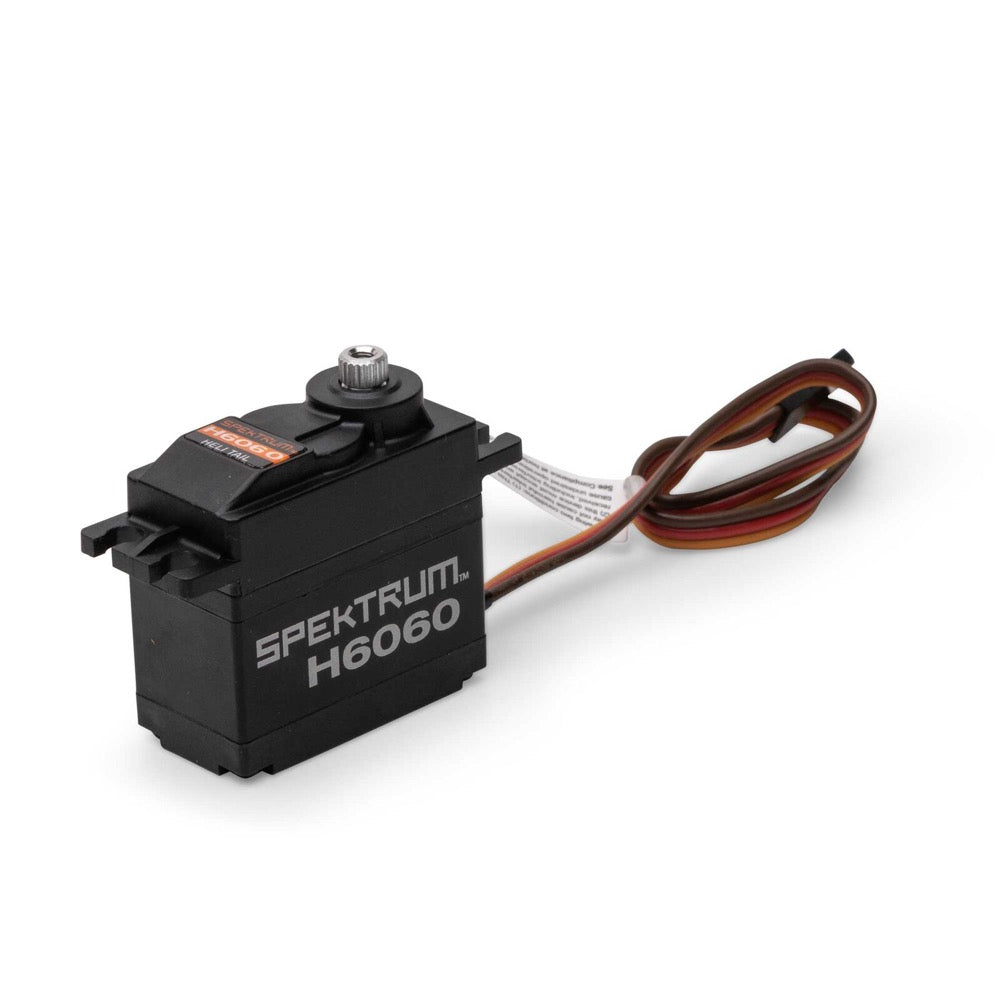

Spektrum SPMSH6060 H6060 Mid-Torque Ultra-Speed Heli Tail Servo
The H6060 is a budget friendly digital tail rotor servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 86oz of torque and a blazing fast .056 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.
Features
- Standard size servo for 500 size Helicopter models and smaller
- 86oz Torque and .056 sec speed at 6.0v
- 4.8v-6.0v input voltage
- Long 10 inch (255mm) connector wire to reduce the need for extensions
- 23 Tooth spline
- Bearing supported output spline
Specification
- Size Category: Standard
- Type: Digital
- Application: Heli Tail
- Torque:86 oz-in (6.2 kg-cm) @ 6.0V
- Speed: 0.056 sec/60 deg @ 6V at no load
- Length: 1.57 in (39.9 mm)
- Width: 0.78 in (19.8 mm)
- Height: 1.57 in (39.9 mm)
- Weight: 2.2 oz (62g)
- Bushing Or Bearing: Bearing
- Bearing: Dual
- Motor Type: Coreless
- Connector Type: Z-Connector
- Gear Type: Metal
- Gear Material: Alloy
- Voltage: 4.8-6.0V
- Deadband: Ex: 8µs

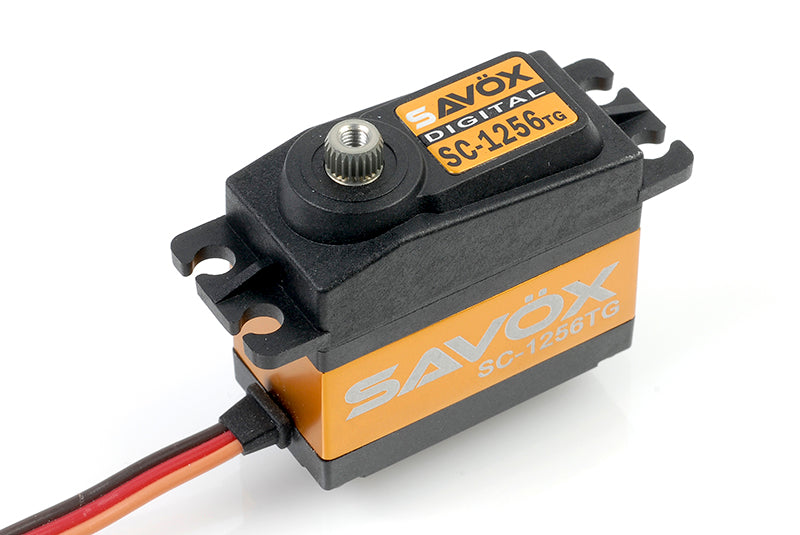

Savox SC1256TG SC-1256TG High Torque Titanium Gear Digital Servo
The SC1256TG pushes 277.2 oz of torque and this servo is perfect for those who are running a 4x4 short course truck and don't want to blow their whole wad on their servo. The SC-1256TG sports titanium and metal gears to keep things strong and running smooth.
Features

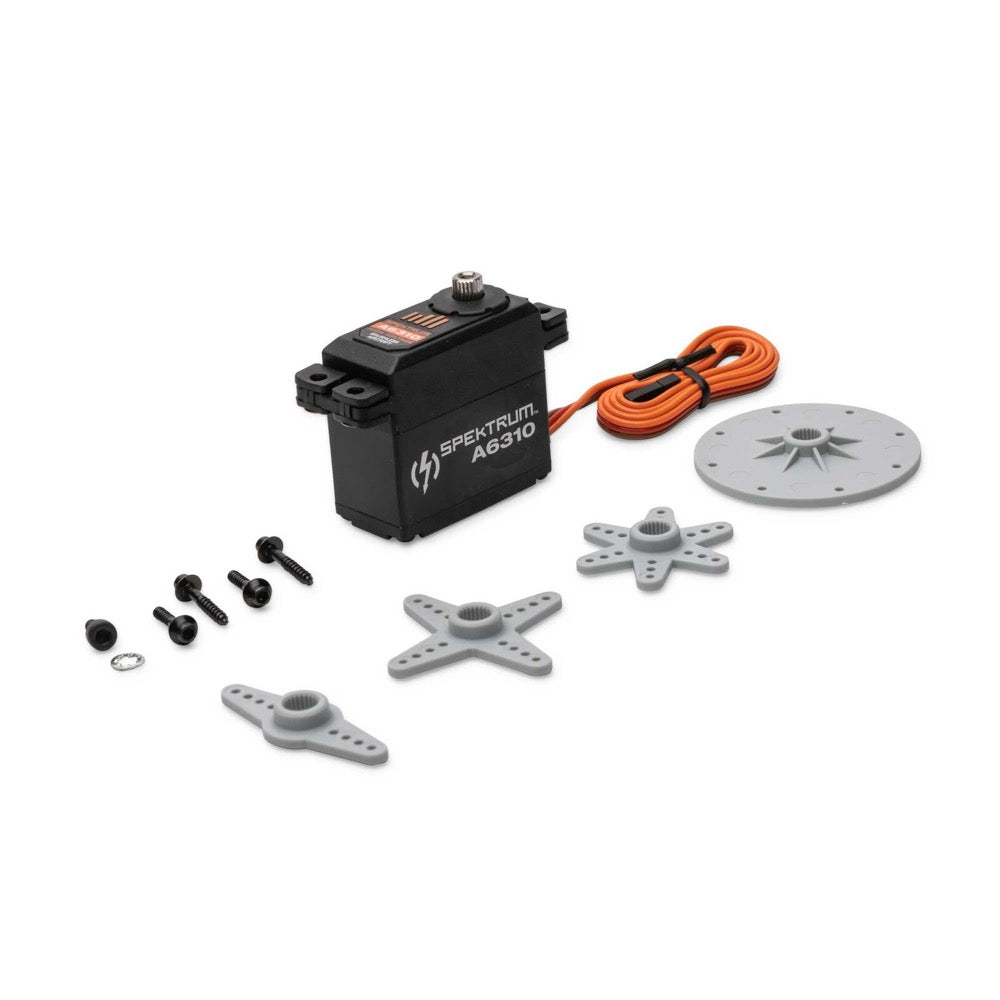

Spektrum SPMSA6310 SA6310 High Torque HV Metal Gear Digital Servo
Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software combine with powerful brushless motor technology to offer ultra-smooth performance more efficiently than servos with conventional motors. The aluminum center section allows any heat within the servo to dissipate rapidly while high-strength metal gears and high-impact polymer case components deliver a precision instrument that’s hassle-free.
The Spektrum A6310 uses this solid foundation, plus additional inner support, to achieve an outstanding balance of power, durability and value, in addition to the peace-of-mind over-current and over-temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding choice for 60-120cc Aerobatic models and most sport flying Giant Scale models.
*Torque and Transit @ 8.4V
Features
- High Voltage (HV) capable (6.0-8.4v input range)
- Outstanding torque and speed in a standard servo size (350 oz-in and .10 sec/60° @8.4v)
- Durable and long lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Aluminum center servo case helps keep operating temperatures low
- Soft start helps prevent component and airframe damage during un-intentional initializations
- Over Current and Temperature protection
- Helpful initialization start tone lets pilot know when the servo is ready
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Frequency : 50-400hz
Specification
- Application: Airplane
- Bearing: Dual Ball Bearing
- Bushing Or Bearing: Bearing
- Connector Type: Universal
- Connector Wire Length: 18.1" (460 mm)
- Deadband: 3µs
- Gear Type: Metal
- Maximum Servo Speed: 0.12 sec/60 deg @ 6.0V; 0.11 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V
- Maximum Servo Torque: 192.4 oz-in (13.8 kg-cm) @ 6.0V; 302.1 oz-in (21.8 kg-cm) @ 7.4V; 350.0 oz-in (25.2 kg-cm) @ 8.4V
- Motor Type: Brushless
- Overload Protection: Yes
- Product Application: Air
- Product Height: 1.57" (40 mm)
- Product Length: 1.49" (38 mm)
- Product Weight: 2.5 oz (71 g)
- Product Width: 0.79" (20 mm)
- Programmable: No
- Servo Operating Voltage: 6.0 - 8.4V (HV
- Servo Size Category: Standard
- Servo Type: Digital
- Spline Count: 23 Teeth
- Water-Resistant: No
